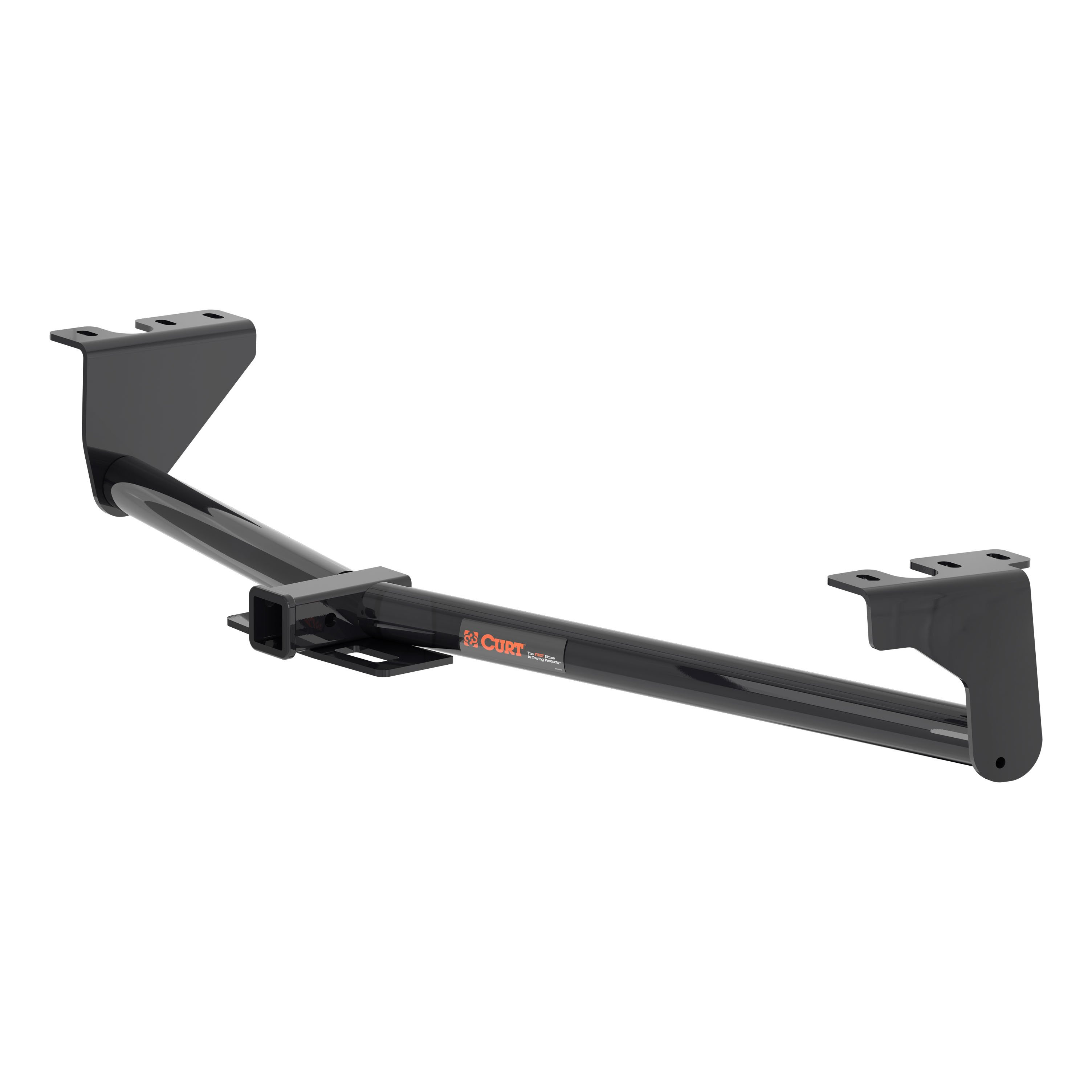

Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2022 - 2026 Kia Carnival. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Kia Carnival (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 665 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Hyundai Palisade, Hyundai Santa Cruz and Kia Telluride (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7-prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7-way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2026 | Kia Carnival | — |
The CURT 13478 has a gross trailer weight (GTW) capacity of 4,000 lbs and a tongue weight (TW) capacity of 600 lbs. Never exceed your vehicle manufacturer's recommended towing capacity.
The manual does not specify which vehicle makes, models, years, cab styles or bed lengths the CURT 13478 is designed for. Contact CURT product support at 877.287.8634 or check curtmfg.com to confirm fitment for your specific vehicle before purchasing.
Required tools: paint marker, 6" socket extension, exhaust hanger removal tool, torque wrench, ratchet, tape measure, shears, trim panel pry tool, 3/4" socket, and 5/8" open-end wrench. A stand to support the exhaust is also required. For a full tools reference guide, visit curtmfg.com/trailer-hitch-installation.
The kit includes 6 hex bolts (M12-1.25 x 40mm, CL8.8) and 6 conical-toothed washers (1/2"). The vehicle must have existing weldnuts on both driver- and passenger-side frame rails.
Yes. In Step 1, remove the plastic cover on the driver side by removing six plastic clips. Set the cover and five clips aside for reinstallation later. Return one clip to the vehicle owner. The cover will be trimmed in Step 4 and reinstalled in Step 6.
Yes. In Step 2, lower the exhaust by removing the two rearmost rubber isolators from the exhaust hanger rods. Use a stand to support the exhaust and prevent damage. The exhaust will be reinstalled in Step 6 after the hitch is mounted.
Use an exhaust hanger removal tool if available. If not, use a 5/8" open-end wrench: slide it up to the rubber isolator, cradling the hanger rod. Place the flat edge of a pry bar between the wrench and the hanger stop or rod, then rotate the pry bar toward the wrench to remove the isolator. Using lubricant or soapy water on the hanger rod and isolator helps removal.
Spray lubricant or compressed air into the weldnut holes to remove debris. For heavy debris, use a wire brush. Take care not to damage the threads.
1. Remove the plastic cover and six plastic clips (Step 1). 2. Lower the exhaust by removing two rubber isolators and support with a stand (Step 2). 3. Raise the hitch into position, sliding the passenger side over the exhaust first, and align three holes on each side with weldnuts (Step 3). 4. Trim the plastic cover to dimensions shown (Step 4). 5. Inspect hitch and bumper fascia clearance; trim bumper fascia if needed (Step 5). 6. Reinstall the plastic cover and exhaust (Step 6).

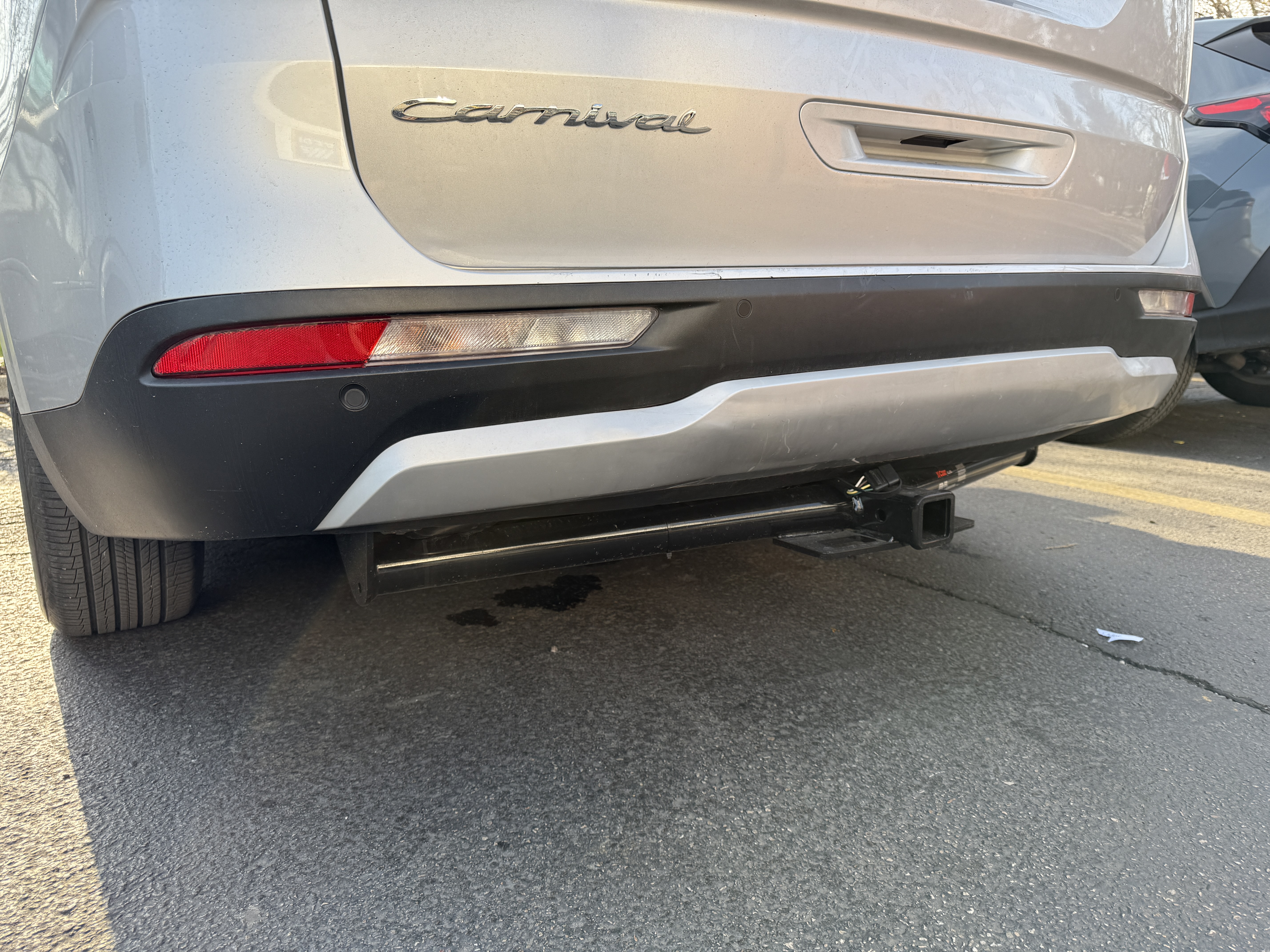

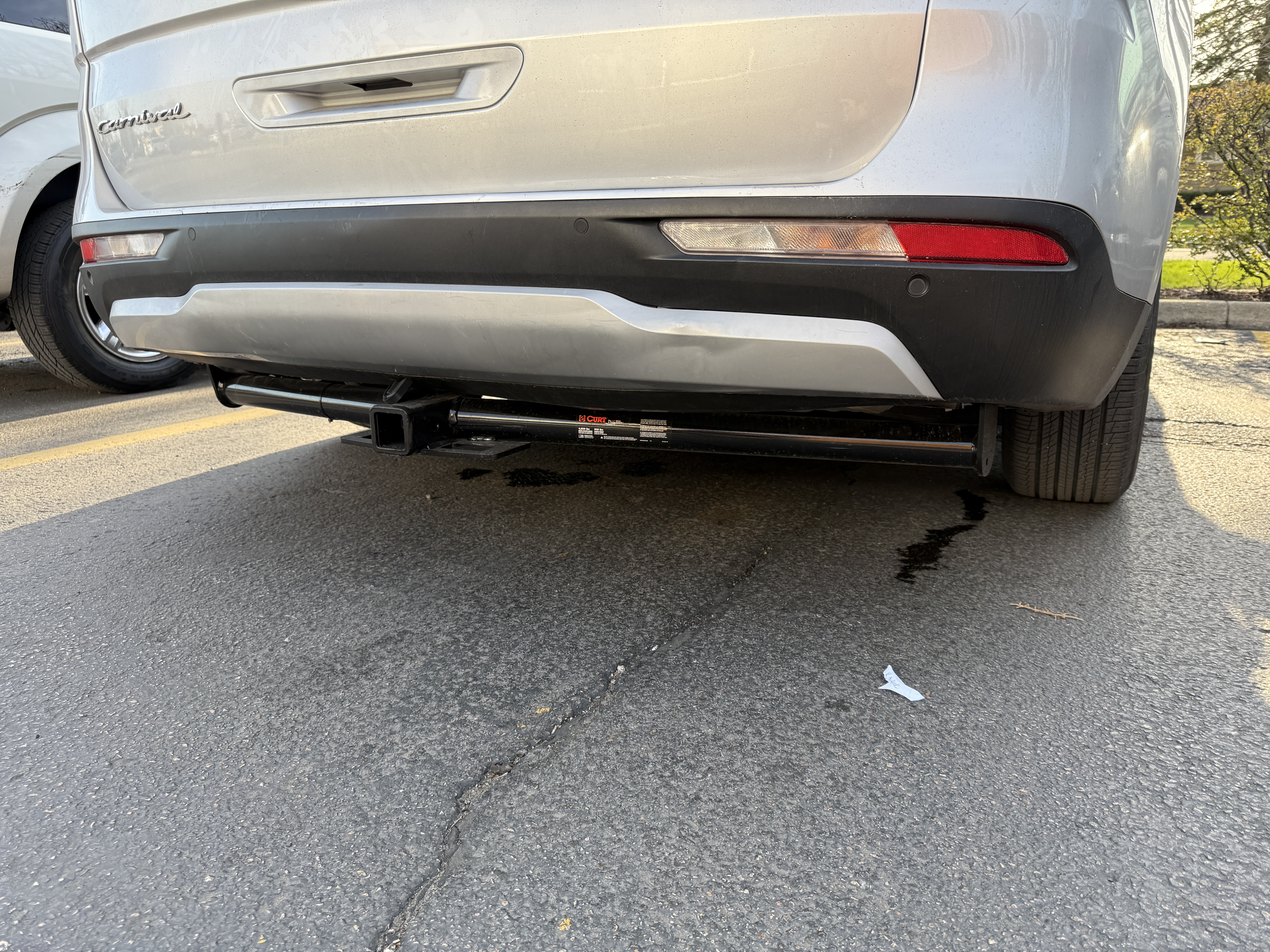

In Step 3, raise the hitch into position by sliding the passenger side of the hitch over the exhaust first. Align the three holes in the hitch with the three weldnuts in the bottom of both driver- and passenger-side frame rails. Loosely install three hex bolts and three conical washers on each side before torquing.
Torque all M12 fasteners to 60 ft-lbs. Install the bolts and washers loosely first, then torque to specification after alignment.
The hex bolts are M12-1.25 x 40mm, Class 8.8. Six bolts are included, three for each side of the hitch.
The conical-toothed washers are 1/2" in size. Six washers are included, three for each side of the hitch.
The conical-toothed washer should be placed between the hex bolt and the hitch side plate, with the toothed side facing the hitch to grip and prevent loosening.
No drilling is required. The hitch aligns with three existing weldnuts on each side of the vehicle frame rails. However, the plastic cover must be trimmed to dimensions shown in Step 4, and the bumper fascia tab may need trimming for clearance in Step 5.
Trim the plastic cover to the following dimensions: 10-3/8" width, 6-3/4" height, 4" depth, and 1-3/4" at the bottom section. Use shears to cut the cover as shown in Step 4.
Trim the bumper fascia tab only if needed for clearance. In Step 5, inspect the hitch and the bumper fascia tab on the passenger side near the exhaust. If additional clearance is needed between the hitch and bumper fascia tab, trim the fascia tab as needed.
Wear safety glasses at all times during installation. Use a stand to support the exhaust when it is lowered to prevent damage. Never exceed your vehicle manufacturer's recommended towing capacity when using the hitch.
Never exceed your vehicle manufacturer's recommended towing capacity. The CURT 13478 is rated for 4,000 lbs GTW and 600 lbs tongue weight, but your vehicle's capacity may be lower.
In Step 5, inspect the hitch and the bumper fascia tab on the passenger side near the exhaust to ensure adequate clearance. Trim the bumper fascia tab if needed. After installation, perform periodic inspections to ensure all mounting hardware remains tight and structural components are secure.
Periodic inspection of the trailer hitch should be performed to ensure all mounting hardware remains tight and structural components are secure. The manual does not specify the exact interval; consult your vehicle owner's manual or contact CURT product support at 877.287.8634 for recommended inspection frequency.
The manual specifies that all M12 fasteners should be torqued to 60 ft-lbs during installation and that periodic inspection should ensure all mounting hardware remains tight. However, the manual does not specify a retorque interval. Contact CURT product support at 877.287.8634 for retorque recommendations.
Part 56466 is designed for SUVs and Vans (S). The manual does not list specific vehicle makes, models, or model years. Contact Curt Manufacturing or consult a fitment database to confirm compatibility with your vehicle.
Part 56466 is a wiring harness for SUVs and vans that converts vehicle lighting signals to trailer lighting signals. It includes a custom wiring harness, a black converter box, a 7-way connector, and a fuse holder with fuse.
You will need a ratchet, 14mm socket, socket extension, panel trim removal tool, and cutting tool.
The kit includes a custom wiring harness with dust cover, a black converter box with double-sided tape for mounting, a 7-way connector, a fuse holder, and a fuse. The manual does not specify the fuse amperage or list all fasteners included.
Yes. You must disconnect the negative battery terminal before beginning installation and reconnect it after all other steps are complete.
The installation is rated as Easy. Installation difficulty is based on time and effort involved and may vary depending on installer expertise, vehicle condition, and availability of proper tools and equipment.
The custom wiring harness is connected to the OEM (original equipment manufacturer) harness. For this product, the wiring location is S5, which is behind the driver side rear bumper. The manual shows ten possible wiring locations (S1–S10) for different vehicle types, but only S5 applies to part 56466.
1. Remove the dust cover from the custom harness, taking care not to damage the locking tabs. 2. Insert the custom wiring harness end onto the OEM harness. 3. Make sure the connectors are fully inserted with the locking tabs in place. 4. Install the custom wiring harness.
Locate the plastic shroud below the driver-side rear bumper cover. Remove the three push fasteners and the two 14mm bolts (which are part of the shroud). These bolts are push nuts and should be tightened after reinstallation so they do not cause noise.
Mount the black converter box on a flat, clean surface that is out of the path of spray and debris from the rear wheels and road. Use the provided double-sided tape to adhere it. Failure to mount the box in a protected area can cause loss of warranty, product failure, overheating, and potential fire.
Install the 7-way connector in the center of the rear of the vehicle next to the hitch.
Signal circuits: 5.0 amps per side. Tail/Running circuits: 7.5 amps total.
The battery connection must be fuse-protected with a 15-amp maximum fuse. The fuse is installed in the fuse holder on the custom wiring harness.
Install the fuse from the bag kit into the fuse holder on the custom wiring harness. The manual does not specify the fuse amperage or type.
The battery connection must be fuse-protected with a 15-amp maximum. Exceeding this rating can cause loss of warranty, overheating, and potential fire.
Once the custom wiring harness is installed, verify that the harness is functioning by attaching the 7-way connector to any vehicle with functioning trailer lights. The taillights on the tow vehicle should function along with the taillights on the towing vehicle.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections.
