B&W 10K 5" Drop 5.5" Rise ( 1-7/8" , 2-5/16" Balls) Adjustable Ball Mount Hitch For 2" Recievers TS10048BB&W Trailer Hitches$279.00In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
2021 - 2024 Genesis GV80
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Select your vehicle to find the exact plug-and-play parts that fit — no cutting or splicing.
| Finish | GLOSS BLACK POWDER COAT |
| Main Body Shape | Square |
| Material | Carbon Steel |
| Mount Type Description | Not Applicable |
| Receiver Tube Size | 2 IN |
| Side Application Type Description | Not Applicable |
| Tongue Weight (TW) | 600 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Weight Carrying Capacity (WC) | 6,000 LB |
| Side Application Type Description | Blank |
| Tongue Weight (TW) | 350 LB |
| Warranty | Limited Lifetime Warranty (One-Year Finish, One-Year Parts) |
| Drop | 3-1/4 IN |
| Finish | GLOSS BLACK POWDER COAT |
| Gross Trailer Weight (GTW) | 3,500 LB |
| Material | Blank |
| Mount Type Description | Blank |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2021 - 2024 | Genesis GV80 | — |
The manual specifies a gross load capacity of 6,000 lbs trailer weight and 900 lbs tongue weight when used as a weight-carrying hitch. However, you must not exceed your vehicle manufacturer's recommended towing capacity, which may be lower. Check your vehicle's owner manual for the specific limit.
Yes, the CURT 13464 is designed for the 2021 Genesis GV80. The manual confirms this is the correct part number for this vehicle.

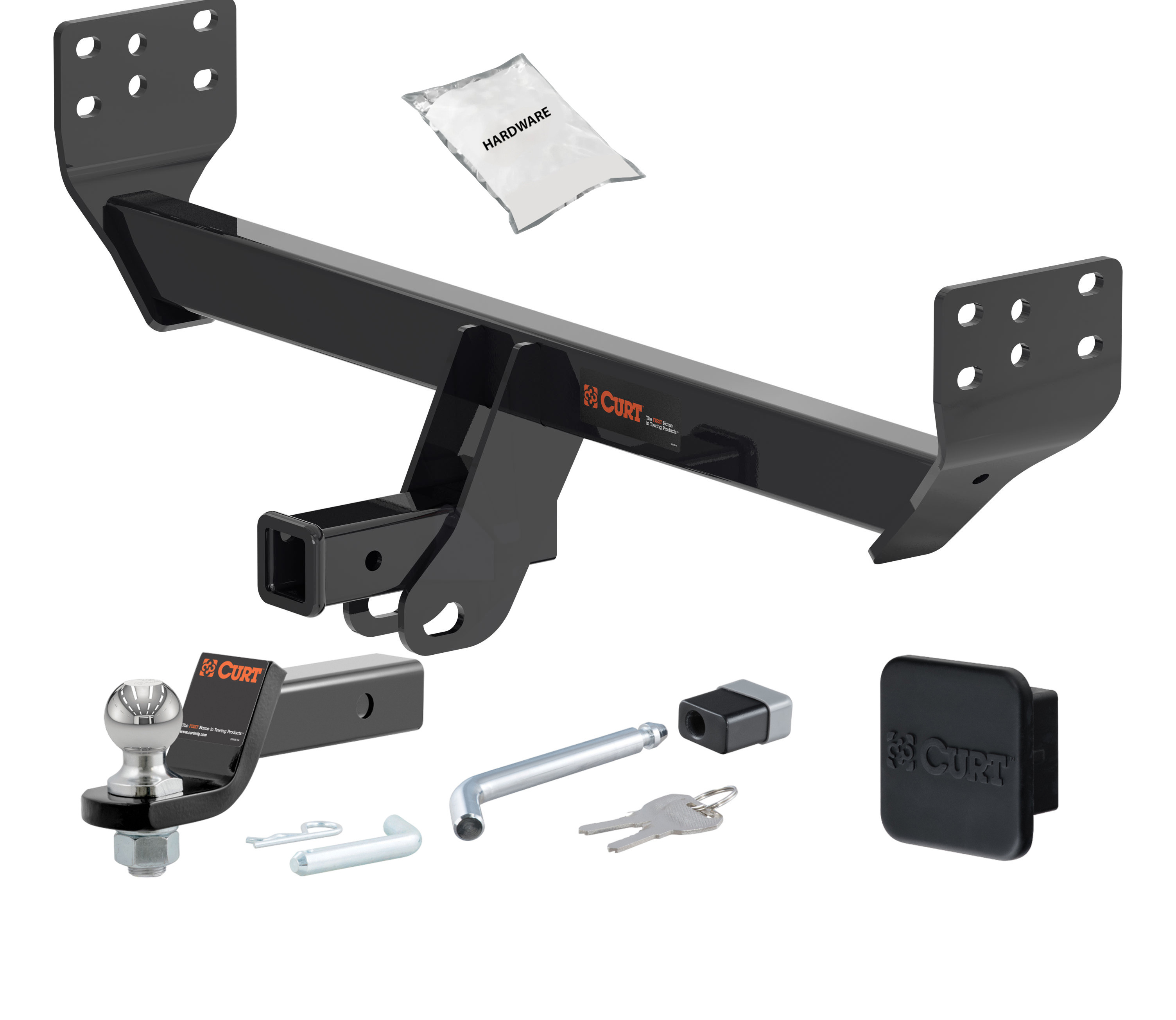

The kit includes 8 M12×1.25 hex cap screws (part 10-10277) and 8 conical-toothed washers (part 30-00149). These fasteners are used to attach the hitch to the vehicle frame weld nuts.
You will need: a ratchet, a torque wrench, a 19mm socket, a 10mm socket, a 6-inch extension, and safety glasses. You will also need a stand to support the muffler during installation.
No, drilling is not required. The hitch uses existing weld nuts on the vehicle frame for attachment.
Yes, you will need to temporarily lower the muffler and remove the bottom exhaust bezel to access the frame mounting points. The muffler is lowered by removing 4 exhaust hanger rods from rubber isolators. The bezel is removed by taking off 2 nuts on each side. Both are reinstalled after the hitch is secured.
Yes. Step 3 requires you to remove 2 existing foam pads from the vehicle frame on each side (4 total) to allow the hitch to sit flush against the frame.
All M12 hex bolts must be torqued to 86 ft-lbs after the hitch is raised into position.
Loosen installation first: Step 4 instructs you to 'loosely install' the 4 M12 hex bolts with conical-toothed washers into the weld nuts. Once the hitch is raised into position, then torque all M12 bolts to 86 ft-lbs.
The hitch uses 4 M12 hex bolts total—2 on the driver side and 2 on the passenger side—each with a conical-toothed washer. These bolt into existing weld nuts on the frame.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch has a gross load capacity of 6,000 lbs trailer weight and 900 lbs tongue weight, but your vehicle's limit may be lower. Always check your vehicle owner's manual for the maximum towing capacity.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This helps maintain safe operation and prevent loosening due to vibration and use.
The manual does not specify whether professional installation is required or recommended. Contact CURT Manufacturing technical support at 1-877-287-8634 for guidance on whether your skill level and available tools are suitable for DIY installation.
Yes, the CURT 13464 is designed for the 2021 Genesis GV80.
No drilling required. The hitch uses existing weld nuts on the vehicle frame.
Ratchet, torque wrench, 19mm socket, 10mm socket, 6-inch extension, safety glasses, and a stand to support the muffler.
Yes, you must temporarily lower the muffler and remove the exhaust bezel. Both are reinstalled after the hitch is secured.
All M12 hex bolts must be torqued to 86 ft-lbs.
Gross load capacity is 6,000 lbs trailer weight and 900 lbs tongue weight, but do not exceed your vehicle manufacturer's recommended towing capacity.
