Complete CURT Class 3 2" trailer hitch and 4-flat custom wiring kit engineered for the 2024 - 2024 Jeep Compass. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Jeep Compass (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 4,000 lbs. GTW and 600 lbs. TW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Jeep Compass (to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2024 | Jeep Compass | — |
The 24 - 24 Jeep Compass Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13363 (Part #CHW-1968) fits 2024-2025 Jeep Compass models. The 2025 model year is the last year covered by this part number. For newer models, check for an updated version.
The 24 - 24 Jeep Compass Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13363 (Part #CHW-1968) fits the following vehicles: 2024-2025 Jeep Compass. Always verify your specific year, make, and model before ordering.
Yes, the 24 - 24 Jeep Compass Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13363 (Part #CHW-1968) is designed to fit the 2024-2025 Jeep Compass.
The 24 - 24 Jeep Compass Curt 2", Class 3 Trailer Tow Hitch + 4-flat Wiring Kit 13363 (Part #CHW-1968) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, CURT part number 13363 is designed for Jeep Compass models from 2017.5-Present. Confirm your model year falls within this range before purchasing.
The CURT 13363 is rated for a maximum trailer weight of 4,000 lbs and a tongue weight of 600 lbs when used as a weight-carrying hitch. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower.
The hitch weight is 90 lbs.
Professional installation takes approximately 42 minutes. DIY (novice) installation takes approximately 45 minutes. The manual rates this as a challenging installation and recommends 2 people may be required to ease installation.
Required tools include: ratchet, torque wrench, safety glasses, T30 Torx bit, sockets (11mm, 13mm, 15mm, 21mm, 3/4"), 6" socket extension, masking tape, tape measure, aviation shears, die grinder, pliers, and marker. Safety glasses must be worn at all times during installation.
The kit includes: 6× 1/2-13 UNC carriage bolts, 1-3/4" grade 8 (part 10-10272); 2× M8x1.25 hex cap screws, 45mm class 10.9 (part 10-10464); 6× 1/2-13 UNC serrated flange nuts grade 8 (part 20-00062); 6× 0.250 x 1.00 x 2.50" square hole spacers (part CM-SP10); 6× 1/2" fishwire (part 1_2 FISHWIRE); and 2× 3/8" S-con washers (part 30-00148).
You do not need to fully remove the bumper, but you must remove the 2 screws attaching the bumper fascia to the body mounts using a T30 Torx bit (step 1). You will also need to trim a 3 3/8" side-to-side by 2 5/8" lengthwise cutout from the lower bumper cover (step 5). The bumper fascia screws are reinstalled at the end (step 9).
You must remove the bolts on the 2 rearward-most exhaust hanger brackets using a 13mm socket (step 2). Support the exhaust before removing these fasteners to prevent damage. The manual notes that temporarily removing the exhaust will ease installation; if you choose to do this, loosen the nut at the bolted connection in the middle of the vehicle with a 15mm socket. The exhaust is reinstalled at the end (step 9).
Yes. Remove the 3 sheet metal nuts holding the heat shield in position using an 11mm socket (step 3). Remove the heat shield and trim the exhaust attachment tabs from it. Reinstall the heat shield center onto the vehicle after trimming.
No drilling is required. However, you must use a die grinder to enlarge the rearward-most holes in the bottom of the frame to allow the supplied carriage bolts and spacers to pass through (step 4). You must also trim a 3 3/8" side-to-side by 2 5/8" lengthwise cutout from the lower bumper cover using tin snips or aviation shears (step 5). These dimensions are reference only; verify hitch location on your vehicle before trimming.
The trim cutout is 3 3/8" side-to-side and 2 5/8" lengthwise. These dimensions are reference only; the manual instructs you to check hitch location on your vehicle prior to trimming to ensure proper fit.
Yes. Using pliers, bend the 2 small locator tabs flat on each exhaust bracket or remove them entirely (step 6).
Torque all 1/2" fasteners to 110 lb-ft. Torque all M14 fasteners to 126 lb-ft. (Step 8). The manual does not provide a torque specification for the M8x1.25 fasteners (part 10-10464).
1. Remove bumper fascia screws (T30 Torx bit). 2. Remove exhaust hanger bracket bolts (13mm socket) and support exhaust. 3. Remove and trim heat shield (11mm socket). 4. Enlarge frame holes with die grinder and fishwire carriage bolts and spacers into position. 5. Mark and trim bumper cover cutout (3 3/8" × 2 5/8"). 6. Bend or remove exhaust bracket locator tabs (pliers). 7. Thread fishwires into hitch mounting holes, raise hitch into position, and install flange nuts. 8. Torque all fasteners. 9. Reinstall exhaust and bumper fascia screws. For tow hook equipped models, skip steps 3-4 and use the 6 existing 14mm hex bolts from the vehicle frame instead.
Thread fishwires into the hitch mounting holes and raise the hitch into mounting position with the main body on the rearward side of the bumper fascia body mounts. Pull downward on the rear bumper cover approximately 5" to accomplish getting the hitch in position. Remove the fishwires and install the 6 supplied 1/2" hex flange nuts (step 7).
The CURT 13363 is rated for 4,000 lbs trailer weight and 600 lbs tongue weight. However, you must never exceed your vehicle manufacturer's recommended towing capacity, which may be lower than the hitch rating. Always follow your vehicle's towing guidelines.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This maintenance is critical for safe towing operation.
The manual states that the hitch may interfere with the lift gate kick sensor on TrailHawk models. If you have a TrailHawk model, verify clearance and sensor function after installation.
Yes. For tow hook equipped models, use the 21mm socket to remove the 6 existing 14mm hex bolts from the vehicle frame and use them to attach the hitch. Follow steps 2, 3, 5, 6, 8, and 9 (skip steps 1 and 4). This simplifies installation by eliminating the need to enlarge frame holes and use carriage bolts.
The manual recommends that 2 people may be required to ease installation. The installation is rated as challenging. If you are hesitant to undertake this task on your own, contact an authorized CURT installer for additional assistance. Technical support is available at 877-287-8634.
Yes, CURT 13363 fits Jeep Compass 2017.5-Present. Verify your model year before purchasing.
4,000 lbs trailer weight, 600 lbs tongue weight. Never exceed your vehicle manufacturer's recommended towing capacity.
Ratchet, torque wrench, T30 Torx bit, sockets (11mm, 13mm, 15mm, 21mm, 3/4"), 6" extension, die grinder, aviation shears, pliers, tape measure, marker, masking tape, and safety glasses.
No drilling required. You must use a die grinder to enlarge existing frame holes and trim the bumper cover (3 3/8" × 2 5/8" cutout).
Torque all 1/2" fasteners to 110 lb-ft. Torque all M14 fasteners to 126 lb-ft.
Professional: 42 minutes. DIY: 45 minutes. Rated as challenging; 2 people recommended.
The hitch may interfere with the lift gate kick sensor on TrailHawk models. Verify clearance and sensor function after installation.
The Curt 56472 is a powered converter wiring harness designed for SUVs and vans. It converts vehicle taillight signals (left turn, right turn, brake, and tail/running lights) into a 4-flat trailer connector format. The system includes a converter box that processes these signals and routes them through custom wiring harnesses to the rear of the vehicle.
No. The Curt 56472 is designed specifically for SUVs and vans and must be used only on 12-volt negative ground electrical systems. Check your vehicle's electrical system before purchasing. The manual does not list specific vehicle models or years, so contact the manufacturer or consult your vehicle owner's manual to confirm compatibility with your specific vehicle.
You will need: ratchet, cutting tool, socket extension, wire crimper, Torx bit T-27, wire stripper, flathead screwdriver, and electrical tape. The manual also recommends an abrasive pad or paper to remove rust and paint from the grounding point, and you may need a drill with a 3/32" bit if a grounding point does not already exist on your vehicle frame.

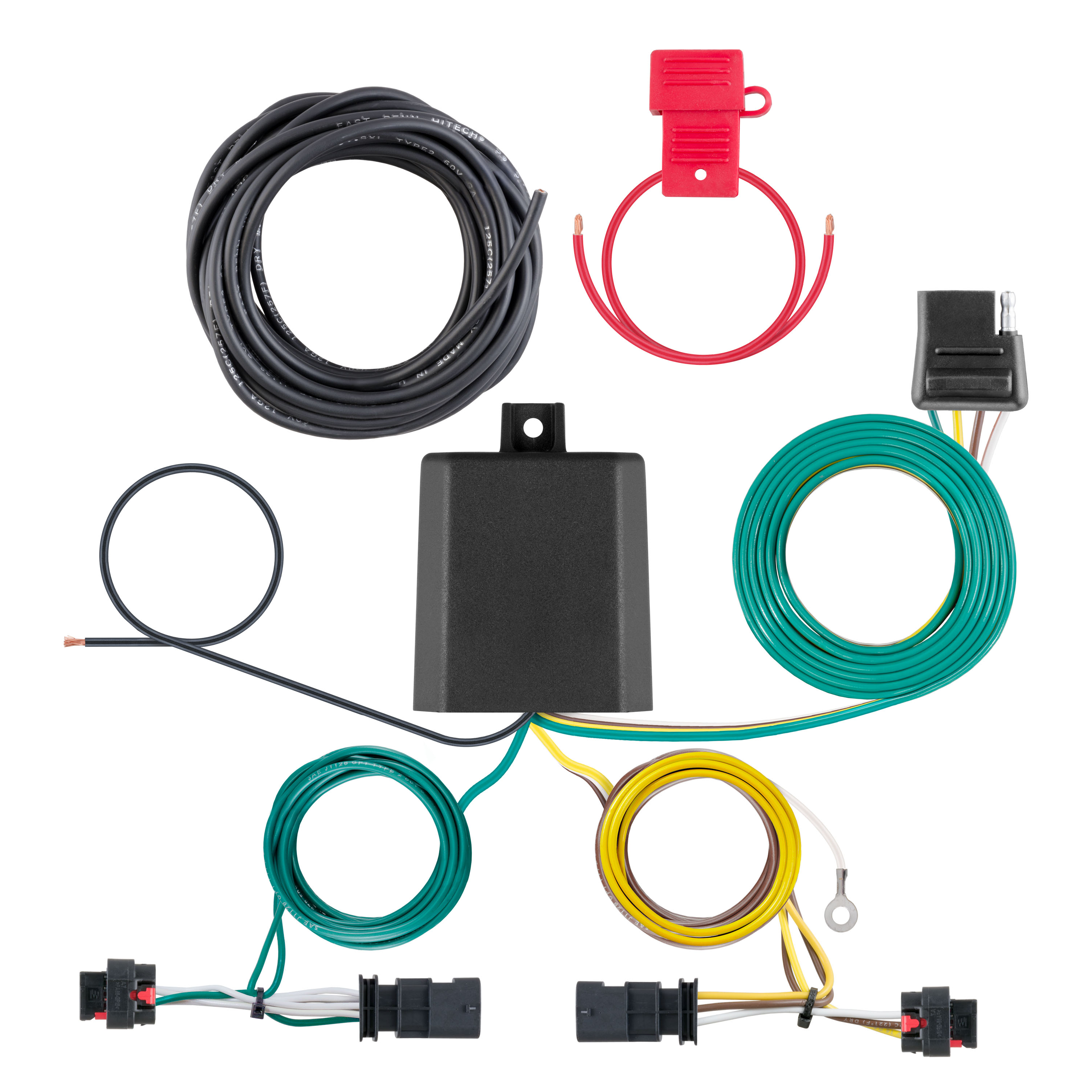

The kit includes: custom wiring harnesses with yellow and green wire housings, a black converter box, a white ground wire with ring terminal, a ground screw, double-sided tape, zip ties, cable ties, a fuse holder with 10-amp maximum fuse, and butt connectors. Fish wire is not included but can be made from a cut-up wire hanger, stiff wire, rope or string.
Yes. You must disconnect the negative battery terminal before beginning installation and keep it fastened down and away from the battery throughout the installation process. This is a required safety step to prevent electrical shock and short circuits.
The manual rates the installation difficulty as 'Easy' based on time and effort involved. However, the actual difficulty may vary depending on your expertise level, your vehicle's condition, and whether you have the proper tools and equipment. The installation involves disconnecting the battery, removing taillights, routing wiring through the vehicle, drilling (if necessary), and making electrical connections. If you are not comfortable with these tasks, professional installation is recommended.
Fish wire is a tool used to push or pull electrical wire through a blind hole (a hole you cannot see through). For the Curt 56472, you route fish wire down between the bumper cover and vehicle body, then use tape to secure the harness to the fish wire and pull it back up. Fish wire can be made from a cut-up wire hanger, stiff wire, rope or string. If the harness gets hung up, you may need to push back down, wiggle it around, or twist the wire to loosen it.
The yellow wire housing connects to the driver side taillight. The green wire housing routes above the bumper mount and along the bumper to the passenger side, then above the passenger-side bumper mount. Both housings attach to the vehicle factory wiring and connect to the taillights. Zip ties are used to secure the green wire housing along the bumper as needed.
1. Open the rear hatch and locate the taillight trim cover. 2. Use a flathead screwdriver to open the taillight fastener covers. 3. Use a T-27 Torx bit to remove the screws (be careful not to lose them between the trim and taillight, as fasteners could be above the bumper or fall through to the floor). 4. Pull the taillight straight back. 5. Locate the vehicle taillight wiring connectors and separate them from the taillight housing, taking care not to damage the locking tabs. 6. Set the taillight aside. Repeat on the other side of the vehicle.
Not necessarily. On the driver side, locate an existing screw or bolt in the vehicle frame to use as a grounding point. If no suitable existing fastener is available, you may drill a 3/32" pilot hole. The area must be free from rust, dirt, and paint—use an abrasive pad or paper to clean it. Before drilling, check for miscellaneous items that may be hidden behind or under the surface to avoid damage and personal injury.
If you need to drill a grounding point for the white ground wire, drill a 3/32" pilot hole. The area should be free from rust, dirt, and paint before drilling. Use an abrasive pad or paper to clean the area.
The Curt 56472 has the following electrical ratings: Signal circuits (left turn and right turn) are rated at 3.0 amps per side, and Tail/Running circuits are rated at 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower. Exceeding the product rating can cause loss of warranty, overheating, and potential fire.
The battery connection must be fuse-protected with a 10-amp maximum fuse. The kit includes a fuse holder with a 10-amp fuse. Install the fuse after all other installation steps are complete. Do not exceed 10 amps, as exceeding the product rating can cause loss of warranty, overheating, and potential fire.
Use 12-gauge wire or larger to route from the converter to the vehicle battery. The manual specifies '12 GA wire or larger' for the power connection. Route the 12 GA wire to the vehicle battery location, taking care to avoid any pinch points and hot or rotating components.
The converter uses the following wire colors: Green for right turn signal, Red for brake, Yellow for left turn signal, and Brown for tail/running lights. The white ground wire connects to the vehicle frame. The black power wire connects to the positive battery terminal. These colors are standard for the converter system and match the trailer light signal functions.
When passing the 12 GA power wire through sheet metal, use an existing grommet, add a new grommet, or use silicone to protect the power wire from sharp edges. This prevents the wire insulation from being damaged, which could cause electrical shorts or fire.
Follow these safety precautions: (1) Disconnect the negative battery terminal and fasten it down and away from the battery. (2) Do not lay tools across the positive battery terminal, as this can cause a ground short, sparks, and/or electrical shocks. (3) Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury. (4) Route the 12 GA power wire to avoid pinch points and hot or rotating components. (5) Protect the power wire from sharp edges when passing through sheet metal. (6) Do not exceed the product rating or tow vehicle lamp load rating.
After installation, verify that the harness is functioning by attaching the 4-flat connector to any vehicle with functioning trailer lights. The taillights on the tow vehicle should function along with the taillights on the towing vehicle. You can also test for proper function using a test light or by connecting a properly wired trailer. Install the 10-amp fuse only after all other installation steps are complete and testing is ready to begin.
Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections. Check the wiring harness, converter box, ground connection, and battery connection regularly. If you notice any damaged wires, loose connectors, or corrosion, address the issue immediately to prevent electrical failure or fire.
The Curt 56472 is designed for SUVs and vans with 12-volt negative ground electrical systems. Specific vehicle models and years are not listed in the manual. Contact the manufacturer or consult your vehicle owner's manual to confirm compatibility.
Yes. Disconnect the negative battery terminal before beginning installation and keep it fastened down and away from the battery throughout the process. This is required for safety.
Drilling is not always required. You can use an existing screw or bolt in the vehicle frame as a grounding point. If no existing fastener is available, drill a 3/32" pilot hole. Before drilling, check for hidden items behind or under the surface.
Use a 10-amp maximum fuse. The kit includes a fuse holder with a 10-amp fuse. Install the fuse after all other installation steps are complete. Do not exceed 10 amps.
Use 12-gauge wire or larger to connect the converter to the vehicle battery. Route the wire to avoid pinch points and hot or rotating components.
Signal circuits (turn signals) are rated at 3.0 amps per side. Tail/Running circuits are rated at 6.0 amps total. Do not exceed the product rating or the tow vehicle lamp load rating, whichever is lower.
