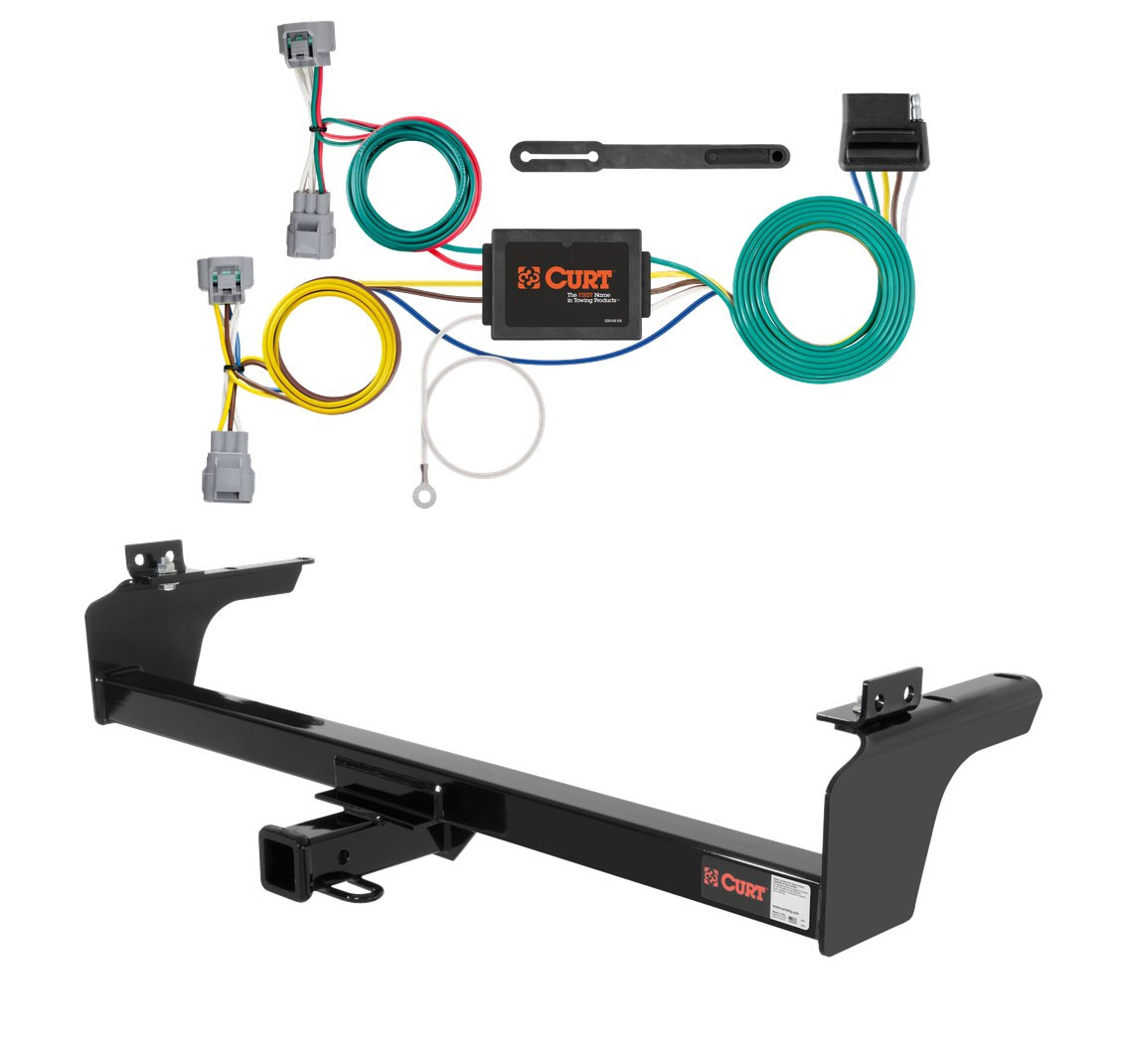

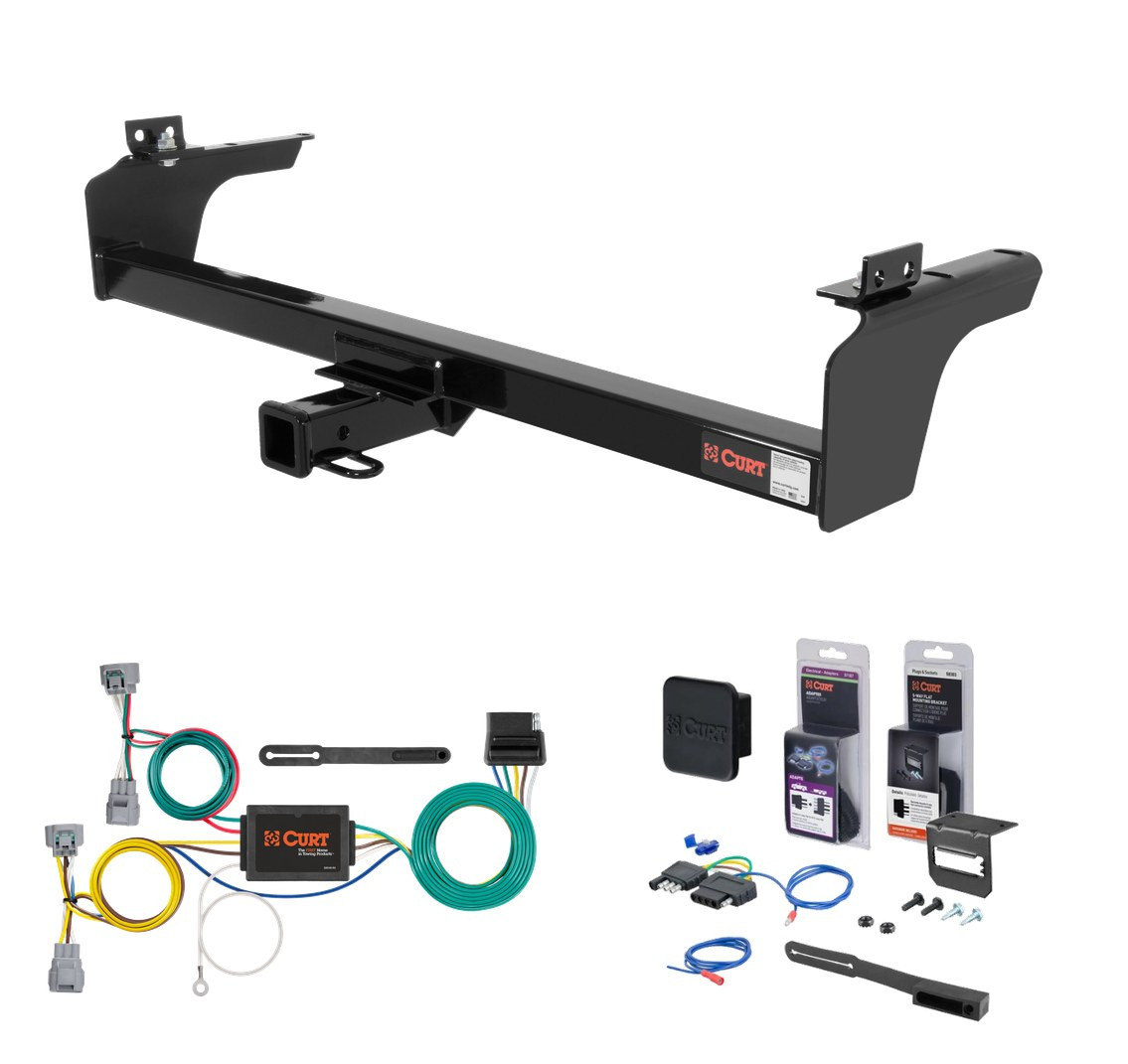

Complete CURT Class 3 2" trailer hitch and 5-flat wiring kit (with 4-way to 5-way adapter for surge brakes) engineered for the 1993 - 1998 Toyota T100 4WD. Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!
Whatever your task at hand -- whether it's launching that boat before daybreak, setting up your camper before the rush or getting a final load to the dump before close -- CURT class 3 trailer hitches offer the strength needed for serious towing. They make it easy to hitch up and Bring It, offering a vehicle-specific fit and the weight capacity to handle a variety of trailers. Custom class 3 hitches are the most common type of receiver hitch for pickup trucks and SUVs. Because of their weight range, they are also found on full-size cars, crossovers and minivans. Each custom-fit class 3 hitch package is made for vehicle-specific mounting. This particular kit fits certain years of the Toyota T100 (see application info to verify vehicle compatibility). It provides a weight carrying capacity of 5,000 lbs. GTW and 500 lbs. TW. It is also compatible with a weight distribution hitch for level towing and a rating of 8,000 lbs. WD and 800 lbs. WDTW. CURT class 3 trailer hitches are typically used to attach and haul utility trailers, boat trailers, campers, snowmobile or ATV haulers and more (NOTE: Never exceed the lowest-rated towing component). Each class 3 hitch has a 2" receiver tube and is tested in accordance with SAE J684 for safety. To ensure that CURT class 3 receiver hitches have what it takes for serious trailering, they are designed using a hands-on approach and are constructed with rugged, high-strength steel and precise welding. We also protect our class 3 hitches in a co-cured finish of liquid A-coat and black powder coat for superior resistance to rust, chipping and UV damage.
A CURT custom wiring harness (also called a T-connector) is a simple, plug-and-play electrical device that eliminates the need for cutting, splicing and soldering when installing vehicle-to-trailer wiring. Most vehicles do not come ready to tow. Unless your vehicle has a towing package, it is probably not equipped with a trailer wiring connector. This is where CURT's custom wiring harnesses come into play. Custom wiring harnesses plug into your vehicle's electrical system using original equipment (OEM) connectors. Our custom wiring harnesses use two or more OEM connectors to plug in at the taillight assembly and provide a standard trailer socket to allow a trailer to be plugged into your vehicle's power system. This harness provides a 5-way flat connector socket and comes with a circuit-protected converter. It is designed to be a custom wiring harness for certain years of the Toyota T-100 pickup or Toyota Tacoma (including X-Runner and Pre-Runner) (to verify your vehicle compatibility, see the CURT application guide at curtmfg.com). CURT custom wiring harnesses are long-lasting and quick to install. They come with dust covers to keep your connector clean when not in use and feature a one-year limited warranty to give you peace of mind.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1993 - 1998 | Toyota T100 | 4WD |
Yes, the 93 - 98 Toyota T100 4WD Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit 13045 (Part #5W-CHW-2952) is designed to fit the 1993-1998 Toyota T100.
The 93 - 98 Toyota T100 4WD Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit 13045 (Part #5W-CHW-2952) fits the following vehicles: 1993-1998 Toyota T100. Always verify your specific year, make, and model before ordering.
The 93 - 98 Toyota T100 4WD Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit 13045 (Part #5W-CHW-2952) fits 1993-1998 Toyota T100 models. The 1998 model year is the last year covered by this part number. For newer models, check for an updated version.
The 93 - 98 Toyota T100 4WD Curt 2" Class 3 Trailer Tow Hitch + 5-Flat Wiring Kit 13045 (Part #5W-CHW-2952) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Part number 13045 is designed for 1993–1998 Toyota T100 with 4WD only. It will not fit 2WD models or other model years. Verify your vehicle's year and drivetrain before purchasing.
The kit includes: 2× M12×1.25×40mm hex head cap screws (HHCS) with conical tooth washers; 4× M12 washers (split-conical); 2× 1/2-inch flat washers; 2× 9/16-inch flat washers; 2× 9/16-12 UNC hex head cap screws, 1.5 inches long; 2× 1/2-13 UNC hex head cap screws, 1.5 inches long; 2× 9/16-12 UNC serrated flange nuts; 2× 1/2-13 UNC serrated flange nuts; and 2× reinforcement brackets (1.566 sq. × 0.250 inch).
You do not need to remove the entire bumper. You must remove the hardware that secures the bumper mounting brackets from the rear mount side of the vehicle on both sides, and remove the front two bolts on both sides. The hitch is then raised into position and fastened through the existing frame structure.
The two reinforcement brackets (CM-13045-RB) are installed inside the frame rail on each side. Position each bracket so that the longer leg sits flat against the bottom of the frame rail, and align the holes with the slots in the frame rails.
Drilling may be required. If the hole in the bumper mounting bracket does not line up with the hole in the reinforcement bracket, you will need to drill out the bumper mounting bracket hole with a 1/2-inch bit. Check alignment before beginning installation to determine if drilling is necessary.
Torque all M12 fasteners to 86 lb.-ft., all 1/2-inch fasteners to 110 lb.-ft., and all 9/16-inch fasteners to 150 lb.-ft. These specifications apply to the hex head cap screws and their corresponding nuts and washers.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain safe operation and prevents loosening due to vibration and use.
You must not exceed your vehicle manufacturer's recommended towing capacity, regardless of the hitch's rated capacity. Consult your Toyota T100 owner's manual for the maximum towing weight your specific vehicle can safely handle.
The Curt 13045 is designed for 1993–1998 Toyota T100 with 4WD only. It does not fit 2WD models.
Drilling may be required. If the bumper mounting bracket hole does not align with the reinforcement bracket hole, drill the bumper mounting bracket with a 1/2-inch bit.
Torque M12 fasteners to 86 lb.-ft., 1/2-inch fasteners to 110 lb.-ft., and 9/16-inch fasteners to 150 lb.-ft.
No. Remove only the hardware securing the bumper mounting brackets from the rear mount side and the front two bolts on both sides. The hitch installs without full bumper removal.
Do not exceed your vehicle manufacturer's recommended towing capacity. The hitch's rated capacity is not specified in this manual; contact Curt Manufacturing for details.
Yes, the 56513 T-Connector is designed for both Toyota Tacoma and Toyota T-100. However, the routing procedure differs between the two models. On Tacoma, the green wire and 4-flat connector route through the hole between the bumper and body, with the 5-flat routing underneath the bumper to the center. On T-100, the green wire T-Connector housing inserts directly into the vehicle's corresponding housing on the passenger side.
Yes. Open the tailgate and remove both taillights by removing the screws with a 10mm socket. Carefully pry the taillights away from the vehicle, being careful not to break the alignment tabs. The taillight wiring harness contains the connection points where the T-Connector plugs in.
On the Toyota T-100, the taillight wiring harness is located near the rear of the frame. It has connection points on both the driver and passenger side of the frame with connectors that match the ends of the T-Connector.
Begin on the driver's side. First, separate the vehicle's taillight wiring connections, taking care not to break the locking tabs. Clean all surfaces if dirty. Then plug the T-Connector end with the yellow wire between the vehicle's wiring connections. Ensure the T-Connector is fully inserted with locking tabs in place.
Route the T-Connector end with the green wire and the 4-flat connector through the hole between the vehicle bumper and body. Route the green wire to the passenger side up through the hole and insert housing. Be careful to avoid areas that might cut or pinch the wire. Route the 5-flat underneath the bumper to the center of the vehicle.
Route the T-Connector end with the green wire to the passenger side and insert the T-Connector housing with the green wire into the vehicle's corresponding housing.
Yes. You must drill a 3/32" hole in a suitable grounding point such as the vehicle's frame or crossmember. Before drilling, verify that miscellaneous items hidden behind or under any surface are not present to avoid damage and personal injury. Clean dirt and rust proofing from the area before drilling.
Drill a 3/32" hole in a suitable grounding point such as the vehicle's frame or crossmember. Clean dirt and rust proofing from the area before drilling.
Locate a suitable grounding point such as the vehicle's frame or crossmember and clean dirt and rust proofing from the area. Drill a 3/32" hole and attach the white ground wire using its ring terminal and the screw provided.
Mount the converter behind the taillight using the double-sided tape provided. Secure all loose wires with the cable ties provided.
The 56513 includes a T-Connector with yellow and green wire ends, a white ground wire with ring terminal, a screw for the ground connection, double-sided tape for mounting the converter, and cable ties for securing loose wires.
You will need a 10mm socket to remove the taillight screws and a drill to create the 3/32" hole for the ground wire. A screwdriver may be needed to install the ground wire screw.
Before drilling, verify that miscellaneous items hidden behind or under any surface are not present to avoid damage and personal injury. Clean dirt and rust proofing from the grounding area before drilling the 3/32" hole.
Separate the vehicle's taillight wiring connections and check that all surfaces are free of dirt. Clean the connections if necessary before plugging in the T-Connector end with the yellow wire.
The T-Connector is fully inserted when the locking tabs are in place. Ensure the T-Connector end with the yellow wire is fully seated between the vehicle's wiring connections with locking tabs engaged.
After routing the wires and mounting the converter behind the taillight with double-sided tape, secure all loose wires with the cable ties provided. Then reinstall all items removed during installation, including the taillights.
Yes, the 56513 T-Connector is designed for both Toyota Tacoma and Toyota T-100 models. Routing procedures differ between the two vehicles.
Yes, on Toyota Tacoma you must remove the taillights by removing screws with a 10mm socket. On T-100, the harness is accessed near the rear frame without taillight removal.
Yes, you must drill a 3/32" hole in the vehicle's frame or crossmember for the ground wire. Verify no hidden items are present before drilling.
You need a 10mm socket for taillight screws and a drill for the 3/32" ground hole. A screwdriver may be needed for the ground wire screw.
Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage and personal injury.
