| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 5-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | T3,T5 |
| Warranty | One-Year Limited Warranty |
| Electrical System Type | 3W |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1993 - 1998 | Toyota T100 | 4WD |
Yes, the 93-98 Toyota T100 4WD CURT 5-Flat Plug and Play Trailer Wiring (Part #CTW2445) is designed to fit the 1993-1998 Toyota T100.
The 93-98 Toyota T100 4WD CURT 5-Flat Plug and Play Trailer Wiring (Part #CTW2445) fits the following vehicles: 1993-1998 Toyota T100. Always verify your specific year, make, and model before ordering.
The 93-98 Toyota T100 4WD CURT 5-Flat Plug and Play Trailer Wiring (Part #CTW2445) fits 1993-1998 Toyota T100 models. The 1998 model year is the last year covered by this part number. For newer models, check for an updated version.
The 93-98 Toyota T100 4WD CURT 5-Flat Plug and Play Trailer Wiring (Part #CTW2445) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the 56513 T-Connector is designed for both Toyota Tacoma and Toyota T-100. However, the routing procedure differs between the two models. On Tacoma, the green wire and 4-flat connector route through the hole between the bumper and body, with the 5-flat routing underneath the bumper to the center. On T-100, the green wire T-Connector housing inserts directly into the vehicle's corresponding housing on the passenger side.
Yes. Open the tailgate and remove both taillights by removing the screws with a 10mm socket. Carefully pry the taillights away from the vehicle, being careful not to break the alignment tabs. The taillight wiring harness contains the connection points where the T-Connector plugs in.
On the Toyota T-100, the taillight wiring harness is located near the rear of the frame. It has connection points on both the driver and passenger side of the frame with connectors that match the ends of the T-Connector.
Begin on the driver's side. First, separate the vehicle's taillight wiring connections, taking care not to break the locking tabs. Clean all surfaces if dirty. Then plug the T-Connector end with the yellow wire between the vehicle's wiring connections. Ensure the T-Connector is fully inserted with locking tabs in place.
Route the T-Connector end with the green wire and the 4-flat connector through the hole between the vehicle bumper and body. Route the green wire to the passenger side up through the hole and insert housing. Be careful to avoid areas that might cut or pinch the wire. Route the 5-flat underneath the bumper to the center of the vehicle.
Route the T-Connector end with the green wire to the passenger side and insert the T-Connector housing with the green wire into the vehicle's corresponding housing.
Yes. You must drill a 3/32" hole in a suitable grounding point such as the vehicle's frame or crossmember. Before drilling, verify that miscellaneous items hidden behind or under any surface are not present to avoid damage and personal injury. Clean dirt and rust proofing from the area before drilling.
Drill a 3/32" hole in a suitable grounding point such as the vehicle's frame or crossmember. Clean dirt and rust proofing from the area before drilling.
Locate a suitable grounding point such as the vehicle's frame or crossmember and clean dirt and rust proofing from the area. Drill a 3/32" hole and attach the white ground wire using its ring terminal and the screw provided.
Mount the converter behind the taillight using the double-sided tape provided. Secure all loose wires with the cable ties provided.

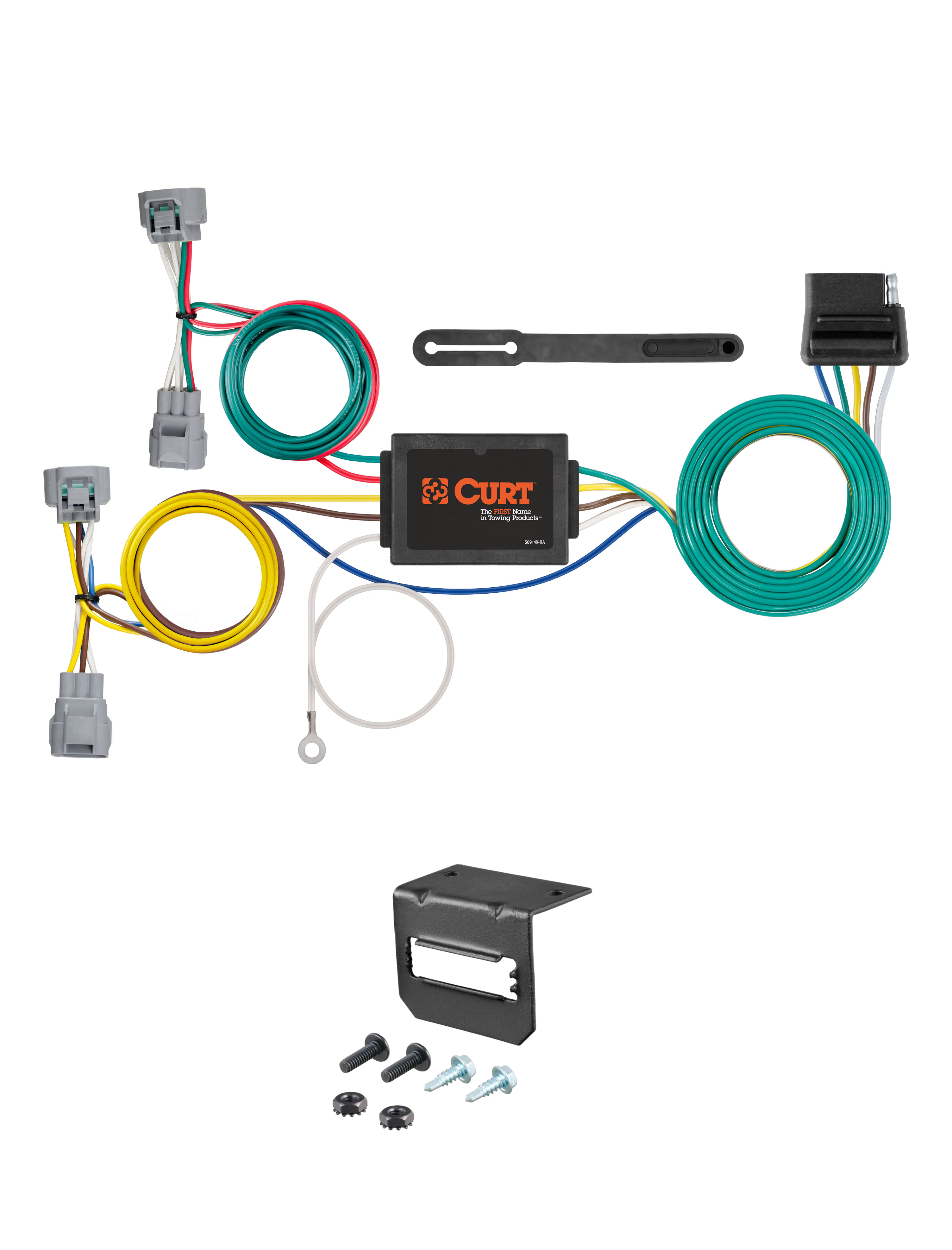

The 56513 includes a T-Connector with yellow and green wire ends, a white ground wire with ring terminal, a screw for the ground connection, double-sided tape for mounting the converter, and cable ties for securing loose wires.
You will need a 10mm socket to remove the taillight screws and a drill to create the 3/32" hole for the ground wire. A screwdriver may be needed to install the ground wire screw.
Before drilling, verify that miscellaneous items hidden behind or under any surface are not present to avoid damage and personal injury. Clean dirt and rust proofing from the grounding area before drilling the 3/32" hole.
Separate the vehicle's taillight wiring connections and check that all surfaces are free of dirt. Clean the connections if necessary before plugging in the T-Connector end with the yellow wire.
The T-Connector is fully inserted when the locking tabs are in place. Ensure the T-Connector end with the yellow wire is fully seated between the vehicle's wiring connections with locking tabs engaged.
After routing the wires and mounting the converter behind the taillight with double-sided tape, secure all loose wires with the cable ties provided. Then reinstall all items removed during installation, including the taillights.
Yes, the 56513 T-Connector is designed for both Toyota Tacoma and Toyota T-100 models. Routing procedures differ between the two vehicles.
Yes, on Toyota Tacoma you must remove the taillights by removing screws with a 10mm socket. On T-100, the harness is accessed near the rear frame without taillight removal.
Yes, you must drill a 3/32" hole in the vehicle's frame or crossmember for the ground wire. Verify no hidden items are present before drilling.
You need a 10mm socket for taillight screws and a drill for the 3/32" ground hole. A screwdriver may be needed for the ground wire screw.
Before drilling, verify that no miscellaneous items are hidden behind or under the surface to avoid damage and personal injury.
