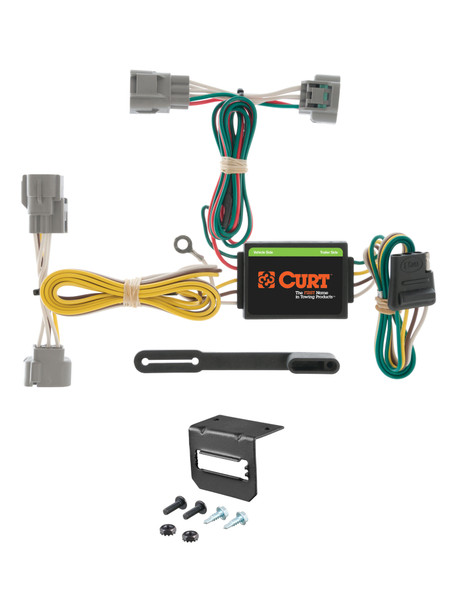

93-98 Toyota T100 4WD CURT 5-Flat Plug and Play Trailer WiringCURTOriginal price was $123.90. Current price is $108.96.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
CURT
Verify Fitment
Select your vehicle to confirm this part fits.
1993 - 1998 Toyota T100
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Free 2-Day Shipping
Guaranteed fast delivery on this item
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE 2-DAY SHIPPINGGUARANTEED
Guaranteed delivery by Sun, Aug 16
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
| Turn and Brake Circuits | 3.0 Amps |
| Warranty | One-Year Limited Warranty |
| Converter Type | Circuit Protected |
| Electrical System Type | 3W |
| Finish | N/A |
| Material | Blank |
| Mount Type Description | Blank |
| Output Type | 4-Way Flat |
| Side Application Type Description | Blank |
| T-Connector Location | T3,T5 |
| Tail Light Circuits | 7.5 Amps |
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1993 - 1998 | Toyota T100 | — |
Yes, the 93-98 Toyota T100 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2444) is designed to fit the 1993-1998 Toyota T100.
The 93-98 Toyota T100 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2444) fits the following vehicles: 1993-1998 Toyota T100. Always verify your specific year, make, and model before ordering.
The 93-98 Toyota T100 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2444) fits 1993-1998 Toyota T100 models. The 1998 model year is the last year covered by this part number. For newer models, check for an updated version.
The 93-98 Toyota T100 CURT 4-flat Plug and Play Trailer Wiring (Part #CTW2444) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 55513 is designed for Toyota Tacoma pickup trucks. The installation process for Tacoma involves removing the 10mm screws holding the taillights in place and routing the harness end with the green wire through the hole between the vehicle bumper and body.
Yes, the Curt 55513 is compatible with the Toyota T-100. The T-100 installation differs from the Tacoma: the wiring harness has connection points on the driver and passenger side of the frame, and the harness is routed to the passenger side without requiring taillight removal.
Yes, the Curt 55513 is listed as compatible with the Toyota Hilux (Mexican vehicle).
The Curt 55513 has a Signal Circuits rating of 3.0 amps per side and a Tail/Running Circuits rating of 7.5 amps total. Do not exceed these ratings or your tow vehicle's lamp load rating, whichever is lower, as exceeding the product rating can cause loss of warranty, overheating and potential fire.
You will need a 10mm socket and ratchet. These are required to remove the taillights on Toyota Tacoma models during installation.
Yes, you must disconnect the negative battery terminal before beginning installation. This is the first step in the installation process.
Separate the connectors from the taillight housing, taking care not to damage the locking tabs. Insert the custom wiring harness end with the yellow wire between the separated connectors. Make sure the connectors are fully inserted with locking tabs in place. Repeat this process on the passenger side using the harness end with the green wire.
The harness has a yellow wire end for the driver side connection and a green wire end for the passenger side connection. The harness also includes a white ground wire that must be secured to a grounding point.
You should first locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame. If no suitable existing screw is available, you may drill a 3/32" pilot hole for the provided screw. Before drilling, check for miscellaneous items that may be hidden behind or under any surface to avoid damage and personal injury.
Locate a suitable grounding point near the connector, such as an existing screw with nut in the vehicle frame, or drill a 3/32" pilot hole for the provided screw. The area must be free of rust, dirt and paint. Secure the white ground wire using the ring terminal and the provided screw.
Locate a flat spot inside the vehicle, near the taillight, and adhere the black converter box using the provided double-sided tape.
The provided 4-flat dust cover helps prevent corrosion and should be installed after all other installation steps are complete.
Test for proper function by using a test light or connecting a properly wired trailer. All steps must be followed to ensure the wiring harness will function properly.
Exceeding the product rating can cause loss of warranty, overheating and potential fire. Do not exceed the product rating (Signal Circuits 3.0 amps per side, Tail/Running Circuits 7.5 amps total) or your tow vehicle's lamp load rating, whichever is lower.
For the Tacoma, route the custom wiring harness end with the green wire to the passenger side out through the hole between the vehicle bumper and body.
For the T-100, route the custom wiring harness end with the green wire to the passenger side. The T-100 has connection points on the driver and passenger side of the frame.
The Curt 55513 fits Toyota Hilux (Mexican vehicle), Toyota T-100, and Toyota Tacoma pickup trucks.
You need a 10mm socket and ratchet.
Yes, disconnect the negative battery terminal before starting installation.
Signal Circuits: 3.0 amps per side. Tail/Running Circuits: 7.5 amps total. Do not exceed these ratings or your vehicle's lamp load rating, whichever is lower.
Drilling is not always required. You should first locate an existing screw with nut in the vehicle frame for grounding. Only if no suitable existing screw is available should you drill a 3/32" pilot hole.
