Complete CURT Class 5 2-1/2" trailer hitch and 4-flat custom wiring kit engineered for the 1999 - 2001 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.). Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

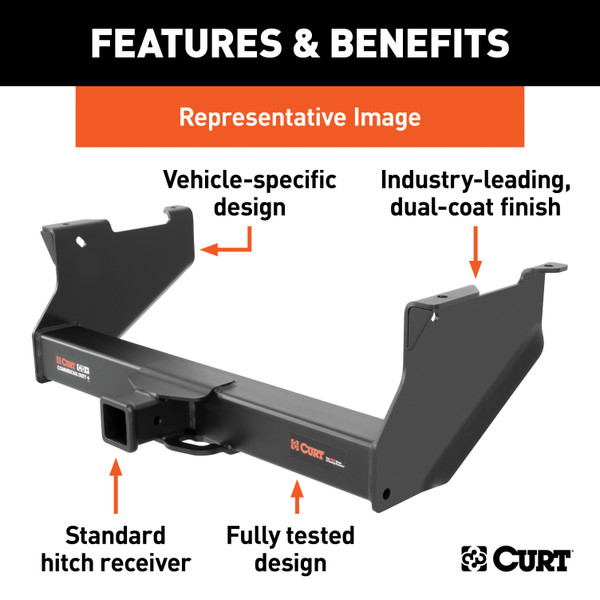

In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Ford F350 Super Duty, F450 Super Duty, F550 Super Duty and F650 (to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.

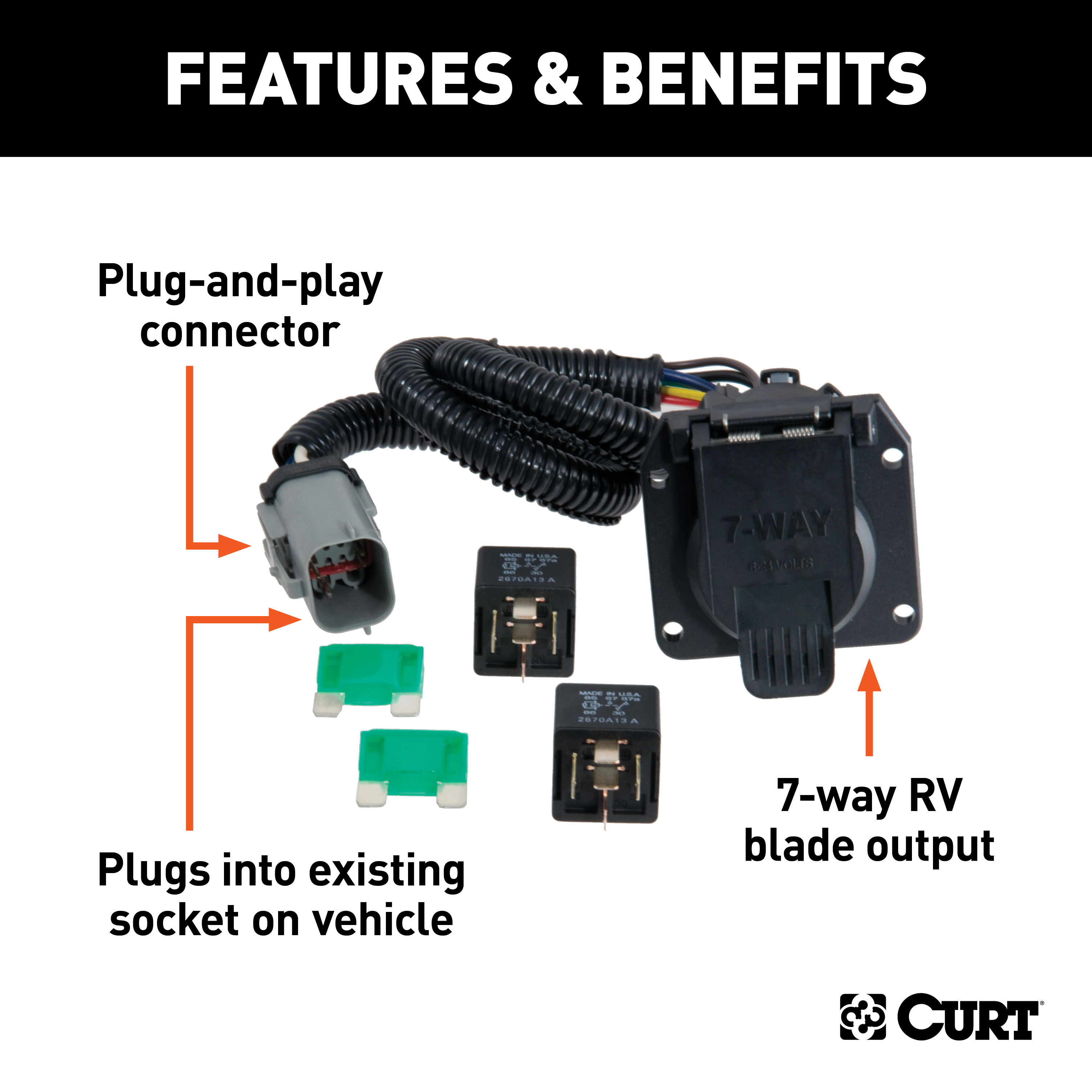

CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Ford F250 Super Duty, F350 Super Duty, F450 Super Duty and F550 Super Duty (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-94941 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2001 | Ford F-350 Super Duty | Cab & chassis with 34" frame width (O.D.) |
Yes, the 99 - 01 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2-1/2", Class 5 Trailer Tow Hitch + 7-way Wiring Kit 15845 (Part #CHW-1189) is designed to fit the 1999-2001 Ford F-350 Super Duty.
The 99 - 01 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2-1/2", Class 5 Trailer Tow Hitch + 7-way Wiring Kit 15845 (Part #CHW-1189) fits 1999-2001 Ford F-350 Super Duty models. The 2001 model year is the last year covered by this part number. For newer models, check for an updated version.
The 99 - 01 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2-1/2", Class 5 Trailer Tow Hitch + 7-way Wiring Kit 15845 (Part #CHW-1189) fits the following vehicles: 1999-2001 Ford F-350 Super Duty. Always verify your specific year, make, and model before ordering.
The 99 - 01 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2-1/2", Class 5 Trailer Tow Hitch + 7-way Wiring Kit 15845 (Part #CHW-1189) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, part number 15845 is designed for 1999–Current Ford F-350, F-450, F-550, and F-650 Cab & Chassis models with a 34" frame. Confirm your vehicle has a 34" frame before ordering.
Yes, Curt part number 15845 is compatible with Ford F-450 and F-550 models from 1999 to current, provided they are Cab & Chassis configuration with a 34" frame.
The hitch weight is 60 lbs.
Yes, part number 15845 can be used as either a weight carrying hitch or a weight distribution hitch. The gross load capacity differs depending on the mode: weight carrying capacity is 20,000 lbs trailer weight and 2,700 lbs tongue weight; weight distribution capacity is also 20,000 lbs trailer weight and 2,700 lbs tongue weight.
Do not exceed your vehicle manufacturer's recommended towing capacity. This hitch has a gross load capacity of 20,000 lbs trailer weight and 2,700 lbs tongue weight when used as a weight carrying hitch, and the same capacity when used as a weight distribution hitch. However, your Ford's actual towing limit may be lower. Consult your vehicle's owner manual for the manufacturer's recommended towing capacity and do not exceed it.
You will need: a ratchet, a torque wrench, a 3/4" socket, a drill, and a 19/32" drill bit.
The kit includes: 6× 1/2-13 UNC bolts, 1-1/2" long, Grade 8, zinc-plated (part 10-10287); 4× 9/16-12 UNC bolts, 1-3/4" long, Grade 8, zinc-plated (part 10-10328); 6× 1/2-13 UNC serrated flange nuts, Grade 8, zinc-plated (part 20-00062); 4× 9/16-12 UNC serrated flange nuts, Grade 8, zinc-plated (part 20-00104); 4× spacers 0.313" × 1.50" × 2.00" with 9/16" square hole (part CM-SP71); and 2× 0.313" spacers (part CM-SP142).
Professional installation takes approximately 60 minutes. DIY installation by a novice takes approximately 75 minutes.
Yes, drilling is required. You must drill one hole on each side of the frame using a 19/32" drill bit. The hole location is marked by raising the hitch into position and marking the hole furthest from the bumper before drilling.
Use a 19/32" drill bit to drill the required mounting holes in the frame.
1. Raise the hitch into position and clamp it in place, using the rivet clearance holes in the side plates for alignment. 2. Mark the hole furthest from the bumper for drilling, then drill it using a 19/32" drill bit (both sides). 3. Fasten the hitch to the frame, fastening the holes in the back of the frame first, then the drilled holes in the front. 4. Attach the mounting plates to the hitch and fasten to the truck. 5. Torque all fasteners.
Torque all 1/2" hardware to 110 ft-lbs.
Torque all 9/16" hardware to 130 ft-lbs.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain safe operation and extends the life of the hitch.
Yes, if you have a 1999–Current Ford F-350, F-450, F-550, or F-650 Cab & Chassis with a 34" frame.
Yes. You must drill one hole on each side of the frame using a 19/32" drill bit.
Ratchet, torque wrench, 3/4" socket, drill, and 19/32" drill bit.
Torque 1/2" hardware to 110 ft-lbs and 9/16" hardware to 130 ft-lbs.
60 lbs.
20,000 lbs trailer weight and 2,700 lbs tongue weight. Do not exceed your vehicle manufacturer's recommended towing capacity.
Yes, Curt part number 55243 is designed for Ford F-250 & F-350 Super Duty vehicles. It is also compatible with Ford F-450 & F-550 Heritage models.
Yes, Curt part number 55243 is compatible with Ford F-450 & F-550 Heritage vehicles.

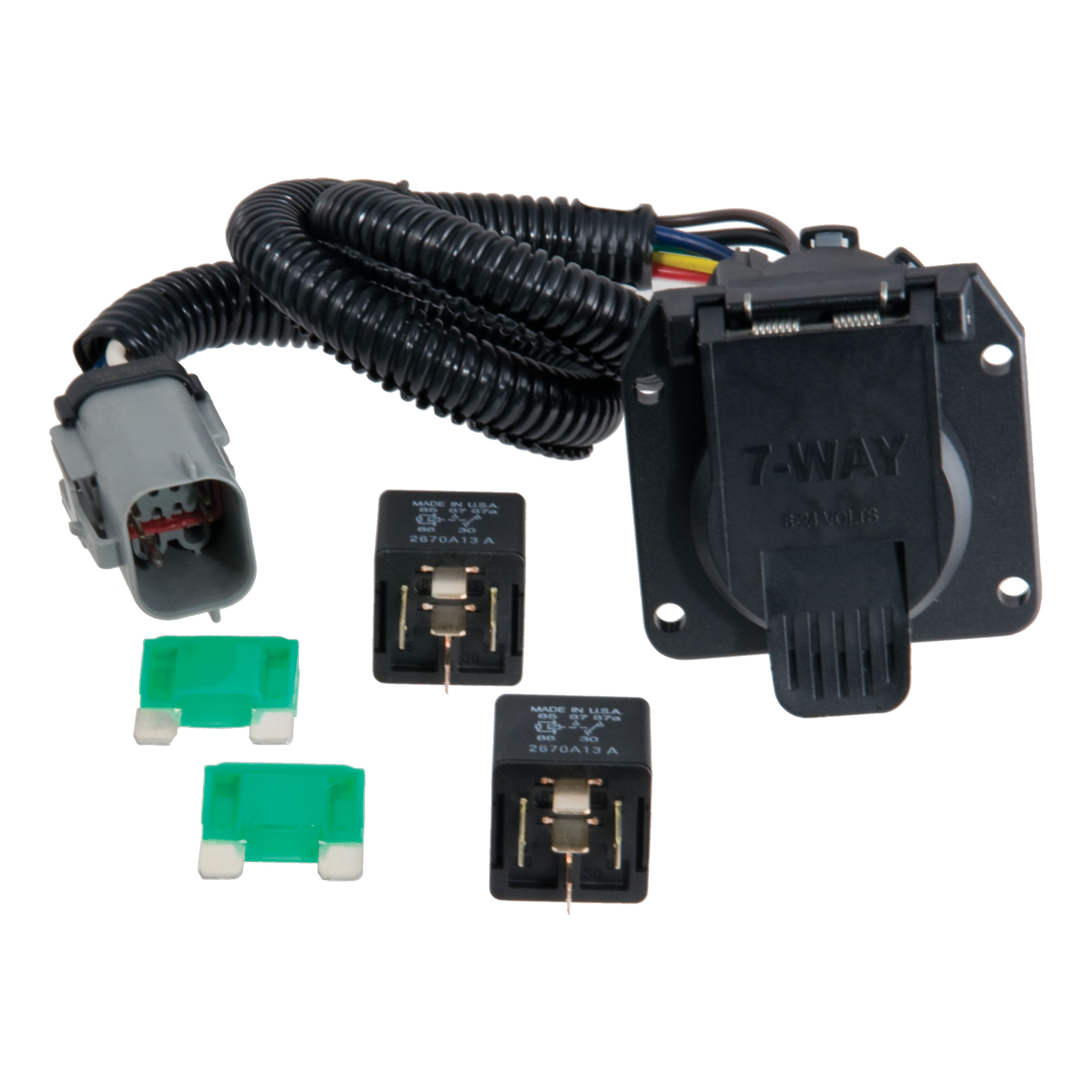

The 55243 includes a trailer tow harness with a 7-way socket, two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits, and two relays for the TRAILER TOW BACKUP LAMP RELAY and TRAILER TOW BATTERY CHARGE RELAY locations. A bracket or electrical box to mount the 7-way socket is not included.
Yes. The 7-way socket must be mounted in an accessible location using a bracket or electrical box, which is not included with the 55243. You will need to source this separately.
Yes. You must disconnect the vehicle's negative battery cable before accessing the power distribution box and installing the fuses and relays. Reconnect the battery cable after all electrical connections are complete.
The vehicle's wiring harness plugs are located in the rear, underneath the vehicle, inside the driver's side frame rail.
Remove the protective cap and install the trailer tow harness into the mating plug. The plug should match the trailer wiring harness end.
Mount the 7-way socket in an accessible location using a bracket or electrical box (not included). Secure any loose wires after installation.
Consult your vehicle's owner's manual to locate the specific fuse and relay positions. The manual will show you where to insert the TRAILER TOW ELECTRIC BRAKE fuse, TRAILER TOW BATTERY CHARGE fuse, TRAILER TOW BACKUP LAMP RELAY, and TRAILER TOW BATTERY CHARGE RELAY in the power distribution box.
The 55243 includes two 30 amp maxi-fuses. These are inserted into the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE fuse locations in the power distribution box.
The power distribution box is located on the driver's side in the engine compartment, and the trailer tow relay block is attached to it.
Before drilling, verify that miscellaneous items that may be hidden behind or under any surface are not present. This will avoid damage to hidden components and prevent personal injury.
Test the installation with a test light or trailer. This verifies that the electrical connections are functioning correctly.
Yes, the 55243 is designed for Ford F-250 & F-350 Super Duty and Ford F-450 & F-550 Heritage models.
A bracket or electrical box to mount the 7-way socket is not included and must be purchased separately.
Yes, disconnect the vehicle's negative battery cable before accessing the power distribution box. Reconnect it after installing the fuses and relays.
The 55243 includes two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits.
Verify that miscellaneous items hidden behind or under any surface are not present before drilling to avoid damage and personal injury.
