Complete CURT Class 4 2" trailer hitch and 4-flat custom wiring kit engineered for the 1999 - 2001 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.). Vehicle-specific fit, plug-and-play installation, all hardware and instructions included.
This custom kit fits the following vehicles:
All Hardware and Installation Instructions Included!

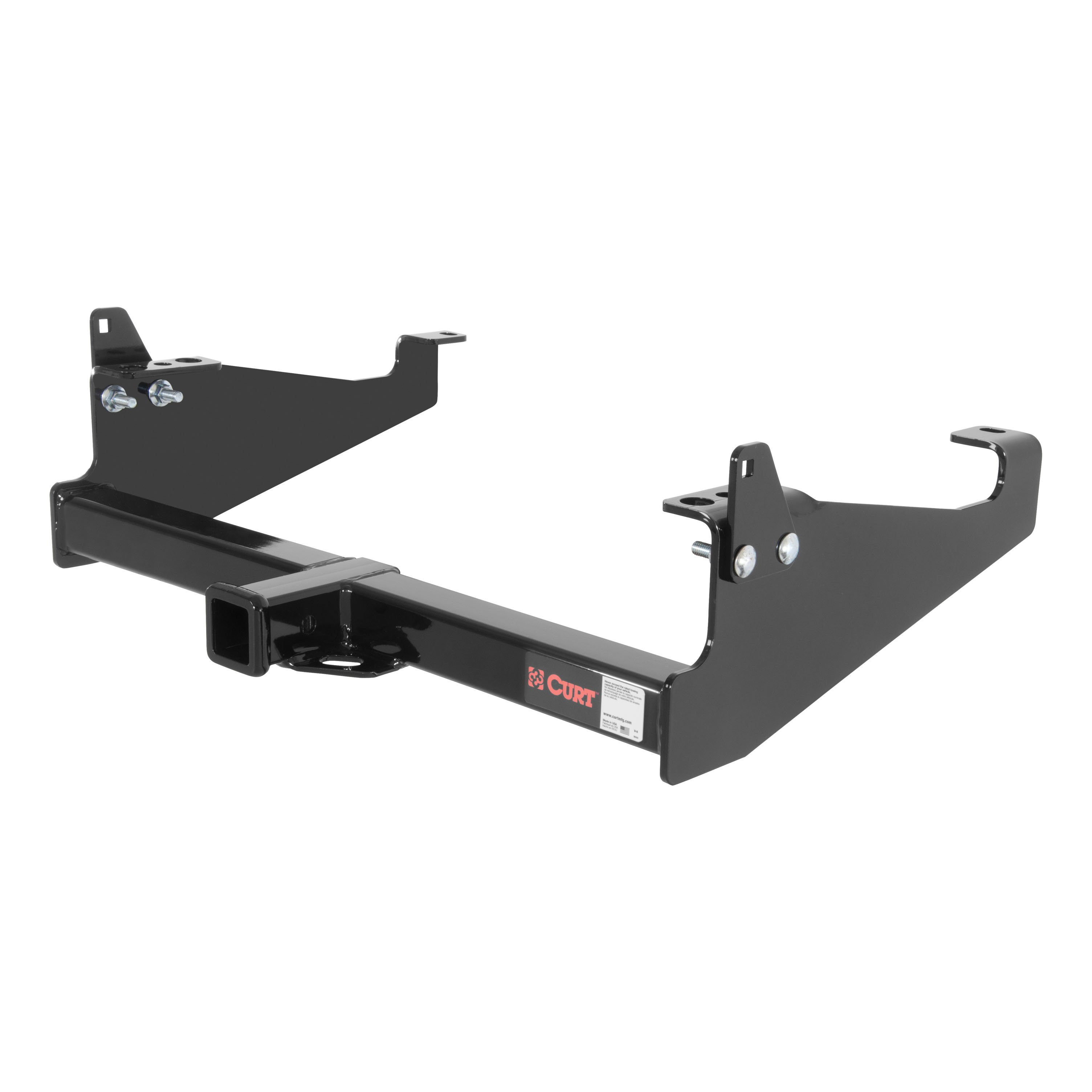

Whatever the next item is on your to-do list -- whether it's arriving at the jobsite before dawn or getting your travel trailer set up in time to see the sunset -- CURT class 4 trailer hitches offer greater towing power to let you Bring It. These custom receiver hitches are built to tackle bigger jobs and bolder adventures, all while giving you a custom fit for your vehicle. Class 4 hitches are available for a variety of makes and models, from pickup trucks and SUVs to full-size and commercial vans. This particular class 4 hitch fits certain years of the Ford F350 Super Duty, F450 Super Duty, F550 Super Duty and F650 (to verify vehicle compatibility, see application info). It provides a weight carrying capacity of 10,000 lbs. GTW and 1,000 lbs. TW. It can also accept a weight distributing hitch, offering a maximum WD capacity of 12,000 lbs. and a WDTW of 1,200 lbs. CURT class 4 tow hitches are as much suited for work as they are for play. With their high load capacities, they are typically used for towing larger trailers, including everything from a double-axle utility trailer or livestock trailer to a full-length camper or large boat trailer (NOTE: Never exceed the lowest weight capacity of any towing component). All CURT class 4 receiver hitches come with a 2" receiver tube opening and all the necessary hardware for a complete installation. From light-duty to heavy-duty, every CURT custom hitch is engineered to be vehicle-specific, using actual vehicles to create the optimal design. We then combine high-strength steel, precise welding and a co-cured finish of liquid A-coat and durable black powder coat to provide you with a hitch you can depend on. To prove it, we test all our hitches in accordance with SAE J684 for safety.

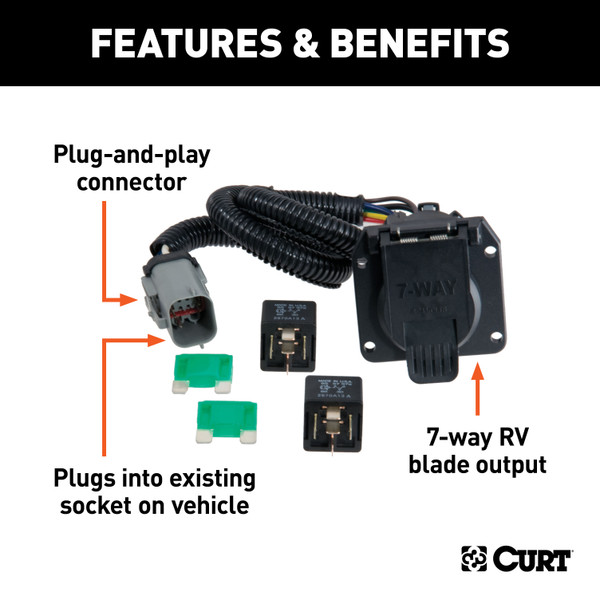

CURT custom wiring connectors and harnesses are the easiest way to outfit your vehicle with a trailer wiring connection for towing. Each one is custom-fitted to work with a specific make and model. This particular 7-way RV blade socket is designed to be a custom wiring option for certain years of the Ford F250 Super Duty, F350 Super Duty, F450 Super Duty and F550 Super Duty (see application info to verify fitment). It provides a universal trailer connection for the tail lights, brake lights, reverse lights, turn signals, electronic trailer brakes and auxiliary power. 7prong taillight wiring can be used as a replacement or new wiring and is typically used for towing fifth wheel and gooseneck trailers. This 7 way female outlet comes with all necessary hardware to establish a solid connection, as well as a dust cover to keep the connector socket clean when not in use. All CURT custom wiring connectors are made vehicle-specific for the easiest possible installation and the best fit. Some automotive manufacturers install a special socket on the vehicle to be used for vehicle-to-trailer wiring. Although this factory tow package socket is not equipped on every vehicle, a CURT custom wiring connector (also called a T-connector) utilizes the socket for simple, stress-free installation. Instead of cutting, splicing and soldering into your vehicle's wiring system, the custom wiring connector uses a single OEM compatible plug and instantly provides a standard vehicle-to-trailer hitch wiring connection. To ensure long-lasting reliability, all CURT custom tconnector wiring is thoroughly tested for optimal functionality.
CURT offers a variety of high-quality trailer hitches and accessories for select vehicle models. Find the perfect fit for your towing needs at TowUniverse.
CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of custom-fit trailer hitches. We offer the broadest selection of custom-fit hitches, and each one is designed, welded, and coated in Wisconsin.
CURT is also a leader in flat towing products, as well as 5th wheel, gooseneck, and weight distribution hitches, ball mounts, electrical components, cargo solutions, and other towing accessories.
For everything from passenger cars and vans to full-size pickups and SUVs, CURT is 'The First Name in Towing Products®.'
Experts available to answer your questions
Call 888-634-9494The 99 - 01 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2", Class 4 Trailer Tow Hitch + 7-way Wiring Kit 14048 (Part #CHW-1179) fits 1999-2001 Ford F-350 Super Duty models. The 2001 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the 99 - 01 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2", Class 4 Trailer Tow Hitch + 7-way Wiring Kit 14048 (Part #CHW-1179) is designed to fit the 1999-2001 Ford F-350 Super Duty.
The 99 - 01 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2", Class 4 Trailer Tow Hitch + 7-way Wiring Kit 14048 (Part #CHW-1179) fits the following vehicles: 1999-2001 Ford F-350 Super Duty. Always verify your specific year, make, and model before ordering.
The 99 - 01 Ford F-350 Super Duty Cab & chassis with 34" frame width (O.D.) Curt 2", Class 4 Trailer Tow Hitch + 7-way Wiring Kit 14048 (Part #CHW-1179) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Curt part number 14048 is designed for 1999-current Ford F-350, F-450, F-550, and F-650 models. Verify your truck model and year against this list before purchasing.
The hitch weight is 40 lbs.
The kit includes 10 bolts (1/2-13 UNC, Grade 8, part 10-10288), 10 serrated flange nuts (1/2-13 UNC, Grade 8, part 20-00062), 4 square hole spacers (0.250 x 1.50 x 2.00", part CM-SP1), and 2 cylindrical spacers (0.313", part CM-SP142).
A 9/16" drill bit is required to drill the front mounting holes. A clamp is needed to hold the hitch in position during alignment and drilling. A torque wrench is required to torque all fasteners to 110 lb.-ft. Standard wrenches or sockets for 1/2-13 fasteners are also needed.
Yes. Drilling is required. You must drill one hole on each side of the frame using a 9/16" drill bit at the rearmost mounting location. The hitch uses existing factory holes at the back of the frame and newly drilled holes at the front.
A 9/16" drill bit is required to drill the front mounting holes in the frame.
Raise the hitch into position and clamp it in place. Use the rivet clearance holes in the side plates as alignment guides to ensure the hitch is properly positioned before marking and drilling the front mounting holes.
Fasten the hitch to the frame holes at the back first, then to the newly drilled holes at the front. After the hitch is secured, attach the mounting plates and fasten them to the truck as shown in the diagram.
All hardware must be torqued to 110 lb.-ft.
Do not exceed your vehicle manufacturer's recommended towing capacity. Curt 14048 is designed for Ford F-350, F-450, F-550, and F-650 trucks; consult your vehicle's owner manual for the specific towing limit for your model and year.
Periodically check the receiver hitch to ensure that all fasteners are tight and that all structural components are sound. This ongoing inspection helps maintain safe operation and prevent loosening due to vibration and use.
Curt Manufacturing warrants this product to be free of defects in material and/or workmanship at the time of retail purchase by the original purchaser. If defective, Curt may repair or replace the product at their option when returned prepaid with proof of purchase. Warranty is voided by alteration, misuse, or improper installation.
Curt 14048 fits 1999-current Ford F-350, F-450, F-550, and F-650.
Yes. You must drill two holes (one on each side) using a 9/16" drill bit at the front mounting location.
All fasteners must be torqued to 110 lb.-ft.
A 9/16" drill bit is required to drill the front frame mounting holes.
The hitch weight is 40 lbs.
Yes, Curt part number 55243 is designed for Ford F-250 & F-350 Super Duty vehicles. It is also compatible with Ford F-450 & F-550 Heritage models.
Yes, Curt part number 55243 is compatible with Ford F-450 & F-550 Heritage vehicles.

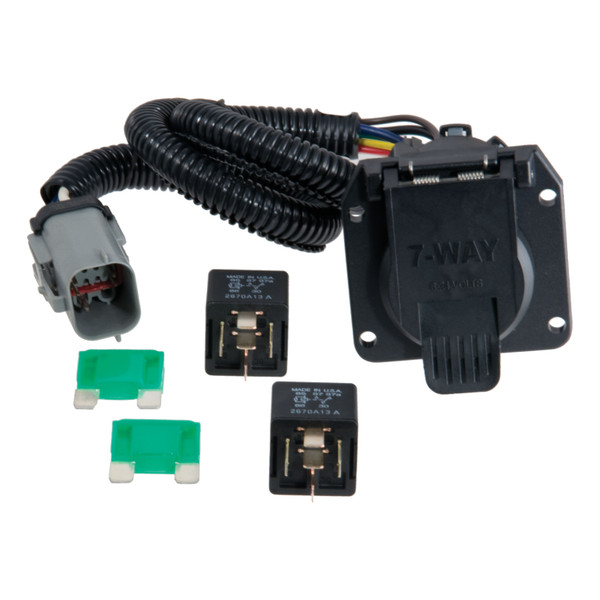

The 55243 includes a trailer tow harness with a 7-way socket, two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits, and two relays for the TRAILER TOW BACKUP LAMP RELAY and TRAILER TOW BATTERY CHARGE RELAY locations. A bracket or electrical box to mount the 7-way socket is not included.
Yes. The 7-way socket must be mounted in an accessible location using a bracket or electrical box, which is not included with the 55243. You will need to source this separately.
Yes. You must disconnect the vehicle's negative battery cable before accessing the power distribution box and installing the fuses and relays. Reconnect the battery cable after all electrical connections are complete.
The vehicle's wiring harness plugs are located in the rear, underneath the vehicle, inside the driver's side frame rail.
Remove the protective cap and install the trailer tow harness into the mating plug. The plug should match the trailer wiring harness end.
Mount the 7-way socket in an accessible location using a bracket or electrical box (not included). Secure any loose wires after installation.
Consult your vehicle's owner's manual to locate the specific fuse and relay positions. The manual will show you where to insert the TRAILER TOW ELECTRIC BRAKE fuse, TRAILER TOW BATTERY CHARGE fuse, TRAILER TOW BACKUP LAMP RELAY, and TRAILER TOW BATTERY CHARGE RELAY in the power distribution box.
The 55243 includes two 30 amp maxi-fuses. These are inserted into the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE fuse locations in the power distribution box.
The power distribution box is located on the driver's side in the engine compartment, and the trailer tow relay block is attached to it.
Before drilling, verify that miscellaneous items that may be hidden behind or under any surface are not present. This will avoid damage to hidden components and prevent personal injury.
Test the installation with a test light or trailer. This verifies that the electrical connections are functioning correctly.
Yes, the 55243 is designed for Ford F-250 & F-350 Super Duty and Ford F-450 & F-550 Heritage models.
A bracket or electrical box to mount the 7-way socket is not included and must be purchased separately.
Yes, disconnect the vehicle's negative battery cable before accessing the power distribution box. Reconnect it after installing the fuses and relays.
The 55243 includes two 30 amp maxi-fuses for the TRAILER TOW ELECTRIC BRAKE and TRAILER TOW BATTERY CHARGE circuits.
Verify that miscellaneous items hidden behind or under any surface are not present before drilling to avoid damage and personal injury.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2001 | Ford F-350 Super Duty | Cab & chassis with 34" frame width (O.D.) |
