Air Lift Air Lift 1000 Air Spring Kit 60855Air LiftOriginal price was $206.99. Current price is $156.86.Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Air Lift
Verify Fitment
Select your vehicle to confirm this part fits.
2006 - 2018 Toyota RAV4
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Air Lift 1000
Coil Spring
Rear
No Drill
Offering up to 1,000 pounds of load-leveling capacity, Air Lifts flagship kit, the Air Lift 1000, will make towing and hauling with a Toyota Rav4 a comfortable experience. For frequent use, our adjustable, industry leading air springs are the perfect partner for the vehicle, eliminating any issues users might face. The Air Lift 1000 system fits easily into the coil springs of coil-sprung vehicles, providing suspension support by allowing users to easily add air when carrying heavy loads to keep the vehicle level and stable. Adding air bags helps to eliminate problems frequently faced when towing and hauling, such as squat, poor headlight aim, trailer sway, body roll, and bottoming out. With the added stability that air springs provide, users can haul safely, knowing that you have optimal braking and steering control. The air springs are adjustable from 5 to 35 PSI, ensuring that the vehicle can be ready for any weight and any situation. Simply add air when towing or hauling and deflate when riding empty. As the leader in air suspension products for more than 70 years, Air Lift is committed to delivering quality load support parts that last. To ensure the highest quality, longevity, and customer satisfaction, the key suspension components, including the air springs and all hardware, have all been torture-tested to 1 million cycles on our hydraulic test rig. With a lifetime warranty and 60-Day Ride Satisfaction Guarantee, not to mention the Air Lift reputation for great customer service and technical support, should there be any snags in the installation process, users can purchase this kit with peace of mind. Installing the kit is a simple process, requiring only common hand tools and no frame drilling, specifically designed to be installed in 2 hours or less. The Air Lift 1000 kit comes with a fully-illustrated, user-friendly installation manual, making the install process easy.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2006 - 2018 | Toyota RAV4 | — |
The Air Lift Air Lift 1000 Air Spring Kit 60840 (Part #BBCG60840) fits the following vehicles: 2006-2018 Toyota RAV4. Always verify your specific year, make, and model before ordering.
The Air Lift Air Lift 1000 Air Spring Kit 60840 (Part #BBCG60840) fits 2006-2018 Toyota RAV4 models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Air Lift Air Lift 1000 Air Spring Kit 60840 (Part #BBCG60840) is designed to fit the 2006-2018 Toyota RAV4.
The Air Lift Air Lift 1000 Air Spring Kit 60840 (Part #BBCG60840) Refer to the included instructions for installation details. Basic hand tools are typically all you need.

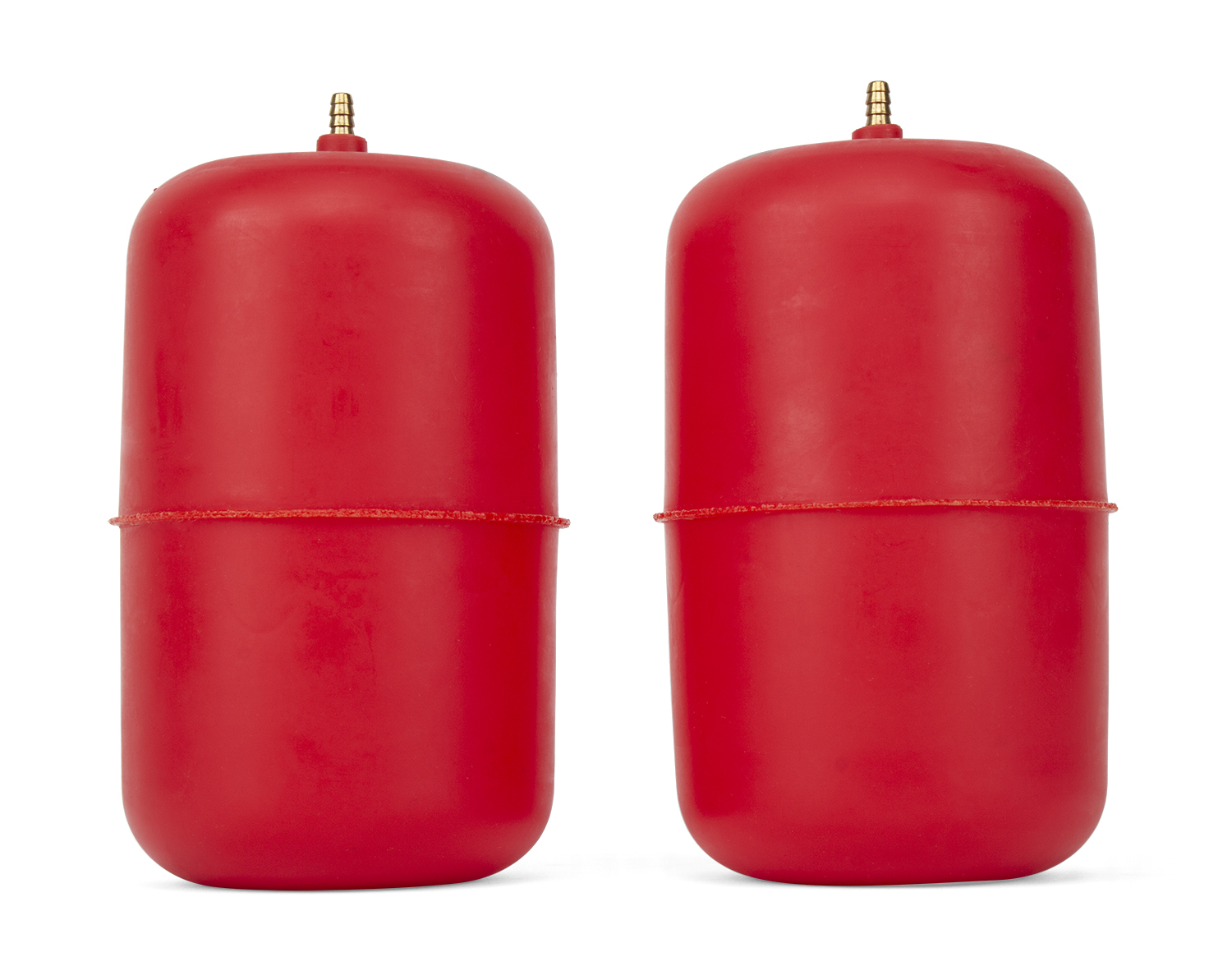

Yes, kit 60840 (MN-1141) is designed for 2006-2018 Toyota Rav4 models. The kit includes two air springs rated at a maximum of 35 PSI (2.4 BAR) and provides up to 1,000 pounds (454 kg) of load-leveling support when installed into the vehicle's coil springs.
The maximum air pressure rating is 35 PSI (2.4 BAR). The manual also specifies a minimum recommended pressure of 5 PSI (0.34 BAR). Never inflate beyond 35 PSI, and the actual pressure needed depends on your load and gross vehicle weight rating.
Required tools include: hoist or floor jack, two safety stands, drill with 5/16" bit, hose cutter or razor blade (do not use scissors or wire cutters), needle nose pliers, air compressor or compressed air source, spray bottle with dish soap/water solution, and tire spoon or blunt instrument. Safety glasses are also recommended.

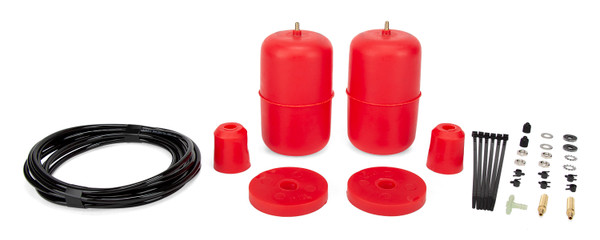

The kit includes: two air springs (part 46166), two lower protectors (09112), two upper protectors (09558), 15 feet of air line (20937), six zip ties (10466), two valve caps (20230), four 5/16" hex nuts (21233), two rubber washers (21234), two star washers (18411), two M8 flat washers (18501), one tee fitting (21236), two Schrader valves (21455), and six air line clamps (10638).
Jack up the rear of the vehicle or raise it on a hoist and support the frame with safety stands. Lower the axle or raise the body until the springs are completely extended. Then insert the lower protector into the coil spring before installing the air spring.
The stem must face down when the air spring is installed into the coil. Before installation, remove the plastic cap from the barbed stem, exhaust the air by rolling the spring up toward the stem, and re-install the cap to hold the flat shape.
Install the air line onto the barbed stem of the air spring and ensure the clamp is in the proper position using needle nose pliers. The air line clamp must fully cover all the barbs on the stem. Make sure the air lines are secured away from any pinch points and routed through the control arms to a proper location for the tee fitting.
The lower protector is inserted into the coil spring before the air spring. The upper protector covers the exposed stud and protects the air spring from damage. The larger end of the upper protector must face down. When lowering the vehicle, ensure the upper protector stays on the threaded stud to prevent puncturing the air spring.
Yes, you must drill a 5/16" (8 mm) hole in the selected location for the Schrader valve. Choose a location on the wheel well, inside the fuel tank filler door, inside rear wheel wells, or rear bumper area where the valve will be protected and accessible with an air hose.
Single-path installation is recommended for vehicles with even weight distribution and uses one tee fitting to supply both air springs. Dual-path installation is used when weight varies from side to side and unequal pressures are needed to level the load; it eliminates the tee fitting and routes separate air lines to each air spring.
Make clean, square cuts with a razor blade or hose cutter. Do not use scissors or wire cutters, as they will not produce a proper cut. Leave sufficient air line slack to prevent strain on the fitting during axle motions.
Install the air line on the Schrader valve first. Mount the valve with the rubber washer (H) serving as an outside weather seal, a flat washer (J), a star washer (I), and a hex nut (G). The valve cap (F) should be installed after the air line connection is complete.
Maintain at least 6 inches (152 mm) clearance from the exhaust system to the air lines to prevent the air line from melting. This applies to both the air springs and air lines during routing.
Perform a clearance test by inflating to 30 PSI (2 BAR) and checking for at least 1/2" (13 mm) clearance from the tire, brakes, frame, shock absorbers, and brake cables. Perform a leak test using soapy water on all connections. Verify at least 6" (152 mm) clearance from heat sources. After 500 miles, recheck all bolts for proper torque. Road test the vehicle after inflating to recommended driving pressures and drive 10 miles (16 km) to recheck clearance, fasteners, and leaks.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 35 PSI (2.4 BAR). The actual pressure needed depends on your load and gross vehicle weight rating.
Use a soapy water solution to check all air line connections and the inflation valve core. Spray the solution on suspected leak areas; bubbles will form if there is a leak. Once you identify the leak, deflate and remove the air spring to repair or replace the affected component.
Each air spring provides up to 1,000 pounds (454 kg) of load-leveling support when installed into the vehicle's coil springs. However, you must not exceed your vehicle's maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer.
After raising the suspension or lowering the body completely and removing the safety stands, inflate the air springs to 5 PSI (0.34 BAR). Do not inflate beyond this initial pressure until you have read the maintenance and use guidelines and the user guide included with the kit.
Yes, kit 60840 (MN-1141) is designed specifically for 2006-2018 Toyota Rav4 models.
You need a hoist or floor jack, safety stands, drill with 5/16" bit, hose cutter or razor blade, needle nose pliers, air compressor, and spray bottle with soapy water.
Yes, you must drill a 5/16" (8 mm) hole in the selected location for the Schrader valve on the wheel well, fuel tank filler door, rear wheel well, or rear bumper area.
Maximum air pressure is 35 PSI (2.4 BAR). Minimum recommended pressure is 5 PSI (0.34 BAR).
Maintain at least 6 inches (152 mm) clearance from the exhaust system to prevent the air line from melting.
Inflate to 30 PSI and verify at least 1/2" (13 mm) clearance from tires, brakes, frame, shocks, and cables. Check all connections for leaks using soapy water. Verify 6" clearance from heat sources. After 500 miles, recheck bolt torque.
Check air pressure weekly. Never exceed 35 PSI (2.4 BAR).
Use a spray bottle with a soapy water and dish soap solution to check all air line connections and the inflation valve core. Spray the solution on suspected areas; bubbles will indicate a leak. Once identified, deflate and remove the air spring, then repair or replace the leaking component before reinstalling.
Immediately stop lowering the vehicle and reposition the upper protector over the threaded stud. Failure to do so could result in a punctured air spring. Always ensure the larger end of the upper protector faces down and remains seated on the stud during all suspension movements.
