LoadLifter 5000 ULTIMATE for Half-Ton Vehicles with internal jounce bumper to absorb shock for best ride comfort
Adjustable air spring kit for leaf springs
Rear
Safely run w/zero air pressure

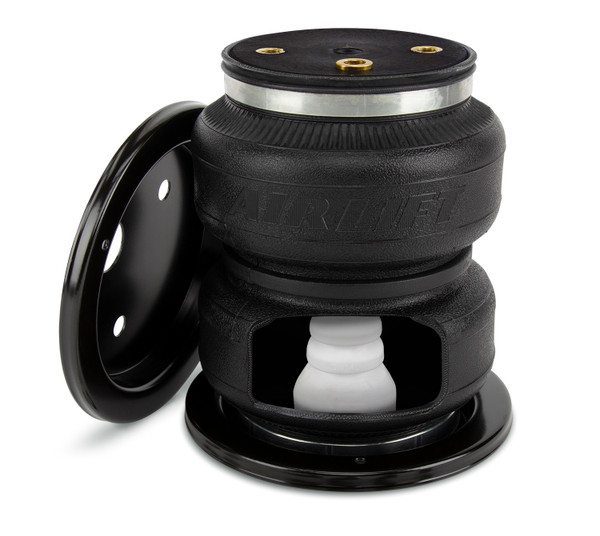

LoadLifter 5000 ULTIMATE Heavy Half-Ton adjustable air spring kits feature all of the benefits of our heaviest rated air spring with the addition of an internal jounce bumper inside the spring for the ultimate in ride comfort. An Air Lift exclusive product. Fits vehicles with in-bed hitches. Tow and haul the heaviest loads with safety and comfort with LoadLifter 5000 ULTIMATE Heavy Half-Ton adjustable air spring kits. Works with vehicle's leaf springs to provide your half-ton exceptional rear load leveling capacity and keeps the vehicle riding stable, level and comfortable whether loaded or unloaded. Fully adjustable from 5 to 100 PSI. The closed-cell urethane foam jounce bumper inside the ULTIMATE Heavy Half-Ton adjustable air springs provide a cushion of air that absorbs shock, eliminates harsh jarring on rough roads and protects vehicles carrying heavy loads. Never bottom out again with the ULTIMATE! LoadLifter 5000 ULTIMATE Heavy Half-Ton adjustable air springs are maintenance free! Safely run with zero air pressure because of the internal jounce bumper. Replaces factory jounce bumper that is sometimes removed when adding air springs.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2006 | Chevrolet Silverado 1500 | Requires 6 in. Between Tire And Frame~ Does Not Fit Quadrasteer |
| 2007 | Chevrolet Silverado 1500 Classic | Requires 6 in. Between Tire And Frame~ Does Not Fit Quadrasteer |
Yes, the Air Lift LoadLifter 5000 ULTIMATE for Half-Ton Vehicles 88272 (Part #BBCG88272) is designed to fit the 1999-2006 Chevrolet Silverado 1500.
The Air Lift LoadLifter 5000 ULTIMATE for Half-Ton Vehicles 88272 (Part #BBCG88272) fits 1999-2006 Chevrolet Silverado 1500 models. The 2007 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift LoadLifter 5000 ULTIMATE for Half-Ton Vehicles 88272 (Part #BBCG88272) fits the following vehicles: 1999-2006 Chevrolet Silverado 1500; 2007 Chevrolet Silverado 1500 Classic. Always verify your specific year, make, and model before ordering.
The Air Lift LoadLifter 5000 ULTIMATE for Half-Ton Vehicles 88272 (Part #BBCG88272) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The LoadLifter 5000 Series is an air spring load support system that provides up to 5,000 pounds (2,268 kg) of load-leveling support. The air springs are reinforced, commercial-grade single or double convolute bellows manufactured with layers of rubber and cords. They are adjustable from 5–100 PSI (0.34–7 BAR) and help level the vehicle under load.
Yes, the LoadLifter 5000 Series kits 57272 and 88272 are designed for Chevrolet 1500 Silverado 4WD and GMC 1500 Sierra 4WD vehicles.
Both kits are LoadLifter 5000 Series for the same vehicles. Kit 57272 includes air spring part 58437 and zinc-plated steel roll plate part 11951 (Standard LoadLifter 5000). Kit 88272 includes air spring part 58496 and black powder-coated roll plate part 11967 (LoadLifter 5000 Ultimate). The Ultimate version has a more durable finish.
Look at the roll plates and air lines. The Standard LoadLifter 5000 has zinc-plated steel (silver) roll plates and black nylon air lines. The LoadLifter 5000 Ultimate has black powder-coated roll plates and black nylon air lines.
Required tools include: standard and metric open-end or box wrenches (set), ratchet, standard and metric regular and deep-well sockets (set), torque wrench, 7/32" hex-key wrench (socket preferable), hose cutter or razor blade, hoist or floor jack, safety glasses, two safety stands, 5/16" drill bit (very sharp), heavy duty drill, air compressor or compressed air source, and spray bottle with dish soap/water solution.

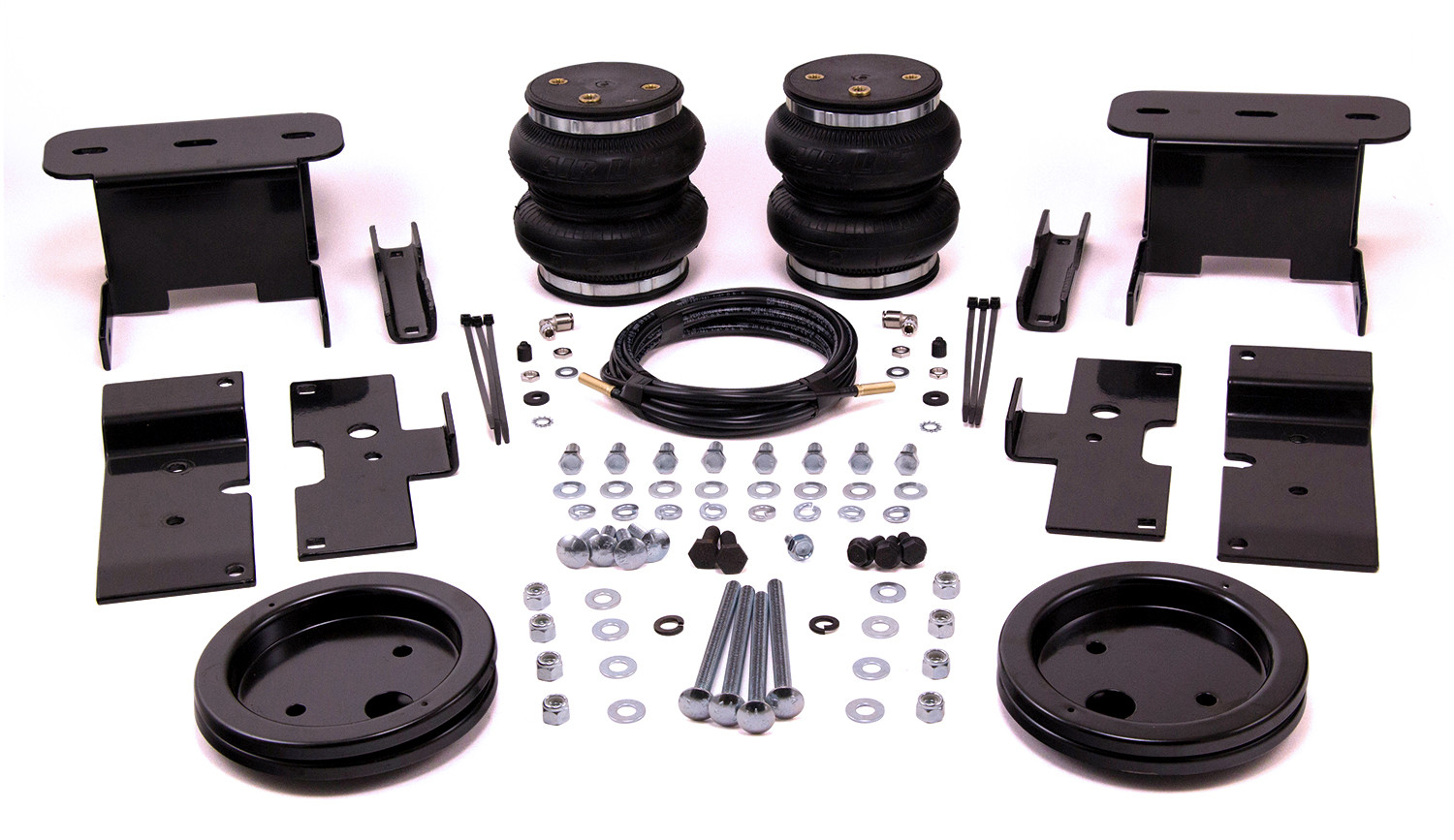

Common parts in both kits include: 2 air springs (part varies by kit), 4 roll plates (part varies by kit), left and right upper brackets (07041, 07042), 2 lower brackets (03441), 2 swivel fittings (21837), 4 flat head screws (17215), 4 hex head bolts (17203), 4 lock washers (18427), 18 flat washers (18444), 4 J-clamps (01663), 1 clip (10465), 1 bolt (17103), 2 bolts (17108), 4 bolts (17169), 8 nylon lock nuts (18435), 1 nylon lock nut (18438), 4 M8 flat washers (18501), air line assembly (20086), 6 zip ties (10466), 2 valve caps (21230), 2 rubber washers (21234), 2 star washers (18411), and 4 hex nuts (21233).
Chevrolet 1500 Silverado 4WD and GMC 1500 Sierra 4WD.
Yes, a torque wrench is required. Various fasteners must be torqued to specific values: upper bracket fasteners to 20 lb.-ft., upper mounting hardware to 25 lb.-ft., lower bracket mounting hardware to 10 lb.-ft., and the emergency brake line clip to 15 lb.-ft.
Yes, you must unbolt the left and right side jounce bumpers before installation. The lower brackets attach to the jounce bumper strike plates.
Drilling may be required. A 5/16" (8 mm) hole must be drilled for Schrader valve installation if one does not already exist in your chosen location. The manual shows three common locations: inside the fuel tank filler door, inside rear wheel wells, or license plate/rear bumper area.
No electrical wiring is required. The system uses nylon air lines to connect the air springs to Schrader valves for inflation and deflation.
The manual does not require battery disconnection for this installation.
1. Raise the vehicle and support the frame with safety stands. 2. Drop the axle down to make room for the air spring assemblies to be positioned between the frame and axle. 3. Unbolt the left and right side jounce bumpers.
The 3/8" flat head screws (F) that attach the upper brackets to the air springs must be torqued to no more than 20 lb.-ft.
The upper mounting hardware (3/8" flat washers and nylon lock nuts that cap the upper bracket stud and bolt) must be torqued to 25 lb.-ft.
The hex head bolts (N) that attach the lower bracket to the jounce bumper strike plate must be torqued evenly to 10 lb.-ft. on both the front and rear of the lower bracket.
The 5/8" diameter clip (K) that attaches to the emergency brake line must be torqued to 15 lb.-ft.

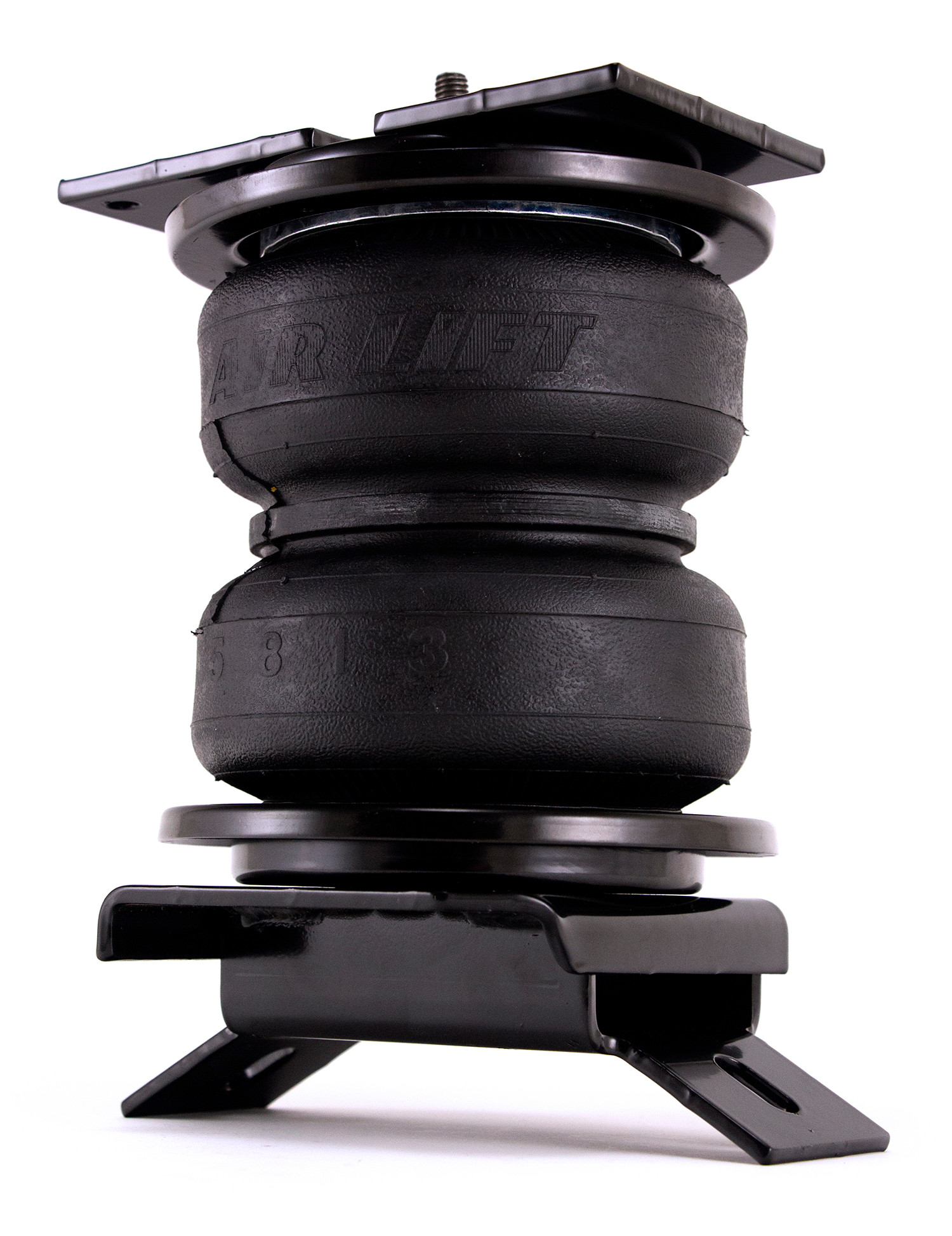

1. Set a roll plate (D) over the top of each air spring (C) with the radiused edge toward the air spring. 2. Install the swivel fitting (E) into the top of the air spring finger-tight plus one and a half turns. 3. Set both air springs with fittings pointing opposite each other. 4. Insert the 3/8" bolt (M) and flat washer (I) through the upper air spring bracket (A1 or A2) in the round hole. 5. Set both brackets onto the air springs and attach using 3/8" flat head screws (F), torqued to no more than 20 lb.-ft. 6. Insert a 5/16" bolt (L) and flat washer (Q) from the top down in the corner hole of one lower bracket (B). 7. Attach this lower bracket to the left hand air spring assembly using a 3/8" bolt (G), lock washer (H), and flat washer (I), torqued to no more than 20 lb.-ft., with the 5/16" bolt on the same side as the fitting. 8. Attach the other lower bracket to the right hand assembly the same way.
1. Set the left hand assembly on the left side axle (driver's side) and the right hand assembly on the right side axle (passenger's side) with the fittings pointing inboard toward the center of the vehicle. 2. Raise the axle up while aligning the bolt and stud on the upper bracket so they insert into the two front holes in the frame. 3. Once the bolt and stud are in the frame, raise the axle all the way up and remove the safety stands. 4. Cap the upper bracket stud and bolt with two 3/8" flat washers (I) and two nylon lock nuts (O) on each side, torqued to 25 lb.-ft.
1. Push the lower bracket forward or back to center it over the jounce bumper strike plate. 2. Insert a hex head bolt (N) through a flat washer (I) and J-clamp (J). 3. Install the J-clamp with the short end under the jounce bumper strike plate with the bolt through the lower bracket. 4. Cap with a flat washer (I) and nylon lock nut (O). 5. Do this on the front and rear of the lower bracket and evenly torque both sides to 10 lb.-ft. 6. Repeat for the other side. 7. Finish by installing the 5/8" diameter clip (K) over the emergency brake line and attach it to the lower bracket using the 5/16" bolt installed previously, one flat washer (Q), and nylon lock nut (P), torqued to 15 lb.-ft. Note: It may be necessary to adjust the hard brake line bracket on the left rear (driver's side) to gain clearance.
The manual shows three recommended locations for Schrader valve installation: inside the fuel tank filler door, inside rear wheel wells, or in the license plate or rear bumper area. Choose a location and drill a 5/16" (8 mm) hole if necessary.
It is recommended that the air line be routed along the top of the frame, forward of the axle, then down to the fitting. Secure the air lines to the upper coil spring mount with zip ties. Use zip ties to secure the air line to fixed points along the chassis. Do not pinch or kink the air line. The minimum bend radius for the air line is 1" (25 mm). Leave at least 2" (50 mm) of slack in the air line to allow for any movement that might pull on the air line. Maintain at least 6" (150 mm) of clearance between all air lines and the exhaust system.
Cut the air line in half using clean, square cuts with a razor blade or hose cutter. Do not use scissors or wire cutters.
The minimum bend radius for the air line is 1" (25 mm). Avoid sharp bends and edges.
Maintain at least 6" (150 mm) of clearance between all air lines and the exhaust system. Avoid sharp bends and edges.
Yes, you should install a heat shield to protect the air line from the exhaust. Attach the metal heat shield to the exhaust where it is closest to the air spring. Slide the air line thermal sleeve over the air line and place it where the air line is closest to the exhaust. Maintain at least 1/2" (13 mm) of dead air space between the shield and exhaust. If a heat shield was included in the kit, install it. If there is no heat shield but one is required, call Air Lift customer service at (800) 248-0892.
The maximum air pressure is 100 PSI (7 BAR). Never inflate beyond 100 PSI.
The minimum recommended air pressure is 5 PSI (0.34 BAR).
The LoadLifter 5000 provides up to 5,000 pounds (2,268 kg) of load-leveling support. However, you must not exceed the vehicle's maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer.
1. Clearance test: Inflate the air springs to 40–60 PSI (2.8–4.1 BAR) and ensure at least 1/2" (13 mm) clearance from anything that might rub against each air spring. Check the tire, brakes, frame, shock absorbers, and brake cables. 2. Leak test: Inflate the air springs to 40–60 PSI and check all connections for leaks. All leaks must be eliminated before road testing. 3. Heat test: Ensure at least 6" (152 mm) clearance from heat sources for air springs and air lines. Install a heat shield if included. 4. Fastener test: After 500 miles (800 km), recheck all bolts for proper torque. 5. Road test: Drive the vehicle 10 miles (16 km) and recheck for clearance, loose fasteners, and air leaks.
Check air pressure weekly.
After 500 miles (800 km), recheck all bolts for proper torque.
Use a soapy water solution to check all air line connections and the inflation valve core. If you find a leak, fix it before deflating and removing the air spring.
Yes, always maintain normal ride height. Never inflate beyond 100 PSI (7 BAR).
No. For safety and to prevent possible damage to the vehicle, do not exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer. Although the air springs are rated at a maximum inflation pressure of 100 PSI (7 BAR), the air pressure actually needed is dependent on load and gross vehicle weight rating.
Install the swivel fitting (E) into the top of the air spring finger-tight plus one and a half turns.
Set a roll plate (D) over the top of each air spring (C) with the radiused (rounded) edge of the roll plate toward the air spring so that the air spring is seated inside both roll plates.
Set both air springs in front of you with the fittings pointing opposite of each other. When installing the assemblies on the vehicle, position them with the fittings pointing inboard toward the center of the vehicle.
The left hand upper bracket (A1) goes on the driver's side, and the right hand upper bracket (A2) goes on the passenger's side. The brackets are marked with "L" and "R" to specify left and right hand assemblies.
Insert the 5/16" bolt (L) and flat washer (Q) from the top down in the corner hole of the lower bracket (B). This bolt must be on the same side as the fitting on the air spring.
The bolt and stud on the upper bracket should insert into the two front holes in the frame.
Install the air line thermal sleeve over the air line on the passenger's (right) side before inserting into the fitting.
Leave at least 2" (50 mm) of slack in the air line to allow for any movement that might pull on the air line.
Maintain at least 1/2" (13 mm) of dead air space between the heat shield and the exhaust.
100 PSI (7 BAR). Never inflate beyond this pressure.
Inflate to 40–60 PSI and ensure at least 1/2" (13 mm) clearance from anything that might rub against each air spring, including tires, brakes, frame, shock absorbers, and brake cables.
After 500 miles (800 km), recheck all bolts for proper torque.
At least 6" (150 mm) of clearance must be maintained between all air lines and the exhaust system.
Upper bracket fasteners: 20 lb.-ft.; upper mounting hardware: 25 lb.-ft.; lower bracket mounting hardware: 10 lb.-ft.; emergency brake line clip: 15 lb.-ft.
Use a soapy water solution to check all air line connections and the inflation valve core to locate the leak. Once you identify the source, fix it before deflating and removing the air spring.
Inflate the air springs to 40–60 PSI (2.8–4.1 BAR) and check for at least 1/2" (13 mm) clearance from anything that might rub against each air spring, including the tire, brakes, frame, shock absorbers, and brake cables. If clearance is insufficient, the installation may need adjustment before road testing.
After 500 miles (800 km), recheck all bolts for proper torque. Retorque any loose fasteners to the specified values: upper bracket fasteners to 20 lb.-ft., upper mounting hardware to 25 lb.-ft., lower bracket mounting hardware to 10 lb.-ft., and emergency brake line clip to 15 lb.-ft.
