LoadLifter 5000 ULTIMATE for Half-Ton Vehicles with internal jounce bumper to absorb shock for best ride comfort
Adjustable air spring kit for leaf springs
Rear
Safely run w/zero air pressure
LoadLifter 5000 ULTIMATE Heavy Half-Ton adjustable air spring kits feature all of the benefits of our heaviest rated air spring with the addition of an internal jounce bumper inside the spring for the ultimate in ride comfort. An Air Lift exclusive product! Fits vehicles with in-bed hitches. Tow and haul the heaviest loads with safety and comfort with LoadLifter 5000 ULTIMATE Heavy Half-Ton adjustable air spring kits. Works with vehicle's leaf springs to provide your half-ton exceptional rear load leveling capacity and keeps the vehicle riding stable, level and comfortable whether loaded or unloaded. Fully adjustable from 5 to 100 PSI. The closed-cell urethane foam jounce bumper inside the ULTIMATE Heavy Half-Ton adjustable air springs provide a cushion of air that absorbs shock, eliminates harsh jarring on rough roads and protects vehicles carrying heavy loads. Never bottom out again with the ULTIMATE! LoadLifter 5000 ULTIMATE Heavy Half-Ton adjustable air springs are maintenance free! Safely run with zero air pressure because of the internal jounce bumper. Replaces factory jounce bumper that is sometimes removed when adding air springs.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2008 | Dodge Ram 1500 | Does not fit SRT10 Models |
The Air Lift LoadLifter 5000 ULTIMATE for Half-Ton Vehicles 88230 (Part #BBCG88230) fits 2002-2008 Dodge Ram 1500 models. The 2008 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the Air Lift LoadLifter 5000 ULTIMATE for Half-Ton Vehicles 88230 (Part #BBCG88230) is designed to fit the 2002-2008 Dodge Ram 1500.
The Air Lift LoadLifter 5000 ULTIMATE for Half-Ton Vehicles 88230 (Part #BBCG88230) fits the following vehicles: 2002-2008 Dodge Ram 1500. Always verify your specific year, make, and model before ordering.
The Air Lift LoadLifter 5000 ULTIMATE for Half-Ton Vehicles 88230 (Part #BBCG88230) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The LoadLifter 5000 Ultimate is an adjustable air helper spring system that provides load-leveling support for trucks and cars. It uses commercial-grade reinforced convolute bellows with an internal jounce bumper and can provide up to 5,000 pounds (2,268 kg) of load-leveling support. Air pressure is adjustable from 5 to 100 PSI (0.34 to 7 BAR), allowing you to adjust the support based on your load.
The manual states that LoadLifter 5000 Ultimate kits are designed for trucks and cars as specified by Air Lift Company, but does not list specific vehicle models, years, cab styles, bed lengths, or drivetrains. Contact Air Lift customer service at (800) 248-0892 or service@airliftcompany.com to confirm fitment for your specific vehicle.
Required tools include: hoist or floor jacks, 2 safety stands, safety glasses, torque wrench, standard open-end combo wrenches, ratchet, metric and standard sockets, #6 metric hex key wrench (socket if available), 7/32" hex key wrench (socket if available), 5/16" drill bit (very sharp), heavy duty drill, hose cutter, razor blade or sharp knife, air compressor or compressed air source, and spray bottle with dish soap/water solution.

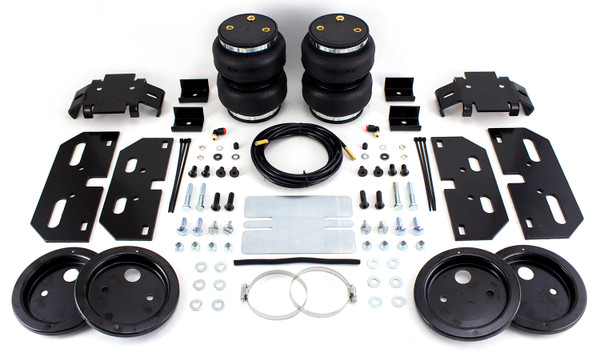

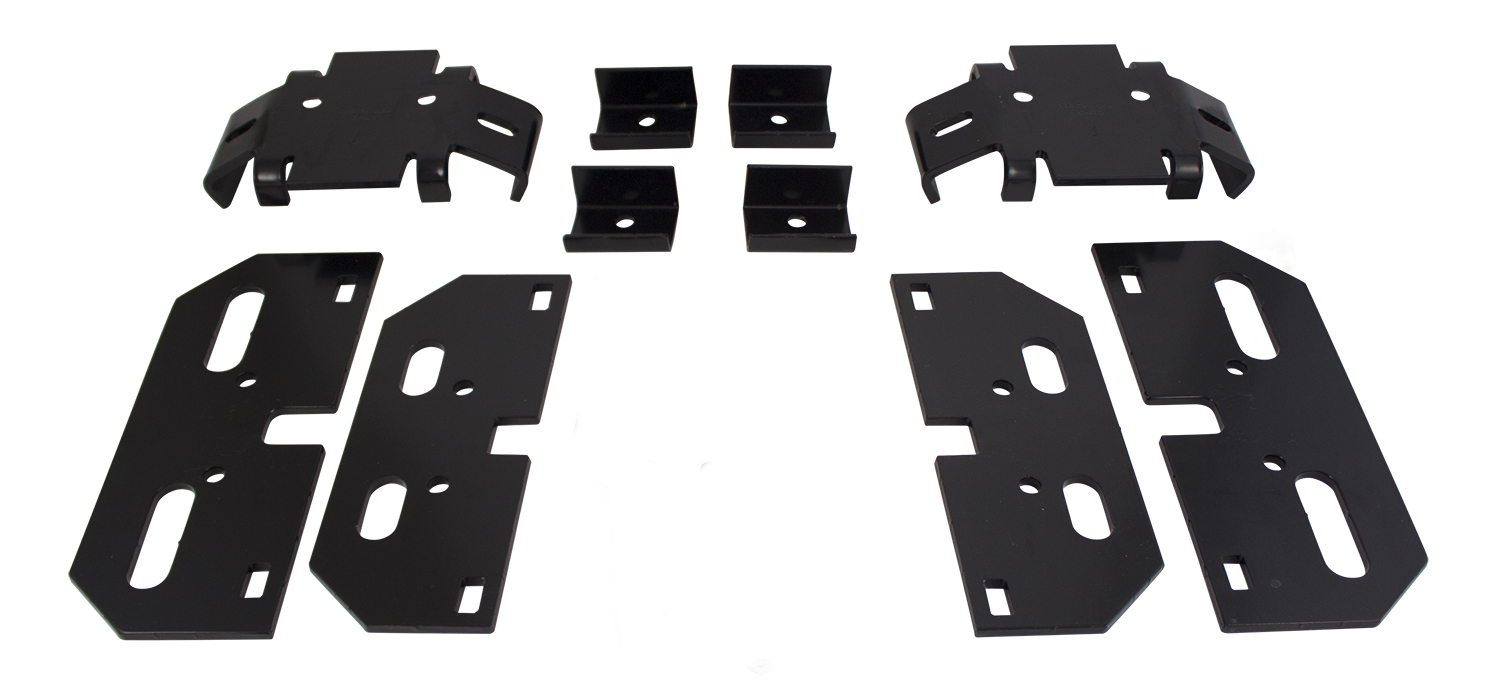

The kit includes: 2 upper frame brackets (07057), 2 upper bellows brackets (07058), 2 lower brackets (03062), 2 air springs (58496), 4 roll plates (11967), 4 lower bracket retainers/J-clamps (01663), 4 carriage bolts 3/8"-16 x 1 1/4" (17361), 4 hex-head bolts 3/8"-16 x 2 1/4" (17420), 4 button-head screws M10-1.5 x 35 (17366), 8 nylon lock nuts 3/8" (18435), 12 flat washers 3/8" (18444), 4 flat-head screws 3/8"-24 x 7/8" (17215), 4 button-head screws 3/8"-24 x 7/8" (17365), 2 90-degree swivel fittings (21837), 4 self-tapping bolts 3/8" x 3/4" (17151), 1 air line assembly (20086), 6 zip ties (10466), 2 valve caps (21230), 2 5/16" flat washers (18501), 2 rubber washers (21234), 2 star washers (18411), and 4 5/16" hex nuts (21233).
The manual does not specify whether the battery must be disconnected. Contact Air Lift customer service at (800) 248-0892 for guidance on this step.
Raise the vehicle and support the axle with safety stands, setting the jack stands as wide as possible on the axle. Then drop the axle or raise the frame to make room for the assemblies to be positioned between the frame and axle. Finally, remove the jounce bumper from under the frame rail.
Attach the upper frame bracket (part 07057) to the frame using two M10-1.5 x 35 button-head screws (part 17366). The slot in the frame goes inboard toward the inside of the vehicle. Torque the screws to 30 lb.-ft. (41 Nm). Repeat for the opposite side.
If one of the jounce bumper bolts breaks upon removal, you will need to drill a 5/16" hole. Line up the hole in the upper bracket over the broken bolt, then center punch and drill a 5/16" hole in the center of the outside hole next to the broken bolt hole. Insert and tighten the self-tapping bolt (part 17151) into the hole drilled and torque to 15 lb.-ft. (20 Nm). Use self-tapping bolts only if the existing jounce bumper bolts break.
1. Set a roll plate (part 11967) over the top of each air spring (part 58496) with the radiused edge toward the bellows. 2. Install the swivel fitting (part 21837) into the top of the air spring finger tight plus one and a half turns. 3. Install the air spring bracket (part 07058) onto the air spring using 3/8"-24 x 7/8" button-head screws (part 17365), torqued to no more than 20 lb.-ft. (27 Nm). 4. Flip the assemblies over and set a roll plate onto the bottom. 5. Set the lower bracket (part 03062) with the arrow pointing opposite the swivel fitting, and attach with 3/8"-24 x 7/8" flat-head screws (part 17215), torqued to no more than 20 lb.-ft. (27 Nm).
The 3/8"-24 x 7/8" button-head screws (part 17365) that attach the air spring bracket (part 07058) to the air spring should be torqued to no more than 20 lb.-ft. (27 Nm).
The 3/8"-24 x 7/8" flat-head screws (part 17215) that attach the lower bracket (part 03062) should be torqued to no more than 20 lb.-ft. (27 Nm).
Set the assemblies onto the axle with the fittings to the inside of the frame. Align the upper air spring and frame bracket (part 07057) slots and attach using two 3/8"-16 x 1 1/4" carriage bolts (part 17361), two 3/8" flat washers (part 18444), and two 3/8" nylon lock nuts (part 18435). Leave the hardware loose at this time; it will be torqued later after the lower brackets are attached.
1. Raise the axle or lower the frame and ensure the lower bracket has nested over the jounce bumper strike plate. 2. Attach the lower bracket by inserting a 3/8"-16 x 2 1/4" hex-head bolt (part 17420) through a 3/8" flat washer (part 18444) and J-clamp (part 01663). Install the J-clamp with the short end under the jounce bumper strike plate with the bolt through the lower bracket. Cap with a 3/8" flat washer and 3/8" nylon lock nut (part 18435). Do this for the front and rear of the lower bracket, ensuring the lower bracket stays centered on the jounce bumper strike plate. Torque the lower bracket hardware evenly to 10 lb.-ft. (14 Nm). 3. Once the lower bracket is tight, push the top of the air spring assembly forward or backward to align the upper and lower brackets so they are parallel. Torque the upper mounting hardware to 16 lb.-ft. (22 Nm).
The lower bracket hardware should be torqued evenly to 10 lb.-ft. (14 Nm). After the lower bracket is tight, the upper mounting hardware should be torqued to 16 lb.-ft. (22 Nm).
1. Cut the air line in half using a razor blade or hose cutter, making clean, square cuts. Do not use scissors or wire cutters. 2. Use zip ties to secure the air line to fixed points along the chassis without pinching or kinking it. Leave at least 2" (51 mm) of slack in the air line to allow for movement. The minimum bend radius for the air line is 1" (25 mm). 3. Keep at least 6" (152 mm) of clearance between all air lines and the exhaust system. 4. Install the Schrader valve in the chosen location (inside fuel tank filler door, inside rear wheel wells, or license plate/rear bumper area).
Yes, you must drill a 5/16" (8 mm) hole for the Schrader valve if one is not already present at your chosen location. Choose the location for the Schrader valve (inside fuel tank filler door, inside rear wheel wells, or license plate/rear bumper area) and drill the hole as necessary.

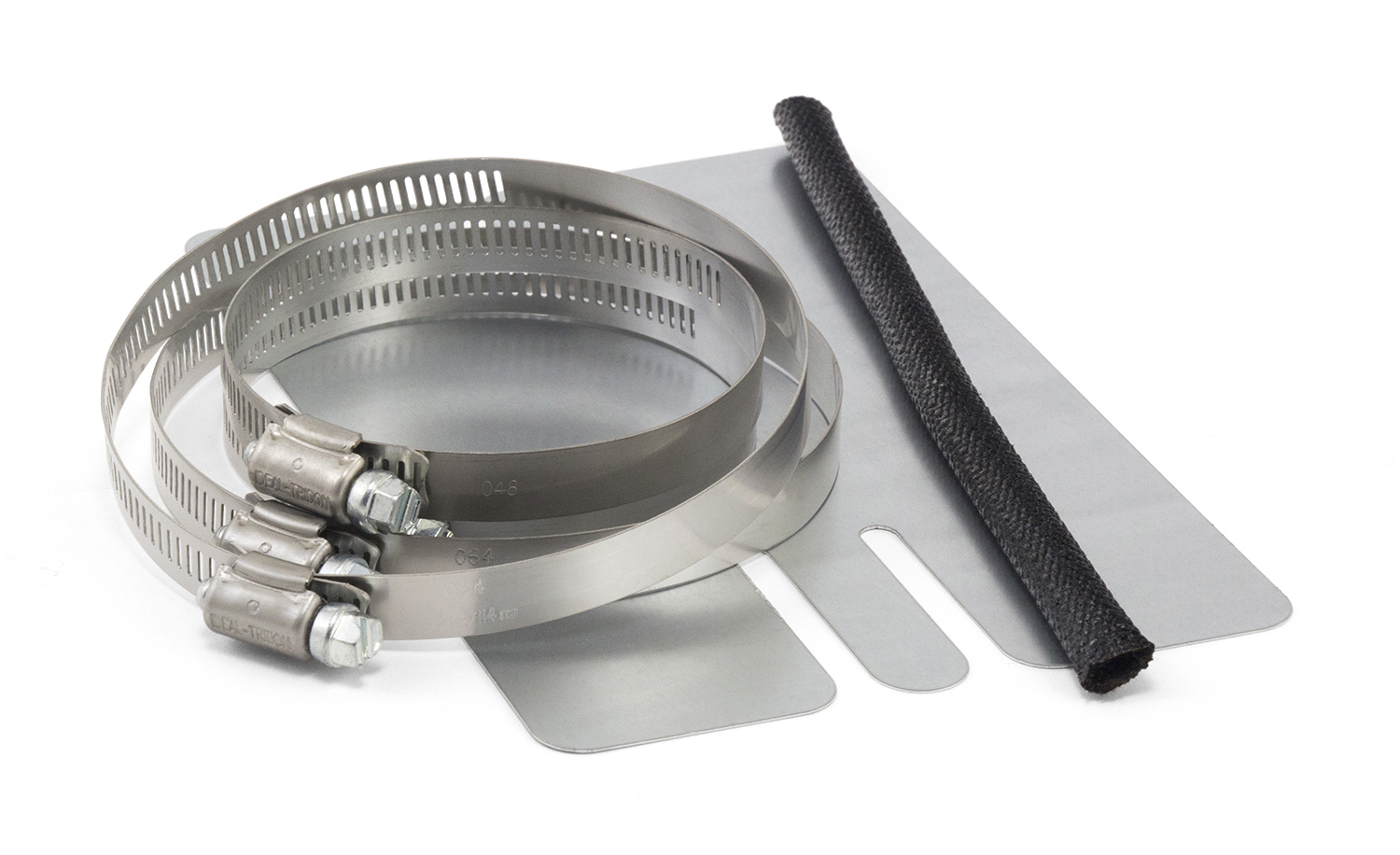

Attach the metal heat shield to the exhaust where it is closest to the passenger's (right) side air spring. Slide the air line thermal sleeve over the air line and position it where the air line is closest to the exhaust. Maintain at least 1/2" (13 mm) dead air space between the shield and exhaust. Use double hose clamps if necessary.
At least 1/2" (13 mm) clearance must be maintained from anything that might rub against each air spring sleeve. Be sure to check the tire, brakes, frame, shock absorbers, and brake cables. Additionally, keep at least 6" (152 mm) of clearance between all air lines and the exhaust system.
1. Clearance test: Inflate the air springs to 40-60 PSI (2.8-4.1 BAR) and verify at least 1/2" (13 mm) clearance from anything that might rub, including tire, brakes, frame, shock absorbers, and brake cables. 2. Leak test: Inflate to 40-60 PSI and check all connections for leaks; all leaks must be eliminated before road testing. 3. Heat test: Verify at least 6" (152 mm) clearance from heat sources; install heat shield if included. 4. Fastener test: Recheck all bolts for proper torque. 5. Road test: Drive the vehicle 10 miles (16 km) and recheck for clearance, loose fasteners, and air leaks.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 100 PSI (7 BAR).
The minimum recommended pressure is 5 PSI (0.34 BAR) and the maximum air pressure is 100 PSI (7 BAR). However, the air pressure actually needed is dependent on load and gross vehicle weight rating. Never exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer.
Use a soapy water solution to check all air line connections and the inflation valve core. Spray the solution on all connections and look for bubbles, which indicate a leak. If the system develops an air leak, identify and fix all leaks before deflating and removing the air spring.
The LoadLifter 5000 Ultimate can provide up to 5,000 pounds (2,268 kg) of load-leveling support. However, you must not exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer.
The LoadLifter 5000 Ultimate is designed for trucks and cars as specified by Air Lift Company, but the manual does not list specific models or years. Contact Air Lift customer service at (800) 248-0892 or service@airliftcompany.com to confirm fitment.
You will need a hoist or floor jacks, 2 safety stands, torque wrench, wrenches, ratchet, sockets, hex key wrenches, 5/16" drill bit, heavy duty drill, hose cutter or sharp knife, air compressor, and spray bottle with dish soap/water solution.
Yes, you must drill a 5/16" (8 mm) hole for the Schrader valve. If a jounce bumper bolt breaks during removal, you will also need to drill a 5/16" hole for the self-tapping bolt.
The M10-1.5 x 35 button-head screws that attach the upper frame bracket to the frame should be torqued to 30 lb.-ft. (41 Nm).
The maximum air pressure is 100 PSI (7 BAR). Never exceed this pressure or the maximum gross vehicle weight rating (GVWR) as indicated by the vehicle manufacturer.
Keep at least 6" (152 mm) of clearance between all air lines and the exhaust system. Avoid sharp bends and edges, and maintain a minimum bend radius of 1" (25 mm) for the air line.
Check air pressure weekly. Always maintain normal ride height and never inflate beyond 100 PSI (7 BAR).
If a jounce bumper bolt breaks, use the Tech Tip Option: Line up the hole in the upper bracket over the broken bolt, center punch and drill a 5/16" hole in the center of the outside hole next to the broken bolt hole, then insert and tighten a self-tapping bolt (part 17151) into the hole. Torque the self-tapping bolt to 15 lb.-ft. (20 Nm). Use self-tapping bolts only if the existing jounce bumper bolts break.
