Air Lift LoadLifter 5000 ULTIMATE with internal jounce bumper 88347Air LiftOriginal price was $887.99. Current price is $643.99.In Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
Air Lift
Verify Fitment
Select your vehicle to confirm this part fits.
2020 - 2022, 2024 - 2026 Chevrolet Silverado 2500 HD
Confirmed to Fit
2020 - 2021 GMC Sierra 3500 HD
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
MN-1116.pdf
AD-985-ALC-Warranty- Flyer.pdf
AD-938 LS user guide.pdf

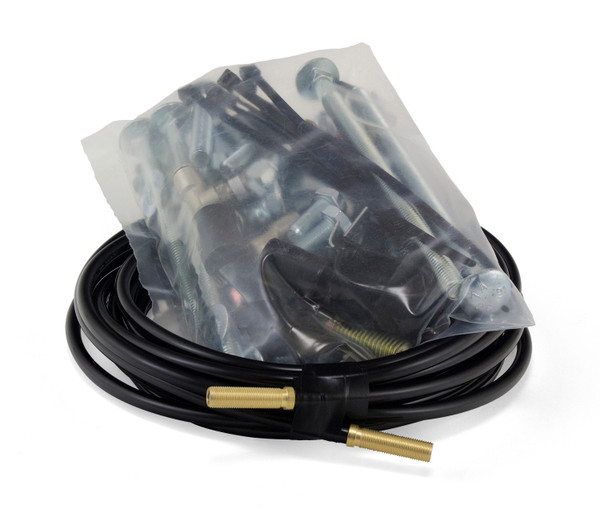

LoadLifter 5000 ULTIMATE

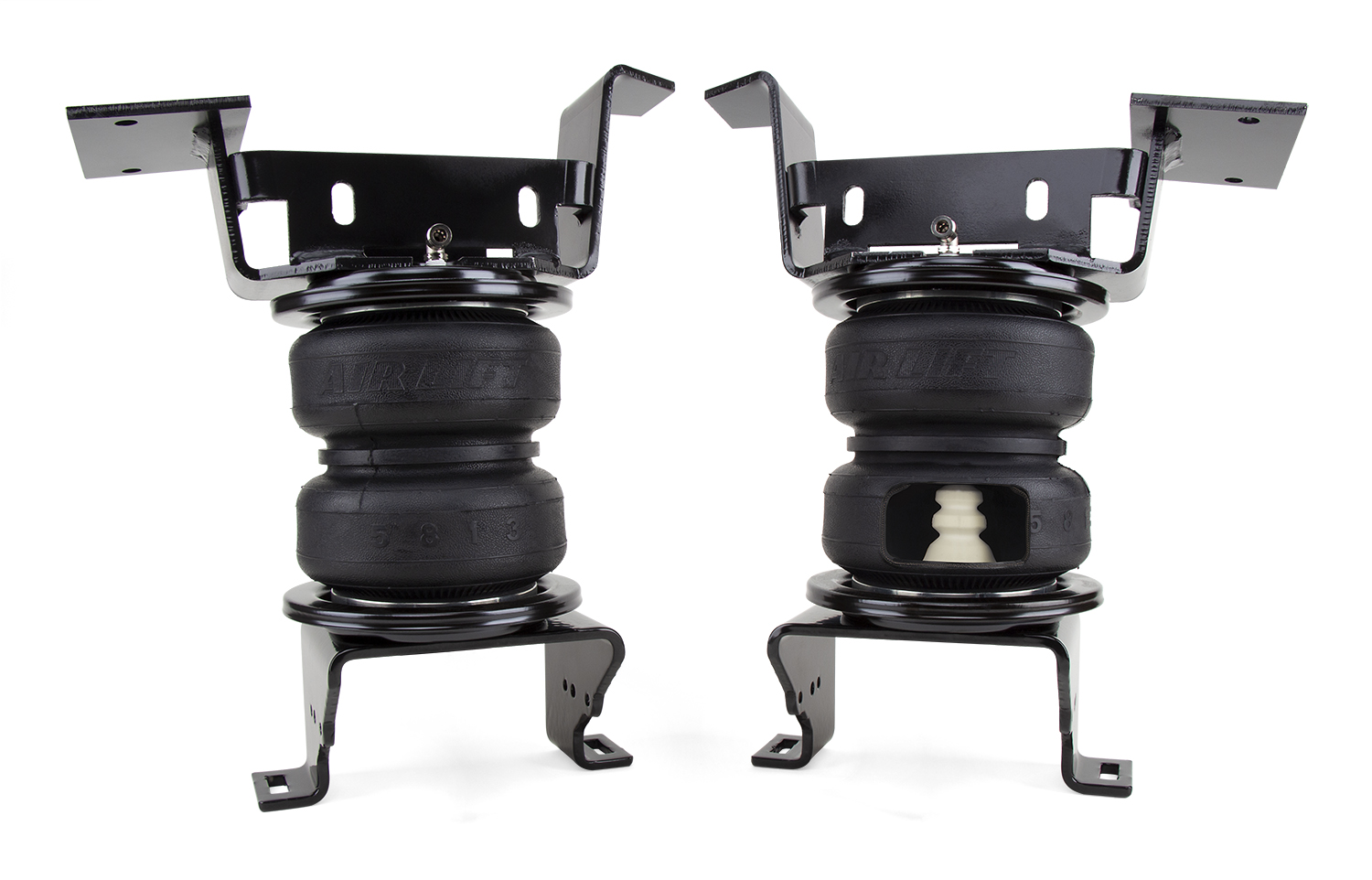

Leaf spring air spring kit with internal jounce bumper
Offering up to 5,000 pounds of load-leveling capacity, the LoadLifter 5000 Ultimate kit from Air Lift will make towing and hauling a comfortable and stress-free experience. For the ultimate ride comfort and protection, our fully-adjustable, industry leading air springs are the perfect partner for your vehicle, eliminating any issues that you might face. The LoadLifter 5000 Ultimate kit helps to eliminate problems frequently faced when towing and hauling, such as squat, poor headlight aim, trailer sway, body roll, and bottoming out. With the added stability and weight-distribution that air springs provide, you can haul safely, knowing that you have optimal braking and steering control. With the ability to adjust the air pressure from 5-100 PSI, your pickup can be ready for any weight and any situation (Note: Do not exceed vehicle's gross vehicle weight rating (GVWR)). What sets the LoadLifter 5000 Ultimate apart from other air spring kits is the built-in internal jounce bumper. An Air Lift exclusive, the jounce bumper inside the air spring prevents bottoming out, eliminating squat and trailer sway, even on rough roads. This replaces the factory jounce bumper and it completely maintenance free, running safely with zero air pressure. This added feature makes the kit the ULTIMATE in ride comfort and protection. As the leader in air suspension products for more than 70 years, Air Lift is committed to delivering quality load support parts that last. To ensure the highest quality, longevity, and customer satisfaction, the key suspension components, including the air springs and all hardware, have all been torture-tested to 1 million cycles on our hydraulic test rig. With a lifetime warranty and 60-Day Ride Satisfaction Guarantee -- not to mention the Air Lift reputation for great customer service and technical support, should you run into any snags in the installation process.
Air Lift Company has developed dependable air spring suspension products since our inception in 1949. Our original product, a rubber air spring inserted into a car’s factory coil spring, was created and patented in 1950. We’ve come a long way since 1949 and are proud to be a dedicated suspension specialist company.
Today, Air Lift load support products are sold worldwide and are engineered to fit over 540 vehicles. Our extensive product line offers air helper springs for trucks, RVs, SUVs, CUVs, and vans, as well as the most technologically advanced on-board air compressor systems for on-the-go air spring control.
Air Lift leads the industry in no-drill applications – kits that bolt onto your vehicle’s frame, speeding the installation process. Our teams work constantly to bring innovative products to you and upgrade existing products with the latest technology.
All of our efforts are spent ensuring your safety and comfort by designing, engineering, and manufacturing the highest quality suspension products. We are a family-owned business based in Lansing, Michigan, and make your family and cargo’s safety our top priority.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime
8 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2023 | Chevrolet Silverado 2500 HD | Will not fit commercial chassis |
| 2020 - 2022, 2024 - 2026 | Chevrolet Silverado 2500 HD | Will not fit commercial chassis vehicles |
| 2020 - 2026 | Chevrolet Silverado 3500 HD | Will not fit commercial chassis vehicles |
| 2023 | GMC Sierra 2500 HD | Will not fit commercial chassis |
| 2020 - 2022, 2024 - 2026 | GMC Sierra 2500 HD | Will not fit commercial chassis vehicles |
| 2020 - 2021 | GMC Sierra 3500 HD | Single Rear Wheel Will not fit commercial chassis vehicles |
| 2023 | GMC Sierra 3500 HD | Will not fit commercial chassis |
| 2022, 2024 - 2026 | GMC Sierra 3500 HD | Will not fit commercial chassis vehicles |
Yes, the Air Lift LoadLifter 5000 ULTIMATE with internal jounce bumper 88341 (Part #BBCG88341) is designed to fit the 2020-2026 Chevrolet Silverado 2500 HD.
The Air Lift LoadLifter 5000 ULTIMATE with internal jounce bumper 88341 (Part #BBCG88341) fits the following vehicles: 2020-2026 Chevrolet Silverado 2500 HD; 2020-2026 Chevrolet Silverado 3500 HD; 2020-2026 GMC Sierra 2500 HD; 2020-2021, 2023 GMC Sierra 3500 HD. Always verify your specific year, make, and model before ordering.
The Air Lift LoadLifter 5000 ULTIMATE with internal jounce bumper 88341 (Part #BBCG88341) fits 2020-2026 Chevrolet Silverado 2500 HD models. The 2026 model year is the last year covered by this part number. For newer models, check for an updated version.
The Air Lift LoadLifter 5000 ULTIMATE with internal jounce bumper 88341 (Part #BBCG88341) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The LoadLifter 5000 Series is an air spring suspension support system that provides up to 5,000 pounds (2,268 kg) of load-leveling support. It uses reinforced, commercial-grade convolute bellows and allows air adjustability from 5–100 PSI (0.34–7 BAR). The system helps level the vehicle under load and can be adjusted to maintain proper ride height.
These kits are designed for GM 2500–3500HD trucks. The manual does not specify model years or distinguish fitment between the three kit numbers.
All three kits (57341, 88341, 89341) use the same air springs and installation process but differ in finish and air line type. Standard LoadLifter 5000 has zinc-plated steel roll plates and black nylon air lines. LoadLifter 5000 Ultimate has black powder-coated roll plates and black nylon air lines. LoadLifter 5000 Ultimate Plus has stainless steel roll plates, braided stainless steel air lines, and stainless steel air spring mounting hardware. Air Lift also offers upgrade kits 52300 (braided stainless steel air line and fittings) and 52301 (stainless steel roll plates, hardware, and braided air lines).
Required tools include: standard and metric open-end or box wrenches (set), ratchet, standard and metric regular and deep-well sockets (set), 7/32" hex-key wrench, 5/16" drill bits (very sharp), heavy-duty drill, torque wrench, large screwdriver or small pry bar, hose cutter/razor blade/sharp knife, hoist or floor jack, safety stands, safety glasses (pair), air compressor or compressed air source, and spray bottle with dish soap/water solution.
The manual does not specify whether battery disconnection is required. Contact Air Lift customer service at (800) 248-0892 for clarification.
Raise the frame and support it with safety stands. Lower the axle as far as it can go to achieve full suspension extension.
Yes. Remove the jounce bumpers from the jounce bumper brackets on both sides by prying them out with a pry bar or large screwdriver.
Remove the two bolts holding the brake/ABS line bracket to the back of the jounce bumper strike plate and pull the bracket away to make room for the lower bracket. Disconnect the ABS wiring harness loom holder from the stock brake/ABS line bracket by squeezing the two locking tabs and pulling it out. Leave the loom holder loose for repositioning later.
Torque the 3/8"-24 × 3/4" flat head screws (part H) that attach the upper brackets (C & D) to the air springs to no more than 20 lb.-ft. (27 Nm).
Install the 90-degree swivel elbow fitting (G) onto the air springs and tighten finger-tight plus 1½ turns. Do not overtighten.
Use the first and third holes on each lower bracket (B) to attach to the air springs. Position the lower bracket with its angled section pointing toward the fitting side of the air spring. Attach using two 3/8" flat head screws (H) and torque to no more than 20 lb.-ft. (27 Nm).
With the suspension at full extension, set the driver's (left) and passenger's (right) side assemblies over the axle jounce bumper strike plates, ensuring the fitting points to the inside of the frame. Push the lower bracket down flush to the strike plate and align it so the tab and hole on the brake/ABS bracket align with the holes in the lower bracket.
Torque the clamp bar (A) hardware evenly to 16 lb.-ft. (22 Nm). The clamp bar is secured with 3/8" carriage bolts (M) and 3/8" serrated lock nuts (O).
After inflating the system to 10 PSI, torque both upper bracket U-bolts to 10 lb.-ft. (14 Nm), starting with the square U-bolt first.
Yes. The driver's (left) side has a wiring harness running along the top of the inside of the frame. When installing the U-bolt, ensure it is positioned between the wiring harness and the frame to avoid pinching the harness.
Yes. A 5/16" (8 mm) hole must be drilled to mount the Schrader valve(s). The manual recommends locations inside the fuel tank filler door, inside rear wheel wells, or in the license plate or rear bumper area (especially for Ultimate Plus kits). Use a sharp 5/16" drill bit and heavy-duty drill.
No. The braided stainless steel air lines cannot be trimmed. Any excess must be coiled and secured in an area where it will not be susceptible to damage. Nylon air lines, however, must be cut to length using a razor blade or hose cutter.
Cut nylon air lines in half using a razor blade or hose cutter, making clean, square cuts. Do not use scissors or wire cutters.
The minimum bend radius for air lines is 1" (25 mm). Avoid sharp bends and edges. Leave at least 2" (50 mm) of slack in the air line to allow for movement that might pull on the line.
Tighten the air line hex nut finger-tight, then use two wrenches to turn one additional flat (1/6 of one full turn). Do not overtighten. The easiest way to tighten the fitting is off the vehicle before final installation.

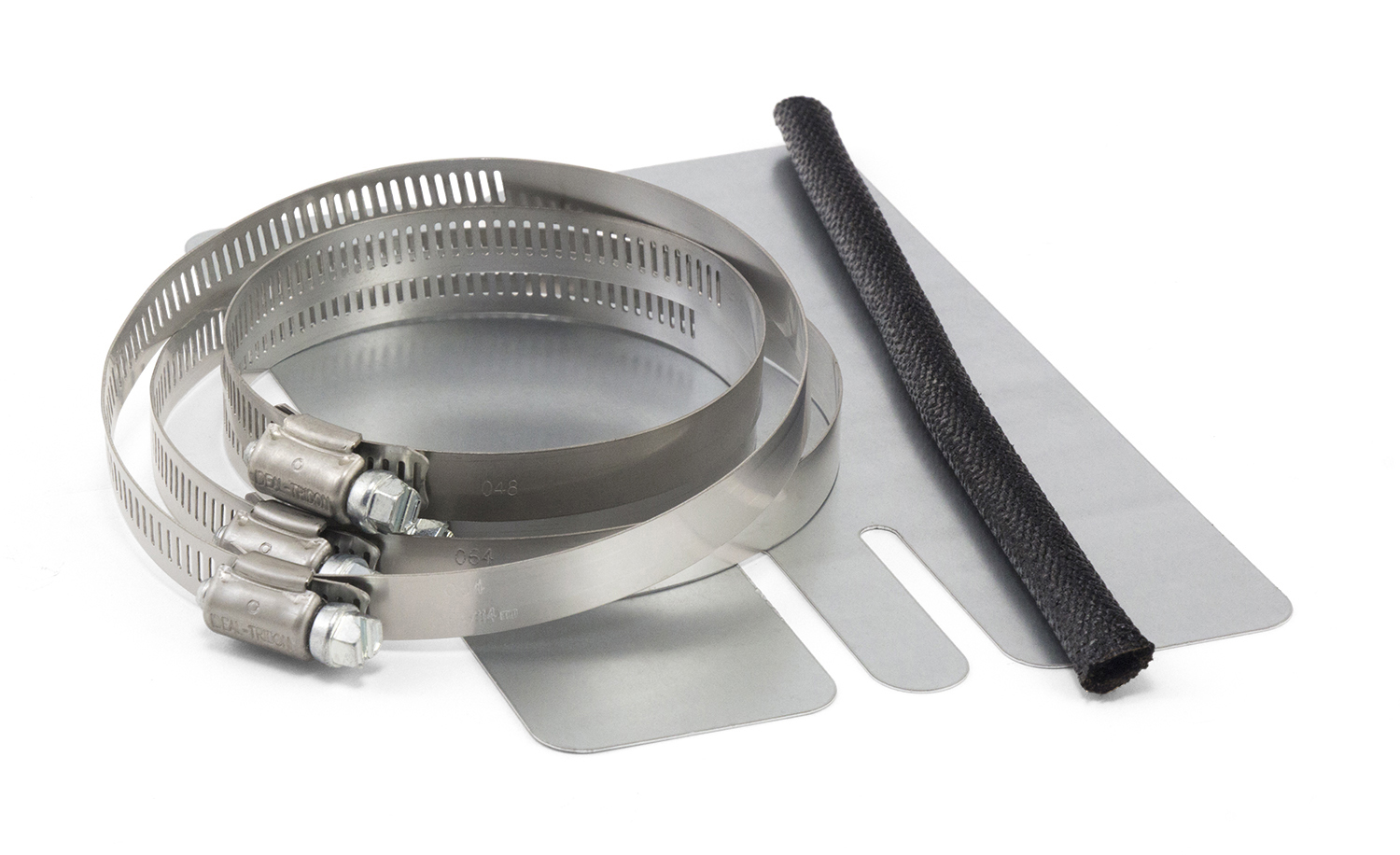

Keep at least 6" (150 mm) of clearance between all air lines and the exhaust system. Avoid sharp bends and edges. If a heat shield is included in the kit, install it and bend it for maximum clearance to the air spring, maintaining at least 1/2" (13 mm) dead air space between the shield and exhaust pipe.
The maximum air pressure is 100 PSI (7 BAR). Never inflate beyond this pressure. Although the air springs are rated at 100 PSI, the actual pressure needed depends on load and gross vehicle weight rating.
The minimum recommended pressure is 5 PSI (0.34 BAR).
Perform the following checks: (1) Clearance test—inflate to 40–60 PSI and verify at least 1/2" (13 mm) clearance from tires, brakes, frame, shock absorbers, and brake cables. (2) Leak test—inflate to 40–60 PSI and check all connections for leaks; all leaks must be eliminated before road testing. (3) Heat test—ensure at least 6" (152 mm) clearance from heat sources; install heat shield if included. (4) Fastener test—after 500 miles (800 km), recheck all bolts for proper torque. (5) Road test—drive 10 miles (16 km) and recheck for clearance, loose fasteners, and air leaks.
Check air pressure weekly.
Use a soapy water solution to check all air line connections and the inflation valve core before deflating and removing the air spring. Identify the source of the leak and repair or replace the affected component.
After 500 miles (800 km), recheck all bolts for proper torque.
No. Do not exceed the maximum gross vehicle weight rating (GVWR) or payload rating as indicated by the vehicle manufacturer. Although the air springs are rated at 100 PSI (7 BAR), the actual air pressure needed depends on load and GVWR. Exceeding these limits may damage the vehicle and create a safety hazard.
For nylon air lines, secure them to the upper coil spring mount with zip ties (BB) supplied. For braided stainless steel air lines, use zip ties to secure the line to fixed points along the chassis every 6" to 8" (150–200 mm). Do not pinch or kink the air line. Leave at least 2" (50 mm) of slack to allow for movement.
After inflating the system to 10 PSI, torque both upper bracket U-bolts to 10 lb.-ft. (14 Nm), starting with the square U-bolt (I) first, then the round U-bolt (L).
Yes. When installing the U-bolts, leave both sides loose at this time. They are tightened to final torque (10 lb.-ft. / 14 Nm) only after the air lines are installed and the system is inflated to 10 PSI.
The manual does not specify a torque value for the ABS bracket nuts. It states to "securely tighten" them after the carriage bolts are torqued to 16 lb.-ft. (22 Nm). Contact Air Lift customer service at (800) 248-0892 for the specific torque specification.
The manual states to "tighten both sides securely" when reattaching the stock brake/ABS line brackets using M8 hex cap screws (N) and M8 flat washers (P), but does not specify a torque value. Contact Air Lift customer service at (800) 248-0892 for the specific torque specification.
Yes, these kits are designed for GM 2500–3500HD trucks. The three kit numbers differ only in finish and air line type (nylon vs. braided stainless steel), not fitment.
You will need wrenches, sockets, ratchet, 7/32" hex-key wrench, sharp 5/16" drill bits, heavy-duty drill, torque wrench, pry bar, hose cutter or razor blade, hoist or floor jack, safety stands, safety glasses, air compressor, and a spray bottle with soapy water.
Perform a clearance test (at least 1/2" from tires, brakes, frame, shocks, cables), leak test (all connections at 40–60 PSI), heat test (at least 6" from heat sources), and fastener test (recheck after 500 miles).
Check air pressure weekly to maintain proper ride height and system performance.
Use a soapy water solution to check all air line connections and the inflation valve core. Spray the solution on each connection and look for bubbles, which indicate a leak. Once identified, repair or replace the affected component before deflating and removing the air spring. All leaks must be eliminated before road testing.
If the wire loom does not align correctly, unclip the line holder from the ABS bracket, adjust the position, and then re-clip the line holder back onto the loom.
It may be necessary to tap the U-bolt into position because of the welds around the jounce bumper cup. Use a hammer or mallet to gently tap the U-bolt until it seats properly.
