Includes Pro Series grille guard #P5056, mounting hardware, 30" LED light bar #1501264 and black mesh cover plate #PC30MB
Patent# US9108581B2
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Blank
Color: Black
Light - Beam Type: Combo
Light - Configuration: Single-row
Light - Light Size: 30 IN
Light - Light Type: Light Bar
Light - Lumens: 14,800

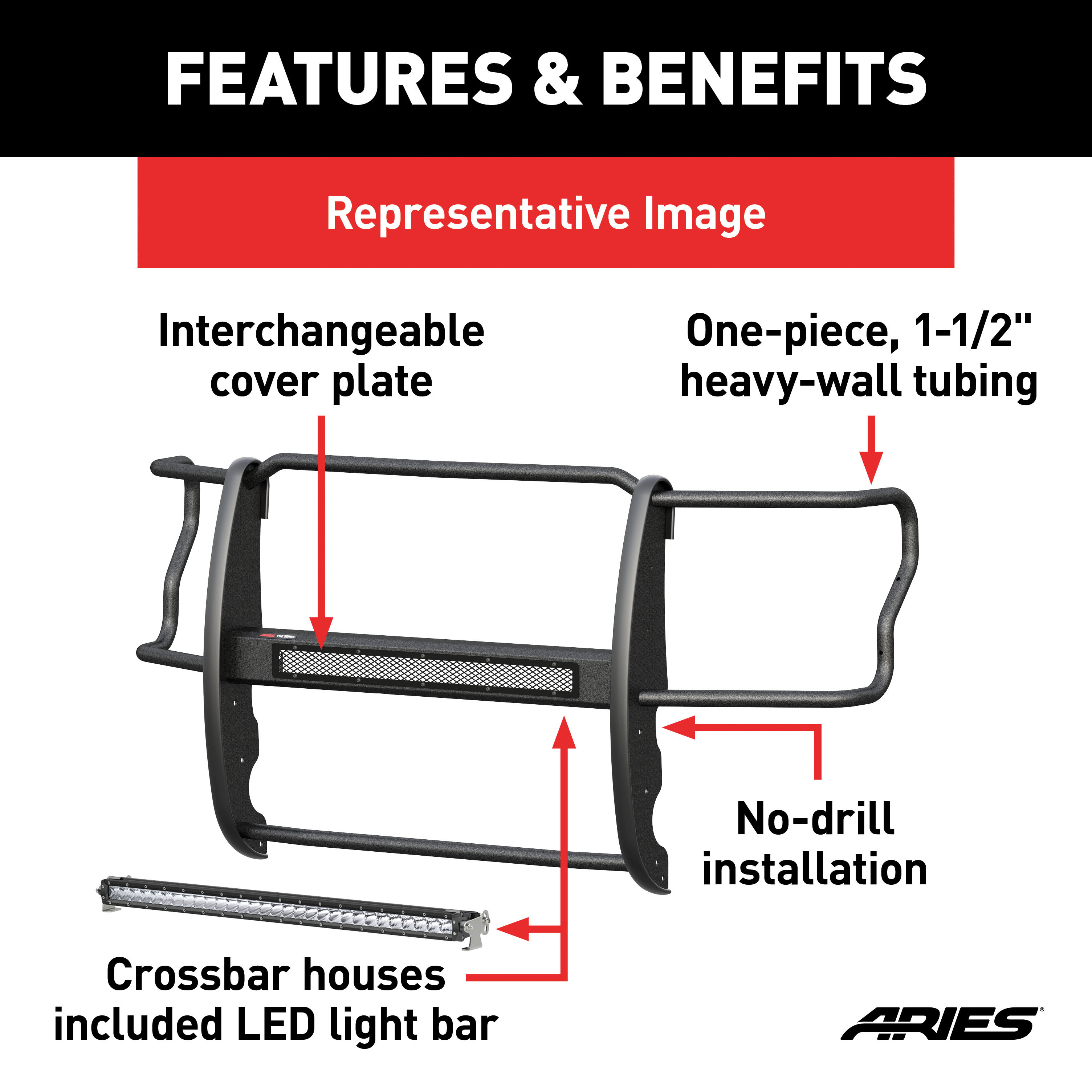

The ARIES Pro Series grille guard is unlike any other grille guard or brush guard on the road today because of its patented center crossbar. The ARIES Pro Series grille guard has a unique center crossbar that houses an LED light bar, allowing you to truly set your truck apart from all others. Rather than using a set of light clips or forcing you to drill holes into the frame, the aerodynamic crossbar of the Pro Series grille guard is the light bar housing itself. It uses a 30" slotted channel bracket to mount the included 30" LED light bar #1501264. The bracket can also accept other single-row light bars (some 30" light bars may not fit). The crossbar mount can also articulate, allowing you to position the light beam at any angle you prefer. Integrating the channel mount into the crossbar housing also keeps the light bar protected from the elements. To further stylize your truck, the Pro Series grille guard also comes with an interchangeable grille guard cover plate. Included with each grille guard is a black mesh cover plate that easily bolts on and provides added security for your aftermarket lights. The mesh cover plate can be swapped out with other cover plate options, including five different styles and two finishes. Solid construction should be an essential feature of any grille guard, and the Pro Series grille guard is more than qualified. It has a one-piece design of 1/4" thick welded plates and 1-1/2" mandrel-bent carbon steel tubing. We also finish each Pro Series grille guard in a highly durable, dual-layer E-coat and textured black powder coat, giving it resilience to rust and scratches. This unique finish also helps hide minor scratches and grime to maintain a clean look. ARIES Pro Series grille guards are made vehicle-specific for seamless integration with the factory bumper and an easy, no-drill installation. This grille guard fits select model years of the Ram 2500 and 3500 and Dodge Ram 2500 and 3500 (see application info to verify fitment).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2010 | Dodge Ram 2500 | — |
| 2010 | Dodge Ram 3500 | — |
| 2011 - 2018 | Ram 2500 | — |
| 2011 - 2018 | Ram 3500 | — |
The ARIES 2170026 Pro Series Black Steel Grille Guard with Light Bar, Select Dodge, Ram 2500, 3500 (Part #BBDR2170026) fits the following vehicles: 2010 Dodge Ram 2500; 2010 Dodge Ram 3500; 2011-2018 Ram 2500; 2011-2018 Ram 3500. Always verify your specific year, make, and model before ordering.
The ARIES 2170026 Pro Series Black Steel Grille Guard with Light Bar, Select Dodge, Ram 2500, 3500 (Part #BBDR2170026) fits 2010 Dodge Ram 2500 models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the ARIES 2170026 Pro Series Black Steel Grille Guard with Light Bar, Select Dodge, Ram 2500, 3500 (Part #BBDR2170026) is designed to fit the 2010 Dodge Ram 2500.
The ARIES 2170026 Pro Series Black Steel Grille Guard with Light Bar, Select Dodge, Ram 2500, 3500 (Part #BBDR2170026) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The kit includes: 1 grill guard bar, 1 driver/left mounting bracket, 1 passenger/right mounting bracket, 1 support flange, 6 × 12mm × 30mm hex bolts, 12 × 12mm flat washers, 6 × 12mm lock washers, 6 × 12mm nuts, 8 × 10mm × 60mm hex bolts, 16 × 10mm flat washers, 8 × 10mm lock washers, 8 × 10mm nuts, 2 × 8mm nut clips, 2 × 8mm hex bolts, 2 × 8mm flat washers, and 2 × 8mm lock washers. The LED light is sold separately.
Yes, the P5056 is designed for 2010-14 Dodge Ram Crew and Mega Cab 2500/3500 models in both 2WD and 4WD configurations. The factory tow hooks will be removed and not reattached as part of the installation.
No. The LED light is sold separately. You will need to select and purchase your own LED light and attach its mounting hardware and brackets to the support flange before installing the grill guard.
Yes. The manual explicitly states 'With help begin to install Grille Guard' in Step 5, indicating that assistance is required during the installation process.
1. Attach your LED light mounting hardware to the support flange. 2. Insert the two 8mm nut clips into the slotted holes on the support flange. 3. Lay the grill guard face down and secure the support flange with 8mm bolts, washers and lock washers (snug, do not tighten). 4. Remove the factory tow hooks and install the mounting brackets in their place using 10mm bolts, washers, lock washers and nuts (snug, do not tighten). 5. Position the grill guard and attach it to the mounting brackets using 12mm bolts, washers, lock washers and nuts (snug, do not tighten). 6. Adjust for alignment and tighten all hardware.
Yes. The manual recommends laying out cardboard from the grill guard box or a blanket to protect the grill guard finish when laying it face down during installation.
Do not tighten any hardware until the final step. Throughout Steps 3, 4, and 5, all bolts should be snugged but left loose. Only after adjusting the grill guard for proper alignment in Step 6 should you tighten all mounting hardware.
Lay the grill guard face down on protective cardboard or a blanket. Place the support flange (with LED light already attached) into the center flange of the grill guard. Secure each side of the support flange to the inner brackets inside the center flange using 2 × 8mm hex bolts, 2 × 8mm flat washers, and 2 × 8mm lock washers per side. Snug but do not tighten at this time.
Remove the factory tow hook from the passenger side of the vehicle. Install the passenger/right mounting bracket in its place and secure it with 4 × 10mm × 60mm hex bolts, 8 × 10mm flat washers, 4 × 10mm lock washers, and 4 × 10mm nuts. Snug but do not tighten. Repeat the same process for the driver/left side using the driver/left mounting bracket.
Move the mounting brackets as far inward as possible. Position the grill guard against the outer side of the passenger/right mounting bracket and align the mounting holes. Bolt together using 3 × 12mm × 30mm hex bolts, 6 × 12mm flat washers, 3 × 12mm lock washers, and 3 × 12mm nuts. Repeat for the driver/left side. Snug but do not tighten until final alignment is complete.
Wax the product after installing. Regular waxing is recommended to add a protective layer over the finish. Do not use any type of polish or wax that may contain abrasives, as these could damage the finish.
Perform periodic inspections to ensure all hardware is secure and tight. Check that all bolts, washers, nuts and clips remain properly fastened.
The Aries 1501264 is a 10-inch LED light bar designed to mount on the support flange of the Curt P5056 grill guard. It includes mounting brackets, a wiring harness, a switch, a relay with a pre-installed 15-amp fuse, mounting hardware (M6 and M8 fasteners), rubber spacers, and a security screw L-wrench. The light bar requires connection to the vehicle's battery and periodic inspection of wires and connections.
1. Mount the LED light bar in the desired location with a rubber spacer between the mounting surface and each bracket. 2. Disconnect the supplied switch from the wiring harness and install it in the desired location. 3. Route the wiring harness to the light and insert the male plug into the female socket on the LED light. Reconnect the blue, red and black spade connectors to the switch. 4. Connect the red fused wire with ring terminal to the positive (+) battery post. Connect the black wire ring terminal to the negative (-) battery post or other suitable vehicle grounding point. 5. Mount the relay and secure all wires with zip ties away from moving parts. Test the light to ensure proper function.
A 15-amp fuse is pre-installed in the relay. If the light bar is being used with a 24V system, the relay will need to be replaced with a 24V unit.
Yes. The Aries 1501264 comes with a relay for standard 12V systems. If your vehicle uses a 24V system, you must replace the relay with a 24V unit before installation.
The switch has three spade connectors: blue, red, and black. These must be reconnected to the switch after routing the wiring harness to the light. Refer to the wiring diagram in the manual for proper connection.
Route the wiring harness to the light and secure all wires with zip ties away from moving parts to avoid damage. The red fused wire connects to the positive (+) battery post, and the black wire connects to the negative (-) battery post or other suitable vehicle grounding point.
Improper electrical installation may damage electronic components resulting in personal injury, property or equipment damage. Damage caused by incorrect installation is not covered by warranty. Installation should only be performed by qualified personnel with a solid understanding of electrical systems. Periodic inspection of all wires and connections should be performed to ensure there is no visible damage or loose connections.
Perform periodic inspection of all wires and connections to ensure there is no visible damage or loose connections. Test the light to ensure proper function after installation.
Yes, the P5056 is designed for 2010-14 Dodge Ram Crew and Mega Cab 2500/3500 in 2WD and 4WD. Factory tow hooks are removed and not reattached.
No, the LED light is sold separately. You must purchase and attach your own LED light to the support flange before installing the grill guard.
Yes, the manual requires help during installation, particularly when positioning the grill guard in Step 5.
Snug all hardware during assembly but do not tighten until after you adjust the grill guard for alignment in Step 6. Then tighten all mounting hardware.
Wax the product after installing and regularly thereafter. Do not use polish or wax containing abrasives, as these will damage the finish.
A 15-amp fuse is pre-installed in the relay. For 24V systems, replace the relay with a 24V unit.
Connect the red fused wire ring terminal to the positive (+) battery post and the black wire ring terminal to the negative (-) battery post or suitable vehicle grounding point. Secure all wires with zip ties away from moving parts.
Installation should only be performed by qualified personnel with a solid understanding of electrical systems. Improper installation may damage electronic components and is not covered by warranty.
