ARIES Black Steel Grille Guard, Select Ford F-150 Grille GuardARIESOriginal price was $422.95. Current price is $210.00.Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
ARIES
Verify Fitment
Select your vehicle to confirm this part fits.
2004 - 2008 Ford F-150
Confirmed to Fit
2006 - 2008 Lincoln Mark LT
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $874.95. Current price is $526.00.You save $348.95 (40%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
Shipping from Lancaster, TXFREE SHIPPING
Estimated delivery Wed, Sep 23 - Fri, Sep 25
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Includes grille guard and mounting hardware
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: SEMI-GLOSS BLACK POWDER COAT
Material: Blank
Color: Black

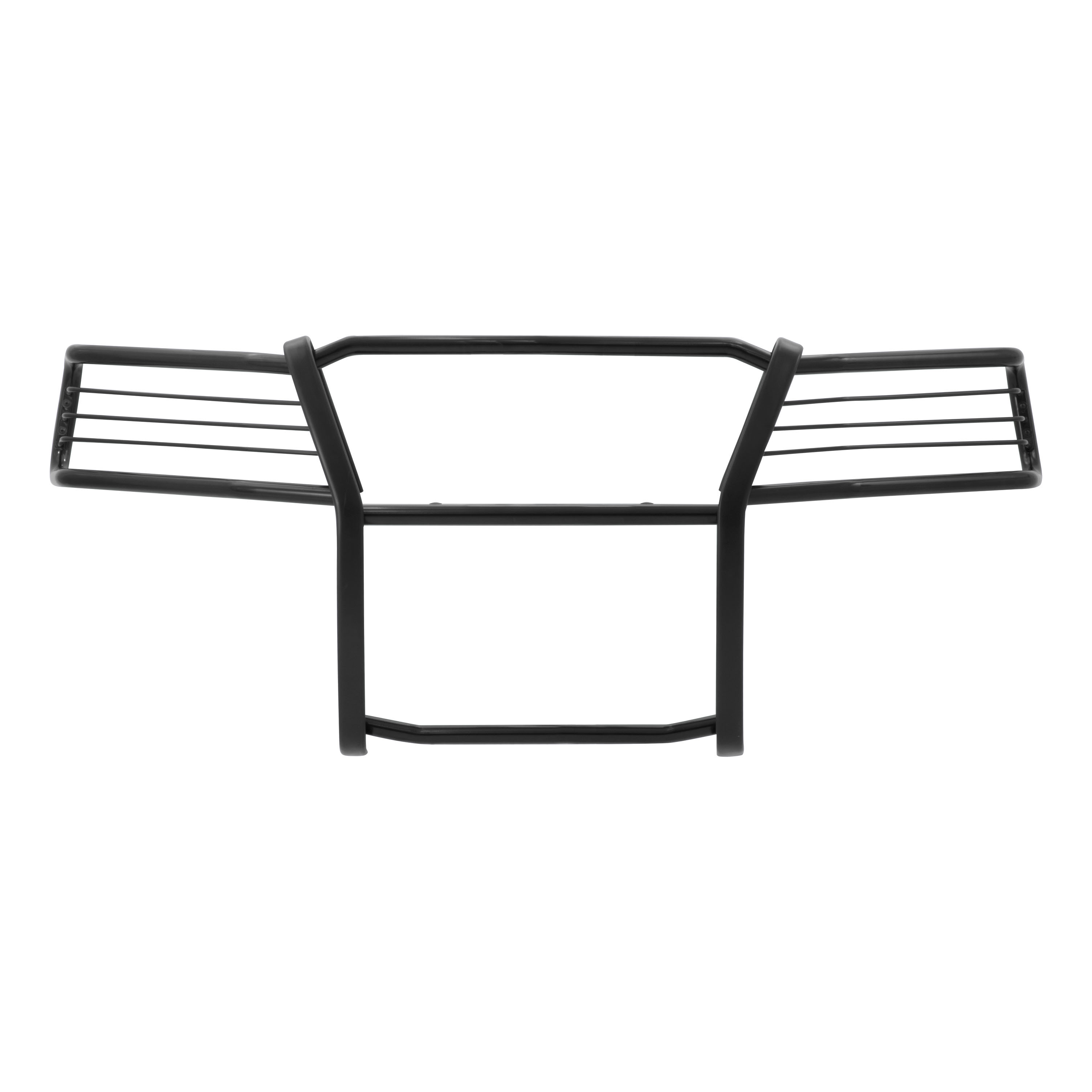

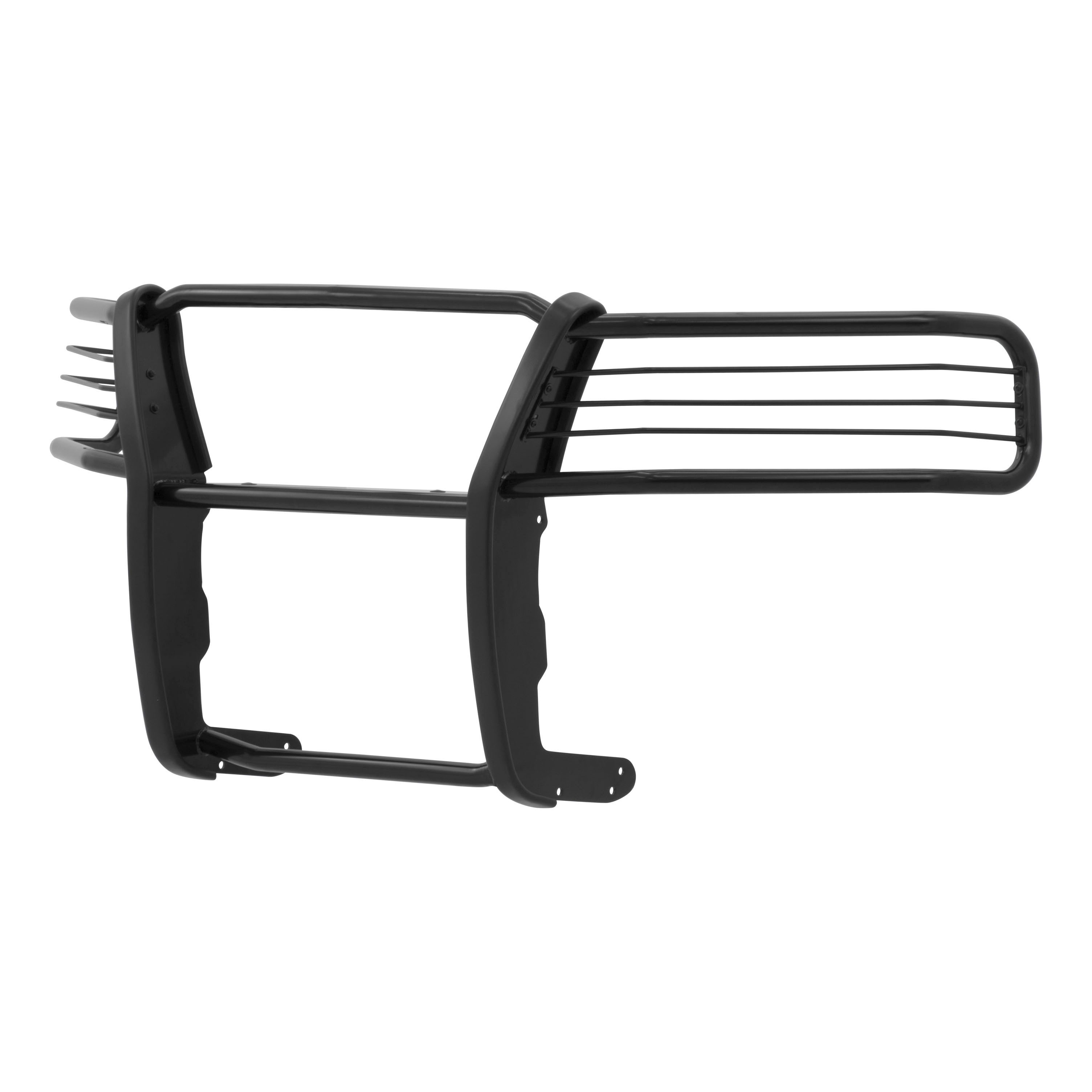

For the conqueror in every truck, Jeep or SUV owner, the ARIES grille guard offers the tough, trail-ready look you demand. It begins with a one-piece frame of 1/4" thick welded plates and 1-1/2" mandrel-bent tubing for a solid build. Each one is made with a vehicle-specific design for a better fit, easier install and more secure mounting. The side brush guards are custom-bent to contour to the profile of your vehicle, while the mounting brackets are positioned for a no-drill application. This means pre-existing factory holes are used to ensure optimum fitment and less vibration. This particular custom grille guard fits specific years of the Ford F150 and Lincoln Mark LT (see application info to verify). The ARIES grille guard also makes it easy to customize the look of your vehicle. Not only does the crossbar have two pre-drilled holes for mounting aftermarket LED lights, but many of our grille guards are also available in two finish options -- polished stainless steel or semi-gloss black steel. The stainless steel grille guard is made with 304 stainless, being high in nickel content and truly resistant to rust and corrosion. This option comes with a mirror-like polished finish for a definitive shine. The semi-gloss black grille guard is made with high-strength carbon steel for added strength. It features a tough, dual-layer E-coat and black powder coat finish to protect against rust, scratches and the elements. All ARIES grille guards also come with rubber stripping along the risers to protect the frame against scuffs and scratches.
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 - 2008 | Ford F-150 | — |
| 2006 - 2008 | Lincoln Mark LT | — |
The ARIES Black Steel Grille Guard, Select Ford F-150, Lincoln Mark LT Grille Guard (Part #BBDR3056) fits the following vehicles: 2004-2008 Ford F-150; 2006-2008 Lincoln Mark LT. Always verify your specific year, make, and model before ordering.
The ARIES Black Steel Grille Guard, Select Ford F-150, Lincoln Mark LT Grille Guard (Part #BBDR3056) fits 2004-2008 Ford F-150 models. The 2008 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the ARIES Black Steel Grille Guard, Select Ford F-150, Lincoln Mark LT Grille Guard (Part #BBDR3056) is designed to fit the 2004-2008 Ford F-150.
The ARIES Black Steel Grille Guard, Select Ford F-150, Lincoln Mark LT Grille Guard (Part #BBDR3056) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the Curt 3056 grill/brush guard is designed for 2004-05 Ford F150 in both 2WD and 4WD configurations. Installation procedures differ between 2WD and 4WD models, so follow the appropriate section in the manual for your drivetrain.
The manual indicates a 06-07 version exists with a top bracket difference, but detailed 06-07 installation instructions are not fully provided in this manual. Contact the manufacturer or consult the 06-07 specific documentation before purchasing for those model years.
Yes. For 2WD models, you must temporarily remove the factory plastic spoiler from the front section of the vehicle to allow installation of the mount brackets. After the brackets are installed, you will reposition the spoiler and cut slots in it to fit around the frame mount brackets and front bar uprights.
Yes. For 4WD models, you must remove the tow hooks from the front of the vehicle's frame by removing the front bolt and loosening the rear bolt. The frame mount brackets are then positioned underneath the frame, followed by reinstalling the tow hooks and replacing the factory bolts.
Yes. You must open the hood to access and remove two factory bolts located just behind the bumper and in line with the front bar uprights. These bolts are needed for attaching the brace brackets.
The kit includes: (1) front bar, (2) frame mount brackets, (2) brace brackets, (2) nut plates, (10) 7/16 x 1½ hex bolts, (18) 7/16 USS flat washers, (6) 7/16 hex lock nuts, (2) 3/8 x 1 button bolts, (2) 3/8 lock nuts, (2) 3/8 USS flat washers, and (2) M10-1.5 x 40 mm hex head bolts. The brace bracket kit also includes (2) lower brackets, (2) upper bracket arms, (2) M8 x 20 bolts, (2) M8 lock nuts, and (2) M8 flat washers.
For 2WD: (1) Temporarily remove the factory plastic spoiler. (2) Starting with the driver side, place a nut plate through the front of the frame rail, align holes, attach the frame mount bracket to the underside using 2 × 7/16 x 1½ bolts and 2 × 7/16 flat washers, and hand tighten. Repeat for the passenger side. (3) Reposition the spoiler and cut slots around the brackets and uprights. (4) Attach the spoiler. (5) Proceed to brace bracket installation (see page 3).
For 4WD: (1) Remove tow hooks by removing the front bolt and loosening the rear bolt. (2) Place frame mount brackets on the underside of the frame, followed by the tow hooks. Replace factory bolts and hand tighten. (3) Line up the 3 holes on the lower portion of the front bar with the 3 holes on the inside of each frame mount bracket. Attach using 3 × 7/16 x 1½ hex bolts, 6 × 7/16 flat washers, and 3 × 7/16 hex lock nuts per side. Hand tighten. (4) Proceed to brace bracket installation (see page 3).
Open the hood and remove two factory nuts from behind the bumper (one M10, one M8). Place the vertical support plate over the holes and reinstall the factory nuts, leaving them loose. Place the upper half of the support bracket over the bumper and attach to the lower bracket. Connect the support arm to the vertical wing with an M10 x 30 bolt, flat washer, and lock nut. After all parts are assembled, go back and tighten all hardware securely. Take caution not to scratch the factory finish on the bumper cover.
Yes. After installing the frame mount brackets, you must carefully mark and cut slots in the factory plastic spoiler to fit around the frame mount brackets and front bar uprights before reattaching the spoiler to the vehicle.
The manual does not provide torque specifications for any fasteners. All hardware is initially hand tightened during assembly, and the manual states that all hardware must be tightened securely after assembly is complete. Contact the manufacturer for specific torque values.
Take caution not to scratch the factory finish on the bumper cover when installing the brace brackets. Ensure all hardware is tightened securely after assembly is complete.
After assembly is complete, go back and tighten all hardware securely. Verify that the front bar is properly aligned with the frame mount brackets, that the brace brackets are securely attached, and that the factory plastic spoiler (on 2WD models) is properly fitted around the guard components.
Yes, the 3056 fits both 2WD and 4WD 2004-05 F150 models. Installation procedures differ between drivetrain types.
Yes, temporarily remove the factory plastic spoiler to install the mount brackets. You will cut slots in it to fit around the guard and reattach it.
Yes, remove the tow hooks by removing the front bolt and loosening the rear bolt. Reinstall them after positioning the frame mount brackets.
Yes, you must cut slots in the factory plastic spoiler to fit around the frame mount brackets and front bar uprights.
The kit includes 7/16 hex bolts, 7/16 flat washers, 7/16 hex lock nuts, 3/8 button bolts, 3/8 lock nuts, 3/8 flat washers, M10-1.5 x 40 mm bolts, and brace bracket hardware (M8 bolts, nuts, and washers).
Take caution not to scratch the factory finish on the bumper cover. Tighten all hardware securely after assembly is complete.
