ARIES Black Steel Grille Guard, Select Ford F-150 Grille GuardARIESOriginal price was $422.95. Current price is $210.00.Out of Stock
View productAsk a Question About This Product
Our in-house experts typically reply within one business day.
Our in-house experts typically reply within one business day.
ARIES
Verify Fitment
Select your vehicle to confirm this part fits.
2015 - 2020 Ford F-150
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Includes grille guard, mounting hardware and black mesh cover plate #PC30MB
Patent# US9108581B2
Grille guard may interfere with forward-facing cameras or sensors
Warranty: Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
Finish: TEXTURED BLACK POWDER COAT
Material: Blank
Color: Black

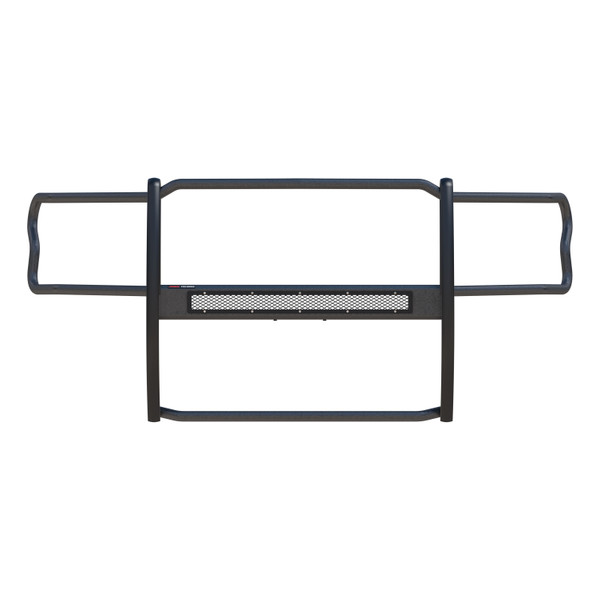

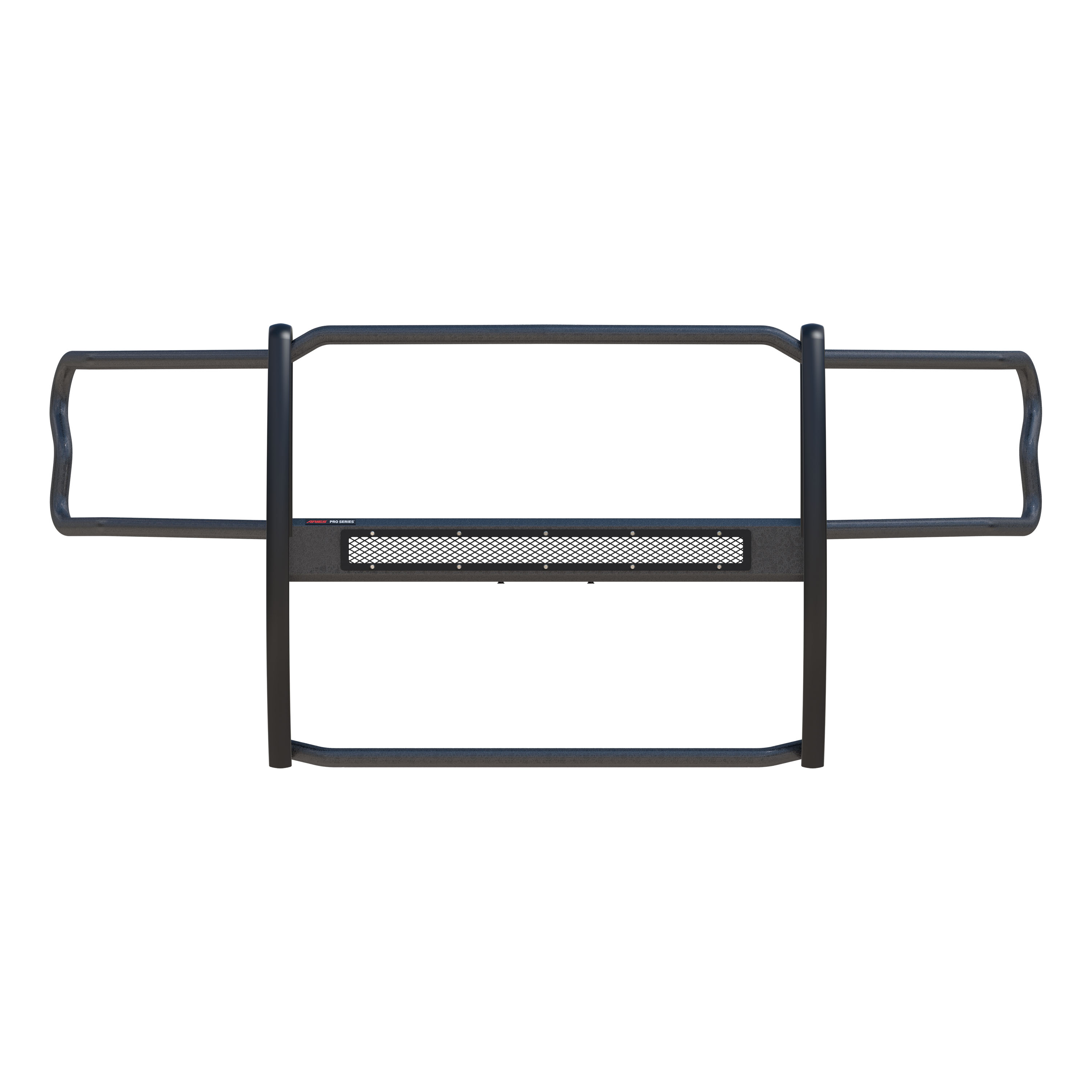

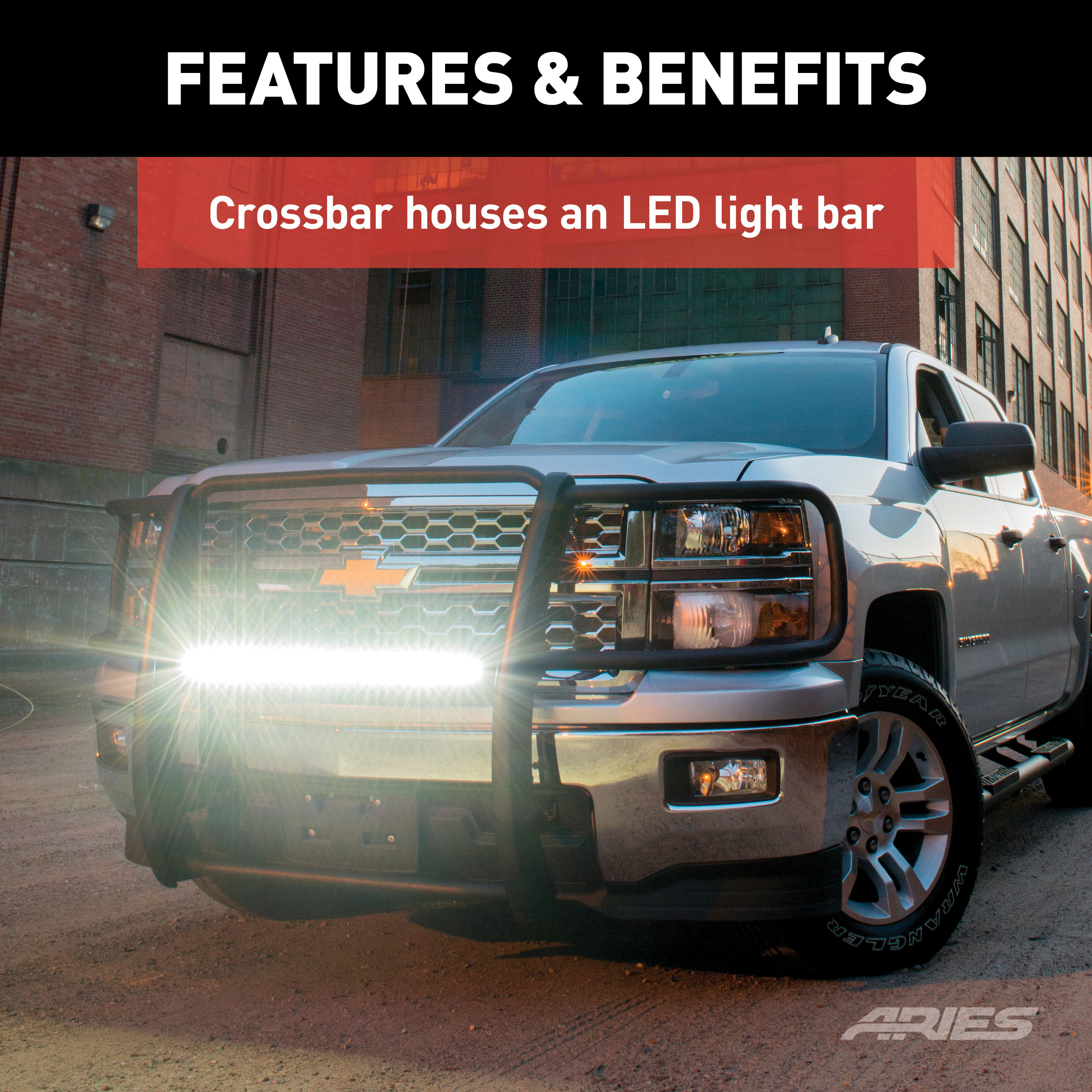

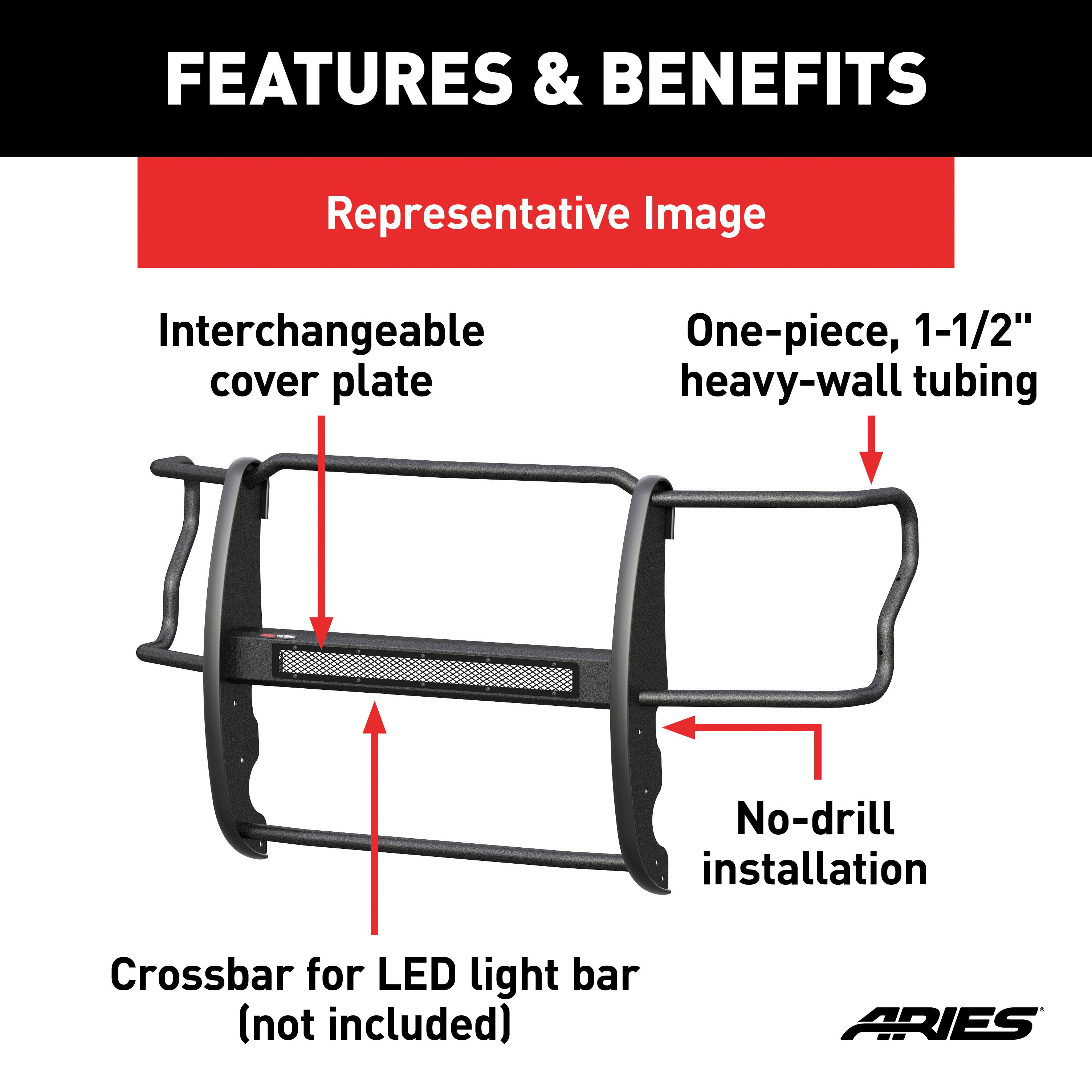

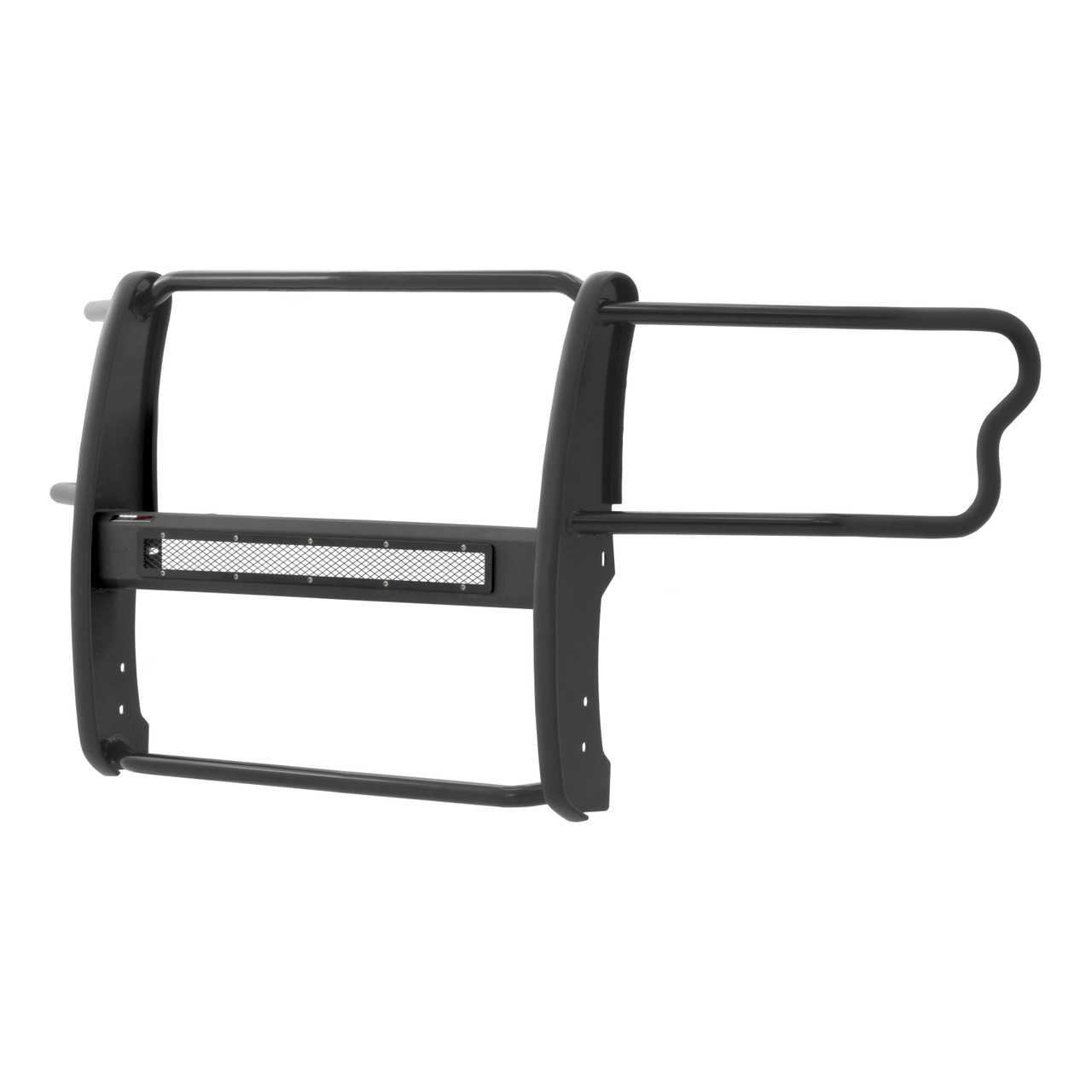

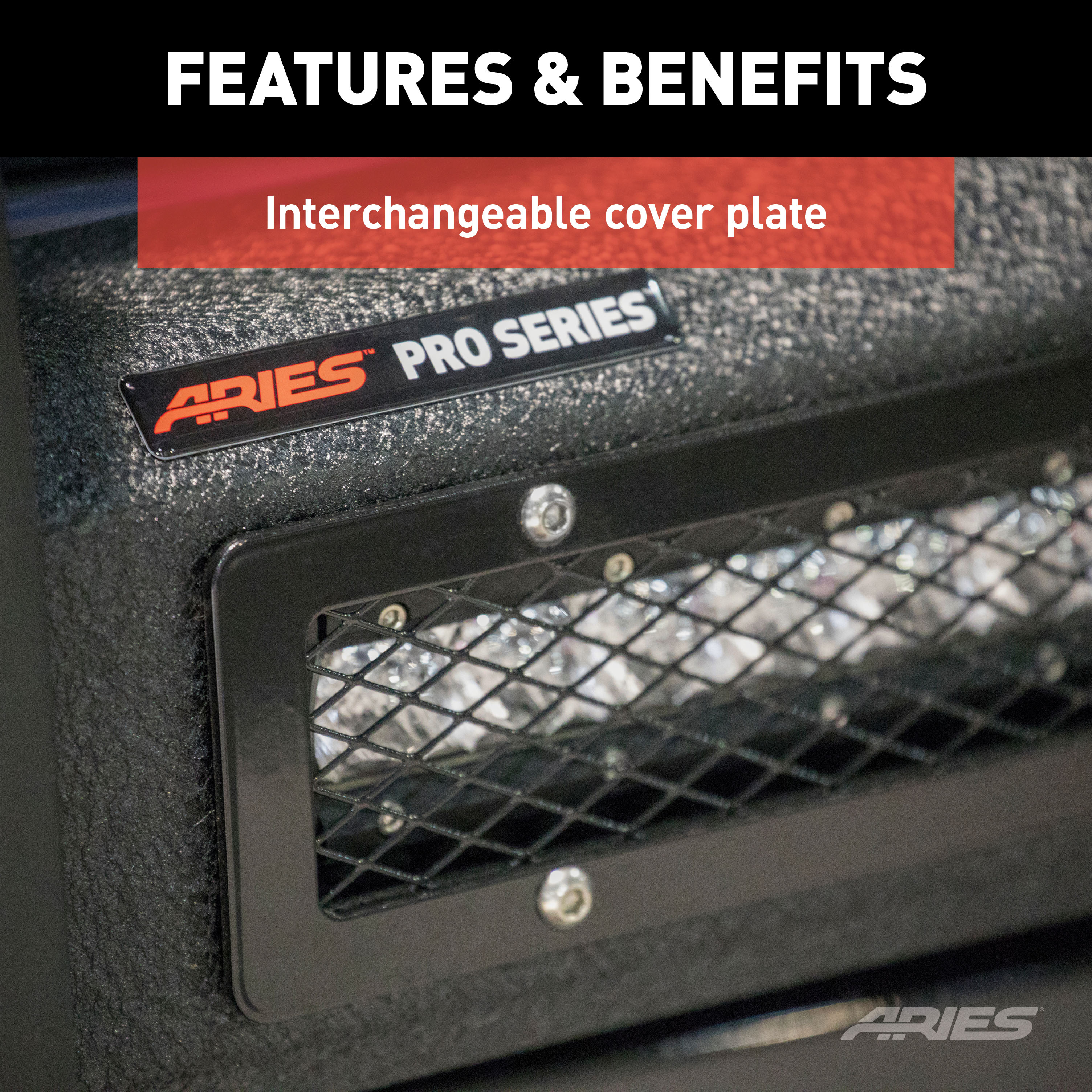

The ARIES Pro Series grille guard is unlike any other grille guard or brush guard on the road today because of its patented center crossbar. The ARIES Pro Series grille guard has a unique center crossbar that is able to house an LED light bar, allowing you to truly set your truck apart from all others. Rather than using a set of light clips or forcing you to drill holes into the frame, the aerodynamic crossbar of the Pro Series grille guard is the light bar housing itself. It uses a 30" slotted channel bracket to accept one or more single-row light bars (light bars not included; some 30" light bars may not fit the channel bracket). The crossbar mount can also articulate, allowing you to position the light beam at any angle you prefer. Integrating the channel mount into the crossbar housing also keeps the light bar protected from the elements. To further stylize your truck, the Pro Series grille guard also comes with an interchangeable grille guard cover plate. Included with each grille guard is a black mesh cover plate that easily bolts on and provides added security for your aftermarket lights. The mesh cover plate can be swapped out with other cover plate options, including five different styles and two finishes. Solid construction should be an essential feature of any grille guard, and the Pro Series grille guard is more than qualified. It has a one-piece design of 1/4" thick welded plates and 1-1/2" mandrel-bent carbon steel tubing. We also finish each Pro Series grille guard in a highly durable, dual-layer E-coat and textured black powder coat, giving it resilience to rust and scratches. This unique finish also helps hide minor scratches and grime to maintain a clean look. ARIES Pro Series grille guards are made vehicle-specific for seamless integration with the factory bumper and an easy, no-drill installation. This grille guard fits select model years of the Ford F-150 (see application info to verify fitment).
Explore ARIES products at TowUniverse for top-tier grille guards, side bars, nerf bars, headache racks, and more. Upgrade your vehicle with ARIES today!
ARIES is a fast-paced marketer and innovator of truck, Jeep, SUV and CUV accessories. From automotive enthusiasts to professional builders, our products are built for the champions of individualism, innovation and attitude.
We offer the perfect combination of unique style and durable construction, specializing in custom-fit grille guards, bull bars, side bars and running boards, as well as Jeep Wrangler and Jeep Gladiator accessories.
ARIES products are made vehicle-specific for a custom fit, and they are available for a wide variety of makes and models sold in North America.
Experts available to answer your questions
Call 888-634-9494Limited Lifetime Warranty (Three-Year Finish, One-Year Parts)
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2020 | Ford F-150 | — |
The ARIES Pro Series Black Steel Grille Guard, Select Ford F-150 Grille Guard (Part #BBDRP3066) fits 2015-2020 Ford F-150 models. The 2020 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the ARIES Pro Series Black Steel Grille Guard, Select Ford F-150 Grille Guard (Part #BBDRP3066) is designed to fit the 2015-2020 Ford F-150.
The ARIES Pro Series Black Steel Grille Guard, Select Ford F-150 Grille Guard (Part #BBDRP3066) fits the following vehicles: 2015-2020 Ford F-150. Always verify your specific year, make, and model before ordering.
The ARIES Pro Series Black Steel Grille Guard, Select Ford F-150 Grille Guard (Part #BBDRP3066) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The P3066 is designed for 2015-Current vehicles. The manual does not specify the vehicle make or model. Contact Aries Automotive at 877.287.8634 or check ariesautomotive.com to confirm fitment for your specific vehicle before purchasing.
Yes. The P3066 includes year-specific upper mounting brackets. You must select the correct bracket for your vehicle: 2015-2017, 2018-2020, or 2021-Current. The bracket diagram on page 1 of the manual shows which bracket to use. Using the wrong year bracket may result in improper fitment.
The P3066 includes: 1 grille guard, driver and passenger frame brackets, year-specific upper mounting brackets, 1 LED support flange, 2 hex bolts 8mm x 40mm, 4 hex bolts 8mm x 30mm, 4 nylock nuts 8mm, 4 hex bolts 10mm x 30mm, 4 nylock nuts 10mm, 2 double nut plates 12mm, 4 hex bolts 12mm x 35mm, 2 clip-on nuts M8, 4 lock washers M8, 8 flat washers M8 x 22mm OD, 8 flat washers M10 x 24mm OD, 4 lock washers M12, and 4 flat washers M12 x 32mm OD.
No. The LED light is sold separately. The P3066 includes an LED support flange to which you can attach a compatible LED light. The manual notes that LED manufacturers may have different mounting styles or brackets, so you will need to determine the correct mounting hardware based on your chosen LED light.
The manual states that proper tools will improve the quality of installation and reduce time required, but does not specify which tools are needed. Contact Aries Automotive at 877.287.8634 for a detailed tool list.
Yes. Assistance is required in two places: (1) to hold the bumper in place while removing hardware during bumper removal (Step 4), and (2) to position the grille guard on the outside of the frame brackets during final assembly (Step 9). A second person is necessary for proper installation.
Yes. Step 4 requires removal of the factory bumper. The manual states that assistance is required to hold the bumper in place as hardware is removed. The bumper is reinstalled after the upper support brackets are secured (Step 5).
No. The manual states 'Grille removed for clarity only. Removal of the grille is not required.' You can install the P3066 without removing the grille.
Vehicles with factory tow hooks (Step 1A) use the existing tow hook mounting points. You remove the tow hook and plastic trim, insert the frame bracket between the tow hook and frame, then reattach the tow hook with factory bolts. Vehicles without factory tow hooks (Step 1B) require you to insert M12 double nut plates into the frame end and attach the frame bracket to the bottom of the frame using M12 hex bolts, lock washers and flat washers.
No. The manual explicitly states 'Plastic trim will not be reinstalled.' The plastic trim between the tow hook and splash guard is removed and discarded during Step 1A.
The installation sequence is: (1) Install frame mounting brackets (Step 1A or 1B depending on tow hooks); (2) Install upper support brackets on bumper (Steps 2-3 for 2015-17 models, or Step 5 for 2018-Current models); (3) Remove bumper (Step 4); (4) Attach LED light to support flange (Step 6); (5) Assemble support flange to grille guard (Steps 7-8); (6) Attach grille guard to frame brackets (Step 9); (7) Center and tighten frame bracket bolts (Step 10); (8) Install upper brackets on grille guard uprights (Step 11); (9) Tighten all hardware (Step 12).
The manual requires snugging (partial tightening) of hardware at multiple stages: Steps 1A/1B (frame brackets), Step 2 (upper bracket for 2015-17), Step 3 (upper bracket connection for 2015-17), Step 5 (support bracket), Step 8 (support flange to grille guard), and Step 9 (grille guard to frame brackets). Full tightening occurs in two stages: Step 10 (M12 frame bracket bolts after centering the grille guard), and Step 12 (all remaining hardware after alignment is complete).
Center the grille guard on the vehicle (Step 10). Once properly adjusted, fully tighten the four M12 hex bolts attaching the frame brackets to the bottom of the frame and/or tow hook. Then proceed to install and tighten the upper brackets (Steps 11-12) to complete alignment.
No drilling is required for vehicles with factory tow hooks. For vehicles without factory tow hooks, you must insert M12 double nut plates into the frame end, but no drilling is mentioned. However, you may need to trim the plastic splash guard. Step 10 states: 'Hold the splash guard up to the base brackets and trace the trim locations. Use a sharp knife or cut wheel to remove the material, allowing the brackets to fit through the guard.' Do not cut through the front or back edge of the splash guard.
Only for vehicles without factory tow hooks. After securing the lower brackets to the frame, temporarily remove the grille guard, hold the splash guard up to the base brackets, and trace the trim locations. Use a sharp knife or cut wheel to remove the material so the brackets fit through the guard. Do not cut through the front or back edge of the splash guard.
M8 bolts should be torqued to 7 ft-lbs. This applies to all M8 hex bolts used in the P3066 installation, including those securing the upper brackets, support flange, and grille guard to frame brackets.
M10 bolts should be torqued to 16 ft-lbs. The P3066 uses four M10 x 30mm hex bolts to attach the grille guard to the frame brackets (Step 9).
M12 bolts should be torqued to 28 ft-lbs. The P3066 uses four M12 hex bolts x 35mm to attach the frame brackets to the bottom of the frame and/or tow hook (Step 10).
After installation, wax the product to protect it. Regular waxing is recommended to add a protective layer over the finish. Do not use polish or wax containing abrasives that could damage the finish. For polished, gloss and other smooth finishes, polish may be used to clear small scratches and scuffs. Clean with mild automotive detergent only; do not use dish detergent, abrasive cleaners, abrasive pads, wire brushes or similar products that may damage the finish.
After installation, perform periodic inspections to make sure all hardware is secure and tight. The manual emphasizes this in Step 12: 'Remember to do periodic inspections to make sure that all hardware is secure and tight.' This helps ensure the grille guard remains properly secured to the vehicle.
The P3066 fits 2015-Current vehicles. Confirm your specific vehicle make and model at ariesautomotive.com or call 877.287.8634 before purchasing.
Yes. Assistance is required to hold the bumper during removal and to position the grille guard during final assembly.
No drilling is required. For vehicles without factory tow hooks, you may need to trim the plastic splash guard using a sharp knife or cut wheel to allow the brackets to fit through.
M8 bolts: 7 ft-lbs; M10 bolts: 16 ft-lbs; M12 bolts: 28 ft-lbs. Use these torque values unless otherwise noted in the installation steps.
Wax the product after installation and regularly thereafter. Clean with mild automotive detergent only. Do not use abrasive cleaners, wire brushes, or wax containing abrasives.
