Custom Design: This Blue Ox base plate is tailor-made for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2232 Tow Bar Bracket is a top-notch automotive accessory designed to suit a wide range of towed vehicles. Manufactured with the utmost precision, this base plate is crafted from robust steel, ensuring maximum durability and longevity. Its black powder coat finish not only adds to its aesthetic appeal but also protects the bracket from corrosion and rust. The BX2232 comes with a bolt-on mounting type, offering easy installation without any need for professional help. The package includes all the necessary mounting hardware, making it a complete set for your DIY installation project.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|

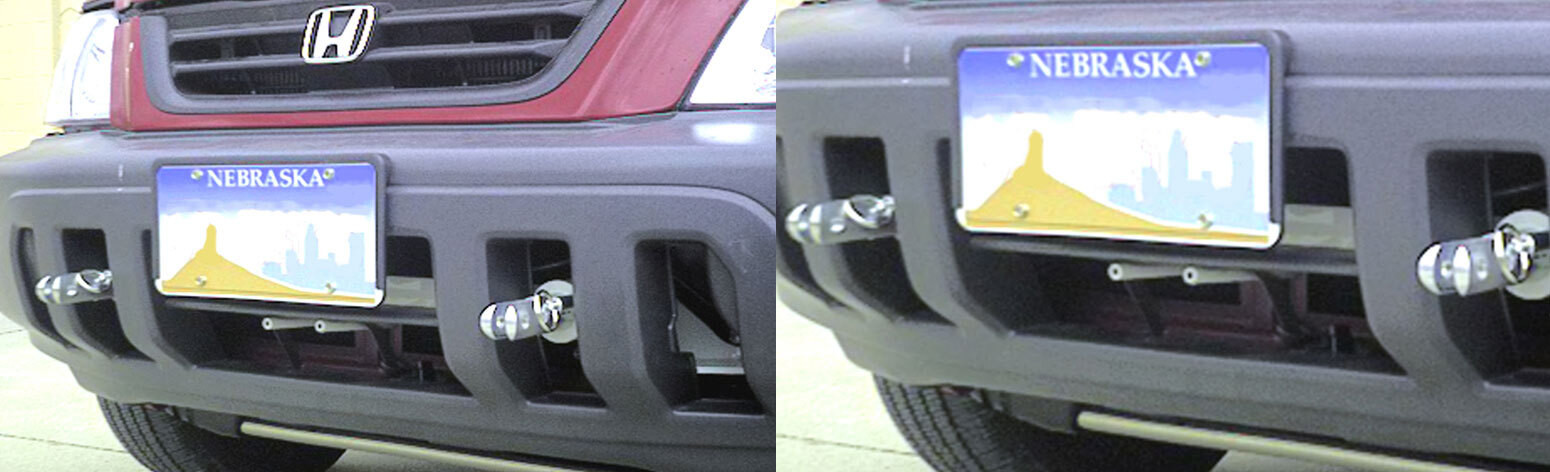

| 2002 - 2004 | Honda CR-V | ncludes Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |

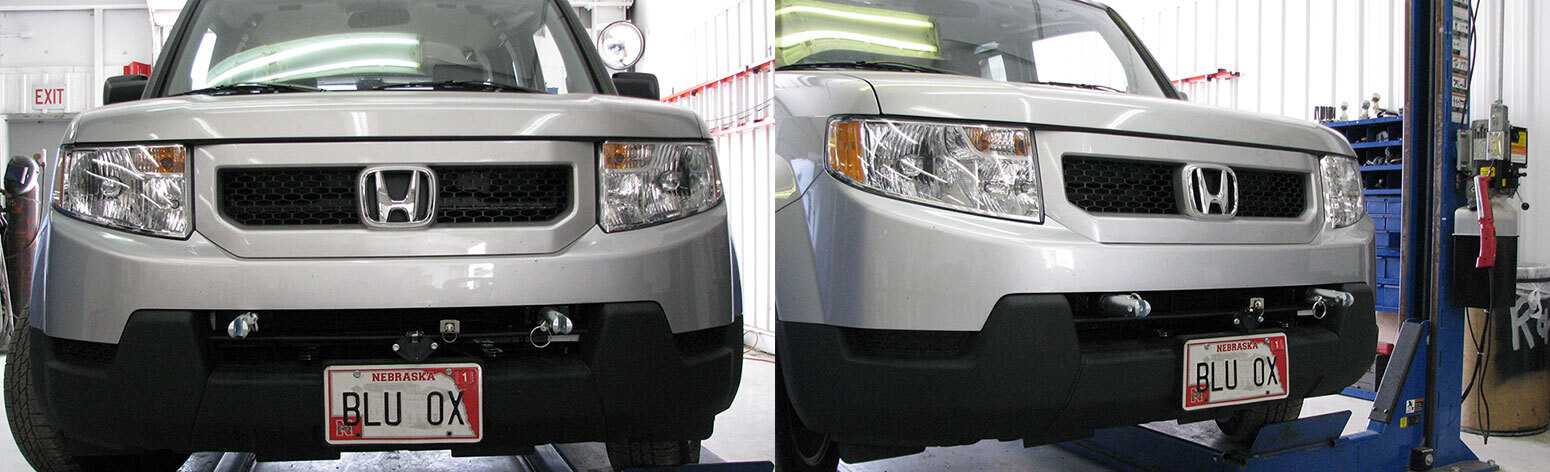

| 2003 - 2011 | Honda Element | ncludes Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA CRV (Part #FDRWBX2232) is designed to fit the 2002-2004 Honda CR-V.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA CRV (Part #FDRWBX2232) fits 2002-2004 Honda CR-V models. The 2011 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA CRV (Part #FDRWBX2232) fits the following vehicles: 2002-2004 Honda CR-V; 2003-2011 Honda Element. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA CRV (Part #FDRWBX2232) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2232 is designed for 2002-2004 Honda CR-V. The baseplate has an attachment tab height of 21" and width of 24". Before installation, verify that the front of your vehicle matches the reference images in the manual. If it does not, contact Blue Ox technical service at (402) 385-3051.
Yes, the BX2232 fits 2003-2011 Honda Element including SC models, but only baseplates manufactured after 7/1/14 will fit SC models. Verify your baseplate manufacturing date before installation. On SC models, the back side of the fascia may need to be trimmed by the tab sockets during reinstallation.
Yes, the BX2232 fits 2003-2011 Honda Element non-SC models without manufacturing date restrictions. Only SC models require baseplates manufactured after 7/1/14.
The kit includes: one BX2232 baseplate (61-5939), two attachment tab assemblies with holes (62-3468), two support plates (102-6473), six 3/8"-16 nut plates with 14" wire (61-5208), six 3/8"-16 x 1-1/2" hex head bolts Grade 5 (201-0440), four 3/8"-16 x 1" hex head bolts Grade 5 (201-0443), two #10-32 1/2" round slotted head screws (201-0192), one #10-16 x 1" self-drilling screw (201-0654), two #12-14 x 1" self-drilling screws (201-0979), four 3/8"-16 hex nuts (202-0003), two #10-32 hex nuts (202-0047), ten 3/8" lock washers (203-0010), two #10 lock washers (203-0054), one electrical bracket (299-0685), two class III safety cables (226-0046), two 3/8" quicklinks (229-0359), and two black cap plug receivers (290-0437).
Required tools are: large vise grip, utility knife, flat chisel, Phillips screwdriver, torque wrench, drill, tape measure, 13/32" drill bit, 8MM socket, 10MM socket, 12MM socket, 9/16" socket, 9/16" wrench, and Loctite Red. A reciprocating saw may be needed to remove the bumper. Protective covers and rags are recommended to prevent damage to cosmetic parts.
The manual does not specify whether the battery must be disconnected. However, the first step of CR-V fascia removal requires removing the metric bolt from the battery hold-down strap using a 10MM socket. Contact Blue Ox technical service at (402) 385-3051 for clarification on whether battery disconnection is necessary.
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting technical service at (402) 385-3051. The manual does not state that professional installation is mandatory, but it is strongly recommended.
Yes, the bumper must be removed during installation. Using a 12MM socket, remove the four bolts from the metal bumper (two on top, one on the side, one underneath) on both sides of the vehicle. The bumper will not be reinstalled for baseplate clearance.
Yes, the fascia must be removed and then reinstalled after baseplate installation. For CR-V models, remove nine push pins from the fascia cover, two bolts and two push pins from the bottom edge (both sides), and one bolt from the upper fascia corner (both sides). For Element models, remove five push pins from the fascia cover, seven from the top edge, two Phillips screws from each wheel well, four 10MM bolts from the corners, and four push pins from the underside. Disconnect any electrical connections before removing the fascia.
Yes, drilling is required. You will drill multiple holes using a 13/32" drill bit: two holes through both frame layers for support plates (step 7), holes to release factory spot welds on the flange (step 8), one hole for the initial baseplate mounting (step 9), and remaining holes for final baseplate mounting (step 10). All holes are drilled through the frame. Do not drill through the frame when removing spot welds in step 8.
Yes, trimming is required. On SC Element models, the back side of the fascia may need to be trimmed by the tab sockets during fascia reinstallation. Additionally, the manual recommends using a utility knife and flat chisel as part of the installation process, and notes that some drilling and trimming is required. Paint cut edges of the frame with good quality paint to prevent rusting.
Yes. In step 8, using a 13/32" drill bit, drill the factory spot welds enough to release the flange from the frame. Do not drill through the frame. Using a flat chisel, separate the flange from the frame. Do this on both sides of the vehicle. After drilling, paint the cut edges with good quality paint to prevent rusting.
For Grade 5 bolts (which are used in this kit), torque 3/8"-16 bolts to 33 foot-pounds. For Grade 8 bolts, torque to 47 foot-pounds. The BX2232 uses Grade 5 bolts. Always use Loctite Red on all bolt threads before tightening, and tighten all bolts according to the torque chart provided unless otherwise specified in the instructions.
For Grade 8.8 metric bolts, torque 10MM bolts to 31 foot-pounds. For Grade 10.9 metric bolts, torque to 40 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
For Grade 8.8 metric bolts, torque 8MM bolts to 16 foot-pounds. For Grade 10.9 metric bolts, torque to 22 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
For Grade 8.8 metric bolts, torque 12MM bolts to 54 foot-pounds. For Grade 10.9 metric bolts, torque to 70 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
The BX2232 attachment tab height is 21" and the attachment tab width is 24".
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. The manual instructs to drill a hole according to the tail light wiring kit instructions. Contact Blue Ox at (402) 385-3051 to determine if the kit is required for your specific application or if it is optional.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications and your vehicle's GVWR.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2232 kit includes two class III safety cables (226-0046) and two 3/8" quicklinks (229-0359). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses or brake lines. The permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the frame of the vehicle. The manual shows two recommended installation options: Option 1 uses a quicklink to attach the cable around a crossmember or frame of the towed vehicle, and Option 2 is for baseplates without convenience link tabs. Ensure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation, verify that the tabs come through the fascia properly and that the baseplate is level and securely clamped to the frame. Inspect all bolts to ensure they are fully tightened according to torque specifications. Check that the safety cables do not rub against any hoses or moving parts. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Remove the attachment tabs when not in use (if applicable).
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any warranty claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint or rust. The warranty is non-transferable. Register your warranty at http://blueox.com/warranty/
Yes, the BX2232 fits 2002-2004 Honda CR-V and 2003-2011 Honda Element (including SC models). For SC models, the baseplate must be manufactured after 7/1/14. Verify your vehicle matches the reference images in the manual.
Yes. Multiple holes are drilled using a 13/32" drill bit through the frame for support plates, baseplate mounting, and to release factory spot welds. Trimming may also be required on SC Element models. Paint cut frame edges to prevent rusting.
Required tools include: large vise grip, utility knife, flat chisel, Phillips screwdriver, torque wrench, drill with 13/32" bit, tape measure, 8MM/10MM/12MM sockets, 9/16" socket and wrench, and Loctite Red. A reciprocating saw may be needed for bumper removal.
Yes. The fascia must be removed, then the bumper is removed and not reinstalled for baseplate clearance. The fascia is reinstalled after baseplate installation. On SC Element models, the fascia back side may need trimming by the tab sockets.
Torque 3/8"-16 Grade 5 bolts to 33 foot-pounds. Use Loctite Red on all bolt threads before tightening. The BX2232 uses Grade 5 bolts throughout.
Yes. The kit includes two class III safety cables and two 3/8" quicklinks. Attach them to the baseplate convenience link and secure to the vehicle frame. They are strongly recommended and must not be mounted against wires, hoses or brake lines.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Refer to your vehicle owner's manual for your GVWR and manufacturer's towing specifications.
If the tabs do not come through the fascia properly, the baseplate positioning may be incorrect. Reposition the baseplate to ensure it is pushed back to the sensor and approximately 1/4" down from the frame flange, level and securely clamped to the frame. On SC Element models, the back side of the fascia may need to be trimmed by the tab sockets. If trimming is needed, use a utility knife carefully to trim the fascia back side.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. If electrical connections are not functioning, disconnect the fascia again, check that all connectors are fully seated and plugged in, and verify that no wires were damaged during fascia removal or installation. Test all accessories before reinstalling the fascia.
