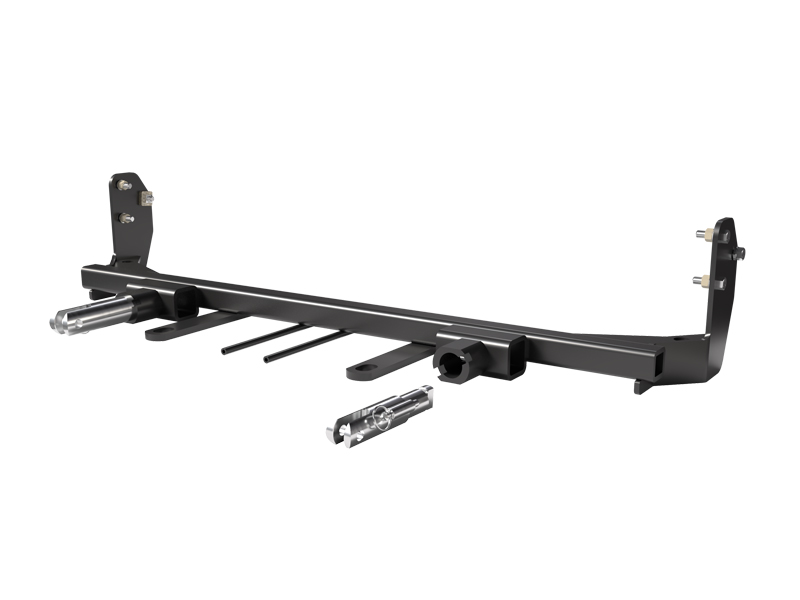

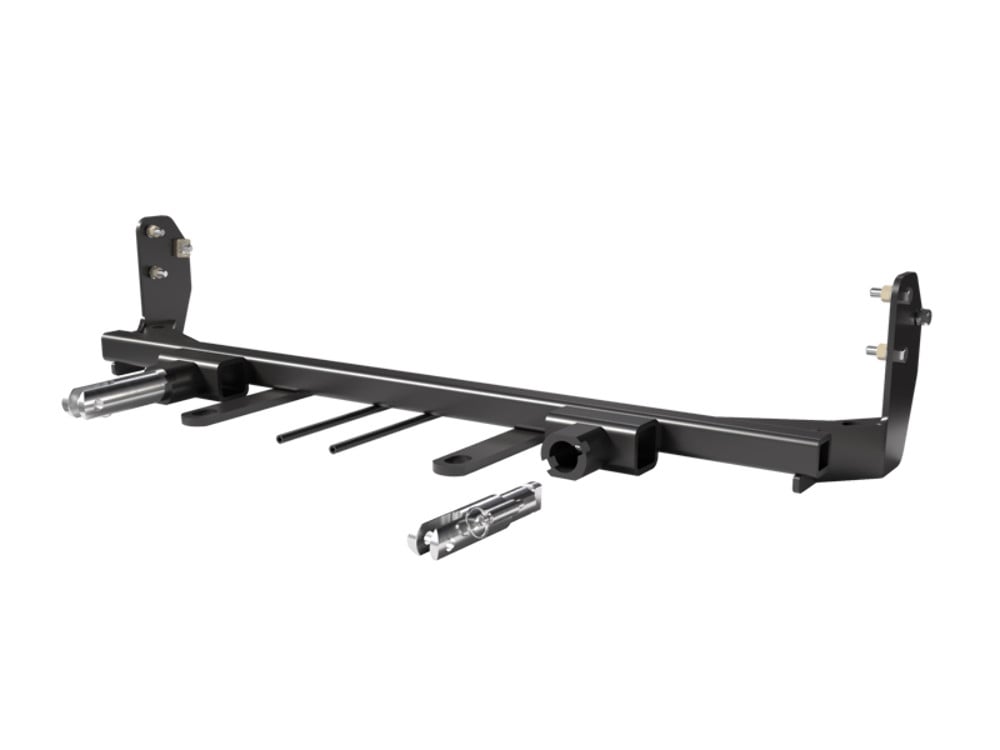

1. Custom Designed: The Blue Ox BX2261 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect, secure fit every time.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2261 Tow Bar Bracket is your robust companion for any towing requirements. Custom designed for each specific towed vehicle, this bracket ensures a perfect fit every time. Made from durable steel with a black powder coating, it offers excellent durability and corrosion resistance. The bolt-on mounting type and included hardware make for an easy, DIY installation. Purchasing a Blue Ox base plate means you are investing in a reliable, high-quality product that comes complete with all necessary hardware and clear instructions.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2017 | Honda Fit | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |

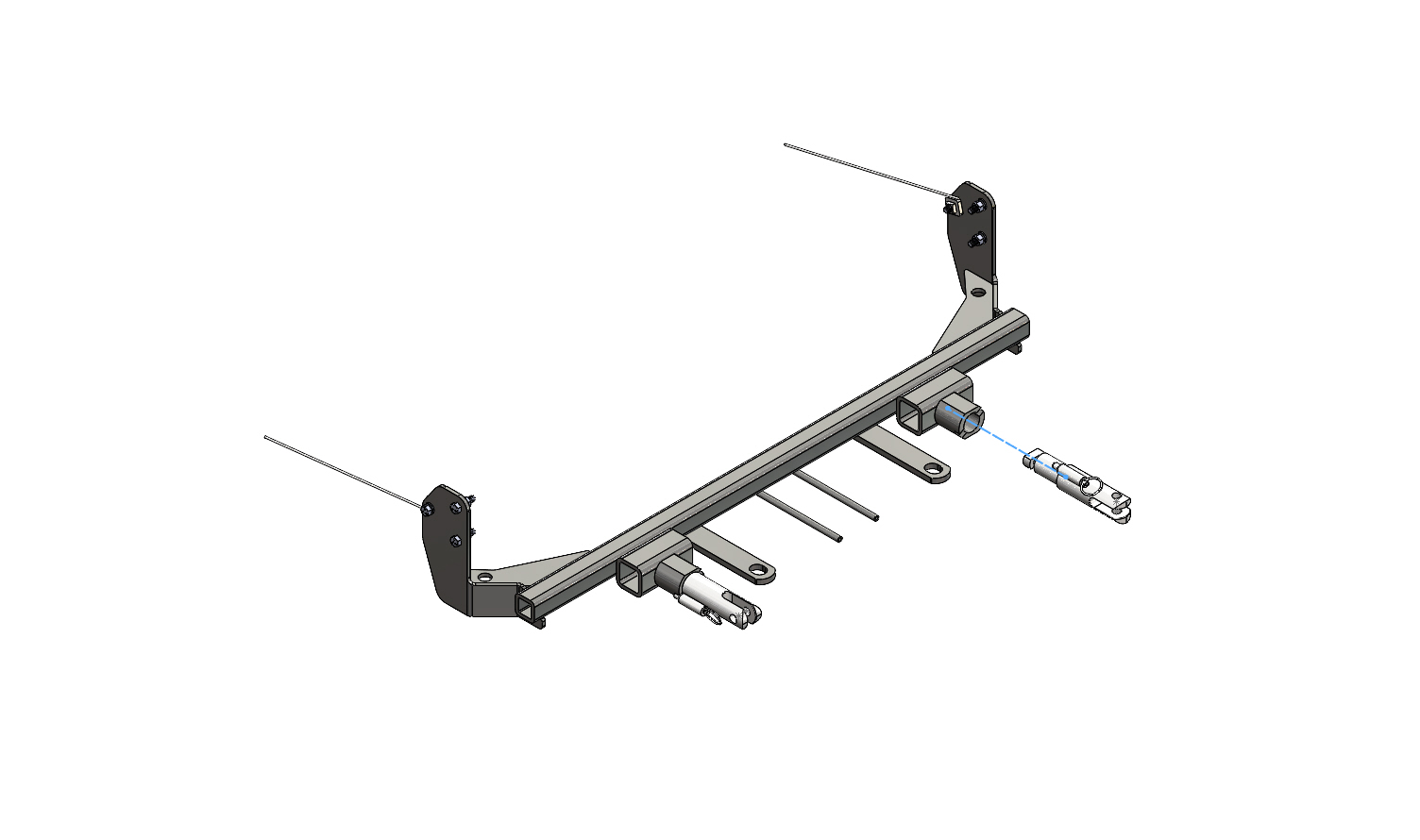

The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA FIT (Part #FDRWBX2261) fits 2015-2017 Honda Fit models. The 2017 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA FIT (Part #FDRWBX2261) fits the following vehicles: 2015-2017 Honda Fit. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA FIT (Part #FDRWBX2261) is designed to fit the 2015-2017 Honda Fit.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA FIT (Part #FDRWBX2261) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX2261 is a tow baseplate manufactured by Blue Ox for 2015-2017 Honda Fit vehicles. It is designed to enable towing of the Honda Fit behind a motorhome or other towing vehicle. The baseplate attaches to the vehicle's frame and provides connection points for a tow bar and safety cables.
The BX2261 is designed for 2015-2017 Honda Fit vehicles. However, the manual states that if the front of your vehicle looks different than shown, you should contact Blue Ox at (402) 385-3051 before proceeding with installation. The dimensional variations between otherwise identical vehicles can be considerable, so fitment should be verified before purchase.
Required tools include: large vise grip, flat screwdriver, utility knife, Phillips screwdriver, torque wrench, drill, 3/8" drill bit, 10MM socket, 12MM socket, 9/16" socket, 9/16" wrench, and Loctite Red. A power drill is used for drilling frame holes. A reciprocating saw may be needed for trimming plastic shrouding.
The kit includes: 1 existing 6MM bolt, 2 nut plates with 14" wire (61-5208), the baseplate (61-7364), 2 attachment tab assemblies (62-3468), 1 breakaway bracket (102-7287), 1 bolt (201-0050), 2 screws (201-0192), 6 bolts (201-0368), 2 self-drilling screws (201-0979), 4 hex nuts (202-0003), 2 hex nuts (202-0047), 1 nylon nut (202-0102), 6 lock washers (203-0010), 2 lock washers (203-0054), 1 four-way bracket (299-0685), 2 safety cables (226-0046), 2 quicklinks (229-0359), 2 zip ties (290-0275), and 2 cap plug receivers (290-0437).
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work". Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051. Professional installation is strongly recommended due to the complexity of the work, which includes removal of multiple vehicle components, drilling, trimming, and precise torque specifications.
The fascia (front bumper cover), bumper, and windshield washer fluid reservoir must be removed during installation and reinstalled afterward. The manual states that all removed items will be reinstalled unless otherwise noted after the baseplate is installed. These components are removed to access the frame for drilling and to allow proper positioning of the baseplate.
Yes, drilling is required. The baseplate is positioned on the frame and holes are drilled using a 3/8" drill bit. The top front hole is drilled first on both sides, then the remaining holes are drilled. A total of 6 holes are drilled into the frame (3 on each side). The manual recommends using a good quality paint to spray cut edges of the frame to prevent rusting.
Yes, trimming is required. The plastic shrouding on both sides of the vehicle must be trimmed flush with the bottom side of the bumper. Additionally, the fascia must be trimmed around the convenience links and attachment tabs before reinstallation. A utility knife is used for this work.
The 3/8"-16 bolts (part 201-0368) are Grade 5 bolts. According to the torque chart provided in the manual, Grade 5 3/8" bolts should be torqued to 33 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
The manual does not specify the grade of the 12MM bolts used to remove the bumper (step 7). However, the torque chart shows that Grade 8.8 metric 12MM bolts should be torqued to 54 foot-pounds, and Grade 10.9 metric 12MM bolts to 70 foot-pounds. Consult the vehicle owner's manual or contact Blue Ox at (402) 385-3051 to confirm the correct grade and torque specification for your specific vehicle.
The attachment tab height is 13 inches and the attachment tab width is 22 inches. These dimensions are important for ensuring proper clearance and fitment with your tow bar and other towing equipment.
The drilling sequence is: 1) Position the baseplate on the frame touching the top and front frame lips, level and clamp it securely. 2) Drill the top front hole on both sides using a 3/8" drill bit and install the first bolt with lock washer and nut. Fully tighten. 3) Drill the remaining holes (lower front and back holes) on both sides and install bolts with lock washers and nuts or nut plates. Fully tighten all hardware. This sequence ensures proper alignment before final drilling.
The safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame using the provided quicklinks. The cables must be attached to the convenience link on the baseplate. The manual shows two recommended installation options. The cables must not rub against any hoses or moving parts. Installation must be done on both sides of the vehicle. The cables are strongly recommended and must remain installed as long as the baseplate is installed.
No, the breakaway switch installation is optional. Step 13 states "Optional Breakaway" and describes how to install it if desired. The breakaway bracket is installed using a 12MM socket to remove and reinstall an existing screw, and the breakaway switch is then attached to the bracket with supplied 1/4" hardware.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle, not required. The manual states "The BX8869 Tail Light Wiring Kit is recommended for this vehicle" and notes that "A hole according to the tail light wiring kit instructions" should be drilled. This kit is sold separately and should be ordered if you need tail light functionality for the towed vehicle.
The fascia has electrical lines that must be disconnected when removing it and reconnected when reinstalling it. The temperature sensor on the underside of the bumper must be disconnected and then reattached to the baseplate using supplied zip ties. The manual emphasizes that all electrical connections must be plugged in and accessories must be functioning properly before reinstalling the fascia.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and your specific GVWR to determine the maximum towing weight.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts. Contact Blue Ox at (402) 385-3051 for replacement.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their function is to prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member. However, these cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before towing, verify that: 1) All electrical connections are plugged in and accessories are functioning properly. 2) All bolts are tightened to the correct torque specifications using Loctite Red. 3) The fascia is properly reinstalled and trimmed around the convenience links and attachment tabs. 4) The temperature sensor is properly attached to the baseplate with zip ties. 5) The permanent baseplate safety cables are properly installed and do not rub against hoses or moving parts. 6) The baseplate is not damaged or missing parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Use good quality paint to spray any cut edges of the frame to prevent rusting. The attachment tabs should be removed when not in use if applicable. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover improper installation, improper use, modification, neglect, normal wear and tear, paint, or rust. The warranty is non-transferable. Register your warranty at http://blueox.com/warranty/.
Yes, the BX2261 is designed for 2015-2017 Honda Fit vehicles. However, verify fitment by contacting Blue Ox at (402) 385-3051 if your vehicle's front looks different from the manual images.
Required tools: torque wrench, drill with 3/8" bit, 10MM and 12MM sockets, 9/16" socket and wrench, Phillips and flat screwdrivers, utility knife, large vise grip, and Loctite Red. A reciprocating saw may be needed for trimming.
Yes, drilling is required. Six holes (3 per side) are drilled into the frame using a 3/8" drill bit. Trimming of plastic shrouding and fascia is also required.
Grade 5 3/8" bolts should be torqued to 33 foot-pounds. Apply Loctite Red to all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for your specific GVWR and towing specifications.
Blue Ox recommends installation by a Blue Ox Dealer familiar with the product and fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
No, the BX8869 is recommended but not required. It is sold separately and enables tail light functionality for the towed vehicle.
The baseplate must be replaced immediately. Do not reuse a damaged baseplate. Accidents can cause unseen damage that could result in separation of the towed vehicle, property damage, or personal injury. Contact Blue Ox at (402) 385-3051 for a replacement.
If the baseplate or safety cables are improperly installed against wires or hoses, it could cause fluid leaks or electrical shorts some time after installation. Inspect the installation to ensure cables do not rub against any hoses or moving parts. Reposition cables if necessary to avoid contact with vehicle systems.
Verify that all electrical connections are properly plugged in and that all accessories are functioning correctly before reinstalling the fascia. If connections are not working, disconnect and reconnect the fascia electrical lines, ensuring they are fully seated. Test all accessories again. If problems persist, contact Blue Ox Technical Service at (402) 385-3051.
