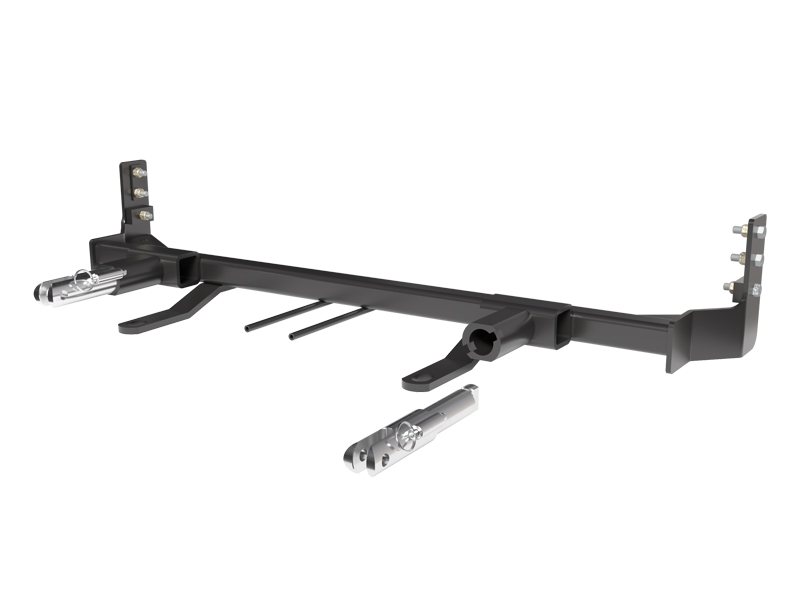

Custom Design: The Blue Ox BX2253 Tow Bar Bracket is custom-designed for each specific towed vehicle, offering a perfect fit and secure towing.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2253 Tow Bar Bracket is a premium quality, custom-designed towing solution for your specific vehicle. Made from high-strength steel and finished with a black powder coat, it's built to last. The bracket is easy to install with a bolt-on mounting type and includes all necessary hardware. It's not just about the strength and durability though, the sleek black finish gives it an appealing look while offering resistance to rust and corrosion. With this Blue Ox Tow Bar Bracket, you're investing in a reliable and robust towing setup.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2014 | Honda Fit | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Headlights Must be Removed and Replaced During Installation Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA FIT W/FOGLIGHT (Part #FDRWBX2253) fits the following vehicles: 2009-2014 Honda Fit. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA FIT W/FOGLIGHT (Part #FDRWBX2253) is designed to fit the 2009-2014 Honda Fit.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA FIT W/FOGLIGHT (Part #FDRWBX2253) fits 2009-2014 Honda Fit models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, HONDA FIT W/FOGLIGHT (Part #FDRWBX2253) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2253 is designed for 2009-2014 Honda Fit and Fit Sport vehicles. However, dimensional variations between otherwise identical vehicles can be considerable, and the baseplate may need slight tailoring to compensate for manufacturer tolerances. If the front of your vehicle looks different from the manual illustration, contact Blue Ox technical service at (402) 385-3051 before proceeding.
The manual includes a warning: if the front of your vehicle looks different than the illustration shown, contact Blue Ox at (402) 385-3051 before installing. This suggests compatibility may vary with bumper design variations, and you should verify fitment with the manufacturer before purchasing.
The attachment tab height is 13-1/2" and the attachment tab width is 24".
Required tools are: large vise grip, flat screwdriver, utility knife, Phillips screwdriver, torque wrench, drill, tape measure, 13/32" drill bit, 12MM socket, 9/16" socket, 9/16" wrench, and Loctite Red.
The kit includes: BX2253 baseplate (1), attachment tab assemblies with hole (2), spacer plates (2), breakaway bracket (1), 1/4"-20 x 3/4" hex head bolts Grade 5 (2), #10-32 1/2" round slotted head screws (2), 3/8"-16 x 1-1/4" hex head bolts Grade 5 (4), 3/8"-16 x 1-1/2" hex head bolts Grade 5 (2), #12-14 x 1" self-drilling screws (2), #10-32 hex nuts (2), 3/8"-16 hex nylon insert lock nuts (6), 1/4"-20 hex nylon nuts (2), #10 lock washers (2), electrical bracket (1), class III safety cables (2), 3/8" quicklinks (2), and black cap plug receivers (2).
The BX8869 Tail Light Wiring Kit is recommended for this vehicle, not required. If you choose to use it, you will need to drill a hole according to the kit's instructions.
Yes. The fascia and bumper core must be removed for baseplate installation and then reinstalled after the baseplate is mounted. The installation process involves removing eight push pins from the top of the fascia, screws from the wheel wells and bottom, push pins from the bottom corners, three push pins underneath the center, and four bolts from the metal bumper (three on top, one on bottom on each side).
Yes. You must drill out the top existing hole on both sides using a 13/32" drill bit. On the passenger side, you can either drill the hole at an angle or remove the washer fluid reservoir to drill straight. After fastening the baseplate temporarily with one bolt, you use the baseplate as a template to drill two additional holes on each side.
Trimming is required in several areas: (1) trim the air dam under the bumper on both driver and passenger sides using a utility knife; (2) on 2013 models, trim the bumper core approximately as shown in the manual on both sides for baseplate clearance; (3) trim foglights as shown for your model year (2009-2011, 2012, or 2013-2014 models have different trim areas); (4) trim the fascia rib with a utility knife on both sides at locations shown for your model year (2009-10, 2011, 2012, or 2013-14 models have different cut locations).
Yes. Drilling and trimming of the air dam, bumper core (on 2013 models), foglights, and fascia rib are permanent modifications. The manual recommends using good quality paint to spray cut edges of the frame to prevent rusting.
The manual provides general torque charts for metric and inch bolts by grade. For Grade 5 bolts (used in this kit): 1/4" bolts = 10 ft-lbs, 3/8" bolts = 33 ft-lbs, 1/2" bolts = 78 ft-lbs. For Grade 8 bolts: 1/4" = 14 ft-lbs, 3/8" = 47 ft-lbs, 1/2" = 119 ft-lbs. All bolts must have Loctite Red applied to threads before tightening. Specific torque values for individual fasteners in the baseplate assembly are not provided in the manual.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and your specific GVWR.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The kit includes class III safety cables (2) and 3/8" quicklinks (2). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. These cables prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines, as improper installation against these components could cause fluid leaks or electrical shorts. The manual provides illustrations showing possible recommended arrangements. You must watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that ALL electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use (if applicable). Blue Ox recommends registering your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox dealer or distributor. Failing to follow these requirements will void the manufacturer's warranty.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice showing date and place of purchase. The warranty does not cover incorrect or improper installation, improper use, modification or neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint or rust. The warranty is non-transferable. Register your warranty at http://blueox.com/warranty/
Contact Blue Ox technical service at (402) 385-3051. Blue Ox dealers are intended installers and are familiar with the products and have the equipment and knowledge necessary to do fit work. You can find a Blue Ox dealer at www.blueox.com or by calling the technical service department. Blue Ox is committed to providing exceptional customer care and their team is available to assist with any questions regarding product performance.
Yes, the BX2253 is designed for 2009-2014 Honda Fit and Fit Sport. If your vehicle's front bumper looks different from the manual illustration, contact Blue Ox at (402) 385-3051 before installing.
Yes. You must drill out the top existing hole on both sides using a 13/32" drill bit, and use the baseplate as a template to drill two additional holes on each side. Trimming of the air dam, bumper core (2013 models), foglights, and fascia rib is also required.
Required tools: large vise grip, flat screwdriver, utility knife, Phillips screwdriver, torque wrench, drill, tape measure, 13/32" drill bit, 12MM socket, 9/16" socket, 9/16" wrench, and Loctite Red.
Yes. The fascia and bumper core must be removed for installation and then reinstalled. This involves removing push pins, screws, and bolts from multiple locations.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for your specific GVWR and towing specifications.
Yes. The kit includes class III safety cables (2) and 3/8" quicklinks (2). Permanent baseplate safety cables are strongly recommended and must be connected from the baseplate to the vehicle's frame rail or cross member.
Use the torque chart provided: Grade 5 bolts—1/4" = 10 ft-lbs, 3/8" = 33 ft-lbs, 1/2" = 78 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
Ensure all electrical connections are plugged in and accessories function properly before reinstalling the fascia. Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts.
Ensure the baseplate is level with the vehicle before final tightening of the bolts. The manual states that the baseplate levelness affects how the baseplate comes through the fascia opening. If the baseplate is not level, loosen the temporary bolt in the top hole, adjust the baseplate position, and retighten before drilling the other two holes and installing the remaining bolts.
The manual provides two options: (1) drill the hole at an angle, or (2) remove the washer fluid reservoir to drill the hole straight. Choose the option that works best for your situation.
Verify that you have trimmed the fascia rib with a utility knife at the correct locations for your model year (2009-10, 2011, 2012, or 2013-14 models have different cut locations shown in the manual). Also ensure that the baseplate is level with the vehicle, as this affects how the baseplate comes through the fascia opening. If trimming is incomplete or the baseplate is not level, adjust accordingly.
Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines. If the cables are positioned against electrical wires, hoses, or brake lines, reposition them to avoid contact. Improper installation against these components could cause fluid leaks or electrical shorts some time after installation. Consult the permanent baseplate safety cable installation instructions for proper routing and mounting locations.
