Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2002, 2004 Honda Accord
Confirmed to Fit
2003, 2005 Honda Accord
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!

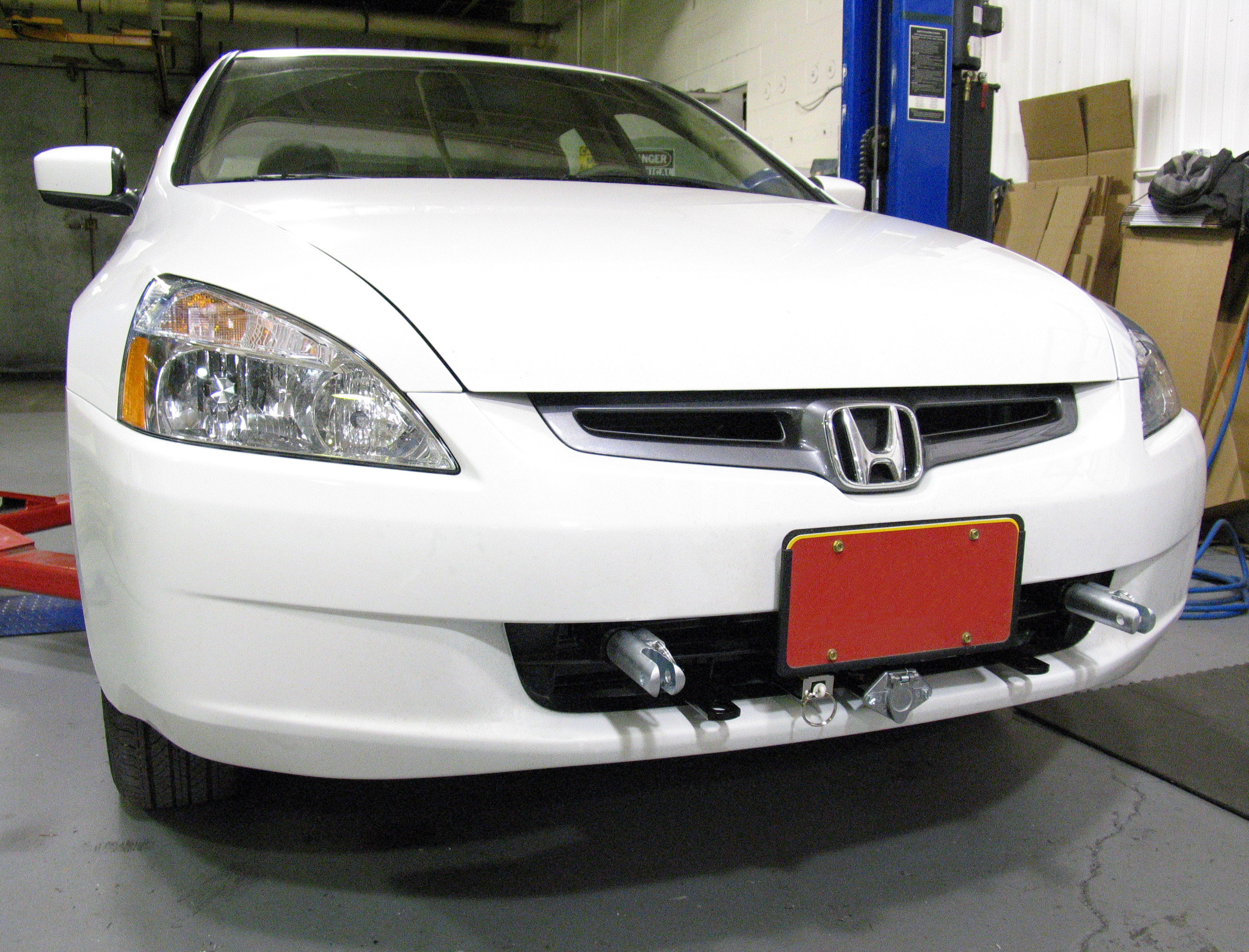

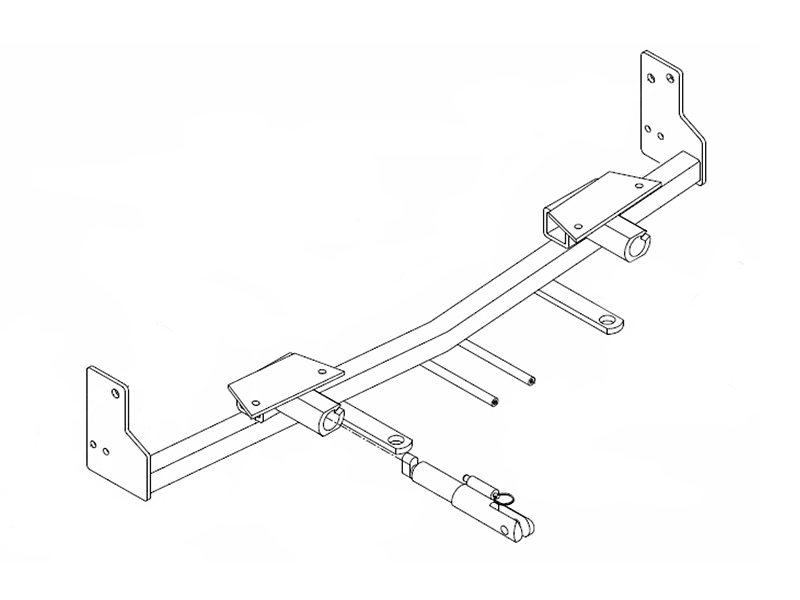

1. Custom Designed: The Blue Ox BX2229 Tow Bar Bracket is specifically designed for each towed vehicle, ensuring a perfect fit and enhanced towing safety.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience the strength and durability of the Blue Ox BX2229 Tow Bar Bracket. Made with high-quality steel and finished in a protective black powder coat, this bracket is designed to withstand heavy loads and harsh weather conditions. The Blue Ox BX2229 Tow Bar Bracket is a custom-fit, bolt-on accessory that comes with all the necessary mounting hardware and easy-to-follow instructions, making installation a breeze. Whether you're towing your vehicle for a long-distance travel or a quick weekend getaway, this Tow Bar Bracket ensures a safe and secure connection.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002, 2004 | Honda Accord | No Fog Lights Also LX, EX, & DX Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Headlights Must be Removed and Replaced During Installation Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplatesr Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2003, 2005 | Honda Accord | Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplatesr Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Headlights Must be Removed and Replaced During Installation Minor Drilling Required Bumper Fascia Must Be Removed/Replaced During Install Install Rating 3 Comes with Removable Attachment Tabs Also LX, EX, & DX No Fog Lights |
Yes, the BX2229 is designed for 2002-05 Honda Accord models including LX, EX, and DX trims. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox at (888) 425-5382 before proceeding with installation.
No. Due to the design of the removable tabs on the BX2229, the RangeFinder II tow bar cannot be used with this baseplate.
Most adapters cannot be used with the BX2229 baseplate. Only the BX8833 and BX88151 adapters are compatible. Do not use any other adapters.
The attachment tab height is 14 inches and the width is 24 inches.
The following tools are required: 8MM socket, 10MM socket, 12MM socket, 13MM socket, 13/32" drill bit, vise grips, and LOCTITE Red. Note: The manual references a 17/32" drill bit in the installation steps but does not list it in the Tools Required section; confirm with your installer whether this tool is needed.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary for fit work. Blue Ox Dealers can be found at www.blueox.us or by contacting Customer Care at (402) 385-3051 or toll free (888) 425-5382.
The front fascia, metal bumper, and headlight assemblies must be removed during installation and reinstalled afterward. Additionally, the front washer reservoir bolt plastic will need to be trimmed on 2003-04 models before installation.
Yes, drilling is required. The baseplate must be drilled into the frame using a 13/32" drill bit. For 2003-05 models, upper holes are also drilled using a 17/32" drill bit. The installation instructions note that minor adjustments may include filing holes slightly, bending electrical rods, or bending end plates to compensate for manufacturer tolerances.
Torque specifications for inch bolts are: 1/4" Grade 5 = 10 ft-lbs, Grade 8 = 14 ft-lbs; 5/16" Grade 5 = 19 ft-lbs, Grade 8 = 29 ft-lbs; 3/8" Grade 5 = 33 ft-lbs, Grade 8 = 47 ft-lbs; 1/2" Grade 5 = 78 ft-lbs, Grade 8 = 119 ft-lbs. For metric bolts: 6MM Grade 8.8 = 6 ft-lbs, Grade 10.9 = 8 ft-lbs; 8MM Grade 8.8 = 16 ft-lbs, Grade 10.9 = 22 ft-lbs; 10MM Grade 8.8 = 31 ft-lbs, Grade 10.9 = 40 ft-lbs; 12MM Grade 8.8 = 54 ft-lbs, Grade 10.9 = 70 ft-lbs.
1. Remove two pushpins from the top of the grille. 2. Remove one metric bolt from behind the fascia's upper corner on both sides using an 8MM socket. 3. Remove the metric bolt from the bottom of the fascia corner on both sides using a 10MM socket. 4. Remove six pushpins from the bottom of the fascia. 5. Remove five bolts under and one on the outside of the headlight assemblies on both sides using a 10MM socket; unplug and set aside. 6. For 2002 models, hold the baseplate in place, clamp with vise grips, and center to the bottom of the metal bumper. For 2003-05 models, align the baseplate sides with the front edge of the frame end, mark, and drill all holes using the 13/32" and 17/32" drill bits on both sides. 7. Remove metric bolts from the top and bottom of the metal bumper using a 12MM socket. Set the baseplate in place with drilled holes, insert 3/8-16 nutplates into the frame end, and start the 3/8-16 x 1 1/2" hex bolts and 3/8" lock washers without tightening. Slide the metal bumper between baseplate and frame, use 3/8" flat washers to level as needed, then tighten the 8MM-1.25 x 30MM hex bolts, 8MM lock washers, and 3/8" flat washers on the top side and existing bolts on the bottom side. Use LOCTITE Red on all bolts. 8. Reinstall the metal bumper and tighten the 1/2" lock washer and 3/8" lock washer for upper supports. 9. Reinstall the fascia and headlight assemblies; some trimming may be required. Install the washer reservoir on 2003-04 models after trimming the plastic bolt. 10. Install the tow bar and safety cables according to their instructions.
The kit includes: 1 baseplate weldment (61-5863), 1 driver-side 1/2-13 nutplate (61-5288), 1 passenger-side 1/2-13 nutplate (61-5289), 4 3/8-16 nutplates with wire (61-5208), 2 attachment assemblies (62-3469), 4 1/2-13 x 1 1/2" Grade 5 hex bolts, 4 1/2" lock washers, 6 3/8-16 x 1 1/4" Grade 5 hex bolts, 2 3/8" flat washers, 6 3/8" lock washers, 2 3/8-16 hex nuts, 2 #12-14 x 1" self-drilling screws, 2 #10-32 hex nuts, 2 #10 lock washers, 2 #10-32 x 1/2" slot round-head screws, 2 4-way connector adapters (101-5822), 1 6MM-1" x 30MM Grade 8.8 hex bolt, 1 1/4" lock washer, 1 1/4" flat washer, 2 36" Class III baseplate safety cables (226-0046), 2 3/8" zinc-plated quicklinks (229-0359), and 2 black cap plugs (290-0437).
Yes. LOCTITE Red must be used on all bolts during installation. This is a required step to ensure proper fastener security.
The manual states that many Blue Ox baseplates are designed to use existing holes and hardware, but you must not assume factory bolts are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware specified in the installation instructions. The manual specifies which factory bolts to reuse: the metric bolts removed from the fascia corners and headlight assemblies are reinstalled, and the existing bolts on the bottom side of the metal bumper are tightened as part of the final assembly.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2229 kit includes 2 36" Class III baseplate safety cables (part 226-0046) and 2 3/8" quicklinks (part 229-0359). These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. The permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use LOCTITE Red on all bolts and tighten them to the recommended specifications. Additionally, ensure that the permanent baseplate safety cables are properly connected and not mounted against wires, hoses, or brake lines.
Yes. The manual recommends removing the attachment tabs when not in use, if applicable.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The BX8869 Bulb and Socket Wiring Kit is available for the 2002-05 Honda Accord with the BX2229 baseplate. The manual indicates a possible location for this kit but does not state whether it is required. Contact Blue Ox at (888) 425-5382 for clarification on whether this kit is necessary for your installation.
If the front of your vehicle looks different than shown in the manual, call Blue Ox at (888) 425-5382 before attempting installation. This ensures your vehicle is compatible with the BX2229 baseplate.
Contact Blue Ox Customer Care at (402) 385-3051 or toll free (888) 425-5382. For general customer service, call 1-800-228-9289. Blue Ox Dealers can also be found at www.blueox.us. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Yes, the BX2229 is designed for 2002-05 Honda Accord (LX, EX, DX). If your vehicle's front looks different than shown in the manual, contact Blue Ox at (888) 425-5382 before installing.
No. The RangeFinder II tow bar cannot be used. Only the BX8833 and BX88151 adapters are compatible; all other adapters are incompatible.
You need: 8MM, 10MM, 12MM, and 13MM sockets; 13/32" drill bit; vise grips; and LOCTITE Red. The manual references a 17/32" drill bit in the steps but does not list it in Tools Required; confirm with your installer.
The front fascia, metal bumper, and headlight assemblies must be removed and reinstalled. On 2003-04 models, the front washer reservoir bolt plastic must be trimmed.
Yes. You must drill holes into the frame using a 13/32" drill bit (and 17/32" for upper holes on 2003-05 models). Minor trimming and bending may also be needed to compensate for manufacturer tolerances.
For Grade 5 bolts: 3/8" = 33 ft-lbs, 1/2" = 78 ft-lbs. For Grade 8 bolts: 3/8" = 47 ft-lbs, 1/2" = 119 ft-lbs. Use LOCTITE Red on all bolts. Note: The manual does not specify torque values for the 3/8-16 bolts or 8MM-1.25 x 30MM bolts used in the final assembly; confirm with your installer.
Yes, two 36" Class III safety cables and two 3/8" quicklinks are included. Connect them from the baseplate to the frame rail or cross member. Do not mount them against wires, hoses, or brake lines. They work with, not instead of, legally required tow vehicle safety cables.
Inspect the baseplate for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specification with LOCTITE Red. Verify safety cables are properly connected and not touching wires, hoses, or brake lines.
