{'Feature 1': 'Custom Design: Each Blue Ox BX2257 is uniquely crafted for a specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

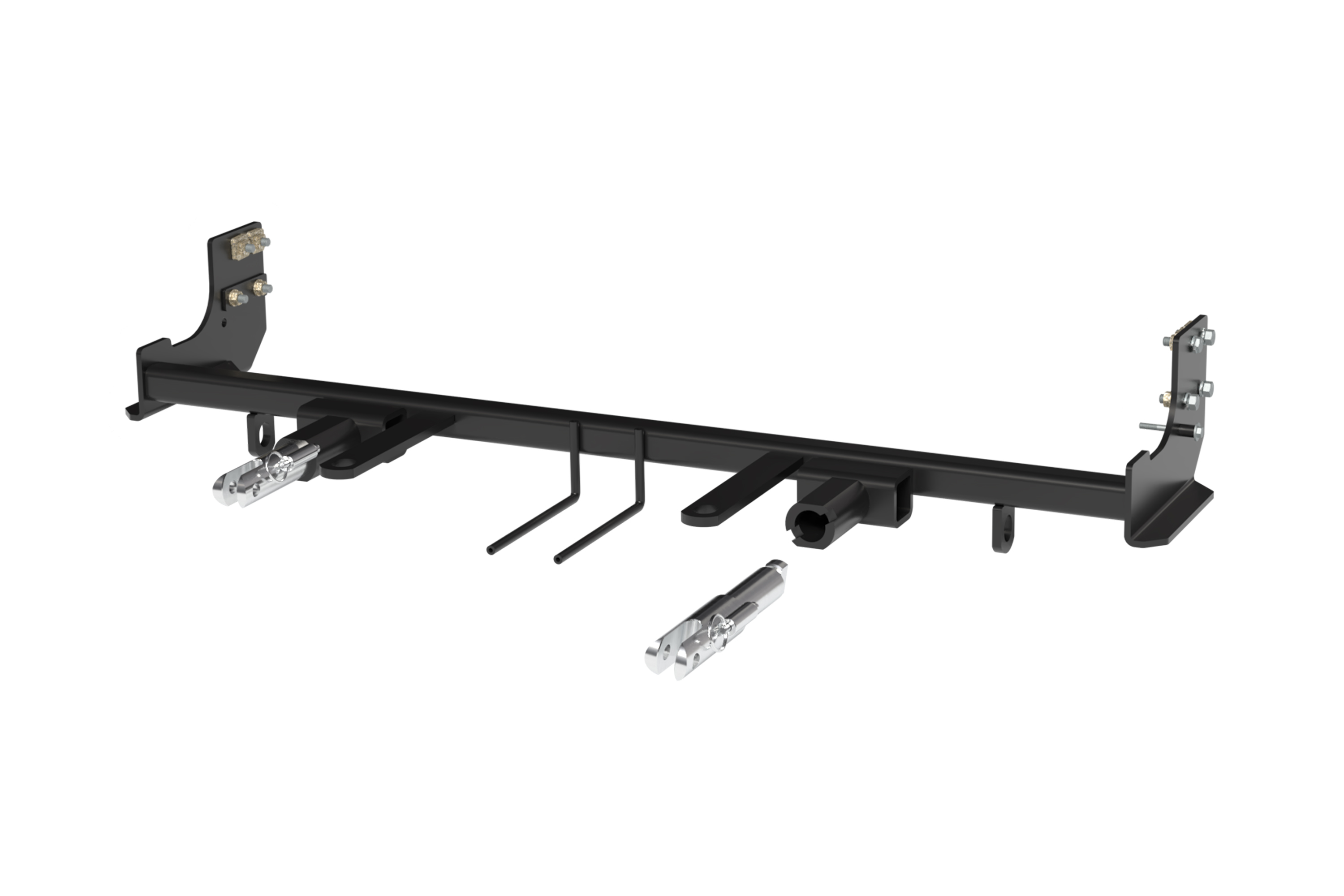

The Blue Ox BX2257 Tow Bar Bracket is a sturdy and reliable addition to your towing system, designed to provide the utmost in quality, safety and performance. Constructed from black powder-coated steel, this bracket ensures not only a sleek aesthetic but also superior durability and resistance to wear and tear. Its custom design guarantees a perfect fit for your specific towed vehicle. The bracket is bolt-on, making it easy to install with all necessary hardware included in the package. With the Blue Ox BX2257, you can confidently install your tow bar bracket yourself, thanks to the clear and comprehensive instructions provided.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 | Honda Accord Crosstour | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Requires Some Trimming of the Air Dam Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2012 - 2013 | Honda Crosstour | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Requires Some Trimming of the Air Dam Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX2257 is designed specifically for the 2011-13 Honda Accord Crosstour EX-L. If the front of your vehicle looks different than shown in the installation instructions, contact Blue Ox Customer Care at (402) 385-3051 before proceeding.
No. Due to the design of the removable tabs on the BX2257, the RangeFinderII tow bar cannot be used with this baseplate. Motorhome mount tow bars are recommended instead.
Most adapters cannot be used with the BX2257. The only exceptions are the BX8833 and BX88151 adapters, which are compatible. All other adapters are not suitable for this baseplate.
Required tools include: large vise grip, flat screwdriver, Phillips screwdriver, torque wrench, reciprocating saw, drill, tape measure, 13/32" drill bit, 10MM socket, 10MM wrench, 12MM socket, 9/16" socket, and 5/8" wrench. You will also need Loctite RED.
The kit includes: 4 × 3/8"-16 Whiz Nuts with 14" wire, 4 × 1/4" × 1" × 1" Nut Plates with 14" wire, 2 × Attachment Tab Assemblies, 1 × Breakaway Bracket, 1 × 1/2" OD × 18 GA tube, 2 × 1/4"-20 × 3/4" Grade 5 bolts, 2 × #10-32 1/2" screws, 8 × 3/8"-16 × 1-1/4" Grade 5 bolts, 1 × 6MM-1.0 × 60MM Grade 8.8 bolt, 2 × #12-14 × 1" self-drilling screws, 2 × #10-32 hex nuts, 2 × 1/4"-20 hex nylon nuts, 1 × 1/4" flat washer, 8 × 3/8" lock washers, 2 × #10 lock washers, 1 × electrical bracket, 2 × Class III safety cables, 2 × 3/8" quicklinks, and 2 × black cap plug receivers.
The radiator cover, fascia, fog lights, bumper, and temperature sensor must be removed for baseplate installation. The air baffle is pulled back but not fully removed. All removed parts are reinstalled after baseplate installation is complete.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary for fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Customer Care at (402) 385-3051.
Yes, drilling is required. You will drill through four holes on each side of the vehicle using a 13/32" drill bit. The baseplate is used as a template for drilling. Some vehicle fascias may also need trimming due to manufacturing tolerances.
Yes. Drilling four holes on each side of the frame is required and permanent. Some fascias may require trimming. Minor adjustments such as filing holes slightly, bending electrical rods, or bending end plates may be necessary to compensate for manufacturing tolerances. These modifications are permanent.
The attachment tab height is 14" and the attachment tab width is 22".
3/8"-16 Grade 5 bolts should be torqued to 33 foot-pounds. The manual also references page 3 of the baseplate towing general instructions for complete torque specifications.
1/4"-20 Grade 5 bolts should be torqued to 10 foot-pounds.
6MM Grade 8.8 bolts should be torqued to 8 foot-pounds.
The baseplate should be positioned so that the back of the baseplate is flush with the frame. The top of the baseplate should be approximately 7/8" down from the frame ledge. The baseplate must be level with respect to the vehicle frame. The existing bolt hole in the frame rail on the driver's side should be lined up with the baseplate.
First, use the baseplate as a template and drill through one remaining hole on each side using a 13/32" drill bit. Insert 3/8"-16 × 1-1/4" bolts and 3/8" lock washers into these holes to secure the baseplate. Then drill the remaining three holes on each side and insert bolts and lock washers into those holes as well. The top two bolts attach to 3/8"-16 nut plates inside the frame; the bottom two bolts attach to 3/8"-16 whiz nuts. Use Loctite Red on all bolts.
Remove the 6MM-1.0 × 60MM bolt and 1/4" flat washer from the baseplate. Line up the air baffle with the existing holes. Re-insert the 6MM-1.0 × 60MM bolt, 1/4" flat washer, and the provided tube spacer in the bottom hole. In the top hole, use a #10-32 1/2" self-drilling screw and 1/4" flat washer.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The recommended installation attaches the cables to the frame of the vehicle. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the safety cables do not rub against any hoses or moving parts. Install on both sides of the vehicle.
Breakaway bracket installation is optional. If you choose to install it, mount the bracket to the bottom of the metal bumper by drilling a hole with a 13/32" drill bit and securing it with a 1/4"-20 × 3/4" bolt and 1/4"-20 nut.
If the baseplate is involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury.
No. Do not use the towed vehicle for storing luggage, equipment, etc. This may cause you to exceed the towing capacity of the tow bar, baseplate, and its accessories.
The permanent baseplate safety cables prevent the towed vehicle from breaking loose in the event the connection between the frame of the towed vehicle and the baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Each cable must have an adequate weight rating for the towing system; the combined weight rating of both cables together does not qualify. These cables should remain installed as long as the baseplate is installed and are used in conjunction with, not as a replacement for, legally required safety cables.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. Ensure all electrical connections are plugged in properly and functioning.
Yes. Remove the attachment tabs when not in use.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle. See page 6 of the installation instructions for possible location.
Yes, the BX2257 is designed specifically for 2011-13 Honda Accord Crosstour EX-L. If your vehicle's front looks different, contact Blue Ox at (402) 385-3051.
Yes. You will drill four holes on each side of the frame using a 13/32" drill bit. Some fascias may also require trimming.
Large vise grip, drill with 13/32" bit, torque wrench, sockets (10MM, 12MM, 9/16", 5/8"), wrenches (10MM, 5/8"), screwdrivers (Phillips, flat), reciprocating saw, tape measure, and Loctite RED.
Radiator cover, fascia, fog lights, bumper, and temperature sensor must be removed. The air baffle is pulled back but not fully removed. All parts are reinstalled after installation.
Torque 3/8"-16 Grade 5 bolts to 33 foot-pounds. Use Loctite Red on all bolts before tightening.
No. Do not use the vehicle for storing luggage or equipment, as this may exceed the towing capacity of the tow bar, baseplate, and accessories.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in and functioning properly.
The manual states that dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for manufacturer tolerances. Minor adjustments may include filing a hole slightly, bending electrical rods, or bending end plates. If alignment issues persist, contact Blue Ox Customer Care at (402) 385-3051.
Ensure that all electrical connections are plugged in properly and functioning before installing the fascia. If connections are not functioning, check that all plugs are fully seated. The manual recommends the BX8869 Bulb and Socket Wiring Kit for this vehicle; consult the wiring kit instructions if issues persist.
