Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2018 - 2022 Honda Accord
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Total for 1 item:
$699.00$699.99
On Sale Today
Original price was $699.99. Current price is $699.00.You save $0.99
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Sep 17 - Sun, Sep 20
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

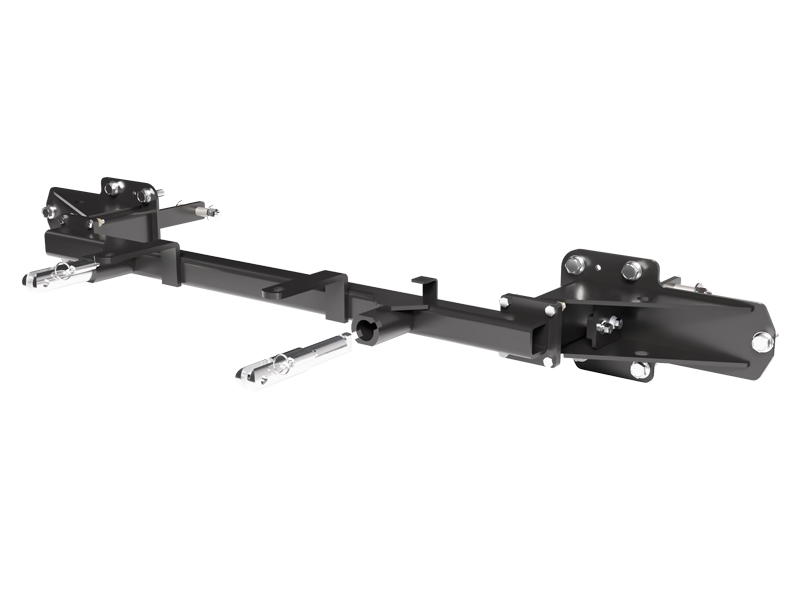

1. Custom Fit - The Blue Ox BX2267 Tow Bar Bracket is custom-designed for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Upgrade your towing game with the Blue Ox BX2267 Tow Bar Bracket. This product, specially designed for specific towed vehicles, is manufactured using high-quality steel, ensuring durability and strength. Its sleek black powder coat finish not only adds to its aesthetic appeal but also provides an additional layer of protection against corrosion and wear. The Blue Ox BX2267 Tow Bar Bracket is easy to install, thanks to its bolt-on mounting type and the inclusion of all necessary hardware in the package. Experience a seamless and secure towing experience with this top-notch bracket from Blue Ox.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2018 - 2022 | Honda Accord | Manual Only Also Sport Vehicles with Turbo Vehicles With Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 4 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation |
The BlueOx Tow Bar Base Plate For Select HONDA ACCORD SPORT BX2267 (Part #FDRWBX2267) fits the following vehicles: 2018-2022 Honda Accord. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate For Select HONDA ACCORD SPORT BX2267 (Part #FDRWBX2267) fits 2018-2022 Honda Accord models. The 2022 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate For Select HONDA ACCORD SPORT BX2267 (Part #FDRWBX2267) is designed to fit the 2018-2022 Honda Accord.
The BlueOx Tow Bar Base Plate For Select HONDA ACCORD SPORT BX2267 (Part #FDRWBX2267) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX2267 baseplate is designed for 2018-2022 Honda Accord models with manual transmission only, including ACC, Sport, and Turbo variants. If your vehicle has an automatic transmission, this baseplate is not compatible. Always verify your transmission type before purchasing.
No. The BX2267 is designed for manual transmission Honda Accords only. The manual explicitly states 'Manual Only' in the title and product description. Automatic transmission models are not supported by this baseplate.
The BX2267 attachment tab height is 18.5 inches and the width is 24 inches.
Required tools include: large vise grip, flat screwdriver, Phillips screwdriver, torque wrench, drill, tape measure, 1/4" drill bit, 1-1/4" hole saw, 10MM socket, 14MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, 3/4" socket, 3/4" wrench, and 5/16" nut driver. You will also need Loctite Red.
Blue Ox recommends that the BX2267 baseplate be installed by Blue Ox dealers who are familiar with the product and have the equipment and knowledge necessary to do 'fit work'. Blue Ox dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051. The installation involves removal and reinstallation of fascia, fascia cover, and headlights, as well as drilling and trimming.
Yes. The installation instructions state that 'some drilling and trimming is required'. A 1/4" drill bit and 1-1/4" hole saw are listed as required tools.
The air dam on both sides of the vehicle must be trimmed using a utility knife as shown in step 14. Extra area on the driver side must be trimmed to allow room for the breakaway bracket. Additionally, the fascia must be held in its original position, marked, and trimmed around the convenience links and attachment tabs during reinstallation (step 20).
Torque specifications for Grade 5 bolts are: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs. The BX2267 kit includes Grade 5 bolts in 1/4", 1/2", and 3/8" sizes.
Torque specifications for Grade 8 bolts are: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs, 5/8" = 230 ft-lbs, 3/4" = 380 ft-lbs.
For Grade 8.8 metric bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs, 16MM = 161 ft-lbs, 18MM = 222 ft-lbs. For Grade 10.9 metric bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs, 16MM = 230 ft-lbs, 18MM = 318 ft-lbs.
The kit includes: 10 existing 14MM bolts, 2 baseplates (PS and DS), 1 cross tube, 2 mounting straps, 2 attachment tab assemblies, 2 spacer tubes (3/4" O.D. x 11 GA x 3-1/2"), 1 x 1/4"-20 x 3/4" bolt, 2 x 1/2"-13 x 4-1/2" bolts, 2 x #10-32 1/2" screws, 12 x 3/8"-16 x 1-1/4" bolts, 2 x 1/4"-20 x 1-1/2" bolts, 2 x #10-32 hex nuts, 8 x 3/8"-16 nylon lock nuts, 2 x 1/2"-13 nylon lock nuts, 3 x 1/4"-20 nylon nuts, 4 x 1/4" flat washers, 4 x 3/8" flat washers, 4 x 1/2" flat washers, 4 x 3/8" lock washers, 2 x #10 lock washers, 2 safety cables, 2 x 3/8" quicklinks, and 2 black cap plug receivers.
Yes. Step 8 requires removing the bumper using a 14MM socket to remove five bolts and a 10MM socket to remove one bolt from the top of the bumper on both sides. The bumper will not be reinstalled after the baseplate is installed.
Yes. Step 7 requires removing the headlights using a 10MM socket to remove four bolts from each headlight on both sides of the vehicle. The headlights are removed to access the frame and will be reinstalled after the baseplate is installed.
Yes. The fascia, fascia cover, and headlights are removed and reinstalled for the baseplate installation. Steps 1-5 detail the removal of push pins and screws to remove the fascia cover and fascia. All electrical connections must be unplugged before removal and reconnected before reinstallation.
The installation sequence is: (1) remove fascia cover, fascia, and headlights; (2) remove bumper; (3) remove belly pan and air baffle; (4) trim air dam; (5) install side plates with existing 14MM bolts; (6) attach cross tube to side plates with 3/8" bolts and nylon lock nuts; (7) slide mounting strap into place with 3/8" bolts (leave loose initially); (8) install spacer tube with 1/2" bolt; (9) tighten front mounting strap bolts; (10) attach safety cables; (11) reinstall air baffle, belly pan, headlights, fascia, and fascia cover; (12) reconnect all electrical connections.
Loctite Red must be applied to all bolt threads before tightening. The manual specifically states to 'Remove each side plate bolt, apply Loctite Red, and reinstall' during step 16, and emphasizes 'Use Loctite Red on all bolt threads and tighten all bolts to the appropriate torque' at the end of steps 16 and 18.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and GVWR.
Yes. The BX2267 kit includes two permanent baseplate safety cables (part 226-0046) that must be attached to the baseplate and secured to the frame rail or cross member of the vehicle. These cables are strongly recommended and must remain installed as long as the baseplate is installed. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must not be mounted against wires, hoses, or brake lines. Safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that ALL electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure all bolts are tightened to the recommended torque specifications using Loctite Red.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended specifications. Paint any cut frame edges to prevent rusting. The attachment tabs should be removed when not in use if applicable.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required or optional.
If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding with installation.
You must register your product online at www.blueox.com within 30 days of purchase. Registration is crucial to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. A copy of the original invoice showing date and place of purchase is required for any warranty claim. The warranty is non-transferable and covers three years from the date of delivery.
The BX2267 fits 2018-2022 Honda Accord models with manual transmission only (ACC, Sport, and Turbo). It is not compatible with automatic transmission models.
Yes, drilling and trimming are required. A 1/4" drill bit and 1-1/4" hole saw are needed. The air dam must be trimmed with a utility knife, and the fascia must be trimmed around the attachment tabs.
You need a torque wrench, drill, 1/4" and 1-1/4" hole saw bits, sockets (10MM, 14MM, 7/16", 9/16", 3/4"), screwdrivers, tape measure, vise grip, and Loctite Red.
Blue Ox recommends installation by Blue Ox dealers familiar with the product and fit work. The installation involves removing and reinstalling the fascia, fascia cover, headlights, and bumper, plus drilling and trimming.
Yes, two permanent baseplate safety cables are included and must be attached to the frame. They prevent the towed vehicle from breaking loose if the baseplate connection fails and must remain installed as long as the baseplate is on the vehicle.
Tighten 3/8" Grade 5 bolts to 33 foot-pounds. Apply Loctite Red to all bolt threads before tightening.
Tighten 1/2" Grade 5 bolts to 78 foot-pounds. Apply Loctite Red to all bolt threads before tightening.
If the baseplate is in an accident or damaged, it must be replaced and cannot be reused. Do not use a damaged or incomplete baseplate.
Before reinstalling the fascia, ensure that ALL electrical connections are plugged in and accessories are functioning properly. If accessories are not functioning, check that all connectors are fully seated and that no wires were damaged during removal of the fascia, fascia cover, or headlights.
Ensure that Loctite Red is applied to all bolt threads before tightening. The manual emphasizes that a good amount of Loctite Red should be used on all bolt threads. Tighten all bolts according to the torque chart provided. Before each towing trip, inspect all towing equipment for loose bolts and retighten as needed.
The fascia must be held as close to its original position as possible, marked, and trimmed around the convenience links and attachment tabs (step 20). The dimensional variations between otherwise identical vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If the fascia still does not fit, contact Blue Ox at (402) 385-3051.
