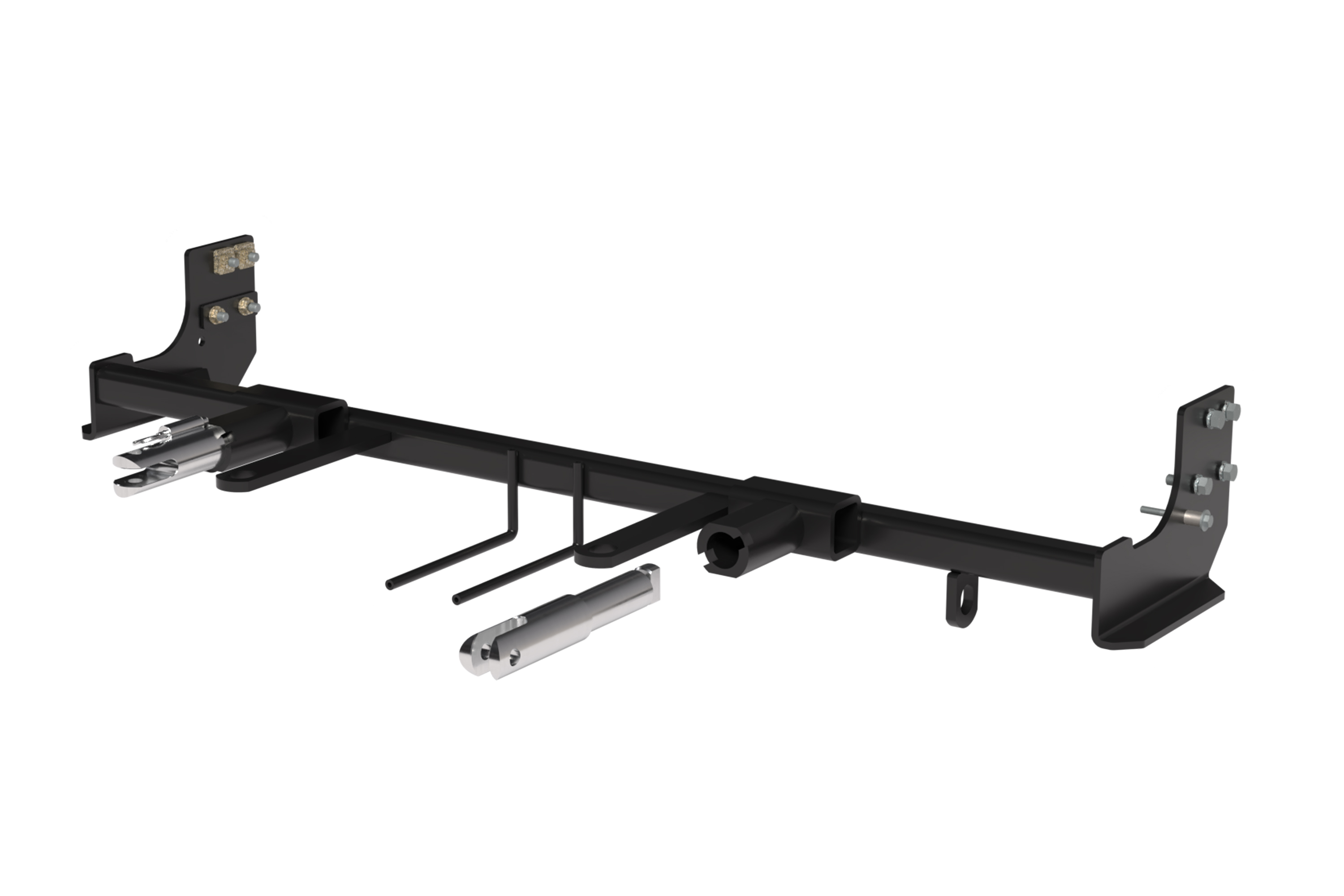

Custom-Designed Fit: Each Blue Ox BX2254 Tow Bar Bracket is specifically engineered to fit your towed vehicle perfectly, ensuring a secure connection and enhancing safety on the road.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2254 Tow Bar Bracket is a robust and reliable solution tailored for your specific towed vehicle. Constructed with high-grade steel and finished with a resilient powder coat, this black bracket offers unparalleled strength and durability. The bolt-on mounting type ensures a secure fit, providing you with peace of mind during your travels. Each purchase comes with all the necessary hardware and comprehensive instructions for a seamless DIY installation, offering you a hassle-free experience and saving you a trip to the mechanic. With Blue Ox, you're not just getting a product; you're investing in safety, convenience, and quality.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2012 | Honda Accord | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX2254 is designed specifically for the 2011 Honda Accord Ex-L. It is also compatible with the 2012 Honda Accord SE. However, confirm towing capability with your vehicle's owner's manual or contact the vehicle manufacturer for specific towing procedures before installation.
Yes, the BX2254 is designed for the 2012 Honda Accord SE. Confirm towing capability with your vehicle's owner's manual or contact the vehicle manufacturer for specific towing procedures before installation.
No. Due to the design of the removable tabs on the BX2254, the RangeFinderII and Ambassador tow bars cannot be used with this baseplate. Motorhome mount tow bars are recommended instead.
Most adapters cannot be used with the BX2254. The BX8833 and BX88151 adapters are specifically excluded. Consult Blue Ox customer care at (402) 385-3051 before purchasing any adapter for this baseplate.
Required tools include: 10MM socket/wrench, 12MM socket, 9/16" socket, 5/8" wrench, large vise grip, reciprocating saw, drill, flat screwdriver, Phillips screwdriver, torque wrench, tape measure, 13/32" drill bit, and Loctite RED. A torque wrench is essential for proper fastener installation.
Yes. A torque wrench is required to tighten all bolts to the correct specifications. All bolts must be tightened according to the torque chart provided in the instructions.
Loctite RED is a threadlocker compound that must be applied to all bolts before tightening during BX2254 installation. It is listed in the tools required and is specifically called out in the installation steps to prevent bolts from loosening due to vibration during towing.
Yes. The radiator cover, fascia, bumper and extension must all be removed for baseplate installation. These components are reinstalled after the baseplate is secured and drilling is complete.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do the fit work. Blue Ox Dealers can be found at www.blueox.com or by calling (402) 385-3051.
Yes. Drilling is required. You will drill four holes using a 13/32" drill bit to mount the baseplate to the frame (one hole initially as a template, then the remaining three). An additional hole is drilled in the bumper for the breakaway bracket. A drill and 13/32" drill bit are required tools.
Some vehicles' fascias may need trimming. The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may include filing holes slightly or bending end plates. Specific trimming is required on the fog light brackets on both sides and the driver's side fascia corner. A reciprocating saw is required for these cuts.
On the driver's side, cut across the top of the lower bracket and the plastic tab and remove. On both sides, cut the fog light bracket along the slot edge and straight down, then replace the housing to the bracket and reattach to the fascia. On the passenger side, trim the fog light bracket along the bend. These cuts are made with a reciprocating saw.
Yes. On both sides of the vehicle, clamp the air bag sensor bracket with a large vise grip and bend it back. This is done to provide clearance for the baseplate installation.
The BX2254 attachment tab height is 14 inches and the width is 22 inches.
According to the torque chart on page 1, the torque specification for 3/8-16 Grade 5 bolts is 33 foot-pounds. However, the manual also references a torque chart on page 3 of the General Instructions for specific baseplate mounting bolts. Consult the complete torque specifications before installation.
According to the torque chart on page 1, the torque specification for 6MM Grade 8.8 bolts is 6 foot-pounds.
According to the torque chart on page 1, the torque specification for 1/4-20 Grade 5 bolts is 10 foot-pounds.
With the vehicle on a level surface, the top of the baseplate should be flush with the frame offset and 7/8 inch down from the frame ledge. The baseplate must be level with respect to the vehicle frame. Use a large vise grip to clamp it in position before drilling.
The BX8848 4-Diode Wiring Kit is recommended for this vehicle.
Yes. Before removing the bumper, disconnect the temperature sensor by removing two push pins. After the baseplate installation is complete and before reinstalling the fascia, reconnect the temperature sensor.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member. Two 36-inch Class III safety cables are included with the BX2254. Permanent baseplate safety cables must be used in conjunction with, and are not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the frame rail or cross member. Be sure the safety cables do not rub against any hoses or moving parts. Do not mount the cables against wires, hoses or brake lines, as this could cause fluid leaks or electrical shorts.
If the baseplate is in an accident, it must be replaced and cannot be reused. An accident can cause unseen damage, and using a damaged baseplate again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before installing the fascia, ensure that all electrical connections are plugged in properly and functioning. After installation, inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. It is the owner's responsibility to inspect all towing equipment before each towing trip.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications.
Yes. Remove the attachment tabs when not in use, if applicable. This helps protect the tabs and reduces the profile of the baseplate when the vehicle is not being towed.
The BX2254 kit includes: baseplate (61-6820), two attachment tabs (62-3469), four nut plates with wire (61-4978 and 61-5208), two 4-way connector adapters (101-5822), one breakaway bracket (102-7116), one spacer tube (107-3081), various bolts and screws, lock washers, flat washers, two 36-inch Class III safety cables (226-0046), two 3/8-inch quicklinks (229-0359), one black receiver cap (290-0437), and one breakaway switch (293-1339). The 4-way connector pin (294-0805) and 6-way connector pin (294-0902) are not provided and must be obtained separately.
No. Use only genuine factory replacement parts on the baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor, or by calling (402) 385-3051. Failing to follow these instructions will void the manufacturer's warranty.
Towing behind a non-motorized vehicle will void the warranty. The BX2254 is designed for towing motorized vehicles only.
Register your product online at www.blueox.com. Registration is crucial so you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, the BX2254 is designed specifically for these models. Confirm towing capability with your vehicle's owner's manual or manufacturer before installation.
No. The BX2254 requires motorhome mount tow bars. RangeFinderII and Ambassador tow bars cannot be used. Most adapters are excluded except BX8833 and BX88151.
You will need: 10MM and 12MM sockets, 9/16" and 5/8" wrenches, large vise grip, reciprocating saw, drill with 13/32" bit, screwdrivers, torque wrench, tape measure, and Loctite RED.
Yes, drilling is required using a 13/32" drill bit for four frame holes and one bumper hole. Some fascias may need trimming, and specific cuts are required on fog light brackets. A reciprocating saw is needed.
Use the torque chart provided: 1/4-20 Grade 5 = 10 ft-lb, 3/8-16 Grade 5 = 33 ft-lb, 6MM Grade 8.8 = 6 ft-lb. Apply Loctite RED to all bolts before tightening. Consult the General Instructions for additional specifications.
The BX8848 4-Diode Wiring Kit is recommended for the 2011 Honda Accord Ex-L and 2012 Honda Accord SE.
Yes. Two 36-inch Class III permanent baseplate safety cables are included and strongly recommended. They must be used in conjunction with, not as a replacement for, legally required safety cables. Route them to the frame without contacting hoses, wires or brake lines.
