Custom designed for each towed vehicle, ensuring a secure and precise fit.
Material: Steel
Finish: Powder Coat
Color: Black
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

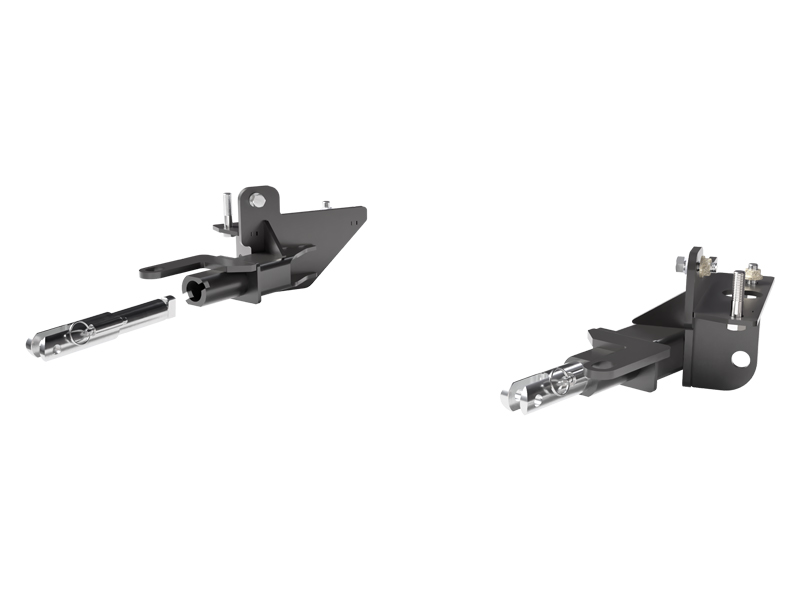

The Blue Ox BX2419 Tow Bar Bracket is a top-of-the-line product designed for your specific towing needs. It's made from high-quality steel material with a black powder coat finish for added durability and aesthetics. The bracket is specifically designed by Blue Ox to fit each towed vehicle perfectly, allowing for a precise and secure connection. Installation is a breeze with the included mounting hardware and comprehensive instructions, offering you a hassle-free DIY experience. Its bolt-on mounting type ensures a strong and stable attachment. Enhance your towing capabilities with this expertly engineered and robust Blue Ox Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2024 | Ram 1500 | TRX Vehicles With Adaptive Cruise Control & Turbo Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2021 - 2023 | Ram 1500 | Vehicles With Adaptive Cruise Control & Turbo Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE RAM 1500 TRX (Part #FDRWBX2419) is designed to fit the 2021-2024 Ram 1500.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE RAM 1500 TRX (Part #FDRWBX2419) fits 2021-2024 Ram 1500 models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE RAM 1500 TRX (Part #FDRWBX2419) fits the following vehicles: 2021-2024 Ram 1500. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE RAM 1500 TRX (Part #FDRWBX2419) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2419 is designed specifically for the 2021-2024 RAM 1500 TRX, including models with Adaptive Cruise Control and Turbo. The attachment tab height is 21" and width is 40.25". Ensure your tow bar is compatible with this tab width.
The kit includes two baseplate sections (driver side and passenger side), two attachment tab assemblies, four 1/2"-13" whiz nuts with 10" wire, one electrical bracket backing plate, hex head bolts in multiple sizes (1/4"-20 x 3/4", 1/2"-13 x 1-1/2", and 1/4"-20 x 1-1/2"), hex nylon nuts, flat washers, lock washers, two Class IV safety cables, two 1/2" quicklinks, two 9" cable ties, and two black cap plug receivers. Two existing 14MM-2.0 x 50MM bolts from the vehicle are also used.
Required tools are: utility knife, torque wrench, drill, 1/2" drill bit, 8MM socket, 13MM socket, 16MM socket, 18MM socket, 21MM socket, 3/4" socket, and Loctite Red. A reciprocating saw is also needed to trim the tow hook opening in the fascia.
Yes. The fascia must be removed and reinstalled during baseplate installation. The bumper must also be removed to access the frame attachment points. The manual notes that the bumper may be difficult to reinstall and must be lined up with a center pin.
Yes. Blue Ox towing products are intended to be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox dealers can be found at www.blueox.com or by contacting (402) 385-3051.
Yes. Drilling is required. You must drill two 1/2" holes on each side of the vehicle: one front inside hole using the baseplate as a guide (step 9), and one back hole on the underside of the baseplate (step 10). A 1/2" drill bit is required.
Yes. Using a reciprocating saw, you must trim the tow hook opening on both sides of the fascia to allow room for the baseplate and convenience link. The manual warns to be aware of objects behind the cutting surface when using a reciprocating saw.
No. The tow hooks will not be reinstalled. However, after removing the tow hooks, you must reinstall the back existing tow hook bolt and hardware on both sides of the vehicle (step 6).
Use Loctite Red on all bolt threads and tighten all bolts to the appropriate torque according to the torque chart provided in the manual. For the existing 14MM bolts (Grade 8.8), torque to 89 ft-lbs. For the 1/2"-13 bolts (Grade 5), torque to 78 ft-lbs. For 1/4"-20 bolts (Grade 5), torque to 10 ft-lbs. Specific torque values depend on bolt size and grade; refer to the torque specification tables on page 1.
The BX8848 Tail Light Wiring Kit is recommended for this vehicle. The manual does not specify whether it is required or optional.
You must unplug the electrical connector on the driver side of the vehicle before removing the bumper (step 4). After installing the baseplate, you must reconnect all electrical before reinstalling the bumper (step 14). The manual emphasizes that all electrical connections must be plugged in and accessories must be functioning properly before reinstalling the fascia.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Yes. Two Class IV safety cables are included and must be attached to the baseplate. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame using the provided convenience link and quicklinks. The cables must not rub against any hoses or moving parts. These permanent baseplate safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. Ensure the safety cables do not rub against any hoses or moving parts. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. Paint cut edges of the frame to prevent rusting. The attachment tabs should be removed when not in use. Register your product at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint, or rust. Register your warranty at http://blueox.com/warranty/
Yes, the BX2419 is designed for 2021-2024 RAM 1500 TRX with Adaptive Cruise Control and Turbo. Attachment tab dimensions are 21" height × 40.25" width.
Yes. You must drill two 1/2" holes on each side using a 1/2" drill bit: one front inside hole and one back hole on the underside. Trimming with a reciprocating saw is also required to open the tow hook area.
Required tools: utility knife, torque wrench, drill with 1/2" bit, reciprocating saw, sockets (8MM, 13MM, 16MM, 18MM, 21MM, 3/4"), and Loctite Red.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Refer to your vehicle owner's manual for towing specifications.
Use Loctite Red on all bolts. For 14MM Grade 8.8 bolts: 89 ft-lbs. For 1/2"-13 Grade 5 bolts: 78 ft-lbs. For 1/4"-20 Grade 5 bolts: 10 ft-lbs. Refer to the torque specification tables for other sizes.
Yes. Two Class IV safety cables with quicklinks are included. They must be attached from the baseplate to the vehicle frame and must not rub against hoses or moving parts.
