High-quality steel construction for superior strength and durability.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

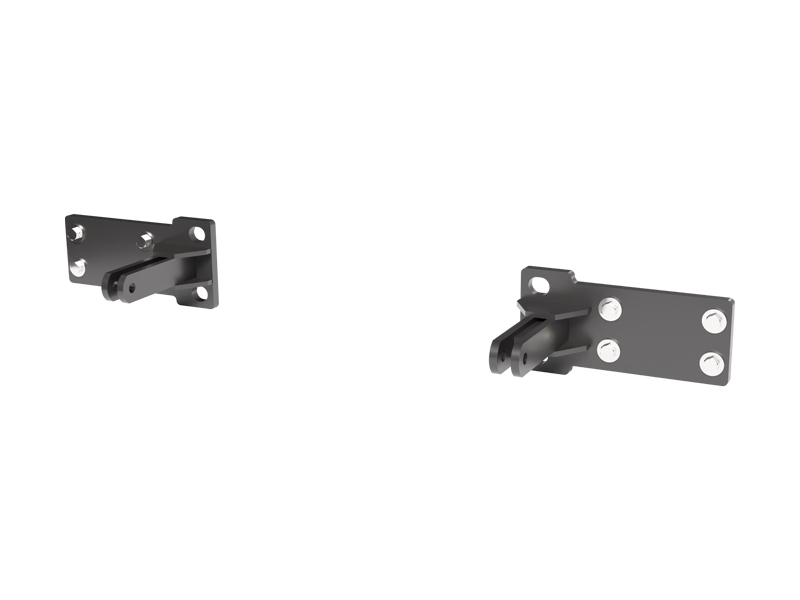

The Blue Ox BX2406 Tow Bar Bracket is a crucial addition to your towing setup, providing unmatched strength and reliability. This product is expertly crafted with high-grade steel material and coated with a protective black powder finish to resist corrosion and ensure longevity. The custom design allows for a perfect fit with your specific towed vehicle, ensuring a secure and stable connection. This Blue Ox Bracket includes all necessary mounting hardware, along with easy-to-follow instructions for a hassle-free, DIY installation. Its bolt-on mounting type guarantees a solid attachment while easing the removal process when necessary.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2012 | Ram 2500 | Comes with Standard Attachment Tabs Install Rating 2 The Vehicle Must Have Factory Tow Hooks to Mount the Bracket to Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE POWER WAGON E13 (Part #FDRWBX2406) is designed to fit the 2012 Ram 2500.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE POWER WAGON E13 (Part #FDRWBX2406) fits 2012 Ram 2500 models. The 2012 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE POWER WAGON E13 (Part #FDRWBX2406) fits the following vehicles: 2012 Ram 2500. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, DODGE POWER WAGON E13 (Part #FDRWBX2406) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX2406 is a towing baseplate manufactured by Blue Ox, designed specifically for 2012-14 Dodge 2500 Power Wagon vehicles. It attaches to the vehicle's factory tow hook mounting points and provides connection points for towing equipment. The baseplate includes two mounting plates (part 61-7117), hardware, safety cables, and quicklinks.
Yes, the BX2406 is designed for 2012-14 Dodge 2500 Power Wagon vehicles. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox technical service at (402) 385-3051 before proceeding with installation.
The BX2406 kit includes: two BX2406 baseplates (61-7117), eight 10MM-1.5 x 50MM hex head bolts Grade 8.8 (201-0428), eight 10MM flat washers (203-0103), two Class IV safety cables (226-0049), and four 1/2" quicklinks (229-0512). The kit reuses the vehicle's factory nuts from the tow hook.
Required tools are: large vise grip, torque wrench, 16MM socket, and 16MM wrench. You will also need Loctite Red to apply to all bolt threads before tightening. If installing the recommended BX8869 Tail Light Wiring Kit, additional tools may be required per that kit's instructions.
Blue Ox recommends that installation be performed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do 'fit work'. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051. However, the manual does not explicitly prohibit non-dealer installation.
The first step is to remove the factory tow hooks. Using a 16MM socket, remove the four bolts from the tow hook on one side of the vehicle and remove the tow hook. Do not discard the factory nuts—they will be reused to install the baseplate. Repeat this process on the other side of the vehicle.
Using a 16MM socket and wrench, install the baseplate and tow hook into the tow hook holes using the supplied 10MM-1.5 x 50MM bolts, 10MM flat washers, and the existing factory nuts. Apply Loctite Red to all bolt threads before tightening. Repeat on the other side of the vehicle. Tighten all bolts according to the torque chart provided.
The 10MM bolts are Grade 8.8 metric bolts. According to the torque chart, Grade 8.8 10MM bolts should be tightened to 31 foot-pounds. Apply Loctite Red to all bolt threads before tightening.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be routed around the frame crossmember or frame rail of the vehicle. Secure them to a solid piece of the frame. Ensure the safety cables do not rub against any hoses or moving parts. Install the cables on both sides of the vehicle. The manual shows two installation options depending on whether the baseplate has convenience link tabs.
Yes. The manual states that permanent baseplate safety cables are 'strongly recommended' and must be installed. The cables prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or crossmember and must have adequate weight rating. The two cables together must meet the weight requirement—individual cable ratings do not qualify separately.
No. The manual explicitly states: 'Do not mount the permanent baseplate safety cables against wires, hoses or brake lines.' Improper installation against wires or hoses could cause fluid leaks or electrical shorts some time after installation. It is the installer's responsibility to watch for oil cooler and air conditioner lines, electrical wires, and hoses when routing the cables.
The baseplate itself does not require drilling—it uses the vehicle's existing tow hook mounting holes. However, the manual recommends installing the BX8869 Tail Light Wiring Kit, which does require drilling a hole according to that kit's instructions. Drilling is not required for the baseplate installation itself.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface. After drilling or cutting, use good quality paint to spray cut edges of the frame to prevent rusting.
The BX8869 Tail Light Wiring Kit is recommended for the 2012-14 Dodge 2500 Power Wagon but not stated as mandatory. The manual notes that the kit is 'recommended for this vehicle' and requires drilling a hole according to the kit's instructions. Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly.
Place the removed tow hooks on a flat, sturdy surface. They will be reinstalled as part of the baseplate installation. Do not discard the factory nuts from the tow hooks—they will be reused to install the baseplate.
The attachment tab height is 27-3/4" and the attachment tab width is 27-3/4".
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications and your vehicle's GVWR.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Verify that safety cables do not rub against any hoses or moving parts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended torque specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. Remove the attachment tabs when not in use if applicable.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. The warranty is non-transferable and requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust.
Register your product online at www.blueox.com or visit http://blueox.com/warranty/. Registration is crucial to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls. The warranty card must be returned within 30 days of purchase for coverage to be valid.
Contact Blue Ox Technical Service at (402) 385-3051. You can also visit www.blueox.com to find Blue Ox Dealers or to access the latest version of installation instructions. Blue Ox is committed to providing customer care and can assist with questions regarding product performance.
Yes, the BX2406 is designed for 2012-14 Dodge 2500 Power Wagon vehicles. If your vehicle's front looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before installing.
You need a torque wrench, 16MM socket and wrench, large vise grip, and Loctite Red. The baseplate uses the vehicle's existing tow hook holes, so no drilling is required for the baseplate itself.
The 10MM Grade 8.8 bolts should be tightened to 31 foot-pounds. Apply Loctite Red to all bolt threads before tightening.
Yes, permanent baseplate safety cables are strongly recommended and must be installed. They prevent the towed vehicle from breaking loose if the baseplate connection fails. The cables must not be mounted against wires, hoses, or brake lines.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended torque specifications.
