Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
1991 - 1994 Dodge Shadow
Confirmed to Fit
1991 - 1994 Plymouth Sundance
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
1. Custom Design: Each Blue Ox base plate is custom designed for each specific towed vehicle, ensuring a perfect fit and easy installation.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

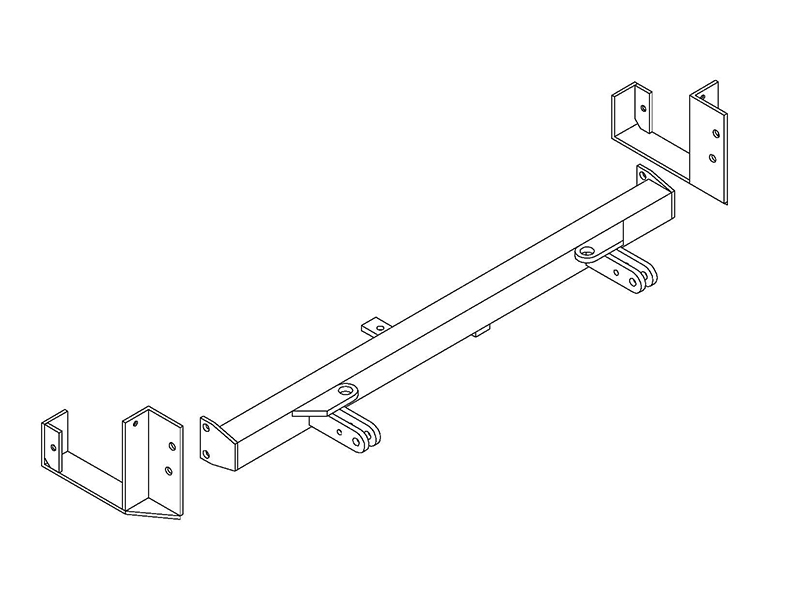

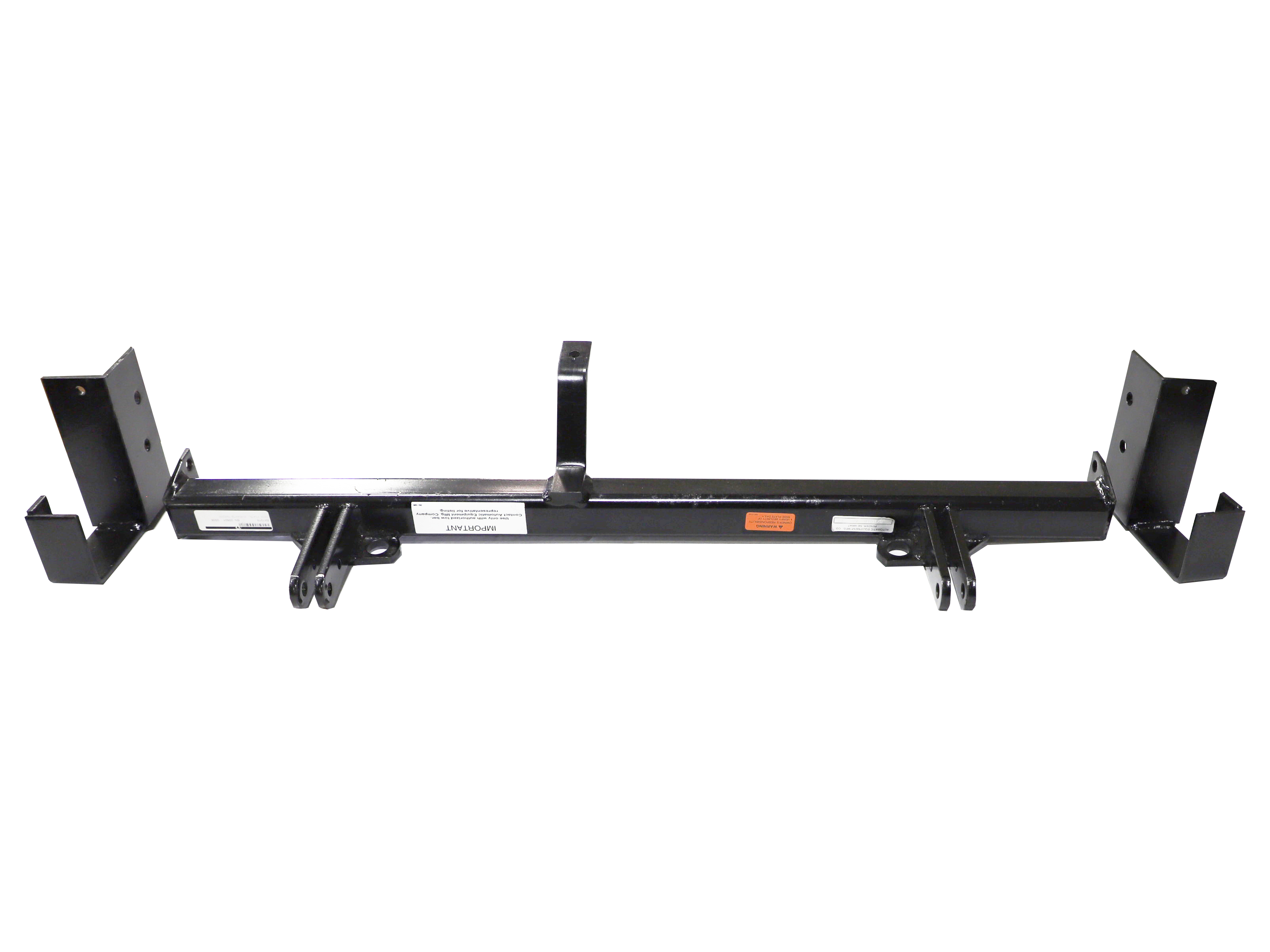

Meet the reliable BX1918 Tow Bar Bracket from Blue Ox, designed to elevate your towing experience to new heights. With its custom design, this bracket ensures a perfect fit for your specific towed vehicle, making installation a breeze. Constructed from tough, durable steel and finished with a protective powder coat in a sleek black color, this tow bar bracket is built to withstand tough conditions and provide long-lasting stability. The bolt-on mounting type simplifies the installation process, and with all necessary hardware included, you'll have everything you need to get started. Get ready to experience the difference with the Blue Ox BX1918 Tow Bar Bracket.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1991 - 1994 | Dodge Shadow | Comes with Standard Attachment Tabs Install Rating 4 Minor Drilling Required Fog Lights Must be Removed and Remain Off the Vehicle After Installation |
| 1991 - 1994 | Plymouth Sundance | Comes with Standard Attachment Tabs Install Rating 4 Minor Drilling Required |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, SUNDANCE/SHADOW E13 (Part #FDRWBX1918) fits 1991-1994 Dodge Shadow models. The 1994 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, SUNDANCE/SHADOW E13 (Part #FDRWBX1918) is designed to fit the 1991-1994 Dodge Shadow.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, SUNDANCE/SHADOW E13 (Part #FDRWBX1918) fits the following vehicles: 1991-1994 Dodge Shadow; 1991-1994 Plymouth Sundance. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, SUNDANCE/SHADOW E13 (Part #FDRWBX1918) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1918 is designed for 1991-94 Dodge Shadow and 1991-94 Plymouth Sundance models. Installation requires removal of the bumper and turn signal lights, and drilling a hole through the vehicle frame.
Required tools are: 7mm socket, 13mm socket, 3/8 socket, T15 torax, 3/4 socket and combination wrench, 17mm socket, 9/16 socket and combination wrench, and Locktite Blue.
Yes, all 5 bolts required to attach the baseplate are provided with the kit. The parts list includes 4 × 1/2-13 x 1 3/4 hex bolts, 2 × 8mm-1.25 x 50mm hex bolts, 1 × 10mm-1.5 x 50mm hex bolt, 2 × 3/8-16 x 1 1/2 hex bolts, nuts, and washers.
Yes, the bumper must be removed. This requires removing six nuts that hold the bumper to the bumper mounts, removing two screws below each side turn signal that hold the bumper plastic to the frame, and removing the lower bolt on each bumper shock absorber mount.
Yes, the turn signal lights must be removed. Use a T15 torax to remove the turn signal lenses and detach the bulbs. Also remove the bulbs from the side turn signals on each side. After baseplate installation, replace the lights and test the turn signals to ensure the bulbs still work.
Yes, a hole must be drilled through the vehicle frame. Using the hole in the outer mount as a guide, drill a 3/8" hole through the frame to bolt the rear part of the outer mounts. On the passenger side, a plastic shield may be in the way; if four bolts are removed from the shield, it can be moved enough to allow room to drill without removing it completely.
A 3/8" hole must be drilled through the frame. Use the hole in the outer mount as a guide for drilling location.
1. Remove turn signal lenses and bulbs using T15 torax. 2. Remove screws below side turn signals and six bumper mounting nuts. 3. Remove lower bolts from bumper shock absorber mounts. 4. Loosely install left and right outer mounts using 8mm x 50mm bolts and lock washers. 5. Remove lower middle bolt from center motor mount. 6. Install base tube weldment with 10mm x 50mm bolt through center mount. 7. Align and start 1/2 x 1 3/4 bolts through outer mounts and base tube. 8. Drill 3/8" holes through frame for rear outer mount bolts. 9. Install 3/8 bolts, nuts, and washers. 10. Apply Locktite and tighten all bolts securely. 11. Replace bumper and turn signal lights.
Bolts should be started loosely first. Step 8 specifies to "loosely install" the outer mounts. Step 11 says to "start" the 1/2 x 1 3/4 bolts. Only after all bolts align and Locktite is applied should they be tightened securely (Step 15).
Locktite Blue is applied to all bolts before final tightening to secure them and prevent loosening. The manual specifies applying Locktite when all bolts align, then tightening securely.
The manual notes that dimensional variations between otherwise identical cars can be considerable. If a bolt does not clear, it may be necessary to file a hole slightly to allow alignment. This is a normal part of the installation process.
The lower bolt on each bumper shock absorber mount and the lower middle bolt from the center motor mount are removed during installation and set aside—they are not reused. All fasteners needed for the baseplate installation are provided with the kit.
The baseplate attaches at three points: the center motor mount, the lower bolt on the bumper mounts, and the body frame. A total of 5 bolts are used for these attachments.
The baseplate uses the following bolts: 4 × 1/2-13 x 1 3/4 hex bolts (Grade 5), 2 × 8mm-1.25 x 50mm hex bolts (Grade 8.8), 1 × 10mm-1.5 x 50mm hex bolt (Grade 8.8), and 2 × 3/8-16 x 1 1/2 hex bolts (Grade 5). All are provided with the kit.
The kit includes: 4 × 1/2-13 hex nuts, 2 × 3/8-16 hex nuts, 4 × 1/2 lock washers, 2 × 3/8 lock washers, 2 × 3/8 flat washers, 2 × 8mm lock washers, and 1 × 10mm lock washer.
Do not substitute other devices if the tow bar pin and clip are lost. Contact the manufacturer or dealer for replacement parts.
After installation, replace the bumper and turn signal lights, then test the turn signals to ensure the bulbs still work. Install the tow bar and safety cables according to their included instructions.
Yes, the BX1918 is designed for 1991-94 Dodge Shadow and Plymouth Sundance. Installation requires bumper and turn signal removal and drilling a frame hole.
You need: 7mm, 13mm, 3/8, 3/4, 17mm, and 9/16 sockets, T15 torax, combination wrenches, and Locktite Blue.
Yes, you must drill a 3/8" hole through the vehicle frame to bolt the rear outer mounts. Use the hole in the mount as a guide.
Yes, both must be removed. The bumper is held by six nuts and two screws; turn signal lenses are removed with a T15 torax. Both are reinstalled after baseplate installation.
Yes, all 5 bolts and associated nuts and washers are provided. No factory fasteners are reused.
Start bolts loosely, align all holes, then apply Locktite and tighten securely. Do not fully tighten until all bolts are aligned.
Test the turn signals to ensure the bulbs still work after reinstalling the lights. Install the tow bar and safety cables per their instructions.
