Custom designed for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

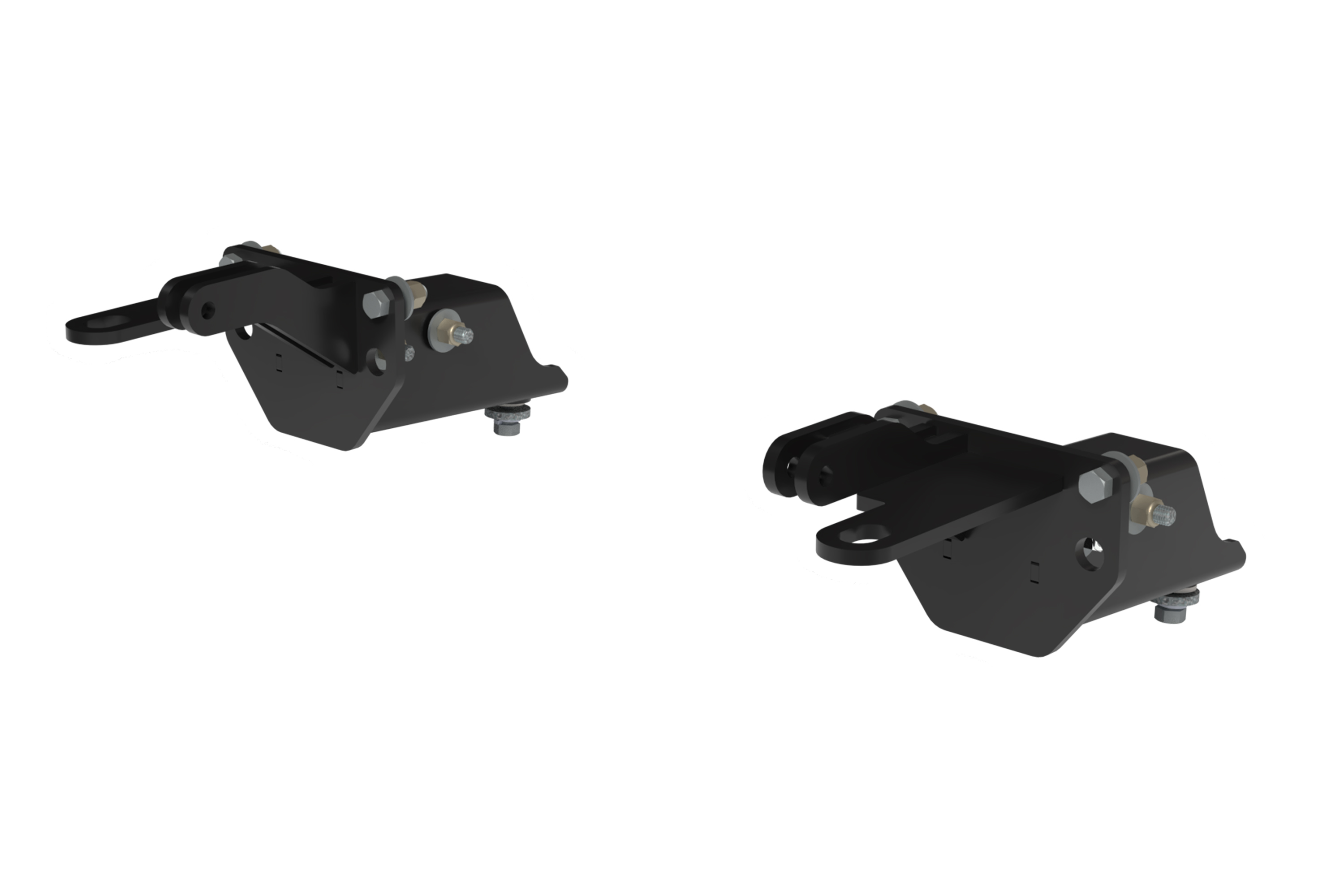

The Blue Ox BX1762 Tow Bar Bracket is a meticulously engineered piece of equipment, designed for optimal performance with specific towed vehicles. This bracket has been custom built to ensure a perfect fit and seamless operation. It features a resilient powder coat finish, providing a durable layer of protection against harsh weather conditions and road debris. The Blue Ox BX1762 comes with all necessary mounting hardware included, allowing for a straightforward, do-it-yourself installation process. Its bolt-on mounting type ensures a secure attachment to your vehicle, providing the stability and reliability you need when towing.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2024 - 2025 | Chevrolet Silverado 2500 HD | No Bison, Vehicles with Diesel, Adaptive Cruise Control, Turbo, and Top Shutters, Comes with Standard Attachment Tabs, Install Rating 3, Bumper/Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Require, Tow Hooks Must be Removed and Remain off Vehicle After Installation, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2026 | Chevrolet Silverado 2500 HD | No Bison, Vehicles with Diesel, Adaptive Cruise Control, Turbo, and Top Shutters, Comes with Standard Attachment Tabs, Install Rating 3, Bumper/Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Require, Tow Hooks Must be Removed and Remain off Vehicle After Installation, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not to Be Used On Vehicles Over 5000 lbs. |
| 2024 - 2025 | Chevrolet Silverado 3500 HD | No Bison, Vehicles with Diesel, Adaptive Cruise Control, Turbo, and Top Shutters, Comes with Standard Attachment Tabs, Install Rating 3, Bumper/Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Require, Tow Hooks Must be Removed and Remain off Vehicle After Installation, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2026 | Chevrolet Silverado 3500 HD | No Bison, Vehicles with Diesel, Adaptive Cruise Control, Turbo, and Top Shutters, Comes with Standard Attachment Tabs, Install Rating 3, Bumper/Fascia Must Be Removed/Replaced During Install, Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill, Minor Drilling Require, Tow Hooks Must be Removed and Remain off Vehicle After Installation, Baseplate Has Non 24 in. Spaced Attachment Tabs, Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar, Tow Bar Adapters Not to Be Used On Vehicles Over 5000 lbs. |
Yes, the BX1762 is designed for 2024-2026 Chevy Pickup 2500/3500 Silverado models without Bison, including vehicles with Adaptive Cruise Control, Diesel engines, Turbo, and Top Shutters. The manual states that if the front of your vehicle looks different than shown in the instructions, contact Blue Ox at (402) 385-3051 before proceeding.
No. The BX1762 is specifically designed for 2024-2026 Chevy Pickup 2500/3500 Silverado models with "No Bison." If your vehicle has Bison, this baseplate is not compatible.
The attachment tab height is 22.5 inches and the attachment tab width is 29.75 inches.
Required tools include: flat screwdriver, reciprocating saw, torque wrench, drill, Loctite Red, 13/16" drill bit, 1/2" drill bit, T15 Torx, 7MM socket, 10MM socket, 11MM socket, 11MM wrench, 15MM socket, 18MM socket, 3/4" socket, and 3/4" wrench.
The kit includes: 5 × 1/4"-20 × 3/4" hex head bolts (Grade 5), 6 × 1/2"-13 × 1-3/4" hex head bolts (Grade 5), 8 × 1/2"-13 × 1-1/2" whiz flange bolts (Grade 5), 2 × #10-32 1/2" round slotted head screws, 2 × #10-32 hex nuts, 12 × 1/2"-13 hex nylon insert lock nuts, 5 × 1/4"-20 hex nylon nuts, 7 × 1/4" flat washers, 8 × 1/2" flat washers, 6 × 1/2" lock washers, 2 × #10 lock washers, 2 × 1-1/2" OD × 17/32" ID × 1/4" thick washers, 2 class IV safety cables, 2 × 1/2" quicklinks, 1 electrical bracket with 90° bend, 2 × 10 GA sleeves with slot plates, 1 × 10 GA × 3/4" × 3-1/2" mounting plate with holes, and 2 × #10-32 1/2" round slotted head screws.
No, tail light wiring kits are not included. The manual recommends the BX8869 Tail Light Wiring Kit for non-LED equipped vehicles, the BX8848 Diode Wiring Kit for LED equipped vehicles, and the BX88442 Tail Light Wiring Kit for vehicles with progressive lit tail lights. These must be ordered separately.
Yes. The fascia cover, fascia, grille, and bumper must be removed for baseplate installation. The tow hooks are also removed but are not reinstalled. All other components are reinstalled after the baseplate is installed. The manual recommends placing all removed components on a flat, sturdy surface during installation.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work." Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Customer Care at (402) 385-3051.
Yes. Drilling is required. You must drill out the front two holes in the frame on both sides of the vehicle using a 1/2" drill bit and the baseplate as a template. The manual also notes that some drilling and trimming is required overall.
Yes. Using a reciprocating saw, you must trim the metal bracket on the back of the bumper on both sides of the vehicle, and trim the tow hook opening on both sides to allow room for the baseplate. The manual recommends using a good quality paint to spray cut edges of the frame to prevent rusting.
Slide the baseplate onto the vehicle so that the convenience link is to the outside of the vehicle (left side). Start the four 1/2" × 1-1/2" whiz flange bolts on both sides of the vehicle to ensure holes line up.
The manual provides a general torque chart for metric and inch bolts but does not specify which bolt sizes and grades are used for each location on the BX1762. The chart shows torque values for Grade 5 and Grade 8 inch bolts and Grade 8.8 and Grade 10.9 metric bolts. You must apply Loctite Red to all bolt threads and tighten all bolts to the appropriate torque according to the chart provided, but the specific torque for each bolt location on this baseplate is not detailed in the manual.
Yes. You must use Loctite Red on all bolt threads before tightening. The manual emphasizes this requirement multiple times and states that all bolts should be tightened according to the torque chart provided unless otherwise specified.
During removal of the grille, you must unplug two white electrical connections on the passenger side of the vehicle, and one white electrical connection and one gray hose line on the driver side of the vehicle. All electrical connections and hoses must be reconnected after the bumper, grille, and fascia are reinstalled.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications.
Yes. Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1762 kit includes 2 class IV safety cables and 2 quicklinks. The cables must be attached to the provided convenience link on the baseplate and secured to a solid piece of the vehicle frame. The cables must not rub against any hoses or moving parts. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. This ensures that the grille, lights, and other electrical components are working correctly before the vehicle is returned to service.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow this requirement will void the manufacturer's warranty.
The BX1762 has a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To be valid, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice showing date and place of purchase must accompany any warranty claim. The warranty is non-transferable and does not cover improper installation, improper use, modification, neglect, normal wear and tear, paint, or rust.
Yes, the BX1762 fits 2024-2026 Chevy Pickup 2500/3500 Silverado models without Bison, including those with Adaptive Cruise Control, Diesel, Turbo, and Top Shutters. If your vehicle has Bison or looks different than shown in the instructions, contact Blue Ox at (402) 385-3051.
You need a drill (with 1/2" and 13/16" bits), reciprocating saw, torque wrench, socket set (7MM to 18MM), T15 Torx, flat screwdriver, 11MM wrench, 3/4" wrench, and Loctite Red.
Yes. You must drill out the front two holes in the frame on both sides using a 1/2" drill bit. Trimming with a reciprocating saw is also required on the bumper bracket and tow hook opening.
Yes. You must remove the fascia cover, fascia, grille, bumper, and tow hooks. All components except the tow hooks are reinstalled after baseplate installation.
Yes. Two class IV safety cables and two quicklinks are included. They must be attached to the baseplate's convenience link and secured to the vehicle frame. They are required in addition to, not instead of, legally required safety cables.
Yes. Apply Loctite Red to all bolt threads before tightening and tighten all bolts to the appropriate torque according to the torque chart provided in the manual.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Yes. Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If holes do not align, contact Blue Ox at (402) 385-3051 for guidance.
If the recommended cable mounting options interfere with other components such as oil cooler lines, air conditioner lines, electrical wires, or hoses, secure the cables to a solid piece of the frame as described in the General Information sheet. Do not mount the cables against wires, hoses, or brake lines, as this could cause fluid leaks or electrical shorts after installation.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. If accessories are not working after installation, verify that all white electrical connections on the passenger side and the white electrical connection and gray hose line on the driver side have been properly reconnected.
It is the owner's responsibility to inspect all towing equipment for loose bolts before each towing trip. If bolts are found to be loose, tighten them to the appropriate torque according to the torque chart provided in the manual. Use Loctite Red on all bolt threads before tightening. If bolts continue to loosen, the baseplate may have been improperly installed or damaged.
