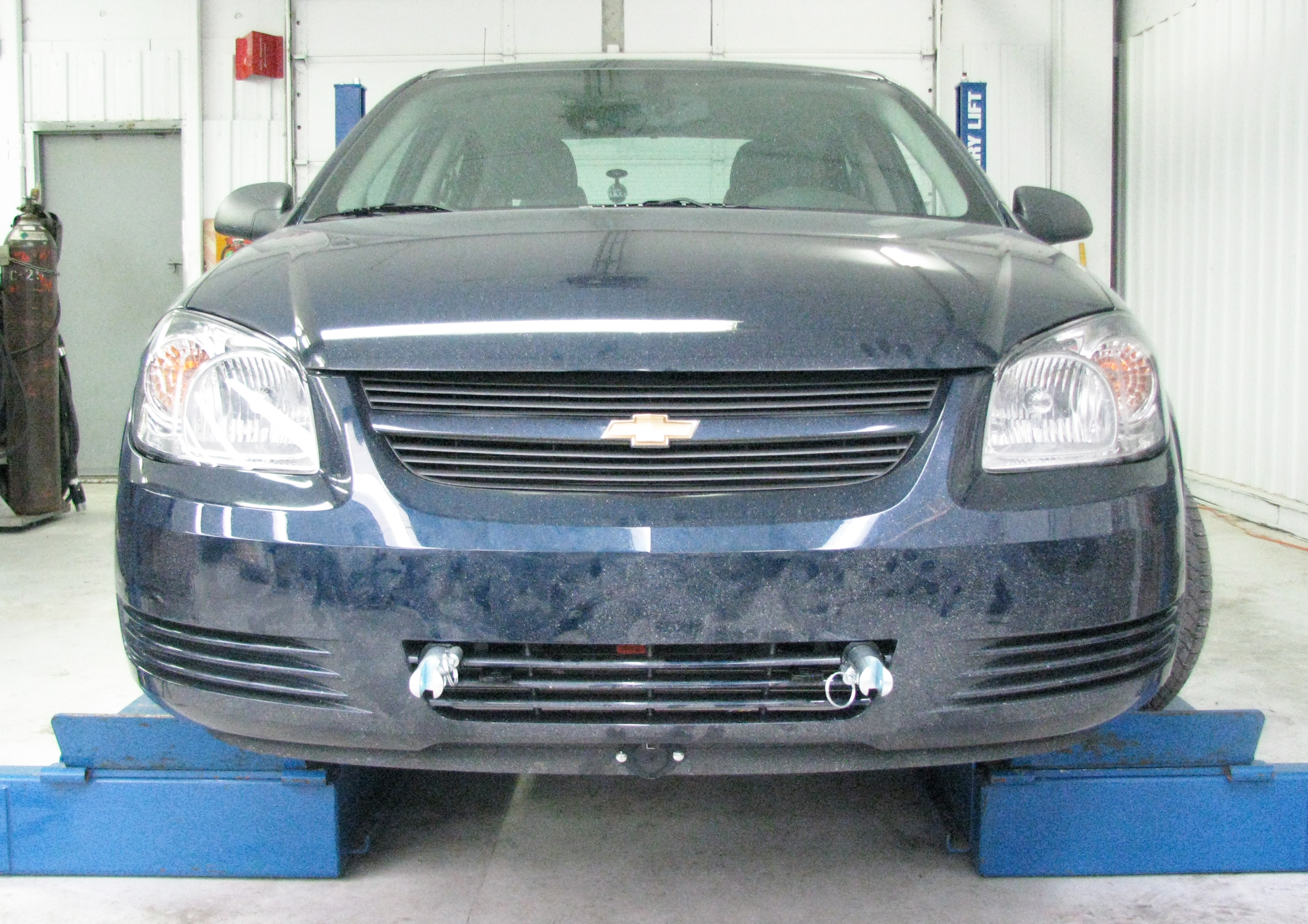

Custom-Designed Fit: Each Blue Ox BX1684 Tow Bar Bracket is expertly designed for a specific towed vehicle, ensuring a perfect fit and optimum performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience hassle-free towing with the Blue Ox BX1684 Tow Bar Bracket. Expertly designed for each specific towed vehicle, this high-quality towing accessory is an essential addition to your equipment. Constructed from robust steel and finished with a black powder coat, this Tow Bar Bracket is not only durable but also resistant to rust and corrosion for a longer lifespan. Its bolt-on mounting type ensures a secure and stable connection for safe towing. The product comes with all the necessary hardware and detailed instructions for a straightforward, DIY installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2010 | Chevrolet Cobalt | No Turbo Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY COBALT (Part #FDRWBX1684) fits 2009-2010 Chevrolet Cobalt models. The 2010 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY COBALT (Part #FDRWBX1684) is designed to fit the 2009-2010 Chevrolet Cobalt.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY COBALT (Part #FDRWBX1684) fits the following vehicles: 2009-2010 Chevrolet Cobalt. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY COBALT (Part #FDRWBX1684) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. The BX1684 is designed for 2005-2010 Chevy Cobalt with no turbo only. Do not use on turbocharged models.
Motorhome mount tow bars are recommended. The Acclaim tow bar may be used but will not fold and store on the front of the vehicle. The RangeFinderII, Adventurer, and Ambassador tow bars cannot be used due to the design of the removable tabs. Adapters cannot be used except the BX8833 and BX88151.
Most adapters cannot be used with the BX1684. Only the BX8833 and BX88151 adapters are compatible. All other adapters are incompatible with this baseplate.
The front fascia and metal bumper must be removed. On the passenger's side, the horn bracket and air ram intake are also removed. The fascia is reinstalled after baseplate installation with modifications to allow the attachment tabs to pass through.
Yes. Drilling is required. Using a 13/32" drill bit, you must drill four holes on the driver's side and four holes on the passenger's side to mount the baseplate to the frame rails (step 12).
Yes. Trimming of the front fascia is required. The air dam must be trimmed on both sides. Additionally, the bottom edge of the tab connecting to the intake tube front bolt location and the air dam just below the metal bumper must be cut and removed with a utility knife (step 15). The top style of the lower grill opening must be cut on both sides to allow the attachment tabs to pass through (step 16).
Yes. A reciprocating saw is required to remove sections of the metal bumper. You must mark and remove areas from the inner and outer edges of the bumper brace along the bottom edge of the metal bumper, flush with the inside and outside edges of the frame rails on both sides (steps 8-9).
Required tools are: 7MM socket, 10MM socket, 9/16" socket, 13/32" drill bit, utility knife, large vise grip, reciprocating saw, and Loctite RED. A power drill is needed for drilling the frame holes. Protective covers and rags may be needed to prevent damage to cosmetic parts.

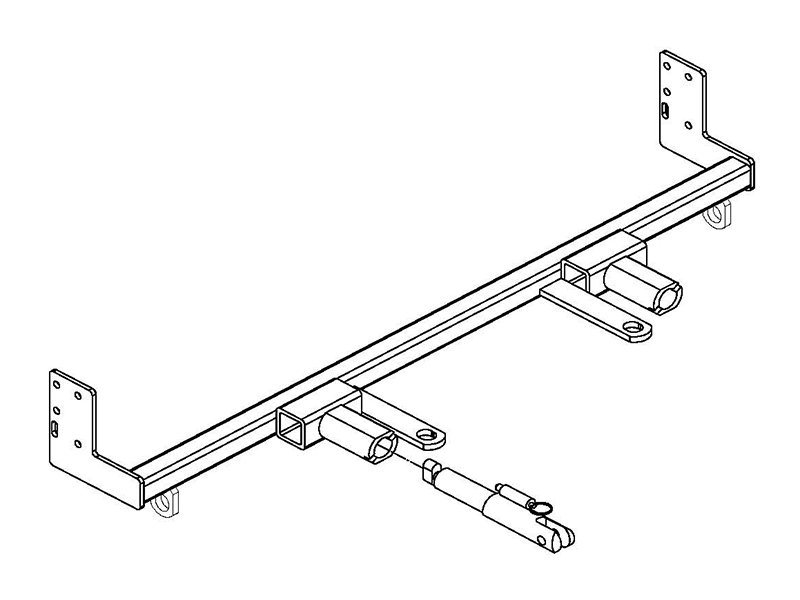

The kit includes: one baseplate weldment (61-6624), nine 3/8-16 nut plates with 14" wire, nine 3/8-16 x 1.5" Grade 5 hex bolts, nine 3/8" lock washers, one 3/8" flat washer, one 6MM-1.0 x 45MM Grade 8.8 hex bolt, three 1/4" flat washers, two 1/4-20 x 1" Grade 5 hex bolts, two 1/4" lock washers, two 1/4-20 hex nuts, two attachment assemblies (SF/LB right), two 36" Class III baseplate safety cables, four 3/8" quicklinks, and two receiver cap plugs.
No. If a bolt is lost or needs replacement, you must order a replacement bolt of the same grade through your nearest Blue Ox dealer or distributor. Most bolts in this kit are Grade 5. Using the correct grade is essential for safety and baseplate preservation.
Blue Ox recommends that baseplates be installed by Blue Ox dealers who are familiar with the products and have the equipment and knowledge to do 'fit work'. Blue Ox dealers can be found at www.blueox.com or by calling (402) 385-3051. The installation involves significant modifications including drilling, cutting, and welding considerations, so professional installation is strongly recommended.
The manual references a torque chart on the front page and page 3 of the Baseplate General Towing Instructions, but those pages are not included in this document. The manual states: 'TIGHTEN ALL BOLTS ACCORDING TO THE TORQUE CHART ON THE FRONT PAGE OF THESE INSTRUCTIONS OR ON PAGE 3 OF THE BASEPLATE GENERAL TOWING INSTRUCTIONS.' You must consult the general towing instructions or contact Blue Ox at (402) 385-3051 for the specific torque values for each bolt size and grade used on this baseplate.
The attachment tab height is 14.25" and the attachment tab width is 20".
The baseplate should measure approximately 7/8" from the bottom side of frame ribbing down to the top edge of the baseplate. The baseplate should be positioned as far forward as possible on both sides (step 11).
The baseplate includes a 6-way round electrical connector. The manual notes that a BX8869 Bulb and Socket Wiring Kit is available as an optional accessory for this vehicle. The electrical connector location is on the fascia's lower air dam just below the license plate (step 17). Specific wiring colours and detailed electrical instructions are not provided in this manual.
The 4 or 6 pin electrical coupler should be mounted on the fascia's lower air dam just below the license plate (step 17).
If the baseplate is damaged or involved in an accident, it must be replaced immediately. Do not reuse a damaged baseplate. An accident can cause unseen damage, and using a damaged baseplate could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Yes. Two 36" Class III baseplate safety cables are included with the BX1684 kit. Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the safety cables against wires, hoses, or brake lines. These cables must remain installed as long as the baseplate is installed. The permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before each towing trip, inspect all towing equipment for: cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications using Loctite Red. Check that all electrical connections are plugged in properly and functioning. Verify that the attachment tabs are properly installed and secure.
After installation, verify: (1) all electrical connections are plugged in properly and functioning before reinstalling the fascia (step 16); (2) the horn bracket is properly reinstalled on the driver's side with all electrical connections plugged in (step 13); (3) the air intake tube is reinstalled to its original position (step 14); (4) the fascia is reinstalled with proper cuts to allow the attachment tabs to pass through (step 16); (5) all bolts are tightened to the correct torque specifications using Loctite Red; (6) the baseplate measures approximately 7/8" from the bottom of frame ribbing to the top edge of the baseplate; (7) safety cables are properly connected from the baseplate to the frame rail or cross member.
Yes. It is crucial to register your baseplate online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes. The attachment tabs should be removed when not in use.
If the front of your vehicle looks different than shown in the manual, call Blue Ox at (888) 425-5382 before attempting installation. This may indicate a variation in your vehicle that requires different installation procedures or that the baseplate may not be compatible with your specific vehicle.
Failing to follow and/or altering these installation instructions in either installation or required equipment will void the manufacturer's warranty. Additionally, towing behind a non-motorized vehicle will void the warranty. Always use genuine factory replacement parts on your baseplate and do not substitute homemade or non-typical parts.
Blue Ox customer care can be reached at (402) 385-3051. You can also visit www.blueox.com to find Blue Ox dealers and to register your product. Blue Ox also offers service at rallies and at their factory in Pender, Nebraska.
No, the BX1684 is for non-turbo models only.
Motorhome mount tow bars are recommended. The Acclaim tow bar may be used but will not fold. RangeFinderII, Adventurer, and Ambassador tow bars cannot be used. Only BX8833 and BX88151 adapters are compatible.
Yes. Blue Ox recommends installation by Blue Ox dealers familiar with the product and equipped for fit work. Call (402) 385-3051 to find a dealer.
Yes. You must drill eight holes (four per side) using a 13/32" drill bit to mount the baseplate to the frame rails.
The front fascia and metal bumper must be removed. The fascia and air dam must be trimmed. Sections of the metal bumper must be cut with a reciprocating saw. The fascia is reinstalled with cuts to allow attachment tabs to pass through.
Required tools: 7MM, 10MM, and 9/16" sockets; 13/32" drill bit; utility knife; large vise grip; reciprocating saw; power drill; and Loctite RED.
Yes. Two 36" Class III baseplate safety cables are included. They must be connected from the baseplate to the frame rail or cross member and must remain installed as long as the baseplate is on the vehicle.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to specifications using Loctite Red. Verify all electrical connections are plugged in and functioning properly.
Yes. Register online at www.blueox.com to receive alerts about product updates, maintenance, safety bulletins, and recalls.
Verify that all electrical connections are plugged in properly and functioning before reinstalling the fascia (step 16). If connections are not functioning: (1) Check that the horn bracket on the driver's side is properly reinstalled with all electrical connections plugged in (step 13); (2) Ensure all components unplugged during fascia removal are properly reconnected; (3) Verify the electrical connector on the fascia's lower air dam is properly seated; (4) If using the optional BX8869 Bulb and Socket Wiring Kit, ensure it is properly installed according to its instructions. If problems persist, contact Blue Ox customer care at (402) 385-3051.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for auto manufacturer's tolerances. These minor adjustments may include filing a hole slightly, bending electrical rods, or bending end plates (step 18). If alignment issues persist, contact your Blue Ox dealer or call (402) 385-3051 for assistance.
The dimensional variations between otherwise identical vehicles can be considerable. If the fascia does not fit properly after cutting the attachment tab openings: (1) Verify that the cuts made in step 15 (bottom edge of the tab and air dam) are correct; (2) Verify that the cuts made in step 16 (top style of the lower grill opening) are correct and allow the tabs to pass through; (3) Minor adjustments may include filing holes slightly or bending end plates (step 18). If the fascia still does not fit, contact your Blue Ox dealer or call (402) 385-3051.
