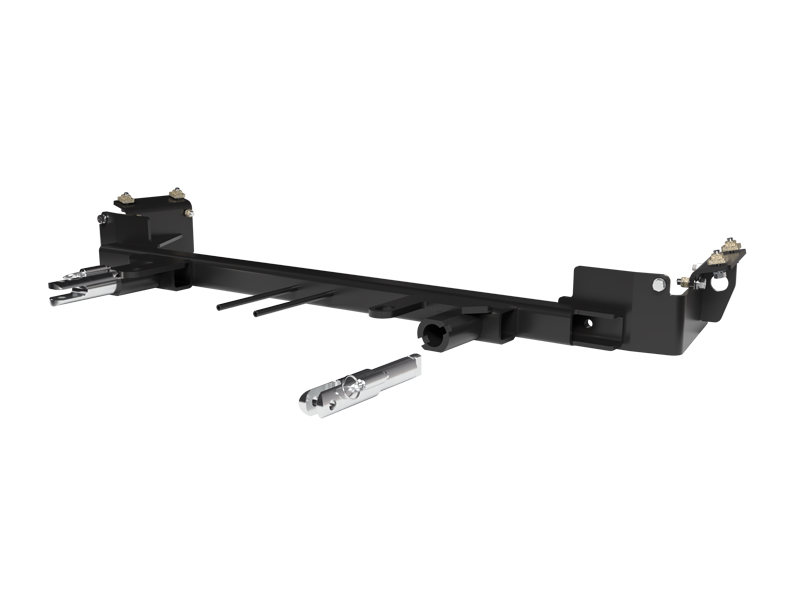

Custom Design: The Blue Ox BX1752 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a precise fit and maximum safety.
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1752 Tow Bar Bracket is a critical accessory for towing your vehicle. Custom designed for each specific towed vehicle, it ensures a perfect fit, providing you with maximum safety and durability. The bracket boasts a durable powder coat finish and is easily bolted on, allowing for a hassle-free installation. When you purchase this Blue Ox base plate, it includes all the necessary hardware and instructions, paving the way for a smooth do-it-yourself installation. This is an essential tool for anyone in need of a sturdy, reliable towing solution.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2022 - 2023 | Chevrolet Traverse | Vehicles With Adaptive Cruise Control & Top Shutters Only Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2024 | Chevrolet Traverse Limited | Vehicles With Adaptive Cruise Control & Top Shutters Only Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY TRAVERSE (Part #FDRWBX1752) is designed to fit the 2022-2023 Chevrolet Traverse.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY TRAVERSE (Part #FDRWBX1752) fits the following vehicles: 2022-2023 Chevrolet Traverse; 2024 Chevrolet Traverse Limited. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY TRAVERSE (Part #FDRWBX1752) fits 2022-2023 Chevrolet Traverse models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY TRAVERSE (Part #FDRWBX1752) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1752 baseplate is designed for 2022-2023 Chevy Traverse models that include Adaptive Cruise Control and Top Shutters, with no Lower Shutters. If your vehicle matches these specifications, the baseplate is compatible. If your vehicle has Lower Shutters or lacks Adaptive Cruise Control, contact Blue Ox at (402) 385-3051 to confirm fitment.
The BX1752 is compatible with the 2024 Chevy Traverse Limited model only, and only if it includes Adaptive Cruise Control and Top Shutters with no Lower Shutters. Other 2024 Traverse trim levels or configurations may not be compatible.
The attachment tab height is 14.5 inches and the attachment tab width is 25 inches.
Required tools include: large vise grip, flat screwdriver, torque wrench, utility knife, reciprocating saw, drill, 3/8 inch drill bit, 7MM socket, 10MM socket, 7/16 inch socket, 7/16 inch wrench, 9/16 inch socket, 9/16 inch wrench, and T15 Torx. You will also need Loctite Red.
The kit includes: 4 x 3/8 inch nut plates with 14 inch wire (61-5208); 1 x BX1752 baseplate (61-8544); 2 x attachment tab assemblies with hole (62-3469); 1 x electrical bracket with breakaway switch mount (101-9381); 1 x 1/4-20 x 3/4 inch hex head bolt Grade 5 (201-0050); 2 x #10-32 1/2 inch round slotted head screws (201-0192); 10 x 3/8-16 x 1-1/4 inch hex head bolts Grade 5 (201-0368); 2 x #12-14 x 1 inch self-drilling screws (201-0979); 2 x #10-32 hex nuts (202-0047); 6 x 3/8-16 hex nylon insert lock nuts (202-0090); 1 x 1/4-20 hex nylon nut (202-0102); 10 x 3/8 inch lock washers (203-0010); 2 x #10 lock washers (203-0054); 2 x class IV safety cables (226-0049); 2 x 1/2 inch quicklinks (229-0512); and 2 x black cap plug receivers (290-0437).
The BX8848 Tail Light Wiring Kit is recommended for this vehicle but the manual does not specify whether it is included. Contact your Blue Ox dealer or call (402) 385-3051 to confirm whether the kit is included or must be purchased separately.
Yes. The fascia, fascia cover, Adaptive Cruise Control bracket, and windshield washer fluid reservoir must be removed during baseplate installation and then reinstalled after the baseplate is secured. All removed components should be placed on a flat, sturdy surface and reinstalled unless otherwise noted.
Yes. The installation requires drilling of the vehicle frame. You will drill one 3/8 inch hole on each side of the vehicle using the baseplate as a template (step 14), then drill four additional 3/8 inch holes on each side (step 16). A 3/8 inch drill bit is required. Use good quality paint to spray cut edges of frame to prevent rusting.
Trimming is required in two areas: (1) Using a utility knife, remove the side pieces of the shroud as indicated in step 10; (2) Using a reciprocating saw, trim the brackets on the driver and passenger sides of the vehicle as indicated in step 12 to allow clearance for the baseplate. Additionally, the fascia must be trimmed around the convenience links and attachment tabs before reinstallation (step 23).
Yes. The drilling of frame holes and trimming of brackets and fascia are permanent modifications. The baseplate cannot be removed without leaving holes in the vehicle frame.
The manual provides a torque chart for metric and inch bolts by grade. For 3/8 inch Grade 5 bolts, the torque specification is 33 foot-pounds. For 3/8 inch Grade 8 bolts, the torque specification is 47 foot-pounds. The BX1752 uses 3/8-16 x 1-1/4 inch Grade 5 bolts, so the torque is 33 foot-pounds. Apply Loctite Red to all bolt threads before tightening.
The 1/4-20 x 3/4 inch hex head bolt (Grade 5) should be torqued to 10 foot-pounds according to the torque chart provided. Apply Loctite Red to the bolt threads before tightening.
During fascia removal, you must unplug three electrical connections on the passenger side (white connectors) and one on the driver side (gray connector). Additionally, unplug the temperature sensor on the passenger side by pressing down on the red button and pulling down on the handle to disconnect the plug from the sensor. All electrical connections must be plugged back in and accessories verified as functioning before reinstalling the fascia.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1752 kit includes two class IV safety cables (226-0049) and two 1/2 inch quicklinks (229-0512). The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Verify that safety cables do not rub against any hoses or moving parts. Use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. It is recommended to remove the attachment tabs when not in use.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Warranty coverage is valid only if the customer warranty card is returned by the original purchaser within 30 days of purchase.
The BX1752 fits 2022-2023 Chevy Traverse models with Adaptive Cruise Control and Top Shutters (no Lower Shutters), and 2024 Chevy Traverse Limited with the same features. Contact Blue Ox at (402) 385-3051 if your vehicle configuration differs.
Yes. Installation requires drilling five 3/8 inch holes in the vehicle frame (one on each side initially, then four more on each side). Trimming of brackets and fascia is also required. Use good quality paint on cut frame edges to prevent rusting.
You will need a torque wrench, reciprocating saw, drill with 3/8 inch bit, sockets (7MM, 10MM, 7/16 inch, 9/16 inch), wrenches (7/16 inch, 9/16 inch), T15 Torx, large vise grip, utility knife, flat screwdriver, and Loctite Red.
Torque 3/8-16 Grade 5 bolts to 33 foot-pounds. Apply Loctite Red to all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Refer to your vehicle owner's manual for manufacturer's towing specifications.
Yes. Two class IV permanent baseplate safety cables and two 1/2 inch quicklinks are included. These cables must be connected from the baseplate to the vehicle frame and are recommended in addition to legally required safety cables.
The fascia, fascia cover, Adaptive Cruise Control bracket, and windshield washer fluid reservoir must be removed and then reinstalled after baseplate installation.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. During installation, three electrical connections on the passenger side (white) and one on the driver side (gray) must be unplugged. The temperature sensor on the passenger side must be unplugged by pressing the red button and pulling down on the handle. Verify all connections are fully seated and plugged in before completing the installation.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If fitment issues occur, contact Blue Ox Technical Service at (402) 385-3051 for assistance.
Use a sufficient amount of Loctite Red on all bolt threads before tightening. Tighten all bolts according to the torque chart provided. For 3/8-16 Grade 5 bolts, torque to 33 foot-pounds. It is the owner's responsibility to inspect all towing equipment for loose bolts before each towing trip and retighten as needed.
