Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2014 - 2015 Chevrolet Silverado 1500
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Custom Designed For Your Vehicle
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

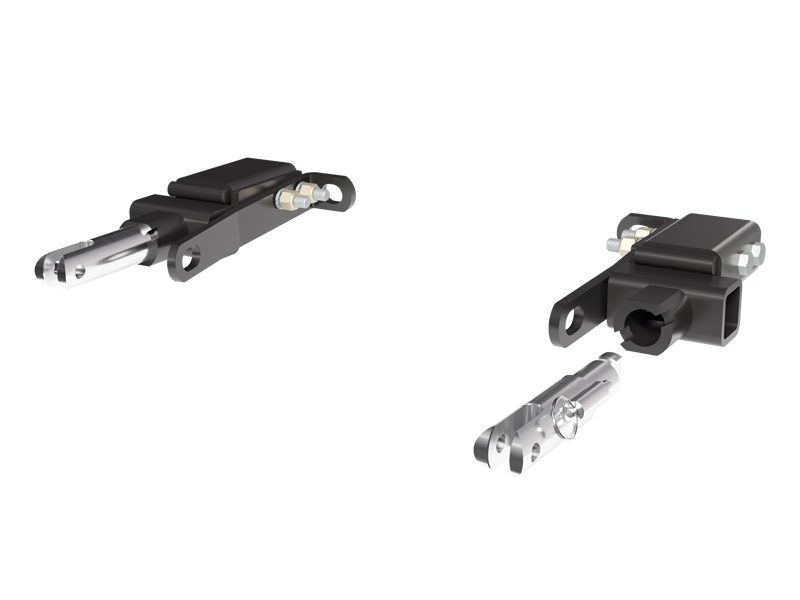

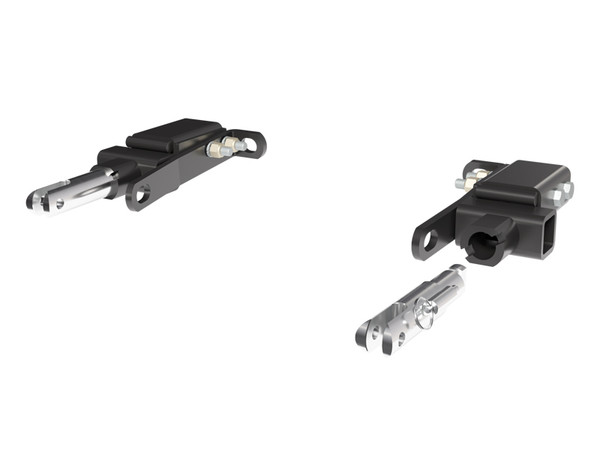

Blue Ox base plates are custom designed for each specific towed vehicle. When you purchase a Blue Ox base plate, it includes all the necessary hardware and instructions for a do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2014 - 2015 | Chevrolet Silverado 1500 | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Towbar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY SILVERADO K1500 (Part #FDRWBX1710) is designed to fit the 2014-2015 Chevrolet Silverado 1500.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY SILVERADO K1500 (Part #FDRWBX1710) fits 2014-2015 Chevrolet Silverado 1500 models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY SILVERADO K1500 (Part #FDRWBX1710) fits the following vehicles: 2014-2015 Chevrolet Silverado 1500. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, CHEVY SILVERADO K1500 (Part #FDRWBX1710) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1710 is designed specifically for 2014-15 Chevy Silverado 1500 models. The attachment tab height is 18 inches and width is 32-1/2 inches. If the front of your vehicle looks different than shown in the manual, contact Blue Ox Technical Service at (402) 385-3051 before proceeding with installation.
Required tools include: large vise grip, flat screwdriver, torque wrench, drill, tape measure, 1/2-inch drill bit, 7MM socket, 10MM socket, 15MM socket, 18MM socket, 18MM wrench, 3/4-inch socket, 3/4-inch wrench, and Loctite Red. When using power drills, be aware of torque dangers and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface.
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051. The manual notes that dimensional variations between vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for manufacturer tolerances.
The fascia cover, fascia, bumper, bumper reinforcement bar cover plate, and tow hooks must be removed. Some models may also have a support tube tack welded inside the frame that needs to be removed. All removed items are reinstalled after baseplate installation. Place all removed components on a flat, sturdy surface.
Yes, drilling is required. You must drill two holes in the frame rails using a 1/2-inch drill bit to accommodate the convenience link bolts (step 9). Additionally, step 13 is optional and involves drilling a 1/4-inch hole to widen the grille opening to accommodate the plug bolts. The manual recommends using a good quality paint to spray cut edges of frame to prevent rusting.
The manual provides torque charts for Grade 5 and Grade 8 inch bolts, and Grade 8.8 and Grade 10.9 metric bolts. For the specific bolts used in BX1710 installation: 1/2-inch Grade 5 bolts require 78 foot-pounds (torque until frame squeezes against baseplate per step 10). All bolts must have Loctite Red applied to threads before tightening. Consult the torque chart on page 1 for other bolt sizes if replacements are needed.
1. Remove twelve push pins from fascia cover (six per side). 2. Remove four screws from top edge of fascia using 10MM socket (two per side). 3. Remove four screws from underside of fascia using 10MM socket (two in middle, one per side). 4. Remove two screws from wheel well using 7MM socket on both sides, then unsnap fascia. 5. Remove four bolts from top of bumper using 18MM socket (two per side). 6. Remove bolt from bumper reinforcement bar using 15MM socket on both sides, disconnect running lights/electrical connections (gray). 7. Remove three bolts from cover plate using 15MM socket on both sides. 8. Remove two bolts from tow hook using 18MM socket/wrench on both sides.
Place the convenience link against the frame and pin the front hole with a 1/2-inch bolt. Level the link and mark the frame for the rear hole. Do this on the inside passenger and outside driver frame rails. Using a 1/2-inch drill bit, drill out both holes to line up with existing holes on the other side of the frame. Then position the appropriate baseplate into the tow hook pocket and install 1/2-inch-13 x 5-inch bolts from the outside of the frame with the convenience link, 1/2-inch lock washers, and lock nuts on the inside of the frame. Tighten down until the frame squeezes against the baseplate on both sides.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The cables should be secured to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle. The cables must be connected from the baseplate to the frame rail or cross member. Do not mount cables against wires, hoses, or brake lines. These cables are strongly recommended and should remain installed as long as the baseplate is installed.
Install the top outer bolts first, then push in on the bottom of the bumper to line up the inner bottom bolts. Clamp the bumper when the hole is lined up and reinstall the lower bolts. Continue to reinstall the bumper bar bolts and reconnect the electrical connections on the underside of the bumper.
No, the grille plug installation is optional (step 13). If you choose to install it, use a 1/4-inch drill bit to widen the grille opening to accommodate the plug bolts. Install 1/4-inch x 1-1/2-inch bolts with 1/4-inch washers through the grille. On the backside of the grille, install the electrical bracket and 1/4-inch locknuts to secure the plug to the grille.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed the GVWR.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Ensure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. This includes verifying that the running lights and any other electrical connections disconnected during removal are properly reconnected.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Remove the attachment tabs when not in use. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
The kit includes: driver side baseplate (61-7244), passenger side baseplate (61-7245), two attachment tab assemblies with holes (62-3468), convenience links for passenger and driver sides (102-6797, 102-6798), fasteners (#10-32 screws, 1/4-inch and 1/2-inch bolts, hex nuts, lock nuts, flat washers, lock washers), electrical bracket (299-0685), class IV safety cables (226-0049), 1/2-inch quicklinks (229-0512), and black cap plug receivers (290-0437). The BX8869 Tail Light Wiring Kit is recommended but sold separately.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. If you choose to use it, you will need to drill a hole according to the tail light wiring kit instructions.
No. The manual states: "Many Blue Ox baseplates are designed to use existing holes and hardware to mount the baseplate to the towed vehicle. Even though bolts are there, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions." Use only the hardware supplied in the kit. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (typically Grade 5).
Loctite Red is a threadlocker compound that must be applied to all bolt threads before tightening during BX1710 installation. This prevents bolts from loosening due to vibration during towing. The manual emphasizes using a sufficient amount of Loctite Red on all bolt threads and tightening all bolts according to the torque chart provided.
No. Permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. The permanent baseplate safety cables are strongly recommended as they prevent the towed vehicle from breaking loose in the event the connection between the frame and baseplate fails or becomes disconnected.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage. Place all removed components on a flat, sturdy surface to avoid scratching or damaging them during installation.
Some models may have a support tube tack welded inside the frame. This tube will need to be removed prior to baseplate installation. The manual does not provide detailed removal instructions; contact Blue Ox Technical Service at (402) 385-3051 for guidance on removing the tack-welded support tube.
If the front of your vehicle looks different than shown in the manual, please contact Blue Ox Technical Service at (402) 385-3051 before proceeding with installation. Do not assume the baseplate will fit if your vehicle differs from the illustrated 2014-15 Silverado 1500.
Yes, the BX1710 is designed for 2014-15 Chevy Silverado 1500 models. If your vehicle's front looks different from the manual illustrations, contact Blue Ox at (402) 385-3051 before installation.
Yes. The fascia cover, fascia, bumper, bumper reinforcement bar cover plate, and tow hooks must be removed and then reinstalled after baseplate installation.
Required tools include: torque wrench, drill with 1/2-inch and 1/4-inch bits, 7MM, 10MM, 15MM, 18MM sockets, 18MM and 3/4-inch wrenches, large vise grip, flat screwdriver, tape measure, and Loctite Red.
1/2-inch Grade 5 bolts require 78 foot-pounds of torque. Tighten until the frame squeezes against the baseplate. Apply Loctite Red to all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for the GVWR and towing specifications.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts with Loctite Red to the specified torque. Remove attachment tabs when not in use. Register your product at www.blueox.com for safety bulletins and recalls.
Yes. Blue Ox recommends installation by Blue Ox Dealers who have the equipment and knowledge for fit work. Find a dealer at www.blueox.com or call (402) 385-3051.
On Sale Today
Original price was $699.99. Current price is $609.00.You save $90.99 (13%)
Free Shipping
Ships free on all orders
Authorized Dealer
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Aug 25 - Fri, Aug 28
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Total for 1 item:
$609.00$699.99
No reviews have been added for this product.
