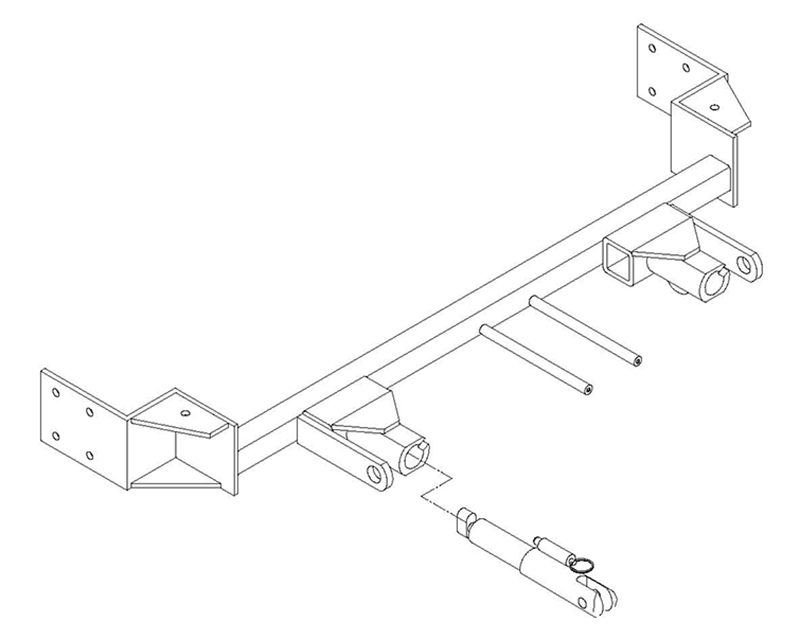

1. Custom Design: Each BX1647 Tow Bar Bracket is custom designed for each specific towed vehicle, ensuring a perfect fit and uncompromised performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience the ultimate convenience and security with Blue Ox's BX1647 Tow Bar Bracket. Custom designed for each specific towed vehicle, this robust tow bar bracket guarantees a perfect fit and easy installation. Constructed from high-quality steel and finished with a durable powder coat, it will withstand the rigors of long road trips and harsh weather conditions. The black color adds a sleek and professional look to your vehicle. All necessary hardware is included with the product, making installation a breeze. The bolt-on mounting type ensures a secure attachment to your vehicle.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years

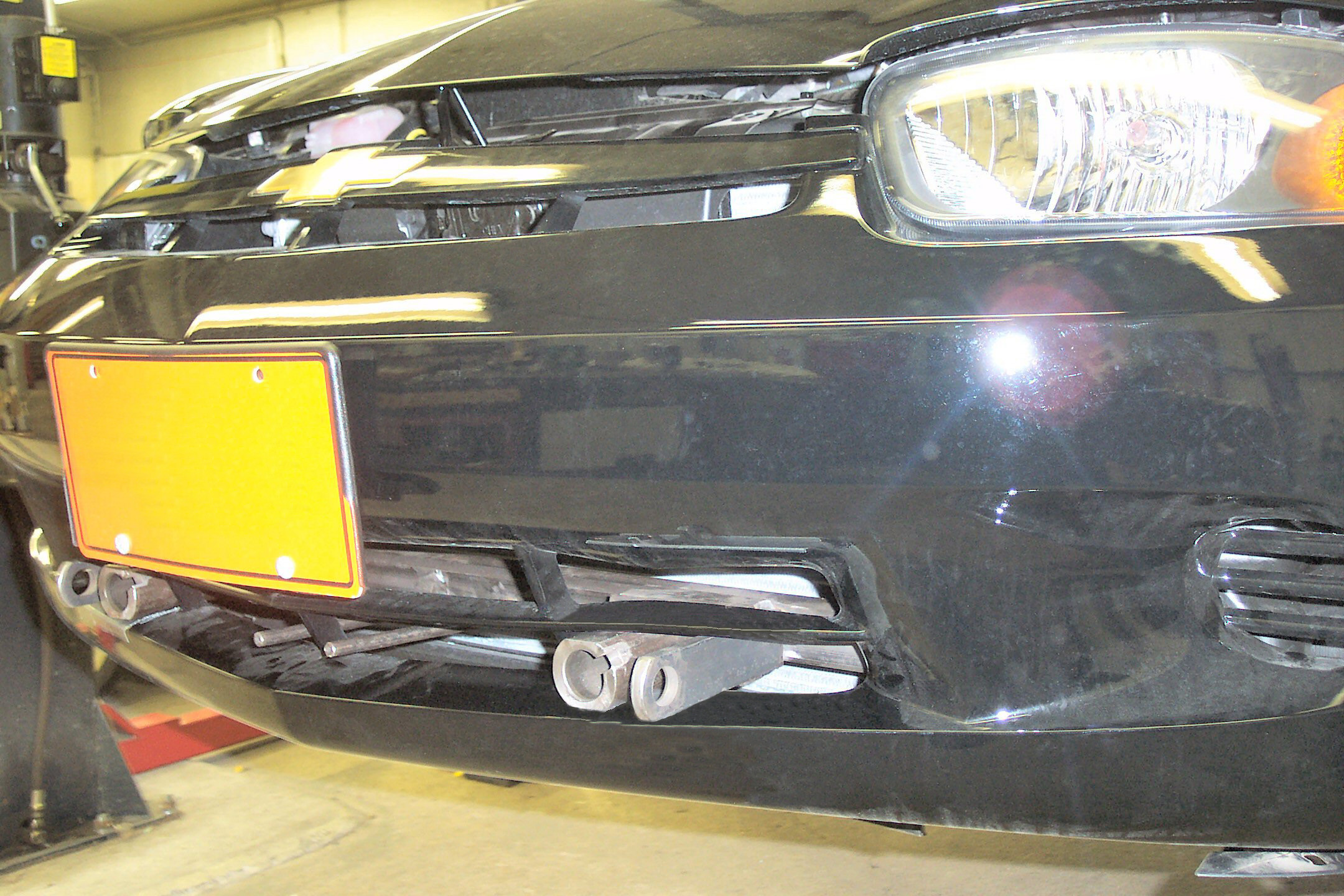

Yes, the BX1647 is designed for 2000-05 Chevrolet Cavalier. The attachment tab height is 12.75" and width is 19.5".
Motorhome mount tow bars are recommended for use with the BX1647. The RangeFinder II, Adventurer, and Ambassador tow bars cannot be used. The Acclaim tow bar may be used, but will not fold and store on the front of the vehicle. Adapters except the BX8833 and BX88151 cannot be used with this baseplate.
The front fascia, horn, and windshield washer reservoir must be removed during installation and reinstalled afterward. The fascia is held by four pushpins on top and multiple metric bolts inside the wheel wells and at the corner. The horn bracket is on the passenger's side. The washer reservoir is secured by three side bolts, one bottom bolt, and one Phillips screw on the outer tubing, plus electrical connections.
Yes, drilling is required. You must drill holes using a 13/32" drill bit to mount the baseplate to the frame and bumper. The baseplate is held up to the metal bumper as a template to mark hole locations. A 9/16" drill bit is also listed in the tools required, though its specific use is not detailed in the instructions.
Yes, some trimming of the air dam is required during installation.
Required tools are: 6MM socket, 7MM socket, 10MM socket, 9/16" drill bit, 13/32" drill bit, and Loctite RED. A Phillips screwdriver is also needed to remove the windshield washer reservoir outer tubing screw. Vise grips are needed to clamp the baseplate during drilling.
The kit includes: one weldment baseplate (61-5789), ten 3/8" nutplates with wire (61-5208), ten 3/8-16 x 1 1/2" Grade 5 bolts (201-0440), ten 3/8" lock washers (203-0010), two #12-14 x 1" self-drilling screws (201-0979), two #10-32 hex nuts (202-0047), two #10 lock washers (203-0054), two #10-32 x 1/2" slot round-head screws (201-0192), two 4-way connector adapters (101-5822), two attachment assemblies SF/LB right (62-3469), two 6MM-1 x 45MM Grade 8.8 hex bolts (201-0702), two 1/4" schedule 40 x 3/4" pipes (106-0366), two 36" class III baseplate safety cables (226-0046), two 3/8" zinc-plated quicklinks (229-0359), and two black cap plugs (290-0437).
Yes, many factory bolts are removed and reinstalled. These include the four pushpins from the fascia top, three metric bolts from inside each wheel well (removed in steps 2 and 4), three metric bolts forward of each front tire (step 3), one pin tree clip from each upper wheel well (step 5), and one back metric bolt from each fascia corner inside the wheel well (step 6). All removed bolts and clips should be set aside and reinstalled after baseplate mounting is complete.
For 3/8-16 Grade 5 bolts, the torque specification is 33 foot-pounds. The manual includes a torque chart on the front page for both inch and metric bolts in various grades. All bolts must be tightened according to the torque chart on the front page or page 3 of the Baseplate Towing General Instructions.
For 6MM Grade 8.8 metric bolts, the torque specification is 8 foot-pounds. This applies to the 6MM-1 x 45MM hex bolts (part 201-0702) used when reinstalling the washer reservoir in step 9.
Yes, Loctite RED must be used on all bolts before tightening. The manual states: "BE SURE TO USE LOCTITE® RED ON ALL BOLTS BEFORE TIGHTENING." This is required for all bolts during initial installation and during any future maintenance.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Two cables (part 226-0046, 36" class III) are included in the kit. They must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. These cables should remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before installation, confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures. You can also contact REMCO for additional information at 1(800)228-2481. The installer must watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame to avoid improper installation that could cause fluid leaks or electrical shorts.
Ensure all electrical connections are plugged in properly and functioning before installing the fascia. Install the tow bar and safety cables according to the instructions included in their packages. Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Remove the attachment tabs when not in use.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do "fit work". Blue Ox Dealers can be found at www.blueox.us or by contacting the 24/7 Customer Care Department at (402) 385-3051 or toll free at (888) 425-5382.
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle. The manual shows the location for the kit on the vehicle diagram but does not state whether it is required or optional.
Some vehicles may require longer bolts and spacers to reinstall the washer reservoir after baseplate installation. If needed, use the 6MM-1 x 45MM hex bolt and the 1/4" schedule 40 x 3/4" pipe (both included in the kit) as spacers.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for auto manufacturer's tolerances. These minor adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates.
Yes, the BX1647 is designed for 2000-05 Chevrolet Cavalier with attachment tab height 12.75" and width 19.5". Motorhome mount tow bars are recommended; RangeFinder II, Adventurer, and Ambassador tow bars cannot be used.
Yes, drilling with a 13/32" drill bit is required to mount the baseplate to the frame and bumper. Some trimming of the air dam is also required.
Required tools: 6MM, 7MM, and 10MM sockets; 9/16" and 13/32" drill bits; Loctite RED; Phillips screwdriver; and vise grips. The manual recommends professional installation by a Blue Ox Dealer.
33 foot-pounds. All bolts must use Loctite RED before tightening.
Yes, two 36" class III safety cables are included and strongly recommended. They must be connected from the baseplate to the frame rail or cross member and not mounted against wires, hoses, or brake lines.
Front fascia, horn bracket (passenger's side), and windshield washer reservoir must be removed and reinstalled after baseplate mounting. All factory bolts and clips should be set aside for reinstallation.
Ensure all electrical connections are plugged in properly and functioning before installing the fascia. Install the tow bar and safety cables per their instructions. Inspect for cracked welds, missing or worn parts, and loose bolts before each towing trip.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2005 | Chevrolet Cavalier | Also Z24 Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
