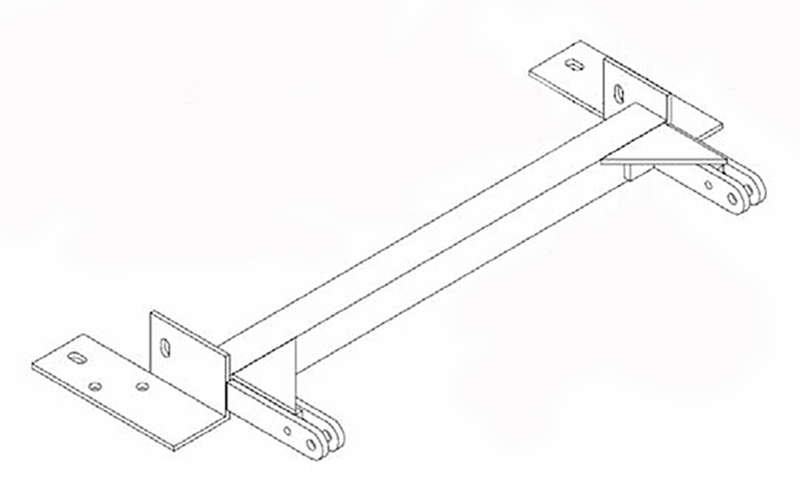

Custom-designed base plates: The BX1645 Tow Bar Bracket is custom-designed for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Introducing the Blue Ox BX1645 Tow Bar Bracket, a custom-designed, durable solution for your towing needs. Made from quality steel and finished with a black powder coat, this bracket is not only robust but also sleek and stylish. This bolt-on bracket includes all the necessary hardware for a do-it-yourself installation, making the process a breeze. With Blue Ox, you can expect nothing less than unmatched durability and performance.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 - 2006 | Chevrolet Avalanche 2500 | Comes with Standard Attachment Tabs Install Rating 2 Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight. |
Yes, the BX1645 is designed specifically for the 2002 Chevy Avalanche 2500 4x4. The baseplate mounts to the main frame using the vehicle's existing tow hook holes plus two additional drilled holes. Attachment tabs are 27 inches center to center at 21 inches height.
A Class IV rated tow bar is required. The vehicle weighs over 5000 lbs and the manual specifically recommends the BX8869 tow bar for this application.
The following tools are required: 19MM socket, Loctite Blue, 17/32" drill bit, utility knife, and Phillips screwdriver.
Removal of the lower bumper molding is recommended but not required. The manual states it is not necessary but will make the installation and trimming easier. You will need to trim the plastic openings where the attachment tabs extend through.
Yes. Two holes must be drilled on the bottom of the baseplate using a 17/32" drill bit. The baseplate is used as a template for these holes. Additionally, the plastic bumper molding openings where the attachment tabs extend through will need to be trimmed.
A 17/32" drill bit is required to drill the two remaining holes on the bottom of the baseplate.
1. Remove plastic push pins and lower plastic from metal bumper (optional but recommended). 2. Remove inside and bottom bolts from each tow hook and align baseplate bolt holes with tow hook holes; tighten with Loctite. 3. Using baseplate as template, drill two remaining holes with 17/32" bit and tighten. 4. Remove remaining hex bolt from tow hooks, slide tow hook closure over truck's tow hook end, and bolt back using Loctite. 5. Replace bumper molding and trim plastic openings for attachment tabs. 6. File holes if necessary for bolt clearance. 7. Install tow bar and safety cables per their instructions.
Yes. Loctite Blue must be applied to all bolts before tightening. The manual emphasizes this requirement in steps 2, 3, and 4.
The manual references torque specifications in a 'General Instruction Sheet' chart but does not provide the specific values in these installation instructions. You must consult the General Instruction Sheet that should accompany this manual for exact torque values for each bolt type.
The kit includes: 6× 12MM-1.75×50MM hex bolts (Grade 8.8), 10× 12MM lock washers, 4× 12MM flat washers, 4× 12MM-1.75 hex nuts, 2× tow hook closures, 2× 12MM-1.75×40MM hex bolts (Grade 8.8), 4× 1/4-20×3/4 hex bolts (Grade 5), 4× 1/4 lock washers, 4× 1/4 flat washers, 4× 1/4-20 hex flange whiz lock nuts, 2× #10-32×1/2 slot round head screws, 2× #10 lock washers, 2× #10-32 hex nuts, 2× 4-way connector adapters, 1× electrical bracket, 2× 36" Class IV baseplate safety cables, and 4× 1/2" quicklinks.
Permanent baseplate safety cables are strongly recommended. They prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. Two 36" Class IV safety cables are included. These cables must be connected from the baseplate to the frame rail or cross member and must not be mounted against wires, hoses, or brake lines. They are used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The installer must watch for and avoid contact with: oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to the recommended specifications. Register your baseplate online at www.blueox.com to receive alerts about product offerings, updates, upgrades, maintenance, safety bulletins, and recalls.
No. Do not substitute other devices if the tow bar pin and clip are lost. You must use genuine replacement parts.
Only genuine factory replacement parts should be used on the baseplate. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5). Repair parts may be ordered through your nearest Blue Ox dealer or distributor. Do not use homemade or nontypical parts.
Dimensional variations between otherwise identical vehicles can be considerable. If a bolt does not clear, it may be necessary to file a hole slightly to allow proper alignment. The baseplate holes were designed to allow for easy installation and minor adjustments.
The attachment tabs are 27 inches center to center and positioned at 21 inches height.
Yes, the BX1645 is designed specifically for the 2002 Chevy Avalanche 2500 4x4. It requires a Class IV tow bar (BX8869 recommended) and mounts to the frame using existing tow hook holes plus two drilled holes.
You need a 19MM socket, Loctite Blue, 17/32" drill bit, utility knife, and Phillips screwdriver.
Removal is recommended but not required. It makes installation and trimming easier. You will need to trim the plastic openings where the attachment tabs extend through.
Yes. Apply Loctite Blue to all bolts before tightening. The manual emphasizes this for all fastening steps.
Yes. Two 36" Class IV safety cables are included and strongly recommended. They must be connected from the baseplate to the frame rail or cross member and are used in conjunction with legally required safety cables.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Tighten bolts to recommended specifications using Loctite Red. Register your baseplate at www.blueox.com for safety updates and recalls.
