Made from high-quality Steel, providing long-lasting durability and reliability in all weather and road conditions.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

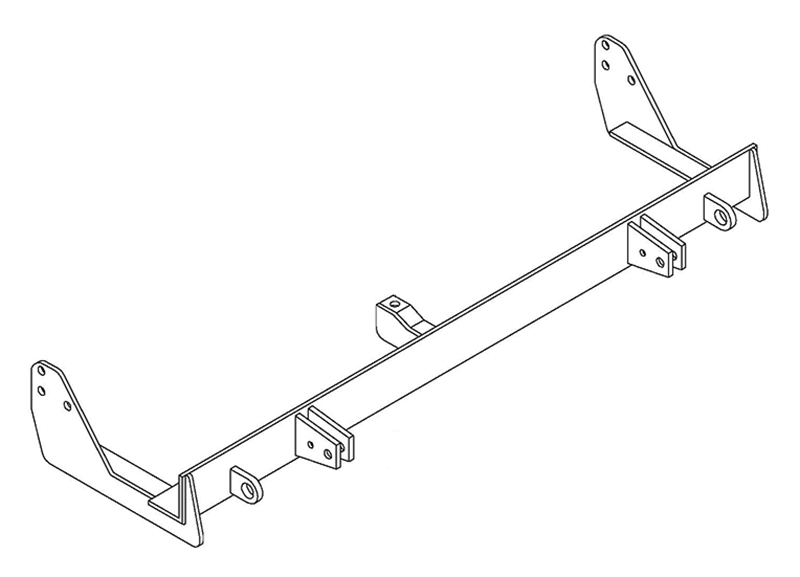

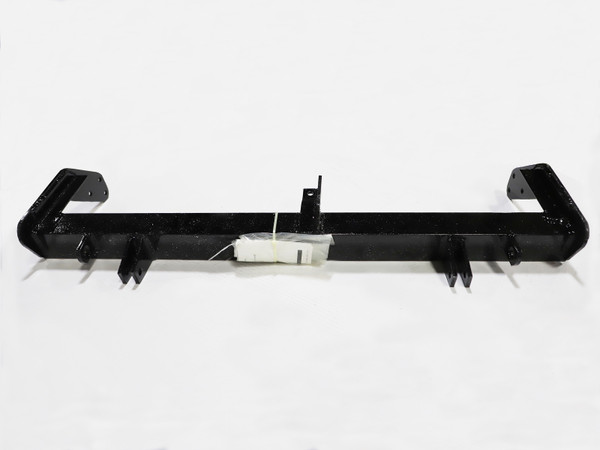

Experience seamless towing with the Blue Ox BX1607 Tow Bar Bracket. Custom designed for each specific towed vehicle, this product ensures perfect fit and reliable performance. Crafted from robust steel and finished in a sleek black powder coat, this bracket is built to withstand tough conditions and resist corrosion. The bolt-on mounting type makes for a straightforward DIY installation. Every purchase comes with all the necessary hardware and comprehensive instructions, making the process even more convenient.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
3 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 1985 - 1988 | Chevrolet Spectrum | 4-Door | Comes with Standard Attachment Tabs Install Rating 2 |
| 1989 | GEO Spectrum | — | Comes with Standard Attachment Tabs Install Rating 2 |
| 1985 - 1988 | Isuzu I-Mark | — | No Sport Comes with Standard Attachment Tabs Install Rating 2 |
Yes. The BX1607 is designed for 1985–90 Chevrolet/Geo Spectrum models.
Yes. The BX1607 is designed for 1985–88 Isuzu I-Mark models.
No. The BX1607 is designed for 1985–90 Chevrolet/Geo Spectrum models only. A 1991 model is outside the supported range.
No. The BX1607 is designed for 1985–88 Isuzu I-Mark models only. A 1989 model is outside the supported range.
Three sockets are required: 3/4 inch, 14 mm, and 17 mm.
One 10 mm–1.25 × 100 mm hex bolt (part 201-0426) and one 10 mm lock washer (part 203-0104) are supplied. The baseplate assembly itself is part 61-3357. Six additional bolts are existing factory bolts that are reused.
Yes. Remove the tie down bracket from each side of the vehicle and inspect the bolts for reuse. Also remove the bolt from the passenger's side of the engine support brace; this bolt will be replaced with the longer supplied bolt and lock washer.
The tie down bracket is a stamped metal bracket with an oblong hole facing downward.
Seven bolts total: three on each side of the vehicle and one in the center. Six are existing factory bolts; one is the supplied 10 mm–1.25 × 100 mm hex bolt (part 201-0426).
The supplied 10 mm–1.25 × 100 mm hex bolt (part 201-0426) with lock washer (part 203-0104) replaces the bolt removed from the passenger's side of the engine support brace.
Yes. When the baseplate is slid under the front of the vehicle, the three bolt holes on each side align with the tie down bracket holes.
The dimensional variations between otherwise identical cars can be considerable. It may be necessary to file a hole slightly to allow a bolt to clear. Do not force bolts; file as needed for proper alignment.
The manual does not indicate that drilling is required. The baseplate uses existing factory bolt holes and the tie down bracket holes. However, filing of holes may be necessary on some vehicles to allow bolts to clear.
The manual does not provide specific torque values. It instructs to apply Loctite and tighten bolts securely. Refer to the General Instruction Sheet referenced in the manual for additional guidance.
Loctite is a threadlocker compound. The manual requires it to be applied to all bolts before tightening to prevent them from loosening due to vibration during towing.
Yes. The tie down bracket bolts should be inspected for reuse and then used to secure the baseplate. The manual instructs to remove the tie down brackets, inspect the bolts, and reuse them.
The BX1607 is a baseplate that mounts to the front underside of the vehicle to enable towing. It is designed to work with a tow bar and safety cables, which are installed separately according to their own instructions.
Yes. The tow bar and safety cables are not included with the baseplate. They must be installed separately according to the instructions included in their packages.
Do not substitute other devices. The manual explicitly states: 'Do not substitute other devices if the tow bar pin and clip are lost.' Contact the manufacturer or a dealer for replacement parts.
The BX1607 fits 1985–90 Chevrolet/Geo Spectrum and 1985–88 Isuzu I-Mark models only.
You need 3/4 inch, 14 mm, and 17 mm sockets. The baseplate includes one hex bolt and lock washer; six factory bolts are reused.
Remove the tie down bracket from each side and the bolt from the passenger's side engine support brace. Inspect the tie down bracket bolts for reuse.
Seven bolts secure the baseplate: three on each side (using tie down bracket holes) and one in the center (using the engine support brace hole). Apply Loctite and tighten securely.
No drilling is required. The baseplate uses existing factory holes. Filing may be necessary on some vehicles to allow bolts to clear.
No. The tow bar and safety cables are sold separately and installed according to their own instructions.
