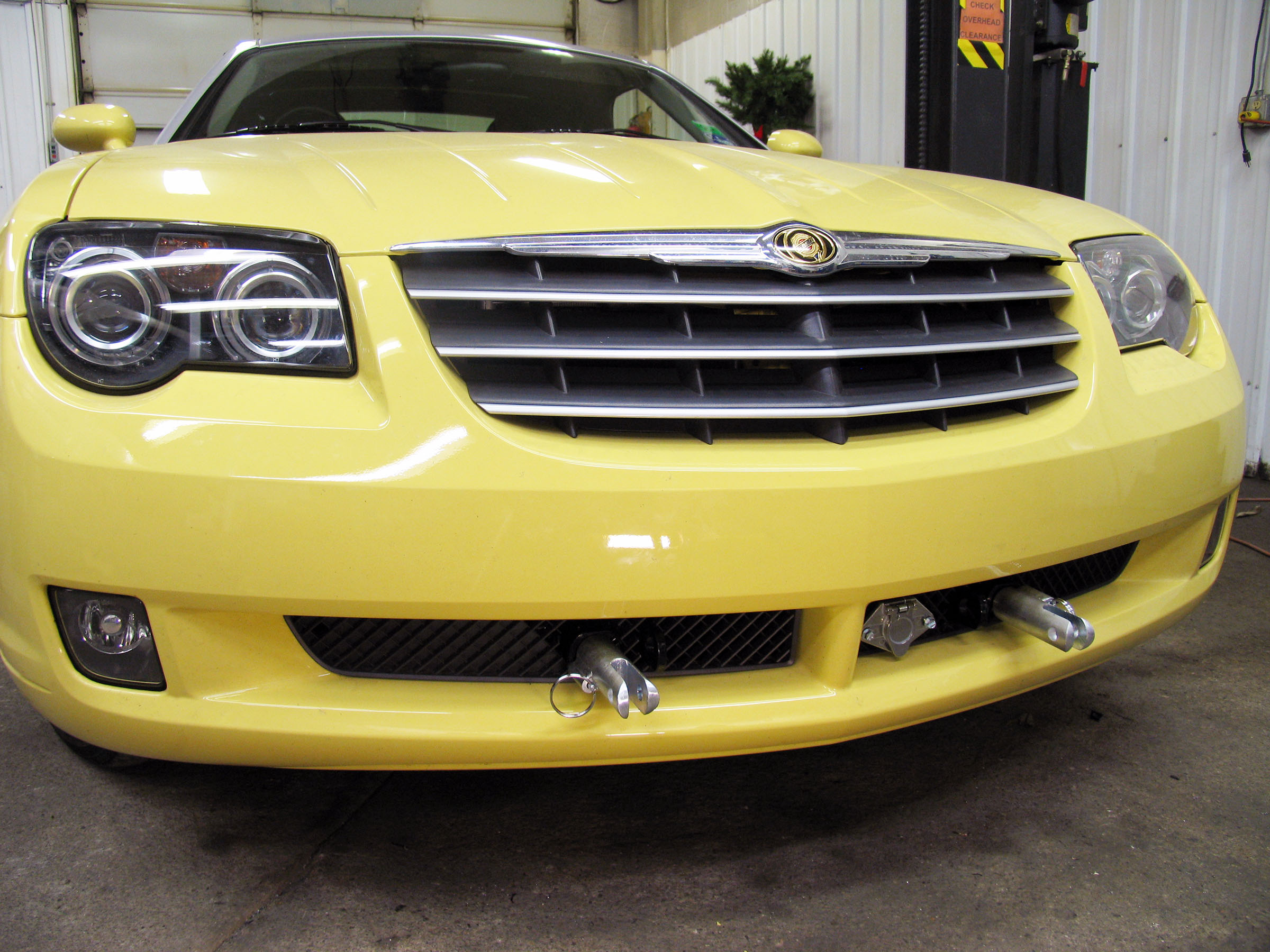

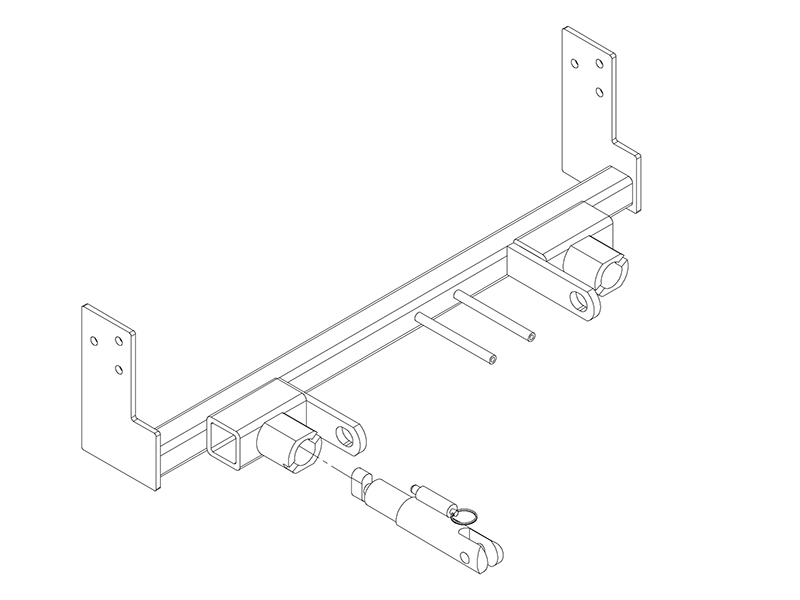

Custom Design: Each Blue Ox BX1972 Tow Bar Bracket is custom designed for a specific towed vehicle, ensuring a perfect fit and ease of installation.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Opt for a seamless towing experience with the Blue Ox BX1972 Tow Bar Bracket. Expertly designed, this tow bar bracket is custom-fit for each specific towed vehicle, ensuring a perfect fit and easy installation. Fabricated from high-quality steel, the BX1972 offers superior strength and durability, making it a reliable choice for all your towing needs. With its sleek black powder coat finish, it provides an extra layer of protection against corrosion and rust, ensuring long-lasting performance. The Blue Ox BX1972 Tow Bar Bracket comes with all necessary mounting hardware included, making installation a breeze. You don't need to be a professional to install the BX1972; the detailed instructions included will guide you through the process step by step.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2005 | Chrysler Crossfire | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Only Use Acclaim w/23in./Greater Spaced Tab Removable Tab Baseplates Only Use Adventurer w/16: 36 in. Spaced Removable Tab Baseplates Only Use Ambassador w/24 in. Spaced Removable Tabs Removable Tabs w/Only 1 Hole Will Not Attach To Car Mount Tow Bars Removable Tabs w/Only 1 Hole Will Not Attach To Other Adapters Requires Some Trimming Of Bumper Fascia/Plastic/And/Or Grill Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters |
Yes, the BX1972 is designed specifically for the 2005 Chrysler Crossfire. The attachment tabs are 18 inches center to center with a height of 13 inches.
The diode wiring kit BX8847 is required for this vehicle and must be installed as part of the baseplate installation.
The front fascia, belly pan, air dam, and temperature sensor must be removed. These are removed in a specific sequence: upper grill bolts and screws (steps 1–2), wheel well Torx screws (step 2), front tire area fasteners (steps 3–4), belly pan bolts and clips (step 5), fascia hex nut and temperature sensor (step 6), air dam push pins (steps 7–8).
Yes, drilling is required. Using the baseplate as a template, three holes must be drilled into the frame on each side with a 13/32" drill bit. Nut plates are then inserted into the opening on the front side of the metal bumper and aligned with the drill holes.
Yes, trimming of the air dam below the metal bumper is required. On the passenger's side, mark 4 1/2" and 6 1/2" down from the top edge, draw lines as specified, and remove the front area with a utility knife (step 11). On the driver's side, mark 6 1/4" and 8 1/4" down and remove the marked area (step 12). Additional areas on the back side of the fascia and lower grill must also be removed with a utility knife (step 13).
Required tools are: 8MM socket, 10MM socket, 10MM wrench, 25 Torx socket, 30 Torx socket, 13/32" drill bit, utility knife, diagonal cutters, and Loctite red. A vise grip is also needed to clamp the baseplate to the frame during installation.
Six 3/8-16 x 1 1/4" hex bolts (Grade 5, zinc plated) with 3/8" lock washers are used. Three bolts are installed on each side. Loctite red must be applied to all bolts before tightening. The bolts are tightened according to the torque chart in the General Instruction sheet.
The baseplate is slid between the frame rails just behind the metal bumper and clamped to the frame with a large vise grip on both sides. The baseplate must be level with the vehicle before drilling. After drilling the three holes on each side with a 13/32" drill bit, nut plates are inserted into the opening on the front side of the metal bumper, aligned with the drill holes, and secured with 3/8-16 x 1 1/4" hex bolts and lock washers using a 9/16" socket.
After baseplate installation, reinstall the fascia and ensure all electrical components are plugged in properly. Hold the lower grill section as close to its original position as possible and cut an opening in the lower grill to allow the attachment tab receiver and convenience link (safety cable connection point) to come through. Then reinstall the lower grill.
Due to dimensional variations between vehicles, minor adjustments may be necessary to compensate for manufacturer tolerances. These may include filing a hole slightly, bending electrical rods, and adding shims and/or bending endplates.
Install the tow bar and safety cables according to the instructions included in their packages. Do not substitute other devices if the tow bar pin and clip are lost.
Do not substitute other devices if the tow bar pin and clip are lost. Obtain replacement parts from your Blue Ox dealer or distributor.
Use only genuine factory replacement bolts of the same grade as the original (usually Grade 5). Do not use homemade or non-typical parts. Repair parts may be ordered through your nearest Blue Ox dealer or distributor.
The kit includes: one baseplate weldment (61-6138), six 3/8-16 nut plates with 14" wire (61-5208), six 3/8-16 x 1 1/4" hex bolts Grade 5 zinc plated (201-0368), six 3/8" lock washers zinc plated (203-0010), two 1/4-20 x 1/2" hex washer type F screws (201-0553), two #10-32 x 1/2" slot round head screws (201-0192), two #10 lock washers (203-0054), two #10-32 hex nuts (202-0047), two 4-way electrical connectors (101-5822), two attachment assemblies SF/SB right (62-3468), two 36" safety cables Class III (226-0046), two 3/8" quicklinks zinc plated (229-0359), and two receiver cap plugs black (290-0437).
Yes. Attachment tabs are 18 inches center to center, 13 inches high.
Yes, the diode wiring kit BX8847 is required for 2005 Chrysler Crossfire installation.
Yes. Three holes per side are drilled into the frame with a 13/32" drill bit using the baseplate as a template.
Yes. The air dam below the metal bumper must be trimmed on both passenger and driver sides using a utility knife, with specific measurements provided in steps 11–12.
8MM and 10MM sockets, 25 and 30 Torx sockets, 13/32" drill bit, utility knife, diagonal cutters, vise grip, and Loctite red.
Six 3/8-16 x 1 1/4" hex bolts Grade 5 with 3/8" lock washers (three per side). Loctite red required. Torque per General Instruction sheet.
Front fascia, belly pan, air dam, and temperature sensor must be removed in the sequence shown in steps 1–8.
Use only genuine factory replacement parts of the same grade (usually Grade 5). Order through Blue Ox dealer or distributor.
