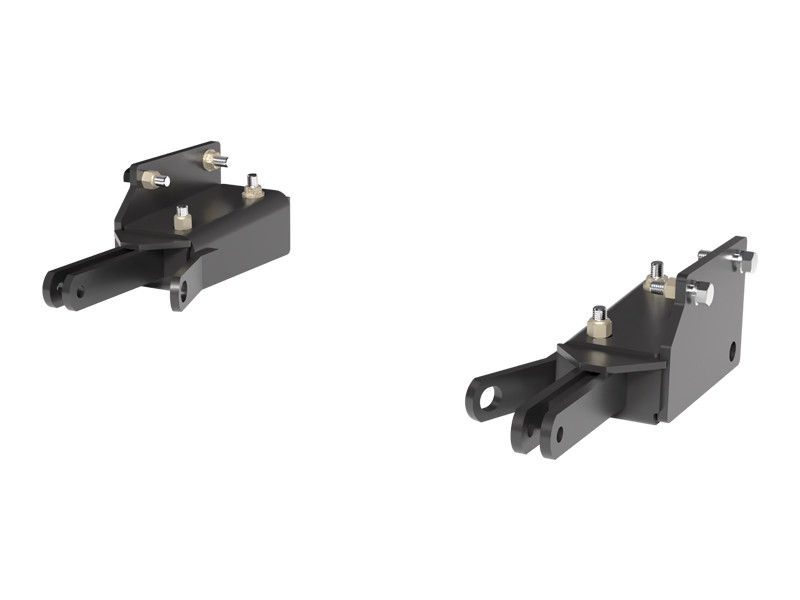

Custom Designed: Each Blue Ox BX2641 Tow Bar Bracket is uniquely designed for a specific vehicle to ensure a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2641 Tow Bar Bracket is the perfect solution for securely attaching your vehicle for towing. Custom designed for each specific vehicle, it ensures a perfect fit and seamless integration. Made from robust steel and coated with a black powder finish, this bracket is not only resilient but also resistant to corrosion and wear. Its bolt-on mounting type ensures an easy do-it-yourself installation with all necessary hardware included. Trust in the Blue Ox BX2641 Tow Bar Bracket to provide a sturdy and reliable connection for your towing needs.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2009 - 2013 | Ford F-150 | 4WD No EcoBoost Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
The BX2641 baseplate fits 2009-2013 Ford F150 Pickup models in XL, STX, XLT, and Harley Davidson trim levels with Standard Tabs, 4WD, and without EcoBoost engine. If your vehicle has a different engine type, trim level, or is a different model year, this baseplate is not compatible. Verify your vehicle's specifications before purchasing.
No. The BX2641 is designed for 2009-2013 Ford F150 models without EcoBoost engines only. If your vehicle has an EcoBoost engine, this baseplate is not compatible.
The attachment tab height is 16 inches and the width is 33 inches.
Required tools include: flat screwdriver, Phillips screwdriver, torque wrench, drill, utility knife, Loctite Red, and the following sockets and wrenches: 8MM socket, 13MM socket, 15MM socket, 21MM socket, 7/16" socket, 3/4" socket, 7/16" wrench, 3/4" wrench. You will also need a 1/4" drill bit and 17/32" drill bit.
The kit includes: 4 x 1/2"-13 Whiz Nuts with 14" wire, 2 x 4-way connector adapters, 1 x 90-degree electrical bracket, 4 x 1/4"-20 x 3/4" hex head bolts (Grade 5), 8 x 1/2"-13 x 1-3/4" hex head bolts (Grade 5), 2 x #10-32 x 1/2" round slotted head screws, 2 x #10-32 hex nuts, 4 x 1/4"-20 hex flange whiz lock nuts, 4 x 1/2"-13 hex nylon lock nuts, 2 x 1/4" flat washers, 4 x 1/2" flat washers, 4 x 1/4" lock washers, 8 x 1/2" lock washers, 2 x #10 lock washers, 2 x Class IV safety cables, and 4 x 1/2" quicklinks.
Yes. The bumper must be removed at the start of installation and reinstalled after the baseplate is mounted. The bumper is removed by unbolting it from the frame using a 21MM socket (four bolts total: two from the top inner side, two from the underside outer side) and unbolting two 8MM bolts from the top. Any electrical connections must be unhooked before pulling the bumper from the vehicle.
No. The tow hooks are removed during installation (using a 15MM socket to remove two bolts from each side) and are not reinstalled. The tow hooks and their bolts should be set aside but will not be used again.
No. The lower air dam is removed only on 2010-11 models using a 13MM socket, and it will not be reinstalled. 2009 and 2012-13 models do not have this step.
Yes. Drilling is required in two locations. First, some vehicles may not have an existing back hole for the baseplate and will require drilling with a 17/32" drill bit. Second, the baseplate is used as a template to drill two holes on the sides of the baseplate using a 17/32" drill bit. The manual notes that dimensional variations between vehicles can be considerable, so some tailoring of the baseplate may be necessary.
Yes. For Harley Davidson edition only, the bumper must be trimmed around the baseplate using a utility knife after the baseplate is installed. The bumper is held as close as possible to its original position, marked for cutting, trimmed, and then reinstalled.
When using power drills, be aware of the dangers of torque and drill bit length. Additionally, use a good quality paint to spray cut edges of the frame to prevent rusting.
For Grade 5 bolts (which are used on this baseplate), 1/2"-13 bolts should be torqued to 78 foot-pounds. For Grade 8 bolts, the specification is 119 foot-pounds. All bolts must be treated with Loctite Red before tightening.
For Grade 5 bolts (which are used on this baseplate), 1/4"-20 bolts should be torqued to 10 foot-pounds. For Grade 8 bolts, the specification is 14 foot-pounds. All bolts must be treated with Loctite Red before tightening.
The baseplate is aligned with two existing holes on the bottom of the frame. Four bolts total are used: two on each side. Each bolt uses a 1/2"-13 x 1-3/4" hex head bolt, a 1/2" lock washer, and a 1/2" flat washer. The front bolt (white) uses a 1/2"-13 nylon hex nut, and the back bolt (gray) uses a 1/2"-13 whiz nut plate. The plate should be pushed toward the frame while tightening. Some vehicles may not have the existing back hole and will require drilling with a 17/32" drill bit.
The electrical bracket is installed on either side of the vehicle depending on the location of the coach plug-in. Hold the bracket up and mark the mounting location on the back side. Attach using 1/4"-20 x 3/4" hex bolts, 1/4" lock washers, 1/4" flat washers, and 1/4"-20 whiz nuts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX8869 Tail Light Wiring Kit is recommended for this vehicle. The safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must remain installed as long as the baseplate is installed. The cables must not be mounted against wires, hoses, or brake lines. Safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced and should not be used again. An accident can cause unseen damage, and using a damaged baseplate could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
No. Do not use the towed vehicle for storing luggage, equipment, etc. This may cause you to exceed the towing capacity of the tow bar, baseplate, and its accessories.
Before reinstalling the bumper, ensure that all electrical connections are plugged in and accessories are functioning properly.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
Blue Ox offers a three-year limited warranty to the original retail purchaser covering defects in material and workmanship under normal use and service. The warranty is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty is non-transferable.
The BX2641 fits 2009-2013 Ford F150 XL/STX/XLT/Harley Davidson with Standard Tabs, 4WD, and without EcoBoost engine only. Verify your model year, trim, and engine type before purchasing.
Yes. A 17/32" drill bit is required to drill holes on the sides of the baseplate and possibly a back hole if your vehicle does not have an existing one. Trimming with a utility knife is also required for Harley Davidson models.
You will need a torque wrench, drill with 1/4" and 17/32" bits, utility knife, Loctite Red, and sockets/wrenches: 8MM, 13MM, 15MM, 21MM, 7/16", and 3/4". Screwdrivers (flat and Phillips) are also required.
Yes. The bumper must be removed at the beginning of installation using a 21MM socket (four bolts) and 8MM socket (two bolts), then reinstalled after the baseplate is mounted.
Use Loctite Red on all bolts. For 1/2"-13 Grade 5 bolts: 78 ft-lbs. For 1/4"-20 Grade 5 bolts: 10 ft-lbs. Refer to the torque chart on page 1 for other bolt sizes.
Permanent baseplate safety cables are strongly recommended and must be connected from the baseplate to the frame rail. They must not rub against hoses or moving parts and are in addition to, not a replacement for, legally required safety cables.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Use Loctite Red on all bolts and tighten to specification. Remove attachment tabs when not in use.
Some vehicles may not have the existing back hole for the baseplate. In this case, use a 17/32" drill bit to drill the hole as needed. The baseplate is designed to accommodate this variation in vehicle manufacturing tolerances.
If the baseplate is damaged or missing parts, do not use it. If the baseplate is in an accident, it must be replaced and should not be used again, as an accident can cause unseen damage that could result in more damage or serious injury.
