Custom Design: Specifically tailored to fit your towed vehicle, ensuring perfect alignment and superior performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Introducing our Blue Ox BX2630 Tow Bar Bracket, an essential accessory for all your towing requirements. Custom-designed for your specific towed vehicle, this reliable piece of equipment promises unmatched durability and performance. Made from high-quality steel, this bracket boasts a sleek black finish that adds to its aesthetic appeal while offering superior resistance to corrosion. Its bolt-on mounting type ensures a hassle-free installation, making it perfect for DIY enthusiasts. We also include all necessary mounting hardware and detailed instructions, saving you from the extra trouble and expense.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
7 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 | Ford F-150 | Comes with Removable Attachment Tabs Install Rating 2 Minor Drilling Required Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Baseplate Has Non 24 in. Spaced Attachment Tabs Tow Hooks Must be Removed and Remain off the Vehicle After Installation Requires Some Trimming of the Air Dam |
| 2012 | Ford F-150 | Comes with Removable Attachment Tabs Install Rating 2 Minor Drilling Required Requires Some Trimming of the Air Dam Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar |
| 2011 - 2013 | Ford F-150 | Comes with Removable Attachment Tabs Install Rating 2 Minor Drilling Required Requires Some Trimming of the Air Dam Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2014 | Ford F-150 | Comes with Removable Attachment Tabs Install Rating 2 Minor Drilling Required Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2013 | Ford F-150 | Comes with Removable Attachment Tabs Install Rating 2 Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Baseplate Has Non 24 in. Spaced Attachment Tabs Tow Hooks Must be Removed and Remain off the Vehicle After Installation Requires Some Trimming of the Air Dam Minor Drilling Required |
| 2011 - 2013 | Lincoln Navigator | Comes with Removable Attachment Tabs Install Rating 2 Minor Drilling Required Requires Some Trimming of the Air Dam Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
| 2014 | Lincoln Navigator | Comes with Removable Attachment Tabs Install Rating 2 Minor Drilling Required Tow Hooks Must be Removed and Remain off the Vehicle After Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F-150 RAPTOR SVT (Part #FDRWBX2630) fits 2011-2014 Ford F-150 models. The 2014 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F-150 RAPTOR SVT (Part #FDRWBX2630) is designed to fit the 2011-2014 Ford F-150.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F-150 RAPTOR SVT (Part #FDRWBX2630) fits the following vehicles: 2011-2014 Ford F-150; 2011-2014 Lincoln Navigator. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F-150 RAPTOR SVT (Part #FDRWBX2630) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX2630 baseplate is designed for 2011-14 Lincoln Navigator, 2011-14 Ford F-150 King Ranch (including EcoBoost), and 2011-14 Ford F-150 SVT Raptor. However, the installation procedure differs by model. The Raptor requires belly pan removal and replacement, while the King Ranch requires lower air dam removal and trimming. The Navigator has its own specific removal and installation sequence.
The BX2630 is rated as a Class III baseplate with a 5,000 lb towing capacity. The manual notes that the weight of some 2011-14 Lincoln Navigator and Ford F-150 models, depending on options, may exceed this 5,000 lb rating. You must confirm the weight of your individual vehicle before towing and ensure your tow bar, hitch and all equipment has an appropriate rating. Tow bar adapters are not to be used with vehicles weighing over 5,000 lbs.

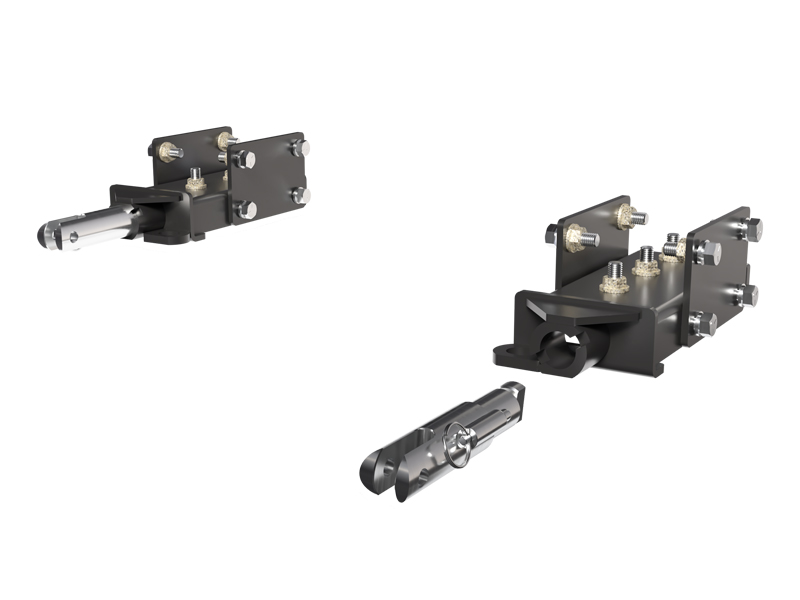

The kit includes: two baseplates (driver and passenger side, part numbers 61-6876 and 61-6877), two attachment tabs (62-3468), two 4-way adapter connectors (101-5822), one electrical bracket (101-6845), four side support plates (101-7714), 22 hex head bolts 1/2"-13 x 1-1/2" Grade 5 (201-0051), 7 hex head bolts 1/4"-20 x 1" Grade 5 (201-0071), 2 slot round head screws #10-32 x 1/2" (201-0192), 2 hex nuts #10-32 (202-0047), 8 hex lock nuts 1/2"-13 (202-0094), 5 hex nylon nuts 1/4"-20 (202-0102), 1 flat washer 1/4" (203-0001), 22 lock washers 1/2" (203-0012), 2 lock washers #10 (203-0054), 14 nuts 1/2"-13 with 10" wire (61-4029), 2 Class IV safety cables (226-0049), 2 quicklinks 1/2" (229-0512), and 2 black cap plug receivers (290-0437).
Required tools include: large vise grip, utility knife, torque wrench, drill, tape measure, 5/16" drill bit, 17/32" drill bit, Loctite RED, and the following sockets and wrenches: 5.5MM socket, 7MM socket, 10MM socket, 13MM socket, 15MM socket, 17MM wrench, 21MM socket, 3/4" socket, 3/4" wrench, and T40 Torx.
Yes. On all three vehicle models (Lincoln Navigator, Ford F-150 King Ranch, and Ford F-150 SVT Raptor), the tow hooks must be removed during installation and will not be reinstalled. On the Raptor, remove three bolts from the underside of each tow hook using a 15MM socket. On the Navigator and King Ranch, remove two bolts from the underside of each tow hook using a 15MM socket.
Yes. The belly pan on the Raptor must be removed and replaced during installation. Remove two metric bolts from the back side of the belly pan using a 15MM socket, then remove two bolts from the belly pan on each side under the tow hooks using a 15MM socket. Set the belly pan and bolts aside to be reinstalled later.
Yes. The lower air dam underneath the bumper must be removed from both sides by removing the bolt behind the tow hooks using a 13MM socket and removing the hex nut clip from the frame. The lower air dam will not be reinstalled.
Yes, drilling is required on all three vehicle models. You will drill holes into the frame using a 17/32" drill bit to accommodate the side support plates. On the Ford F-150 SVT Raptor, you will also drill out an existing hole in the belly pan bracket with a 17/32" drill bit. The manual warns that when using power drills, be aware of the dangers of torque and drill bit length.
Yes. Using a utility knife, trim 1 1/4" back from the outside edge and 1/8" up from the bottom of the lower air dam opening. This will allow access to the bolt on the inside when installing the baseplate. Do this on both sides of the vehicle.
Torque specifications depend on bolt size and grade. For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs. For Grade 8 bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs, 5/8" = 230 ft-lbs. For metric Grade 8.8 bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs. For metric Grade 10.9 bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs. Most baseplate bolts are Grade 5. Always apply Loctite RED to all bolts before tightening.
The attachment tab height is 19 inches and the width is 34-1/2 inches. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
The permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their principal function is to prevent the towed vehicle from breaking loose in the event the connection between the frame of the towed vehicle and the baseplate fails or becomes disconnected. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Each cable must have an adequate weight rating for the towing system. The weight rating of the two cables together will not qualify as individual ratings. These cables should remain installed as long as the baseplate is installed on the vehicle and must not mount against wires, hoses or brake lines. They are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables should be attached from the provided convenience link on the baseplate to the frame rail or cross member of the vehicle's frame. The manual shows the recommended installation of the cables to the frame. If additional options interfere with the suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Be sure the safety cables do not rub against any hoses or moving parts.
If the baseplate is involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications. Ensure that all electrical connections are plugged in properly and functioning before installing the fascia.
Yes. The manual recommends removing the attachment tabs when not in use, if applicable. This applies to the Lincoln Navigator, which has removable tabs, but not the King Ranch, which does not have removable tabs.
Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do "fit work." The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments may be necessary, including filing a hole slightly, bending electrical rods or bending end plates. Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051.
The BX8869 Bulb and Socket Wiring Kit is recommended for the 2011-14 Lincoln Navigator and Ford F-150 models with the BX2630 baseplate. The manual shows a possible location for installation on the Ford F-150 SVT Raptor but does not provide detailed specifications about its function or installation in this document.
The manual states that many Blue Ox baseplates are designed to use existing holes and hardware to mount the baseplate to the towed vehicle. However, it emphasizes: "Even though bolts are there, do not assume they are adequate for baseplate mounting. Always use hardware supplied in the hardware kit or existing hardware specified in the Baseplate Towing Installation Instructions." For replacement bolts, use the same grade as the original (in most cases Grade 5). If a bolt is lost or needs replacement, order a replacement bolt of the same grade through your nearest Blue Ox Dealer or Distributor.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty is non-transferable and does not cover incorrect or improper installation, improper use, modification or neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint or rust. The warranty does not cover loss of use, loss of time, inconvenience, mileage, transportation expense, return shipping, mechanic travel time, telephone, road service, towing, rental during repairs, travel, lodging, or loss of personal property. Repair or replacement is the sole exclusive remedy.
Yes, the BX2630 fits 2011-14 Lincoln Navigator, Ford F-150 King Ranch (including EcoBoost), and Ford F-150 SVT Raptor. Installation procedures differ by model. Vehicle weight must not exceed 5,000 lbs.
Yes. You will drill holes into the frame using a 17/32" drill bit for the side support plates. The Raptor also requires drilling out an existing belly pan bracket hole. The King Ranch requires trimming the lower air dam opening with a utility knife (1 1/4" back from outside edge, 1/8" up from bottom).
Required tools: large vise grip, utility knife, torque wrench, drill, tape measure, 5/16" and 17/32" drill bits, Loctite RED, and sockets/wrenches in 5.5MM, 7MM, 10MM, 13MM, 15MM, 17MM, 21MM, 3/4", and T40 Torx.
Most baseplate bolts are Grade 5. For 1/2" Grade 5 bolts: 78 ft-lbs. For 1/4" Grade 5 bolts: 10 ft-lbs. Always apply Loctite RED before tightening. See the torque chart on page 1 for all bolt sizes and grades.
Yes. Tow hooks must be removed on all models and will not be reinstalled. On the Raptor, remove three bolts per hook using a 15MM socket. On the Navigator and King Ranch, remove two bolts per hook using a 15MM socket.
Yes. Two Class IV safety cables (part 226-0049) and two quicklinks (part 229-0512) are included. The cables must be attached from the baseplate to the vehicle frame and must not contact wires, hoses or brake lines. They supplement but do not replace legally required safety cables between towing and towed vehicles.
Yes. Installation is intended for Blue Ox Dealers who have equipment and knowledge for fit work. Dimensional variations between vehicles may require minor adjustments. Find a dealer at www.blueox.com or call (402) 385-3051.
Ensure that you are using Loctite RED on all bolts before tightening. Tighten all bolts according to the torque chart on page 1 of the instructions (for 1/2" Grade 5 bolts, the torque is 78 ft-lbs). The manual emphasizes that it is the owner's responsibility to inspect all towing equipment for loose bolts before each towing trip and to use Loctite RED on all bolts and tighten to the recommended specifications. If bolts continue to loosen, verify that you are using the correct bolt grade and size, and that the torque wrench is calibrated correctly.
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for auto manufacturer's tolerances. These minor adjustments may include filing a hole slightly, bending electrical rods or bending end plates. If alignment issues persist, contact Blue Ox at (402) 385-3051 for assistance. Professional installation by a Blue Ox Dealer is recommended for fit work.
The manual explicitly states: "Be sure the safety cables do not rub against any hoses or moving parts." If the cables are rubbing, reposition them. The manual recommends attaching the cables to the frame rail or cross member of the vehicle's frame. If additional options interfere with the suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Ensure the cables are routed away from all hoses, wires, and moving parts.
