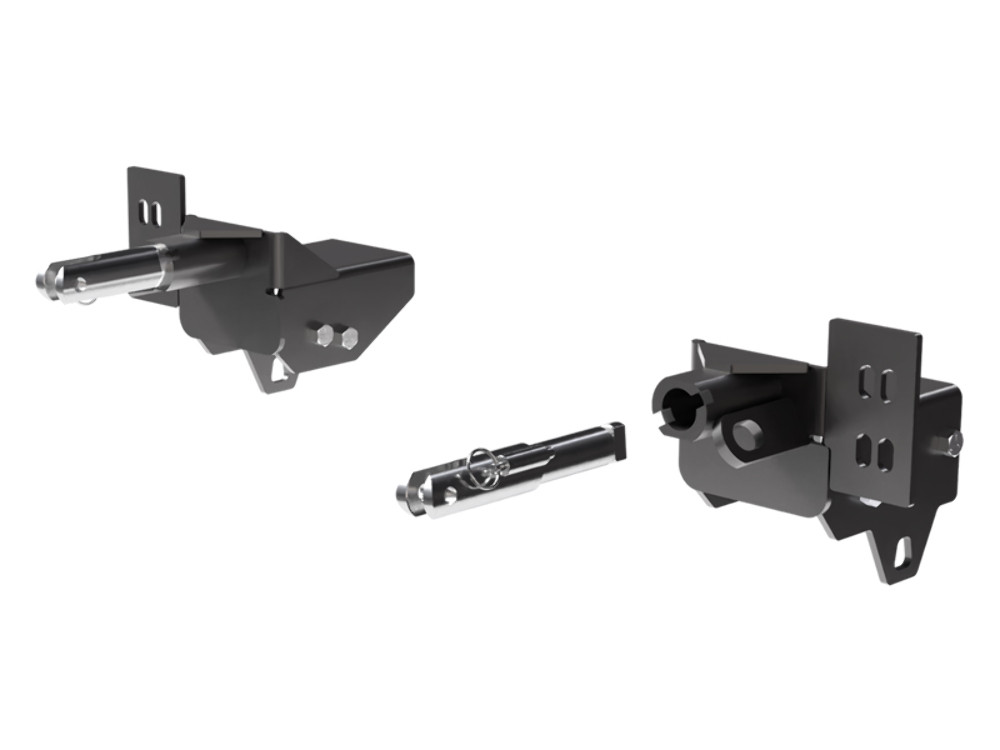

Customized fit: Each Blue Ox BX2618 Tow Bar Bracket is custom-designed for specific towed vehicles, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Enhance your towing experience with the Blue Ox BX2618 Tow Bar Bracket. Designed with unmatched precision to fit your specific vehicle, this bracket promises a seamless integration and superior performance. Made from high-grade steel and finished with a durable black powder coat, it offers excellent resistance to rust and corrosion, ensuring a long service life. The bracket is easy to mount with a bolt-on design and comes with all necessary hardware for a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
3 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2008 - 2016 | Ford F-250 Super Duty | Comes with Removable Attachment Tabs, Install Rating 2, Bumper Fascia Must Be Removed/Replaced During Install, Minor Drilling Required, Tow Hooks Must be Removed and Remain off the Vehicle After Installation, Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight, Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only w/an Allure Tow Bar |
| 2008 - 2009 | Ford F-350 | Comes with Removable Attachment Tabs, Install Rating 2, Bumper Fascia Must Be Removed/Replaced During Install, Minor Drilling Required, Tow Hooks Must be Removed and Remain off the Vehicle After Installation, Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight, Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only w/an Allure Tow Bar |
| 2008 - 2010 | Ford F-350 Super Duty | Comes with Removable Attachment Tabs, Install Rating 2, Bumper Fascia Must Be Removed/Replaced During Install, Minor Drilling Required, Tow Hooks Must be Removed and Remain off the Vehicle After Installation, Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight, Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only w/an Allure Tow Bar |
Yes, the BX2618 is designed for 2008-2016 Ford F-250 (Includes Super Duty) with no ACC (Adaptive Cruise Control). It also fits 2008-2010 Ford F-350 (Includes Super Duty) with no ACC. If your vehicle has ACC or is a different model year or generation, contact Blue Ox at (402) 385-3051 to confirm compatibility.
The BX2618 is compatible with 2008-2010 Ford F-350 (Includes Super Duty) with no ACC. If your F-350 is outside this year range or has ACC, contact Blue Ox at (402) 385-3051 to verify fitment.
The BX2618 attachment tab height is 23.5" and the tab width is 34.5". Ensure the tow bar being used is compatible with this tab width.
Required tools are: drill, 17/32" drill bit, 15MM socket, 18MM socket, 3/4" socket, 3/4" wrench, and Loctite RED. You will also need a power drill or hand drill for drilling holes in the frame.
The kit includes: two BX2618 baseplates (driver and passenger side), one 90° electrical bracket, twelve 1/2"-13 x 1-1/2" Grade 5 hex head bolts, twelve 1/2" lock washers, twelve 1/2"-13 hex nylon lock nuts, four 1/4"-20 x 3/4" Grade 5 hex head bolts, four 1/4" lock washers, four 1/4" flat washers, four 1/4"-20 hex flange whiz lock nuts, two #10-32 x 1/2" round slotted head screws, two #10 lock washers, two #10-32 hex nuts, two 4-way connector adapters, two attachment tab assemblies with holes, two Class IV safety cables, two 1/2" quicklinks, and two black cap plug receivers.
Yes. The bumper must be removed to access the mounting points. The installation instructions require removal of two metric bolts from beside the fog light assembly (both sides), one bolt behind the metal bumper on the frame by the headlight (both sides), and unplugging the connector by the headlight. The bumper is reinstalled after the baseplate installation is complete.
Only if your vehicle is equipped with a turbo cooler. Models with a turbo cooler require loosening and disconnecting both turbo cooler clamps, then carefully removing and setting the cooler aside. The cooler is reinstalled after the baseplate is mounted.
The tow hooks are removed using an 18MM socket (three bolts on each side) and are not reinstalled. They remain off the vehicle permanently after baseplate installation.
Yes. Drilling is required. You must use a 17/32" drill bit to drill the back side hole in the frame on both sides of the vehicle. The baseplate is used as a template to mark the drilling location. This is a permanent modification to the vehicle frame.
A 17/32" drill bit is required to drill the back side holes in the frame. The baseplate is used as a template to mark the drilling location on both sides of the vehicle.
The 1/2"-13 bolts are Grade 5 and should be torqued to 78 foot-pounds. All bolts must have Loctite RED applied to the threads before tightening.
The 1/4"-20 bolts are Grade 5 and should be torqued to 10 foot-pounds. All bolts must have Loctite RED applied to the threads before tightening.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. The installation instructions note that a hole must be drilled according to the tail light wiring kit instructions. Contact your Blue Ox dealer for availability and installation details.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. Reference your vehicle owner's manual for the manufacturer's towing specifications and your vehicle's GVWR.
Yes. Two Class IV safety cables are included with the baseplate kit. These permanent baseplate safety cables must be attached from the baseplate to the frame rail or cross member of the vehicle's frame. They are strongly recommended to prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must not be mounted against wires, hoses, or brake lines. Safety cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
The safety cables should be attached to the frame rail or cross member of the vehicle's frame. The manual shows the recommended installation attaching cables to the frame (indicated by white arrow in the photo). Additional options may interfere with suggested mounting; in such cases, secure the cables to a solid piece of the frame. Ensure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. After installation, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Verify that all bolts are tightened to the recommended torque specifications and that Loctite RED has been applied to all bolt threads.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite RED on all bolts and tighten to the recommended specifications. The baseplate should remain installed as long as you own the vehicle. Remove the attachment tabs when not in use (if applicable). If the baseplate is damaged or in an accident, it must be replaced and not reused.
If the baseplate is damaged or involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow this requirement will void the manufacturer's warranty.
Blue Ox offers a three-year limited warranty from the date of delivery to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Warranty coverage requires the customer warranty card to be returned within 30 days of purchase and a copy of the original invoice. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty is non-transferable. Register your product at www.blueox.com to be alerted of updates, maintenance, and safety bulletins.
The BX2618 fits 2008-2016 Ford F-250 (Includes Super Duty) and 2008-2010 Ford F-350 (Includes Super Duty), both without ACC. Contact Blue Ox at (402) 385-3051 if your vehicle has ACC or is outside these years.
You need a drill, 17/32" drill bit, 15MM socket, 18MM socket, 3/4" socket, 3/4" wrench, and Loctite RED.
Yes. You must drill the back side holes in the frame using a 17/32" drill bit on both sides of the vehicle, using the baseplate as a template.
Yes. The bumper must be removed and reinstalled. The tow hooks are removed and do not reinstall. If equipped, the turbo cooler must also be removed and reinstalled.
Torque 1/2"-13 Grade 5 bolts to 78 foot-pounds. Apply Loctite RED to all bolt threads before tightening.
Yes. Two Class IV safety cables are included and must be attached from the baseplate to the vehicle frame. They prevent the towed vehicle from breaking loose if the baseplate connection fails.
The baseplate is tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for GVWR and towing specifications.
The BX8869 Tail Light Wiring Kit is recommended. A hole must be drilled according to the kit instructions.
If the front of your vehicle looks different than the manual illustrations, contact Blue Ox at (402) 385-3051 before proceeding with installation. The manual notes that dimensional variations between otherwise identical vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. Blue Ox technical support can provide guidance for your specific vehicle.
Before reinstalling the fascia, ensure all electrical connections are plugged in and accessories are functioning properly. Verify that the connector by the headlight (unplugged during bumper removal) is fully reconnected. If accessories are still not functioning, check that the 4-way connector adapters are properly seated and that all wiring is routed correctly. Contact Blue Ox at (402) 385-3051 if problems persist.
