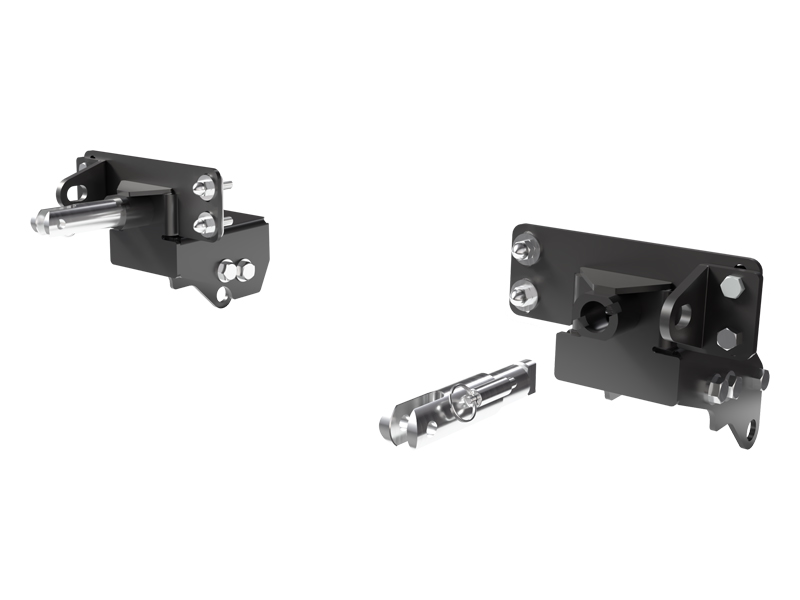

{'feature': 'High Quality Material', 'description': 'Made from top-grade steel, the Blue Ox BX2675 Tow Bar Bracket guarantees exceptional strength and durability.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2675 Tow Bar Bracket is a meticulously engineered automotive part that promises strength and durability. Crafted with high-quality steel, this product ensures maximum resilience and long-lasting performance. The black powder coat finish not only adds a sleek aesthetic to your vehicle but also provides an extra layer of protection against rust and corrosion. With a handy bolt-on mounting type, this base plate is designed for a hassle-free do-it-yourself installation which includes all necessary hardware and easy-to-follow instructions. The Blue Ox BX2675 Tow Bar Bracket is the perfect choice for those seeking a reliable and robust solution for their towing needs.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2017 - 2019 | Ford F-250 Super Duty | Vehicles With Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2017 - 2019 | Ford F-350 Super Duty | Vehicles With Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F250 DIESEL W/ACC (Part #FDRWBX2675) is designed to fit the 2017-2019 Ford F-250 Super Duty.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F250 DIESEL W/ACC (Part #FDRWBX2675) fits the following vehicles: 2017-2019 Ford F-250 Super Duty; 2017-2019 Ford F-350 Super Duty. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F250 DIESEL W/ACC (Part #FDRWBX2675) fits 2017-2019 Ford F-250 Super Duty models. The 2019 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F250 DIESEL W/ACC (Part #FDRWBX2675) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. The BX2675 is designed for 2017-19 Ford F-250 & F-350 Pick-up, including Super Duty and vehicles with Adaptive Cruise Control (ACC). However, you should verify your specific vehicle configuration matches the manual before purchase, as dimensional variations between otherwise identical vehicles can be considerable.
Yes. The BX2675 is compatible with models that have Adaptive Cruise Control. The installation includes specific steps to remove and reinstall the ACC unit on the driver side of the vehicle. After baseplate installation is complete, the ACC is reinstalled and the cover is replaced.
The attachment tab height is 24-1/2" and the attachment tab width is 34-1/2".
Required tools include: utility knife, torque wrench, drill, tape measure, 11/16" drill bit, 15MM socket, 18MM socket, 7/16" socket, 7/16" wrench, 15/16" socket, 15/16" wrench, 3/4" wrench, 5/16" nut driver, and 10MM socket (for ACC models). You will also need Loctite Red for all bolt threads.
The kit includes: two baseplates (driver and passenger side), two attachment tab assemblies, electrical bracket, breakaway bracket, two convenience links, 1/4"-20 x 3/4" hex head bolts (Grade 5, qty 6), #10-32 1/2" round slotted head screws (qty 2), 1/2"-13 x 2" hex head bolts (Grade 5, qty 4), 5/8"-11 x 1-3/4" hex head bolts (Grade 5, qty 14), hex nuts and nylon insert lock nuts in various sizes, flat washers, lock washers, Class IV safety cables (qty 2), 1/2" quicklinks (qty 2), and black cap plug receivers (qty 2). The kit also uses two existing nut plates and four existing 12MM bolts from the vehicle.
No. Tail light wiring kits are sold separately. The BX8869 Tail Light Wiring Kit is recommended for standard vehicles, and the BX8848 Tail Light Wiring Kit is recommended for models with LED lights. A hole must be drilled according to the tail light wiring kit instructions.
Yes. The fascia must be removed and reinstalled during baseplate installation. The bumper must also be removed to access the tow hook bolts and brackets. All removed components are reinstalled after the baseplate is installed.
Blue Ox recommends that baseplates be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work". Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051. However, the manual does not explicitly prohibit non-dealer installation.
Yes. An 11/16" drill bit is required to drill out the front two holes on the tow hook bracket on both sides of the vehicle before the baseplate is installed. Additionally, a hole must be drilled according to the tail light wiring kit instructions. The manual also notes that some drilling and trimming is required overall.
Yes. Using a utility knife, you must remove marked areas on both sides of the vehicle to allow the baseplate to fit through the hole in the fascia, and remove marked areas on both sides of the fascia towards the inside near the license plate. Additionally, the tow hook bolt cover must be trimmed on both sides to allow room for the convenience link. For vehicles with ACC, the bolt cover on the driver side should not be reinstalled.
Yes. The manual recommends using a good quality paint to spray cut edges of the frame to prevent rusting.
5/8"-11 Grade 5 bolts should be torqued to 154 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
1/2"-13 Grade 5 bolts should be torqued to 78 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
1/4"-20 Grade 5 bolts should be torqued to 10 foot-pounds. All bolts must have Loctite Red applied to the threads before tightening.
The removal sequence is: 1) Unplug the connector underneath the vehicle behind the fascia that disconnects everything with the bumper. 2) Remove two 15MM bolts behind the bumper on the frame by the headlights on both sides. 3) Remove two clips from each side above the tow hook. 4) For ACC models, remove two 10MM bolts from the ACC cover on the driver side, then remove three 11MM bolts holding the ACC and unplug it. 5) On the passenger side, pull the indicated plug through the backside of the fascia. 6) Remove four 18MM bolts around the tow hook on both sides and pull the bumper forward. 7) Remove four 18MM bolts from the bottom of the tow hooks on both sides. 8) Remove two 18MM bolts from each side of the bracket near the tow hook on both sides.
After drilling out the front two holes on the tow hook bracket with an 11/16" drill bit on both sides, slide the baseplate on and align it with the existing front tow hook holes. Bolt on first using two 5/8" x 1-3/4" bolts with lock washers.
Five bolts attach the baseplate to the frame on each side: two 5/8" x 1-3/4" bolts to the tow hook (with lock washers), three 5/8" x 1-3/4" bolts towards the outside of the frame (two with flat washers and nylon lock nuts on the inside, one with flat washer and nylon lock nut on the inside), and two 5/8" x 1-3/4" bolts towards the inside of the frame (with washers and nylon lock nuts on the inside). All bolts must use Loctite Red and be torqued to the appropriate specification.
The convenience link is used to attach the permanent baseplate safety cables to the baseplate. Two convenience links are included in the kit, one for each side of the vehicle. The safety cables are attached to the convenience link and then secured to a solid piece of the vehicle frame.
Insert two 1/2" x 2" bolts with a flat washer and nylon lock nut on the back side to attach the convenience link. Do this on both sides of the vehicle.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You should reference your vehicle owner's manual for the manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2675 kit includes Class IV safety cables (qty 2) and 1/2" quicklinks (qty 2) for this purpose. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses or brake lines. These cables should remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. Additionally, ensure that the safety cables do not rub against any hoses or moving parts. It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The attachment tabs should be removed when not in use (if applicable). If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5).
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Additionally, warranty coverage is valid only if the customer warranty card is returned by the original purchaser within 30 days of purchase.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The product is warranted to be free from defect in material and workmanship under normal use and service for three years from the date of delivery. During this period, Blue Ox will repair or replace any parts found to be defective if returned to the factory, transportation prepaid. Warranty coverage is not valid if the customer warranty card is not returned within 30 days of purchase. The warranty does not cover incorrect or improper installation, improper use, modification or neglect, failure to properly service and maintain, misuse, accident, normal wear and tear, paint or rust. The warranty is non-transferable.
No. You must use only genuine factory replacement parts on the baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these requirements will void the manufacturer's warranty.
Yes, the BX2675 is designed for 2017-19 Ford F-250 & F-350 Pick-up, including Super Duty and ACC models.
Required tools include: utility knife, torque wrench, drill, tape measure, 11/16" drill bit, 15MM socket, 18MM socket, 7/16" socket, 7/16" wrench, 15/16" socket, 15/16" wrench, 3/4" wrench, 5/16" nut driver, 10MM socket (for ACC models), and Loctite Red.
5/8"-11 Grade 5 bolts should be torqued to 154 foot-pounds with Loctite Red applied to all threads.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Reference your vehicle owner's manual for manufacturer's towing specifications.
Yes. Class IV safety cables (qty 2) and 1/2" quicklinks (qty 2) are included. They must be connected from the baseplate to the vehicle frame and must not contact wires, hoses or brake lines.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. If connections are not working, verify that the connector underneath the vehicle behind the fascia (which disconnects everything that goes with the bumper) is properly reconnected, and that the plug on the passenger side has been properly inserted through the backside of the fascia.
Inspect all towing equipment for loose bolts before each towing trip. If bolts are found to be loose, tighten them to the appropriate torque specification using Loctite Red on all bolt threads. For 5/8"-11 Grade 5 bolts (the primary bolts used), torque to 154 foot-pounds. For 1/2"-13 Grade 5 bolts, torque to 78 foot-pounds.
