Custom Design: Each Blue Ox BX2632 Tow Bar Bracket is specifically designed for individual towed vehicles, ensuring an optimal fit and maximum stability.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2632 Tow Bar Bracket seamlessly integrates with your vehicle, providing a robust and reliable towing solution. Custom-designed for each specific towed vehicle, the bracket ensures a perfect fit and unparalleled stability. Made of high-grade steel with a sleek black powder coat finish, it offers superior durability and corrosion resistance. The bracket is a bolt-on type, making installation straightforward as it comes with all the necessary hardware. With Blue Ox BX2632, you can expect top-notch performance, ease of use, and a long-lasting towing solution.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years

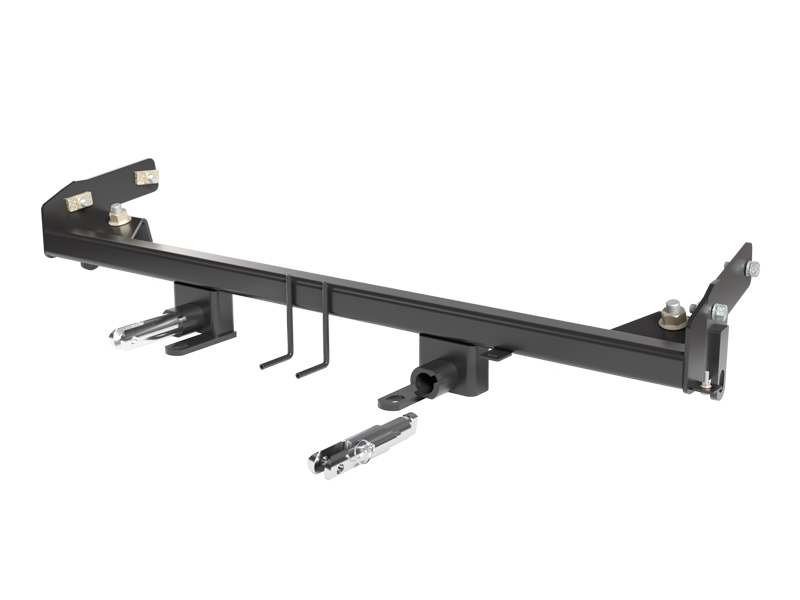

Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EXPLRR, W/ACC (Part #FDRWBX2632) is designed to fit the 2011-2015 Ford Explorer.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EXPLRR, W/ACC (Part #FDRWBX2632) fits the following vehicles: 2011-2015 Ford Explorer. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EXPLRR, W/ACC (Part #FDRWBX2632) fits 2011-2015 Ford Explorer models. The 2015 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EXPLRR, W/ACC (Part #FDRWBX2632) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX2632 is a towing baseplate manufactured by Blue Ox for 2011-2015 Ford Explorer models, including those with Adaptive Cruise Control (ACC) and EcoBoost engines. The baseplate is designed to provide a secure connection point for towing a vehicle behind a motorhome or RV. It is computer tested to your vehicle's GVWR, and exceeding this weight will void the manufacturer's warranty.
The BX2632 is designed for 2011-2015 Ford Explorer models, including those with Adaptive Cruise Control and EcoBoost engines. However, the manual notes that dimensional variations between otherwise identical vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding.
Required tools include: large vise grip, hammer, Phillips and flat screwdrivers, reciprocating saw, utility knife, torque wrench, tape measure, drill, and Loctite Red. Sockets required are 5.5MM, 8MM, 10MM, 11MM, 13MM, 3/4", and 1-1/8". Drill bits required are 13/32", 17/32", and 25/32". Protective covers and rags are recommended to prevent damage to cosmetic parts.
The kit includes: 4 nut plates with 10" wire (61-4604), 1 baseplate (61-6867), 2 attachment tab assemblies (62-3468), 1 breakaway bracket (102-7056), various hex head bolts in sizes 1/4"-20, 1/2"-13, and 3/4"-10, self-drilling screws, hex nuts, whiz lock nuts, flat washers, lock washers, 1 electrical bracket, 2 Class IV safety cables (226-0049), 2 quicklinks (229-0512), and 2 black cap plug receivers (290-0437). All bolts are Grade 5 zinc-plated unless otherwise specified.
No. The BX8848 4-Diode Wiring Kit is recommended for this vehicle but is not included in the baseplate kit. It must be ordered separately.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do "fit work." The installation involves removal and reinstallation of the fascia, ACC sensor, bumper, and windshield washer fluid reservoir, along with drilling, trimming, and cutting. Blue Ox Dealers can be found at www.blueox.com or by contacting (402) 385-3051.
The following components must be removed and reinstalled after baseplate installation: fascia (front bumper cover), ACC sensor (on ACC-equipped models), metal bumper, windshield washer fluid reservoir, and plastic covers or air dam sections. The metal bumper will not be reinstalled. On driver's side, the speed control bracket must be moved out of the way. All removed components should be placed on a flat, sturdy surface during installation.
Yes. Drilling is required at multiple points. You must drill out two spot welds on the passenger side metal bumper and three spot welds on the driver side using a 13/32" drill bit. You must also drill two holes on each side of the baseplate using a 17/32" drill bit. Some vehicles may require the existing hole in the frame bottom to be reamed or drilled with a 25/32" drill bit. All cut edges of frame should be painted with quality paint to prevent rusting.
Yes. Trimming and cutting are required. You must cut across the bottom of the groove on the top outside of each bumper end, straight down on the outside of the frame rail, and across the bottom flush with the front of the frame. On ACC models, you must cut the top part of the plastic flap on the passenger side with a utility knife and notch out a little farther. On ACC models, you must also cut a small square notch out of the corner of the plastic air dam on the driver's side. Finally, you must cut the white tab off the backside of the fascia by the fog light on both ends. The fascia must be trimmed around the convenience links and attachment tabs before reinstallation.
No. The metal bumper will not be reinstalled. After drilling out the spot welds and removing the four bolts from each side, the bumper is discarded as part of the installation process.
Torque specifications depend on bolt size and grade. For Grade 5 bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 1/2" = 78 ft-lbs, 3/4" = 257 ft-lbs. For Grade 8 bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 1/2" = 119 ft-lbs, 3/4" = 380 ft-lbs. All bolts must be tightened according to the torque chart provided, and Loctite Red must be used on all bolt threads before tightening.
The 3/4"-10 bolts are Grade 5 and should be torqued to 257 foot-pounds. These bolts are used with 3/4" lock washers and 3/4"-10 whiz nuts on both sides of the baseplate at the frame bottom. Loctite Red must be applied to all bolt threads before tightening.
The 1/2"-13 bolts are Grade 5 and should be torqued to 78 foot-pounds. These bolts are used with 1/2" lock washers and are tightened with nut plates aligned inside the frame rail on both sides. Loctite Red must be applied to all bolt threads before tightening.
The 1/4"-20 bolts are Grade 5 and should be torqued to 10 foot-pounds. These bolts are used in various locations including the breakaway bracket attachment and the adaptive cruise control module attachment. Loctite Red must be applied to all bolt threads before tightening.
The attachment tab height is 18-1/2" and the attachment tab width is 20".
The BX8848 4-Diode Wiring Kit is recommended for this vehicle. It must be ordered separately and is not included in the baseplate kit.
Before reinstalling the fascia, be sure that ALL electrical connections are plugged in and accessories are functioning properly. This includes the windshield washer system and any other electrical components that were disconnected during removal.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed the GVWR.
Yes. Two Class IV safety cables are included with the baseplate kit. The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. They are strongly recommended to prevent the towed vehicle from breaking loose in the event the connection between the frame and baseplate fails. The cables must not rub against any hoses or moving parts, and must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
No. If the baseplate is involved in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do NOT use the baseplate if it is damaged or missing parts.
Do NOT use the baseplate if it is damaged or missing parts. Contact Blue Ox at (402) 385-3051 to order replacement parts. For your safety and the preservation of your baseplate, be sure to use replacement bolts of the same grade (in most cases Grade 5). Use only genuine factory replacement parts; do not substitute homemade or non-typical parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Ensure that safety cables do not rub against any hoses or moving parts.
Yes. Remove the attachment tabs when not in use, if applicable. This helps protect the tabs and reduces the profile of the baseplate when the vehicle is not being used for towing.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Additionally, you must return the customer warranty card within 30 days of purchase for warranty coverage to be valid.
The BX2632 is designed for 2011-2015 Ford Explorer models, including those with Adaptive Cruise Control and EcoBoost engines. If the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before purchasing.
The BX8848 4-Diode Wiring Kit is recommended and must be ordered separately. Loctite Red is required for all bolts. All other hardware is included in the kit.
The 3/4"-10 bolts (Grade 5) should be torqued to 257 foot-pounds, the 1/2"-13 bolts to 78 foot-pounds, and the 1/4"-20 bolts to 10 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the warranty. Check your vehicle owner's manual for towing specifications.
Yes. Two Class IV safety cables are included. They must be connected from the baseplate to the frame rail or cross member and must not rub against hoses or moving parts. They are required in addition to legally required safety cables attaching the towed vehicle to the towing vehicle.
Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure all electrical connections are plugged in and functioning. Check that safety cables do not rub against hoses or moving parts. Tighten all bolts to specification using Loctite Red.
Some vehicles may require the existing hole to be reamed or drilled with a 25/32" drill bit to accommodate the 3/4"-10 bolt. Use the baseplate as a guide and carefully enlarge the hole as needed.
If needed, 1/4" flat washers can be added under the 1/4"-20 x 1" hex bolts to level the adaptive cruise control module. Ensure the module is in a perfectly vertical position before final tightening.
Ensure that both hoses are reconnected to the reservoir and that the electrical lines are plugged in. Verify that all connections are secure before reinstalling the fascia. If the system still does not work, check that the hoses were not pinched or damaged during removal and reinstallation.
Reposition the safety cables so they do not rub against any hoses or moving parts. The cables must be connected from the baseplate to the frame rail or cross member. If the recommended mounting location causes interference, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables.
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2015 | Ford Explorer | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
