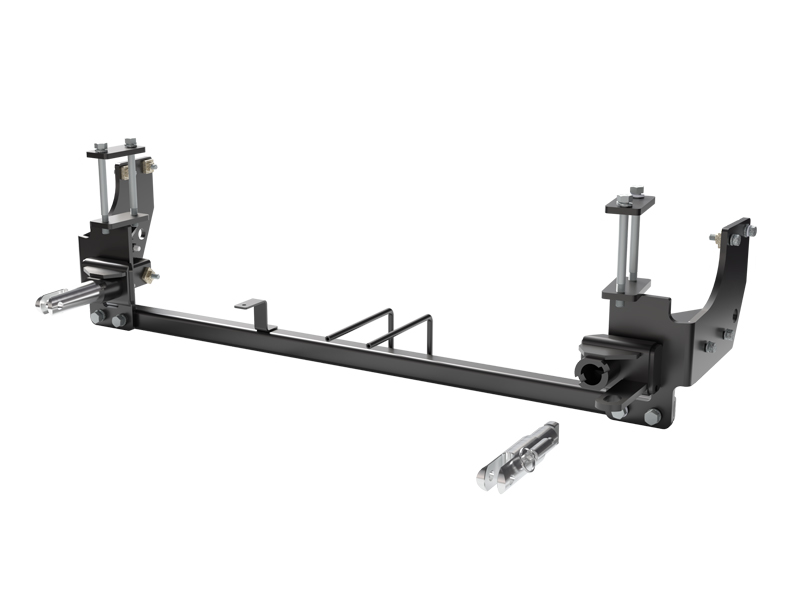

Custom Design: The Blue Ox BX2667 Tow Bar Bracket is specifically designed for your towed vehicle, ensuring a perfect fit and a secure connection.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX2667 Tow Bar Bracket, custom designed for your specific towed vehicle, provides a reliable and sturdy connection for all your towing needs. It's crafted from high-quality steel, ensuring durability and long-lasting performance. Featuring a sleek black powder coat finish, it not only adds a stylish touch, but also furnishes an extra layer of protection against rust and corrosion. The tow bar bracket, designed for bolt-on mounting, comes with all the necessary hardware and comprehensive instructions for a seamless, do-it-yourself installation process.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2015 - 2018 | Ford Edge | No 2.0L EcoBoost or Sport Vehicles With Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select FORD EDGE W/ACC (Part #FDRWBX2667) fits the following vehicles: 2015-2018 Ford Edge. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select FORD EDGE W/ACC (Part #FDRWBX2667) is designed to fit the 2015-2018 Ford Edge.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select FORD EDGE W/ACC (Part #FDRWBX2667) fits 2015-2018 Ford Edge models. The 2018 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select FORD EDGE W/ACC (Part #FDRWBX2667) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. The BX2667 is designed for 2015-2018 Ford Edge models and explicitly excludes vehicles with 2.0L EcoBoost or Sport trim. If your vehicle has either of these features, this baseplate is not compatible.
Yes. The BX2667 is specifically designed for 2015-2018 Ford Edge models with Adaptive Cruise Control (ACC). The installation instructions include specific steps for ACC models, such as disconnecting and re-routing the ACC sensor wiring loom to protect it from rubbing on the baseplate.
The attachment tab height is 15 inches and the attachment tab width is 36 inches.
The BX88334 4-Diode Wiring Kit is recommended for this vehicle.
Yes. The fascia cover, fascia, and headlights must be removed to install the baseplate. The manual notes that these components will be reinstalled after baseplate installation. This is a required part of the installation process.
Yes. Drilling is required in multiple locations. You must drill access holes in the side of the frame and lower support using a 1-1/4 inch hole saw (Step 9), ream out the rear existing hole using a 3/8 inch drill bit (Step 10), and drill two additional holes using a 3/8 inch drill bit (Step 20). These modifications are permanent.
Significant trimming and cutting is required. You must trim shielding with a reciprocating saw (Step 8a), trim the marked area below the shutters (Step 12), trim the marked area on the driver's side shutter (Step 13), trim the metal overhang at the marked area on both sides of the bumper and flatten it down (Step 14), cut corner plastic pieces off both sides (Step 15), trim the backside of the fascia for clearance (Step 16), and trim the marked area on the bottom of the bumper horn (Step 17). These modifications are permanent.
Yes, if your vehicle has Adaptive Cruise Control. You must disconnect the ACC sensor wiring loom and re-route it behind the metal framing to protect it from rubbing on the baseplate. This is a required step for ACC models.
Required tools include: flat screwdriver, utility knife, torque wrench, drill, 3/8 inch drill bit, 1-1/4 inch hole saw, 5/16 inch nut driver, 5.5MM socket, 8MM socket, 10MM socket, 7/16 inch socket, 7/16 inch wrench, 9/16 inch socket, 9/16 inch wrench, 3/4 inch socket, 3/4 inch wrench, reciprocating saw, and Loctite Red. A paint suitable for frame edges is also recommended to prevent rusting.
For 3/8 inch Grade 5 bolts, the torque specification is 33 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
For 1/2 inch Grade 5 bolts, the torque specification is 78 foot-pounds. Always use Loctite Red on all bolt threads before tightening.
No. When installing the baseplate onto the frame with 3/8 inch hardware (Step 18), do not fully tighten the hardware initially. The cross-member and flat bracket are installed next with 1/2 inch hardware (Step 19), and the flat bracket is tightened fully first. Then tighten the cross-member bolts followed by the top two bolts on both sides of the side plate. Only after these steps are complete should you fully tighten all hardware according to the torque chart.
The correct sequence is: 1) Install baseplate with 3/8 inch hardware but do not fully tighten (Step 18). 2) Install cross-member with 1/2 inch hardware but do not fully tighten (Step 19). 3) Install flat bracket and 1/2 inch hardware and tighten fully (Step 19). 4) Tighten cross-member bolts (Step 19). 5) Tighten the top two bolts on both sides of the side plate (Step 19). 6) Install and fully tighten lower support plate hardware (Step 21). 7) Drill and install additional 3/8 inch hardware (Step 20) and fully tighten. Use Loctite Red on all bolt threads.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. This is critical because the fascia covers the work area and you will not be able to access connections once it is reinstalled.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed your vehicle's GVWR.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2667 includes two Class IV Safety Cables (part 226-0049) and two 1/2 inch Quicklinks (part 229-0512) for this purpose. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. However, these cables are not a replacement for legally required safety cables attaching the towed vehicle to the towing vehicle.
The permanent baseplate safety cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Do not mount the cables against wires, hoses, or brake lines. The manual provides two recommended installation options: Option 1 uses a convenience link tab on the baseplate, and Option 2 is for baseplates without convenience link tabs. If additional options interfere with suggested mounting, secure the cables to a solid piece of the frame as described in the General Information sheet.
Before each towing trip, inspect all towing equipment for: cracked welds, missing or worn parts, and loose bolts. Ensure that Loctite Red is used on all bolts and that they are tightened to the recommended torque specifications. This is the owner's responsibility.
Yes. The manual recommends removing the attachment tabs when not in use.
No. If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
The kit includes: 2 x 3/8-16 Whiz Nuts with 14 inch wire, 6 x 3/8 inch Nut Plates with 14 inch wire, 2 x Lower Support Plates, 2 x Attachment Tab Assemblies with hole, 2 x Flat Brackets, 1 x 1/4-20 x 3/4 inch Hex Head Bolt Grade 5, 2 x #10-32 1/2 inch Round Slotted Head Screws, 4 x 3/8-16 x 1-1/4 inch Hex Head Bolts Grade 5, 12 x 3/8-16 x 1-1/2 inch Hex Head Bolts Grade 5, 4 x 1/2-13 x 2-3/4 inch Hex Head Bolts Grade 5, 4 x 1/2-13 x 6 inch Hex Head Bolts Grade 5, 2 x #12-14 x 1 inch Self Drilling Screws, 2 x #10-32 Hex Nuts, 4 x 1/2-13 Hex Flange Whiz Lock Nuts, 4 x 3/8-16 Hex Nylon Lock Nuts, 1 x 1/4-20 Hex Nylon Lock Nut, 10 x 3/8 inch Flat Washers, 16 x 3/8 inch Lock Washers, 8 x 1/2 inch Lock Washers, 2 x #10 Lock Washers, 1 x 4-Way Bracket, 2 x Class IV Safety Cables, 2 x 1/2 inch Quicklinks, and 2 x Black Cap Plug Receivers.
If a bolt is lost or needs replacement, use a replacement bolt of the same grade. In most cases, this will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Do not substitute homemade or non-typical parts, as this will void the manufacturer's warranty and compromise safety.
No. Even though existing holes and bolts may be present on the vehicle, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. The manual emphasizes that you must follow the specific hardware requirements provided.
Yes. Blue Ox towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. If needed, Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051.
Yes. Use a good quality paint to spray cut edges of frame to prevent rusting. This is important for protecting the frame from corrosion after the drilling and cutting work is completed.
Place all components that are removed on a flat, sturdy surface. All items will be reinstalled unless otherwise noted after the baseplate is installed. This includes the fascia cover, fascia, headlights, and other parts removed during the installation process.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. This is why professional installation by a Blue Ox Dealer is recommended.
The BX2667 fits 2015-2018 Ford Edge models with Adaptive Cruise Control, but excludes 2.0L EcoBoost and Sport trim. Check your vehicle's trim and engine size against these exclusions.
Yes. You must drill access holes using a 1-1/4 inch hole saw, ream existing holes with a 3/8 inch drill bit, and drill two additional holes. Significant trimming with a reciprocating saw is also required.
Required tools include: torque wrench, drill, reciprocating saw, 3/8 inch drill bit, 1-1/4 inch hole saw, various sockets (5.5MM, 8MM, 10MM, 7/16 inch, 9/16 inch, 3/4 inch), wrenches, nut driver, flat screwdriver, utility knife, and Loctite Red.
Yes. The fascia cover, fascia, and headlights must be removed for installation and reinstalled afterward. This is a required part of the installation process.
Use 33 foot-pounds for 3/8 inch Grade 5 bolts and 78 foot-pounds for 1/2 inch Grade 5 bolts. Always apply Loctite Red to all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications and GVWR.
Yes. Two Class IV Safety Cables and two 1/2 inch Quicklinks are included. They must be connected from the baseplate to the vehicle's frame rail or cross member and are strongly recommended but not a replacement for legally required towing vehicle safety cables.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended torque specifications with Loctite Red applied.
For vehicles with Adaptive Cruise Control, disconnect the ACC sensor wiring loom and re-route it behind the metal framing to protect it from rubbing on the baseplate. This step must be completed during installation (Step 8b) to prevent damage to the wiring.
Hold the fascia as close to its original position as possible and mark and trim the fascia around the convenience links and attachment tabs. This allows the fascia to fit properly over the installed baseplate components.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. If connections are not working, check that all plugs are fully seated before covering the work area with the fascia.
