{'feature': 'Custom Design', 'description': 'Specifically tailored for each towed vehicle to ensure optimal fit and performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

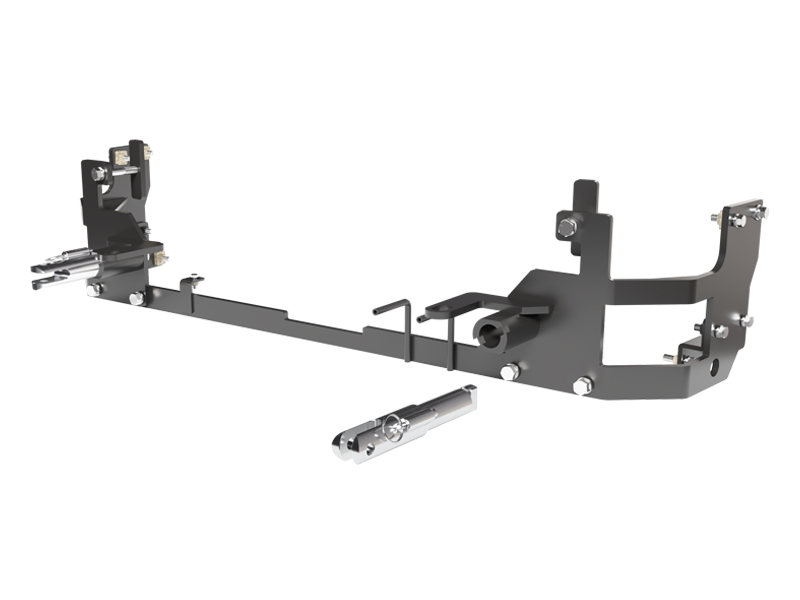

The Blue Ox BX2677 Tow Bar Bracket is a robust, high-performance addition to your towing setup. Engineered with custom specifications for each towed vehicle, it offers the perfect fit and superior stability. Made from high-grade steel, this bracket is designed to withstand harsh driving conditions and heavy-duty use. The black powder-coat finish not only enhances its aesthetic appeal but also provides excellent resistance against rust and corrosion. The bolt-on mounting type ensures smooth, hassle-free installation. Plus, there's no need to worry about finding the right tools or hardware - everything you need for a do-it-yourself installation is included in the package.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2019 - 2024 | Ford Edge | Vehicles With Adaptive Cruise Control, Shutter, Turbo, & EcoBoost Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper/Fascia/Plastic/And/Or Grill Minor Drilling Required Headlights Must be Removed and Replaced During Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EDGE ST (Part #FDRWBX2677) fits the following vehicles: 2019-2024 Ford Edge. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EDGE ST (Part #FDRWBX2677) fits 2019-2024 Ford Edge models. The 2024 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EDGE ST (Part #FDRWBX2677) is designed to fit the 2019-2024 Ford Edge.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EDGE ST (Part #FDRWBX2677) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX2677 baseplate is designed specifically for 2019-2024 Ford Edge ST Trim only with 2.7L EcoBoost engine, including models with Adaptive Cruise Control, Shutters, EcoBoost, and Turbo. If your vehicle does not match these specifications exactly, this baseplate will not fit. Contact Blue Ox at (402) 385-3051 to confirm fitment for your specific vehicle.
No. The BX2677 is designed for 2019-2024 Ford Edge ST Trim only. It is not compatible with other Edge trim levels. Contact Blue Ox at (402) 385-3051 if you need a baseplate for a different trim.
The attachment tab height is 16.5 inches and the attachment tab width is 30.5 inches.
Required tools include: flat screwdriver, utility knife, torque wrench, drill, 3/8" drill bit, 1/2" drill bit, 1-1/4" hole saw, 5/16" nut driver, 5.5MM socket, 7MM socket, 7MM wrench, 8MM socket, 10MM socket, 3/8" socket, 3/8" wrench, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, 3/4" socket, 3/4" wrench, and Loctite Red.
Yes. The fascia and headlights must be removed during baseplate installation and then reinstalled after the baseplate is installed. The manual notes that the fascia cover, fascia, and headlights will be reinstalled after baseplate installation is complete.
Yes. Drilling is required. You will need to ream out two existing holes with a 3/8" drill bit, drill access holes in the frame with a 1-1/4" hole saw, drill one hole with a 3/8" drill bit, drill one hole with a 1/2" drill bit, and drill out two additional holes with a 3/8" drill bit. The manual notes that some drilling and trimming is required.
Yes. Trimming is required. You must use a utility knife to cut along the top and around the edge of the shutter housing, trim the bumper cover on both sides of the vehicle for clearance, and trim the fascia around the convenience links and attachment tabs. The manual notes that some drilling and trimming is required.
Yes. The shutter housing is removed during installation and will not be reinstalled. The manual states in Step 8 that after removing the shutter housing bolt and cutting along the top and around the edge, you should "remove, and set aside. It will not be reinstalled later."
Yes. Blue Ox states that "towing products and accessories are intended to be installed by Blue Ox Dealers who are familiar with our products and have the equipment and knowledge necessary to do 'fit work'." Blue Ox Dealers can be found at www.blueox.com or by contacting (402) 385-3051.
The kit includes: 2 whiz nuts with 14" wire, 6 nut plates with 14" wire, 2 support plates, 3 baseplate sections (driver side, passenger side, center), 2 attachment tab assemblies, 2 flat plates with tapped holes, 1 quarter-inch bolt, 4 half-inch bolts, 2 small round head screws, 2 three-eighths inch bolts, 12 three-eighths inch bolts, 2 half-inch bolts, 2 self-drilling screws, 2 hex nuts, 2 nylon insert lock nuts, 4 nylon insert lock nuts, 1 nylon nut, 6 flat washers, 2 flat washers, 14 lock washers, 6 lock washers, 2 lock washers, 1 electrical bracket, 2 safety cables, 2 quicklinks, and 2 black cap plug receivers. See the parts list on page 4 for complete part numbers and specifications.
Use the torque charts provided on page 1 of the manual. For metric bolts: 6MM Grade 8.8 = 6 ft-lbs, 8MM Grade 8.8 = 16 ft-lbs, 10MM Grade 8.8 = 31 ft-lbs, 12MM Grade 8.8 = 54 ft-lbs, 14MM Grade 8.8 = 89 ft-lbs, 16MM Grade 8.8 = 161 ft-lbs, 18MM Grade 8.8 = 222 ft-lbs. For inch bolts: 1/4" Grade 5 = 10 ft-lbs, 5/16" Grade 5 = 19 ft-lbs, 3/8" Grade 5 = 33 ft-lbs, 7/16" Grade 5 = 54 ft-lbs, 1/2" Grade 5 = 78 ft-lbs, 5/8" Grade 5 = 154 ft-lbs, 3/4" Grade 5 = 257 ft-lbs. Always use Loctite Red on all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed your vehicle's GVWR.
Permanent baseplate safety cables are strongly recommended. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The principle function is to prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails or becomes disconnected. Safety cables must not be mounted against wires, hoses, or brake lines. The BX2677 includes 2 safety cables (part 226-0049) and 2 quicklinks (part 229-0512) for installation. These cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Do not fully tighten hardware when first installing the baseplate onto the frame (Step 13) or when installing the cross-member (Step 14). After Step 14, tighten the top two bolts on both side plates first, followed by the bolts on the cross-member. Then proceed with remaining installation steps. Use Loctite Red on all bolt threads and tighten all bolts to the appropriate torque specifications from the torque chart.
Yes. You must use a sufficient amount of Loctite Red on all bolt threads before tightening. This is emphasized multiple times throughout the installation instructions and is required for proper installation.
Before reinstalling the fascia, ensure that ALL electrical connections are plugged in and accessories are functioning properly. After installation, inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Ensure safety cables do not rub against any hoses or moving parts. Paint any cut edges of the frame to prevent rusting.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Use Loctite Red on all bolts and tighten to the recommended torque specifications. Remove the attachment tabs when not in use (if applicable). Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do NOT use the baseplate if it is damaged or missing parts.
The BX88334 Tail Light Wiring Kit is recommended for this vehicle, but the manual does not explicitly state whether it is required. Contact Blue Ox at (402) 385-3051 for clarification on whether this kit is necessary for your specific installation.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage. Place all components that are removed on a flat, sturdy surface. All items will be reinstalled unless otherwise noted after the baseplate is installed.
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances.
Yes. Use a good quality paint to spray cut edges of frame to prevent rusting. This is important for protecting the frame from corrosion after drilling.
No. If a bolt is lost or in need of replacement, you must use a replacement bolt of the same grade (in most cases Grade 5). Do NOT substitute homemade or non-typical parts. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use the correct replacement bolt will void the manufacturer's warranty.
Yes. Towing behind a non-motorized vehicle will void the warranty. The BX2677 is designed for use with motorized towing vehicles only.
The BX2677 fits 2019-2024 Ford Edge ST Trim only with 2.7L EcoBoost. If your vehicle doesn't match these specs exactly, contact Blue Ox at (402) 385-3051.
Yes. The fascia and headlights must be removed for installation and then reinstalled after the baseplate is installed.
Yes. Multiple holes must be drilled using 3/8", 1/2", and 1-1/4" hole saw bits. Trimming with a utility knife is also required for the bumper cover and fascia.
You'll need a torque wrench, drill with 3/8", 1/2", and 1-1/4" bits, sockets from 5.5MM to 3/4", wrenches, utility knife, flat screwdriver, and Loctite Red. See page 3 for the complete tools list.
Yes. Two permanent baseplate safety cables and two quicklinks are included. They must be connected from the baseplate to the vehicle frame and are strongly recommended to prevent the towed vehicle from breaking loose.
Use the torque charts on page 1. For example: 3/8" Grade 5 bolts = 33 ft-lbs, 1/2" Grade 5 bolts = 78 ft-lbs. Always apply Loctite Red to all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for your GVWR and towing specifications.
Verify all electrical connections are plugged in and functioning. Inspect for cracked welds, missing parts, and loose bolts. Ensure safety cables don't rub against hoses or moving parts. Paint cut frame edges to prevent rust.
This is normal. The manual notes in Step 14 that "Cross member may appear bowed once the bolts have been fully tightened." This is expected and does not indicate a problem with the installation.
