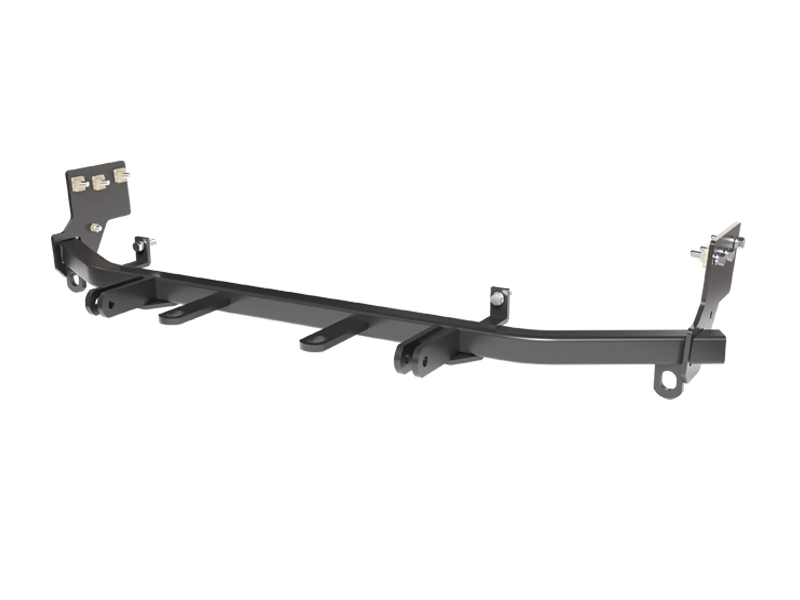

Custom Design: Each Blue Ox BX2640 tow bar bracket is custom made for each specific towed vehicle, ensuring a perfect fit and seamless integration.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Discover a seamless towing experience with the Blue Ox BX2640 Tow Bar Bracket. Custom designed for each specific towed vehicle, this product guarantees a perfect fit and easy installation. Manufactured from sturdy steel and finished with a premium black powder coat, it offers superior durability and corrosion resistance. The bracket is designed for bolt-on mounting, making installation straightforward with no drilling required. All necessary mounting hardware is included in the package, along with comprehensive instructions for a do-it-yourself installation. Enhance your towing setup with this reliable and robust tow bar bracket from Blue Ox.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2013 | Ford Focus | Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Air Dam Must be Removed and Remain off the Vehicle After Installation. |
Yes, the BX2640 is designed specifically for 2013-14 Ford Focus ST with Turbo. If the front of your vehicle looks different from the images in the manual, contact Blue Ox Technical Service at (402) 385-3051 before proceeding with installation.
The attachment tab height is 14-1/2" and the width is 21".
You must reference your vehicle owner's manual for the manufacturer's towing specifications. The baseplate is computer tested to your vehicle's GVWR; exceeding this weight will void the manufacturer's warranty.
The kit includes: 6× 3/8"-16 nut plates with 14" wire (61-5208), 1× BX2640 baseplate (61-7118), 8× 3/8"-16 × 1-1/2" hex head bolts Grade 5 (201-0440), 1× 3/8"-16 × 1" hex head bolt Grade 5 (201-0443), 3× 3/8"-16 hex nylon lock nuts (202-0090), 1× 3/8" flat washer (203-0003), 8× 3/8" lock washers (203-0010), 2× class III safety cables (226-0046), and 4× 3/8" quicklinks (229-0359).
Required tools are: large vise grip, flat screwdriver, utility knife, reciprocating saw, torque wrench, drill, tape measure, 13/32" drill bit, 1-1/4" hole saw, 8MM socket, 10MM socket, 9/16" socket, 9/16" wrench, T27 Torx, and T30 Torx. You will also need Loctite Red.
Yes. The fascia, horn, and windshield washer fluid reservoir must be removed and reinstalled for baseplate installation. All removed items will be reinstalled unless otherwise noted after the baseplate is installed.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting Technical Service at (402) 385-3051.
Yes. Drilling is required in multiple locations: 1-1/4" hole saw holes are drilled on both sides of the front bumper (centered vertically and horizontally on the flat area), and 13/32" drill bit holes are drilled through the bumper using the attachment tab as a guide on both sides. Additional drilling may be needed to remove obstructions in the middle hole area.
Yes. On the plastic bumper cover, trim the lower outer edge flush with the bottom of the bumper using a utility knife. Also trim the vertical space between the protrusions for clearance of the baseplate tabs. Repeat on both sides of the vehicle. Additionally, trim the fascia opening for the attachment tabs and convenience links with a utility knife before reinstalling the fascia.
Yes. On the driver's side, the frame webbing must be bent outward using large vise grips after removing the 8MM bolt, far enough to fit the baseplate on top of it. After baseplate installation, the webbing bracket is bent back to its original position and the 10MM bolt is reinstalled.
Yes. On the passenger's side only, a reciprocating saw is used to remove the washer reservoir bracket and horn front bracket. The flexible intake cover is also removed using a T30 Torx and will not be reinstalled.
According to the bolt torque specifications chart, 3/8" Grade 5 bolts should be torqued to 33 foot-pounds. However, the manual states to tighten all bolts according to the torque chart provided unless specified otherwise, and to use Loctite Red on all bolt threads before tightening.
According to the bolt torque specifications chart, 1/4" Grade 5 bolts should be torqued to 10 foot-pounds. Use Loctite Red on all bolt threads before tightening.
1. Using T27 Torx, remove two screws from driver's side front wheel well; remove push pin from same location. Repeat on passenger's side. 2. On fascia underside, remove two pushpins from outer edge and two rear screws (T27 Torx) on each side. 3. Remove two pushpins from front outer edge of fascia underside. 4. From top of fascia, remove inner-most bolt from each side (T30 Torx) and four pushpins. 5. Pry hood latch cable out of mounting bracket and rotate wire left to release. 6. Disconnect running lights main electrical cord on driver's side and carefully remove fascia.
Horn: Using a 10MM socket, remove the bolt from the passenger's side horn bracket and disconnect it. Washer reservoir: Using a 10MM socket, remove the two bolts from the washer reservoir on the passenger's side, disconnect all electrical connections, and remove and plug the fluid lines.
Slide the baseplate onto the vehicle until the top back hole aligns with the top back existing hole on the frame webbing. Insert a 3/8"-16 × 1-1/2" hex bolt and 3/8" lock washer with a 3/8"-16 nut plate. Secure the top front hole the same way. Do not tighten bolts all the way until directed. Repeat on both sides of the vehicle. Then insert a 3/8"-16 × 1-1/2" hex bolt and 3/8" lock washer with a 3/8"-16 nut plate into the middle hole on both sides, drilling out any obstructions with a 13/32" drill bit if necessary. Finally, tighten down all hardware to specified torque.
On the front of the baseplate, using the attachment tab as a guide, drill out the bumper with a 13/32" drill bit on both sides. Insert a 3/8"-16 × 1-1/2" hex bolt and 3/8" lock washer with a 3/8"-16 lock nut into each hole.
Washer reservoir: Reattach on the passenger's side using the existing bolt in the back. Use a 3/8"-16 × 1" hex bolt with a 3/8" flat washer and a 3/8" hex nut to secure the front hole to the baseplate. Horn: Use the existing hole in the frame webbing on the passenger's side and the existing hole on the horn bracket, and insert a 1/4-20 × 3/4" hex bolt with a 1/4" lock washer and 1/4-20 nut. Reattach all electrical connections.
Bend the webbing bracket back to its original position and reinstall the 10MM bolt.
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. A hole must be drilled according to the tail light wiring kit instructions.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
Use a good quality paint to spray cut edges of frame to prevent rusting.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Their function is to prevent the towed vehicle from breaking loose if the connection between the frame and baseplate fails. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame using the provided quicklinks and convenience link tabs. Do not mount the cables against wires, hoses, or brake lines. These cables should remain installed as long as the baseplate is installed and are supplementary to, not a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Ensure all electrical connections are plugged in and accessories are functioning properly. Verify that the fascia is aligned as close to its original position as possible. Confirm that all bolts are tightened to the specified torque values using Loctite Red. Inspect that the permanent baseplate safety cables are properly secured to the frame and not against any wires, hoses, or brake lines.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Remove the attachment tabs when not in use.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Blue Ox offers a three-year limited warranty to the original retail purchaser covering defects in material and workmanship under normal use and service. The warranty is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any claim. The warranty does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty is non-transferable. Register your product at www.blueox.com/warranty/ to activate coverage.
No. Use only genuine factory replacement parts on the baseplate. Do not substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these instructions or altering them will void the manufacturer's warranty.
Blue Ox is committed to providing exceptional customer care throughout your lifetime with their products. You can call (402) 385-3051 to speak with the technical service team. Visit www.blueox.com to see which rallies the Destination America team will attend. For a nominal fee, Blue Ox service technicians will service your towing system to ensure proper working condition. If you visit the factory, you can stay at the Blue Ox campground at no charge and enjoy a factory tour.
Yes, the BX2640 is designed for 2013-14 Ford Focus ST with Turbo. If your vehicle front looks different from the manual images, contact Blue Ox at (402) 385-3051.
You will need: large vise grip, flat screwdriver, utility knife, reciprocating saw, torque wrench, drill, tape measure, 13/32" drill bit, 1-1/4" hole saw, 8MM socket, 10MM socket, 9/16" socket, 9/16" wrench, T27 Torx, T30 Torx, and Loctite Red.
Yes. You must drill 1-1/4" holes on both sides of the front bumper and 13/32" holes through the bumper using the attachment tab as a guide. Trimming of the plastic bumper cover with a utility knife is also required.
Yes. The fascia, horn, and windshield washer fluid reservoir must be removed and reinstalled during baseplate installation.
Torque 3/8" Grade 5 bolts to 33 foot-pounds. Use Loctite Red on all bolt threads before tightening.
Permanent baseplate safety cables are strongly recommended. They prevent the towed vehicle from breaking loose if the baseplate connection fails. They must be connected from the baseplate to the vehicle's frame rail or cross member and are supplementary to, not a replacement for, legally required safety cables.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to specified torque using Loctite Red. Remove attachment tabs when not in use.
