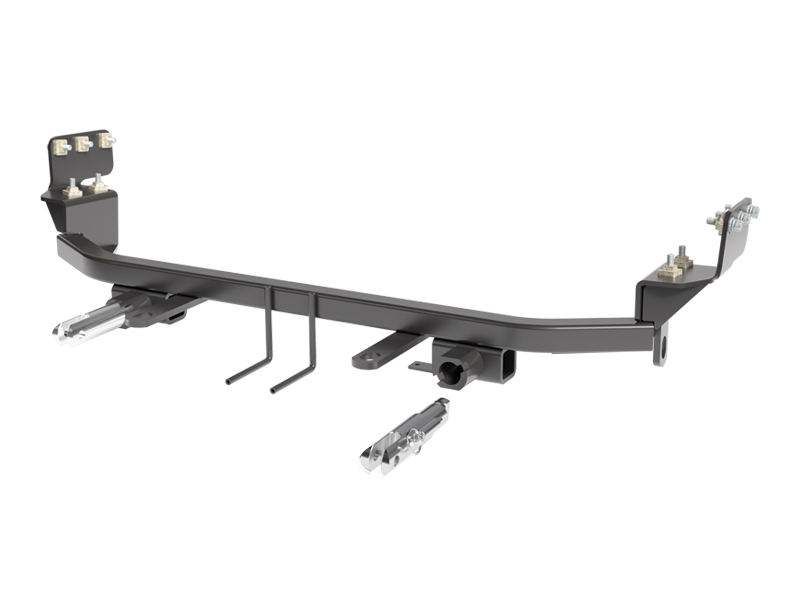

Custom Design: Each Blue Ox BX2663 Tow Bar Bracket is specifically designed to fit individual vehicle models, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Hit the road with confidence when you install the Blue Ox BX2663 Tow Bar Bracket. This high-quality bracket, custom designed for each specific towed vehicle, ensures a perfect fit and reliable performance. Its robust steel construction, finished with a black powder coat, guarantees lasting durability and resistance to corrosion. The bolt-on mounting type ensures a secure installation, while the included hardware and comprehensive instructions make the process straightforward, even for do-it-yourself enthusiasts.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
2 compatible vehicles
| Year | Make & Model | Style | Notes |
|---|---|---|---|
| 2016 - 2018 | Ford Focus | Hatchback | No RS Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Headlights Must be Removed and Replaced During Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
| 2016 - 2018 | Ford Focus | Sedan | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Headlights Must be Removed and Replaced During Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. |
No. The BX2663 is designed for 2016-18 Ford Focus Sedan and 2016-18 Ford Focus Hatchback (No RS). The RS model is explicitly excluded.
Yes, the BX2663 is designed for 2016-18 Ford Focus Sedan. However, dimensional variations between vehicles can be considerable, and the baseplate may need slight tailoring to compensate for manufacturer tolerances. Installation by a Blue Ox Dealer is recommended.
Yes, the BX2663 is designed for 2016-18 Ford Focus Hatchback (No RS). However, dimensional variations between vehicles can be considerable, and the baseplate may need slight tailoring to compensate for manufacturer tolerances. Installation by a Blue Ox Dealer is recommended.
The attachment tab height is 13-1/2" and the attachment tab width is 21-1/2".
Required tools include: large vise grip, flat screwdriver, utility knife, torque wrench, drill, reciprocating saw, 3/8" drill bit, 1-1/4" hole saw, 8MM socket, 10MM socket, 7/16" socket, 7/16" wrench, 9/16" socket, 9/16" wrench, T30 Torx, and 5/16" nut driver. Loctite Red is also required.
Yes. Loctite Red must be applied to all bolt threads before tightening. This is a required step for proper installation.
The kit includes: 10 x 3/8" nut plates with 14" wire (61-5208), 2 x attachment tab assemblies with hole (62-3468), 2 x 1/4"-20 x 3/4" hex head bolts Grade 5 (201-0050), 1 x 1/4"-20 x 1" hex head bolt Grade 5 (201-0071), 2 x #10-32 1/2" round slotted head screws (201-0192), 10 x 3/8"-16 x 1-1/2" hex head bolts Grade 5 (201-0440), 2 x #12-14 x 1" self-drilling screws (201-0979), 2 x #10-32 hex nuts (202-0047), 3 x 1/4"-20 hex nylon insert lock nuts (202-0102), 2 x 1/4" flat washers (203-0001), 6 x 3/8" flat washers (203-0003), 10 x 3/8" lock washers (203-0010), 2 x #10 lock washers (203-0054), 1 x 4-way bracket (299-0685), 2 x class III safety cables (226-0046), 2 x 3/8" quicklinks (229-0359), and 2 x black cap plug receivers (290-0437).
Yes. The fascia, horns, and windshield washer fluid reservoir must be removed and reinstalled for baseplate installation. All removed items should be placed on a flat, sturdy surface and will be reinstalled after the baseplate is installed unless otherwise noted.
Yes. Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
Yes. Drilling is required. You must drill out an existing hole on top of the frame using a 1-1/4" hole saw bit for nut plate installation on both sides of the vehicle (Step 11). Additionally, you must drill bottom holes in the baseplate through the frame using a 3/8" drill bit (Step 14).
Yes. Trimming is required. You must trim the washer reservoir tab on the passenger side (Step 10), trim plastic shielding flush or slightly past on both sides (Step 12), trim the plastic intake to allow baseplate installation (Step 13), and trim the fascia around the convenience links and attachment tabs (Step 19). For ST models only, the 2nd and 3rd fin from the bottom must be notched approximately 1/2" x 3-1/4", and the outer louver frame must be notched on both sides (Step 13).
Yes. You must trim the plastic intake to allow the baseplate to be installed onto the frame (Step 13). For ST models only, additional notching is required: the 2nd and 3rd fin from the bottom must be notched approximately 1/2" x 3-1/4", and the outer louver frame must be notched on both sides.
Yes. Use a good quality paint to spray cut edges of frame to prevent rusting. This is a required maintenance step to protect the frame from corrosion.
For Grade 5 inch bolts: 1/4" = 10 ft-lbs, 5/16" = 19 ft-lbs, 3/8" = 33 ft-lbs, 7/16" = 54 ft-lbs, 1/2" = 78 ft-lbs, 5/8" = 154 ft-lbs, 3/4" = 257 ft-lbs. For Grade 8 inch bolts: 1/4" = 14 ft-lbs, 5/16" = 29 ft-lbs, 3/8" = 47 ft-lbs, 7/16" = 78 ft-lbs, 1/2" = 119 ft-lbs, 5/8" = 230 ft-lbs, 3/4" = 380 ft-lbs.
For Grade 8.8 metric bolts: 6MM = 6 ft-lbs, 8MM = 16 ft-lbs, 10MM = 31 ft-lbs, 12MM = 54 ft-lbs, 14MM = 89 ft-lbs, 16MM = 161 ft-lbs, 18MM = 222 ft-lbs. For Grade 10.9 metric bolts: 6MM = 8 ft-lbs, 8MM = 22 ft-lbs, 10MM = 40 ft-lbs, 12MM = 70 ft-lbs, 14MM = 117 ft-lbs, 16MM = 230 ft-lbs, 18MM = 318 ft-lbs.
Align the holes in the side plate to the existing holes in the frame and loosely install the 3/8" hardware first. Then drill the bottom holes in the baseplate through the frame using a 3/8" drill bit and install the 3/8" hardware. Fully tighten the bottom bolts first. Once the bottom bolts are fully tightened, go back and fully tighten the side plate bolts. Do this on both sides of the vehicle. Use Loctite Red on all bolt threads and tighten all bolts to the appropriate torque.
On the passenger side, reinstall the washer reservoir and horn using the bracket on the baseplate and the new hardware provided (Step 16). On the driver side, bend back the webbing and reinstall the wheel well brace, then install the horn to the webbing's existing hole (Step 17).
The breakaway switch installation is listed as optional. If you choose to install it, use the supplied 1/4" hardware to attach it to the bracket on the baseplate (Step 18).
The BX8869 Tail Light Wiring Kit is recommended for this vehicle. You must drill a hole according to the tail light wiring kit instructions. However, the manual does not specify whether the kit is included or must be purchased separately.
During removal, you must disconnect electrical connections from the fascia (Step 6), the washer reservoir (Step 8), and the wire loom on top of the frame (Step 11). Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for manufacturer's towing specifications.
If the baseplate is involved in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The cables must remain installed as long as the baseplate is installed. They are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle. Do not mount the cables against wires, hoses, or brake lines.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The manual shows the recommended installation of the cables to the frame of the vehicle. Additional options may interfere with suggested mounting; in case of interference, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables. Be sure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. This is critical to confirm that all systems are working correctly before the fascia is reinstalled.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip.
Yes. Remove the attachment tabs when not in use, if applicable.
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
The BX2663 has a three-year limited warranty from the date of delivery for the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. Coverage is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any warranty claim. The warranty is non-transferable.
The warranty does not cover incorrect or improper installation, improper use, modification or neglect, failure to properly service and maintain, misuse, act of God, accident, or failure to follow guidelines in the instructional material. It also does not cover normal wear and tear, paint, or rust. The warranty does not cover loss of use, loss of time, inconvenience, mileage, transportation expense, return shipping, mechanic travel time, telephone, road service, towing, rental during repairs, travel, lodging, loss or damage to personal property, or loss of earnings.
No. If a bolt is lost or needs replacement, use a replacement bolt of the same grade. In most cases it will be Grade 5. Do not use homemade or non-typical parts. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to use the correct replacement bolt will void the manufacturer's warranty.
The BX2663 fits 2016-18 Ford Focus Sedan and Hatchback (No RS). It does not fit the RS model. Dimensional variations between vehicles may require slight tailoring.
Yes. Installation requires drilling with a 1-1/4" hole saw and 3/8" drill bit, and trimming the washer reservoir tab, plastic shielding, plastic intake, and fascia. ST models require additional notching of the plastic intake fins.
Required tools include torque wrench, drill with 3/8" and 1-1/4" bits, reciprocating saw, T30 Torx, sockets (8MM, 10MM, 7/16", 9/16"), and Loctite Red. A large vise grip, flat screwdriver, and utility knife are also needed.
Yes. The fascia, horns, and windshield washer reservoir must be removed and reinstalled during installation.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for manufacturer's towing specifications.
Permanent baseplate safety cables are strongly recommended and must be connected from the baseplate to the frame rail or cross member. They are in addition to, not a replacement for, legally required safety cables.
Tighten 3/8" Grade 5 bolts to 33 foot-pounds. Apply Loctite Red to all bolt threads before tightening.
The BX8869 Tail Light Wiring Kit is recommended. You must drill a hole according to the kit instructions. Check with your dealer whether the kit is included or must be purchased separately.
Dimensional variations between vehicles can be considerable. The baseplate may need slight tailoring to compensate for vehicle manufacturer's tolerances. If alignment is difficult, contact a Blue Ox Dealer at (402) 385-3051 for assistance.
Before reinstalling the fascia, ensure that all electrical connections are plugged in and accessories are functioning properly. Check that all connections made during removal (fascia, washer reservoir, and wire loom) are fully reconnected and seated. If accessories still do not function, contact Blue Ox Technical Service at (402) 385-3051.
Ensure you are using Loctite Red on all bolt threads before tightening. Tighten all bolts to the appropriate torque according to the torque chart. Before each towing trip, inspect all towing equipment for loose bolts and retighten as needed.
