Constructed from high-quality steel for superior strength and durability, ensuring the bracket can withstand heavy-duty usage.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

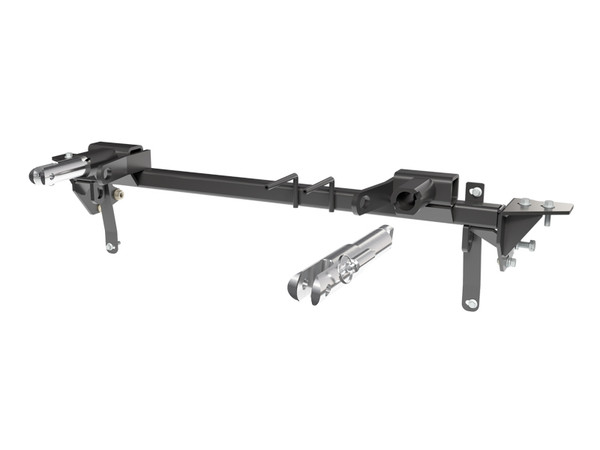

Experience the perfect blend of strength, durability, and ease-of-installation with the Blue Ox BX2628 Tow Bar Bracket. Custom designed for each specific towed vehicle, this base plate is made from high-quality steel, ensuring robustness and longevity. The sleek black finish not only adds aesthetic appeal but also features a powder coat that enhances resistance to corrosion and wear. The product comes with all necessary hardware, making the installation process a breeze even for do-it-yourself enthusiasts.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2013 | Ford Edge | Vehicles With Adaptive Cruise Control Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Headlights Must be Removed and Replaced During Installation Baseplate Has Non 24 in. Spaced Attachment Tabs Requires Motorhome Mounted Tow Bar/Adapter To Utilize Car Mounted Tow Bar Tow Bar Adapters Not To Be Used On Vehicles Over 5000 lbs. Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EDGE LIMITED (Part #FDRWBX2628) fits the following vehicles: 2011-2013 Ford Edge. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EDGE LIMITED (Part #FDRWBX2628) fits 2011-2013 Ford Edge models. The 2013 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EDGE LIMITED (Part #FDRWBX2628) is designed to fit the 2011-2013 Ford Edge.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD EDGE LIMITED (Part #FDRWBX2628) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
No. The BX2628 is designed for 2011-14 Ford Edge models but explicitly excludes 2.0L EcoBoost AWD variants. If your vehicle has this engine and drivetrain combination, this baseplate is not compatible.
Yes. The BX2628 is specifically designed for 2011-14 Ford Edge models with Adaptive Cruise Control included. The baseplate is compatible with this factory feature.
The attachment tab height is 26-1/2" and the width is 26". These dimensions are important for ensuring proper clearance and alignment during installation and when towing.
Blue Ox recommends that the BX2628 be installed by Blue Ox Dealers who are familiar with the product and have the equipment and knowledge necessary to do fit work. Dealers can be found at www.blueox.com or by contacting Blue Ox Technical Service at (402) 385-3051. The installation involves removal of multiple vehicle components, drilling, cutting, and trimming, which requires specialized knowledge.
Required tools include: 5.5MM socket, 8MM socket, 10MM socket, 13MM socket, 9/16" socket, 3/4" socket, Phillips screwdriver, flat screwdriver, drill, 1 1/4" hole saw, 13/32" drill bit, 17/32" drill bit, reciprocating saw, utility knife, tape measure, torque wrench, hammer, large vise grip, and floor jack. Loctite Red is also required for all bolt threads.
The following components must be removed and reinstalled after baseplate installation: front fascia, headlight assemblies (both sides), windshield washer fluid reservoir, and the metal bumper (which is not reinstalled). The radiator cross member will drop slightly when the bumper is removed and must be repositioned during baseplate installation.
Yes. Drilling is required. You must drill two 1 1/4" holes into the frame on each side using a 1 1/4" hole saw to allow access for tightening bolts. The manual warns to be aware of the dangers of torque and drill bit length when using power drills.
Yes. Cutting and trimming are required. You must use a reciprocating saw to cut straight down on dashed lines on the front of the frame on both sides and bend the frame across the bottom (Step 8). Some models may require trimming of plastic areas below the tube (Step 9). The back side of the front fascia requires trimming with a reciprocating saw (Step 18), and the grille area in front of the attachment tabs must be trimmed with a utility knife to create an opening for the tabs (Step 19). The manual recommends using good quality paint to spray cut frame edges to prevent rusting.
Yes. A floor jack is required to hold the radiator cross member up in place during baseplate installation. When the metal bumper is removed in Step 7, the radiator cross member will drop slightly and must be supported with a floor jack while the baseplate is being installed.
The manual provides general torque specifications for Grade 5 and Grade 8 bolts in inch sizes, and Grade 8.8 and Grade 10.9 bolts in metric sizes. For example, 3/8" Grade 5 bolts torque to 33 ft-lbs, and 3/8" Grade 8 bolts torque to 47 ft-lbs. Metric 10MM Grade 8.8 bolts torque to 31 ft-lbs. All bolts must be tightened according to the torque chart provided unless otherwise specified. Loctite Red must be used on all bolt threads before tightening.
Existing bolts are reused at specific points: four M10 x 1.5 x 35 hex flange screws and four M8 x 1.25 x 35 hex flange screws from the vehicle are reused to mount the baseplate. Additionally, the two 13MM bolts and two 10MM bolts removed from the bumper in Step 7 are reinstalled in Step 14 to hold the radiator support back in place. All other fasteners are supplied in the hardware kit.
1. Insert one existing 13MM bolt removed in Step 7 to temporarily hold the baseplate in place on each side (Step 11). 2. Drill two 1 1/4" holes into the frame on each side (Step 12). 3. Install 3/8"-16x1" hex bolts with Loctite, 3/8" lock washers and 3/8" flat washers into the two outside holes, tightened with 3/8"-16 hex flange whiz lock nuts (Step 13). 4. Install a 1/2"-13x1" hex bolt with Loctite, 1/2" lock washer and 1/2" flat washer into the inside hole, tightened to a 1/2" wire nut inserted into the frame (Step 13). 5. Reinstall the two 13MM bolts and two 10MM bolts removed in Step 7 to hold the radiator support back in place (Step 14).
After cutting the frame in Step 8, you must hit the top of the frame a couple of times with a hammer to get it level. Use a straight edge as a guide to ensure the frame is properly leveled on both sides of the vehicle. This preparation is necessary before placing the baseplate on the frame.
The BX8848 4-Diode Wiring Kit is recommended for this vehicle. The baseplate includes a 6-pin connector and 4-pin connector for electrical connections, and a breakaway switch bracket is included.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed the GVWR.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX2628 includes two Class IV 36" safety cables and quicklinks. These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must remain installed as long as the baseplate is installed. The cables must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The recommended installation is to secure the cables to a solid piece of the frame of the vehicle. The manual shows two options for cable routing. Be sure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle. If additional options interfere with the suggested mounting, secure the cables to a solid piece of the frame as described in the instructions included with the permanent baseplate safety cables.
Be sure that ALL electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia. This includes the headlight assemblies and windshield washer fluid reservoir electrical connections.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. The product should be registered online at www.blueox.com to receive alerts about product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
Yes. The attachment tabs should be removed when not in use. The baseplate includes two attachment tab assemblies that can be detached when the vehicle is not being towed.
The hardware kit includes: 2 x 1/2"-13 whiz nut weldments with 10" wire, 2 x 1/4"-20 x 3/4" hex head bolts (Grade 5), 2 x 1/2"-13 x 1" hex head bolts (Grade 5), 2 x #10-32 1/2" round slotted head screws, 4 x 3/8"-16 x 1" hex head bolts (Grade 5), 2 x #12-14 x 1" self-drilling screws, 2 x #10-32 hex nuts, 2 x 1/2" lock washers, 4 x 3/8"-16 hex flange nuts, 4 x 3/8" flat washers, 2 x 1/2" flat washers, 4 x 3/8" lock washers, 2 x 1/4"-20 hex nuts with nylon insert, 2 x #10 lock washers, 1 x electrical bracket, 2 x class IV 36" safety cables, 2 x 1/2" quicklinks, and 2 x black cap plug receivers.
No. Use only genuine factory replacement parts on the baseplate. Do NOT substitute homemade or non-typical parts. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Failing to follow these requirements will void the manufacturer's warranty.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. The warranty is valid only if the customer warranty card is returned within 30 days of purchase and a copy of the original invoice accompanies any warranty claim. The warranty is non-transferable and does not cover incorrect or improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint, or rust. The warranty does not cover loss of use, loss of time, inconvenience, mileage, transportation expense, return shipping, mechanic travel time, road service, towing, rental during repairs, travel, lodging, or loss of personal property.
The BX2628 fits 2011-14 Ford Edge models with Adaptive Cruise Control, but NOT 2.0L EcoBoost AWD variants. Confirm your engine and drivetrain before purchasing.
You need sockets (5.5MM, 8MM, 10MM, 13MM, 9/16", 3/4"), screwdrivers (Phillips and flat), drill with 1 1/4" hole saw and bits (13/32", 17/32"), reciprocating saw, utility knife, tape measure, torque wrench, hammer, vise grip, floor jack, and Loctite Red.
Blue Ox recommends installation by a Blue Ox Dealer. The installation requires removal of fascia, headlights, and washer reservoir, plus drilling, cutting, and frame modifications. Find a dealer at www.blueox.com or call (402) 385-3051.
Yes. You must drill two 1 1/4" holes into the frame on each side using a 1 1/4" hole saw. Cutting and trimming of frame and fascia are also required.
Use the torque chart provided: 3/8" Grade 5 bolts = 33 ft-lbs, 3/8" Grade 8 = 47 ft-lbs, 1/2" Grade 5 = 78 ft-lbs, 1/2" Grade 8 = 119 ft-lbs. Apply Loctite Red to all bolt threads before tightening.
The baseplate is tested to your vehicle's GVWR. Do not exceed this weight or the warranty is void. Check your vehicle owner's manual for towing specifications.
Yes. Two Class IV 36" permanent baseplate safety cables and quicklinks are included. These must be attached to the baseplate and frame and are required in addition to legally required towing vehicle safety cables.
Verify all electrical connections are plugged in and functioning. Inspect for cracked welds, missing or worn parts, and loose bolts. Ensure safety cables are properly attached and do not rub hoses or moving parts.
This is normal. When the metal bumper is removed in Step 7, the radiator cross member will fall down slightly. Use a floor jack to hold the radiator cross member up in place during baseplate installation (Step 11). After the baseplate bolts are installed in Step 13, reinstall the two 13MM bolts and two 10MM bolts removed in Step 7 to hold the radiator support back in place (Step 14).
The dimensional variations between otherwise identical vehicles can be considerable. While the baseplate was designed for easy installation, it may be necessary to tailor the baseplate slightly to compensate for vehicle manufacturer's tolerances. Some models may need to have the plastic area below the tube trimmed. Set the baseplate on top of the frame and clamp into place with vise grips. Take a marker and draw a line on the plastic piece below the tube, then remove the baseplate and trim away the plastic area outlined using a reciprocating saw. Do this on both sides of the vehicle.
After cutting the frame in Step 8, you must hit the top of the frame a couple of times with a hammer to get it level. Use a straight edge as a guide to ensure proper alignment. Do this on both sides of the vehicle before proceeding with baseplate installation.
