Custom designed for each specific towed vehicle, ensuring a perfect fit and compatibility.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

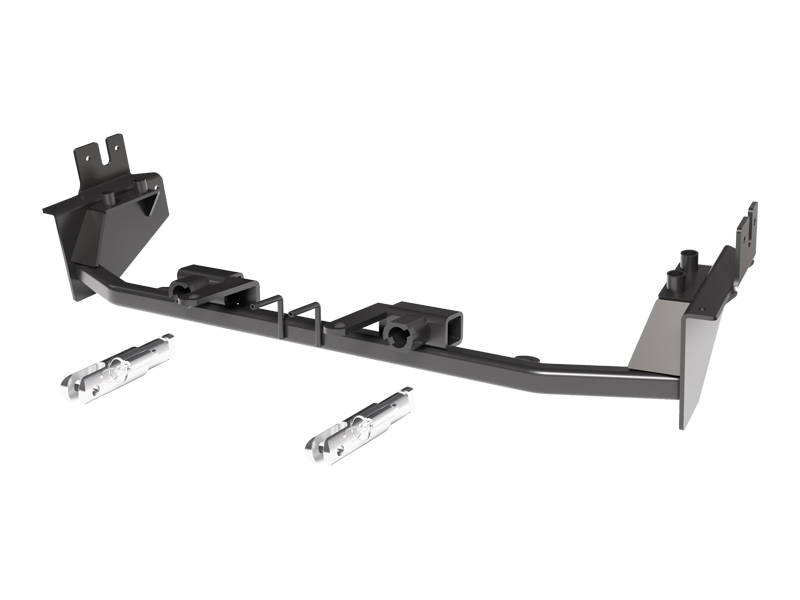

Enhance your towing experience with the Blue Ox BX2629 Tow Bar Bracket. Custom designed for a perfect fit on your specific vehicle, this high-quality bracket is constructed from robust steel, ensuring durability and longevity. Finished with a black powder coat, it not only offers superior resistance to corrosion and wear, but also blends seamlessly with your vehicle's aesthetics. The bracket includes all necessary mounting hardware and comprehensive instructions for a straightforward, do-it-yourself installation. With its bolt-on mounting type, it ensures a secure fit and peace of mind on the road. Trust in the Blue Ox BX2629 Tow Bar Bracket for a reliable towing solution.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2012 | Ford Taurus | ncludes Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Headlights Must be Removed and Replaced During Installation Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
Yes, the BX2629 is designed specifically for 2011-2012 Ford Taurus with Adaptive Cruise Control. However, the manual notes that dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments such as filing holes, bending electrical rods or bending end plates may be necessary to compensate for manufacturer tolerances.
No. Due to the design of removable tabs on the BX2629, the RangeFinderII, Acclaim and Ambassador tow bars cannot be used with this baseplate.
Only adapters BX8833 and BX88151 can be used with the BX2629. All other adapters are not compatible with this baseplate.
Required tools are: 5.5mm socket, 8mm socket, 10mm socket, large vise grip, Phillips screwdriver, utility knife, torque wrench, tape measure, hack saw blade, drill, and 13/32" drill bit. Loctite RED is also required on all bolts before tightening.
The kit includes: 1 weld mount (61-6870), 8 weld nut plates with 14" wire (61-5208), 8 3/8-16 x 1 1/4" hex head bolts Grade 5 (201-0368), 4 3/8-16 x 2 1/2" hex bolts Grade 5 (201-0336), 12 3/8" lock washers (203-0010), 4 3/8-16 hex flange whiz lock nuts (202-0071), 2 #12-14 x 1" self-drilling screws (201-0979), 2 10-32 x 1/2" slot round head screws (201-0192), 2 #10 lock washers (203-0054), 2 #10-32 hex nuts (202-0047), 2 4-way connector adapters (101-5822), 2 removable attachment tab assemblies (62-3468), 1 breakaway bracket (102-7191), 3 1/4-20 x 3/4" hex bolts Grade 5 (201-0050), 3 1/4-20 hex nylon nuts (202-0102), 7 1/4" flat washers (203-0001), 2 36" Class III baseplate safety cables (226-0046), 2 3/8" quicklinks (229-0359), and 2 receiver cap plugs (290-0437). The breakaway switch (293-1339) is not provided.
The manual states that the BX8848 4-Diode Wiring Kit is recommended for this vehicle, but does not specify whether it is included in the kit or must be purchased separately. Contact Blue Ox at (402) 385-3051 to confirm.
The fascia, horn, washer reservoir, adaptive cruise control module, and plastic cover must be removed for installation. These components are reinstalled after the baseplate is secured.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051.
Yes, drilling is required. You must drill two holes under the frame using a 13/32" drill bit for the frame mounting bolts, and four additional holes using the same 13/32" drill bit for the bumper mounting bolts. When using power drills, be aware of the dangers of torque and drill bit length.
Yes, trimming is required. On the passenger side, use a hack saw blade to trim the air dam beside the radiator 2 1/4" up and 4 1/2" across. On the back side of the fascia, use a utility knife to cut to the bumper bracket that moulds around the bumper on both sides. Before reinstalling the washer reservoir, cut off the top right installation tab about 1 1/2" x 1 1/2". Finally, hold the fascia up in front of the baseplate, mark and trim the area needed for the baseplate to come through.
The manual provides general torque specifications for metric bolts but does not specify which grade applies to the 3/8-16 bolts used in this installation. The manual states to tighten all bolts according to the torque chart on the front page or page 3 of the Baseplate Towing General Instructions, and to use Loctite RED on all bolts before tightening. Contact Blue Ox at (402) 385-3051 for the specific torque value for these bolts.
The manual provides a general torque chart for inch bolts but does not specify the grade of the 1/4-20 bolts used for the breakaway bracket. According to the torque chart, 1/4" Grade 5 bolts should be torqued to 10 foot-pounds and Grade 8 to 14 foot-pounds. Use Loctite RED on all bolts before tightening. Contact Blue Ox at (402) 385-3051 to confirm the correct grade and torque value for your installation.
The attachment tab height is 13" and the attachment tab width is 16.5".
The BX8848 4-Diode Wiring Kit is recommended for this vehicle. Confirm with your installer or Blue Ox at (402) 385-3051 whether this kit is included or must be purchased separately.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. Two 36" Class III baseplate safety cables are included in the kit. The cables must not be mounted against wires, hoses or brake lines. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced and not used again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before each towing trip, inspect all towing equipment for cracked welds, missing or worn parts and loose bolts. Ensure all electrical connections are plugged in properly and functioning before installing the fascia. Be sure the safety cables do not rub against any hoses or moving parts. Confirm the towability and pre-towing procedures for your vehicle with the owner's manual or contact the vehicle's manufacturer for specific towing procedures.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Use Loctite RED on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No. If a bolt is lost or in need of replacement, you must use a replacement bolt of the same grade. In most cases it will be Grade 5. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Do not substitute homemade or non-typical parts. Failing to use the correct replacement bolt will void the manufacturer's warranty.
Yes, the BX2629 is designed for 2011-2012 Ford Taurus with Adaptive Cruise Control. Minor adjustments may be needed to compensate for manufacturer tolerances.
RangeFinderII, Acclaim and Ambassador tow bars cannot be used. Only adapters BX8833 and BX88151 are compatible. All other adapters are not compatible.
Yes. You must drill six holes total using a 13/32" drill bit: two under the frame and four in the bumper area. Trimming of the air dam and fascia is also required.
Required tools: 5.5mm, 8mm, and 10mm sockets, Phillips screwdriver, utility knife, torque wrench, tape measure, hack saw blade, drill with 13/32" bit, large vise grip, and Loctite RED.
The fascia, horn, washer reservoir, adaptive cruise control module, and plastic cover must be removed. These are reinstalled after baseplate installation.
Two 36" Class III permanent baseplate safety cables are included and strongly recommended. They must be connected to the frame rail or cross member and not mounted against wires, hoses or brake lines.
Use Loctite RED on all bolts before tightening. Tighten according to the torque chart on page 1 or page 3 of the Baseplate Towing General Instructions. For 1/4" Grade 5 bolts: 10 ft-lbs. For 3/8" bolts, consult the general chart or contact Blue Ox at (402) 385-3051.
Inspect for cracked welds, missing or worn parts, and loose bolts. Verify all electrical connections are plugged in and functioning. Ensure safety cables do not rub hoses or moving parts. Confirm vehicle towability with the owner's manual.
If the front of your vehicle looks different than the illustration in the manual, call Blue Ox at (402) 385-3051. The dimensional variations between otherwise identical vehicles can be considerable, and minor adjustments such as filing holes, bending electrical rods or bending end plates may be necessary.
When sliding the baseplate up from the bottom, ensure it is level with the frame and positioned as far up as possible before clamping in front. If it does not sit level, the dimensional variations of your vehicle may require minor adjustments such as filing a hole slightly, bending electrical rods or bending end plates. Contact Blue Ox at (402) 385-3051 for assistance.
