Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2000 - 2004 Ford Excursion
Confirmed to Fit
1999 - 2004 Ford F-250
Confirmed to Fit
1999 - 2004 Ford F-250 Super Duty
Confirmed to Fit
1999 - 2004 Ford F-350
Confirmed to Fit
1999 - 2004 Ford F-350 Super Duty
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $699.99. Current price is $609.00.You save $90.99 (13%)
Free Shipping
Ships free on all orders
Authorized Dealer
1. Custom-Designed: Specifically designed for each towed vehicle, ensuring a perfect fit and seamless compatibility.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

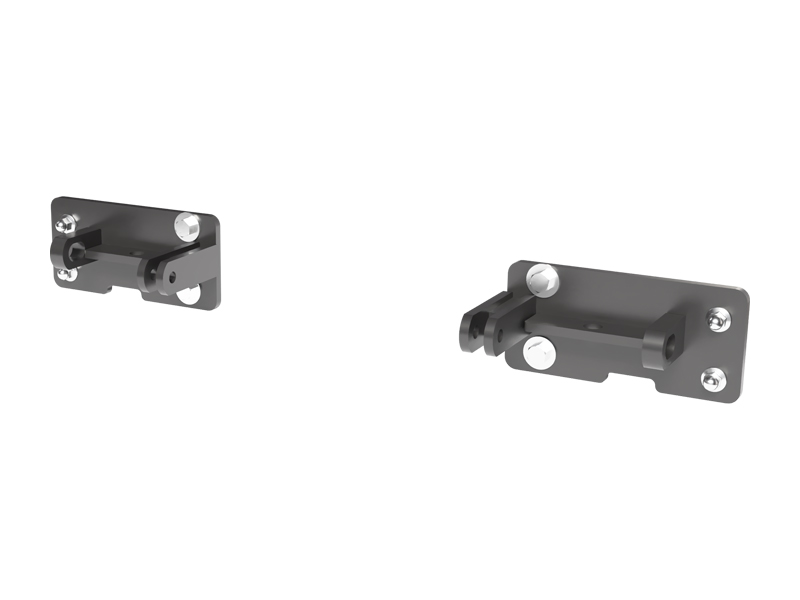

The Blue Ox BX2163 Tow Bar Bracket is a premium-grade, custom-designed base plate meticulously crafted for your specific towed vehicle. Made from robust steel with a sleek black powder coat finish, this bracket ensures durability and resistance against harsh weather conditions. This easy bolt-on mounting type bracket comes with all necessary hardware and comprehensive instructions, making it a perfect choice for do-it-yourself installations.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
5 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2000 - 2004 | Ford Excursion | Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight |
| 1999 - 2004 | Ford F-250 | 2WD/4WD Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Will Not Fit the Harley Davidson or STX Special Edition Trim Package for 2003: 2005 Model Years Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
| 1999 - 2004 | Ford F-250 Super Duty | 2WD/4WD Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Will Not Fit the Harley Davidson or STX Special Edition Trim Package for 2003: 2005 Model Years Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
| 1999 - 2004 | Ford F-350 | 2WD/4WD Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Will Not Fit the Harley Davidson or STX Special Edition Trim Package for 2003: 2005 Model Years Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
| 1999 - 2004 | Ford F-350 Super Duty | 2WD/4WD Comes with Standard Attachment Tabs Install Rating 2 Minor Drilling Required Be Sure to Confirm the Weight of Your Individual Vehicle Before Towing. Always Insure Both Your Tow Bar and Hitch are Adequately Rated for the Vehicle’s Overall Weight Will Not Fit the Harley Davidson or STX Special Edition Trim Package for 2003: 2005 Model Years Height Deviation up to 4” higher on the Towing Vehicle Allowed When Used for Utility Applications Only with an Allure Tow Bar |
Quick Ship
In stock and ready to ship — order now!
FREE ShippingFREE SHIPPING
Estimated delivery Tue, Sep 22 - Fri, Sep 25
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout
Total for 1 item:
$609.00$699.99
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F250 SUPER DUTY (Part #FDRWBX2163) fits 2000-2004 Ford Excursion models. The 2004 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F250 SUPER DUTY (Part #FDRWBX2163) fits the following vehicles: 2000-2004 Ford Excursion; 1999-2004 Ford F-250; 1999-2004 Ford F-250 Super Duty; 1999-2004 Ford F-350; 1999-2004 Ford F-350 Super Duty. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F250 SUPER DUTY (Part #FDRWBX2163) is designed to fit the 2000-2004 Ford Excursion.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, FORD F250 SUPER DUTY (Part #FDRWBX2163) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes. The BX2163 is designed for 1999–2004 Ford F250/F350 and 2000–2005 Ford Excursion. Your 2002 F-250 is within the supported model years.
Yes. The BX2163 is designed for 2000–2005 Ford Excursion models.
No. The BX2163 is designed only for 1999–2004 Ford F250/F350 and 2000–2005 Ford Excursion. It does not fit F-150 models.
The attachment tab height is 25 inches and the width is 28-3/8 inches.
Required tools are: torque wrench, drill, 1/2" drill bit, 6MM socket, 15MM socket, 18MM socket, 21MM socket, 3/4" socket, and 3/4" wrench. Loctite Red is also required for all bolt threads.
The kit includes: two weldment base plates (driver and passenger side), two 4-way connector adapters, one 90° electrical bracket, six 1/2"-13 x 1-3/4" Grade 5 hex head bolts, four 1/4"-20 x 3/4" Grade 8 hex head bolts, four 1/2"-13 hex nuts, four 1/4"-20 hex flange Whiz Lock nuts, two #10-32 hex nuts, two 1/4" flat washers, four 1/2" flat washers, four 1/4" lock washers, six 1/2" lock washers, two #10 lock washers, two Class IV safety cables, and four 1/2" Quicklinks.
Blue Ox recommends that installation be performed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do 'fit work'. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051.
The cross member (three bolts on each side, removed with 21MM socket), air dam (nine screws, removed with 6MM socket), tow hooks (three bolts on each side, removed with 15MM socket), and four bumper opening bolts (two on each side, removed with 18MM socket) must be removed. The cross member and air dam are reinstalled after baseplate installation. The tow hooks are not reinstalled.
Yes. The four existing bolts removed from the bumper openings in step 4 are reinstalled in step 6 and fully tightened with Loctite Red applied to all bolt threads.
Yes. Drilling is required. In step 7, a 1/2" drill bit is used to ream out the remaining holes in the baseplate. The manual notes that some drilling and trimming is required for this installation.
A 1/2" drill bit is required to ream out the remaining holes in the baseplate during step 7.
Yes. The manual notes that some trimming is required as part of the installation process to compensate for vehicle manufacturer's tolerances.
The torque specification for 1/2" Grade 5 bolts is 78 foot-pounds.
The torque specification for 1/4" Grade 8 bolts is 14 foot-pounds.
The torque specification for 1/2" Grade 8 bolts is 119 foot-pounds.
Yes. The BX8869 Tail Light Wiring Kit is recommended for this vehicle.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight will void the manufacturer's warranty. Reference your vehicle owner's manual for manufacturer's towing specifications.
Yes. Permanent baseplate safety cables are strongly recommended and are included with the BX2163. The cables must be attached to the provided convenience link on the baseplate and secured to a solid piece of the frame. The cables must not rub against any hoses or moving parts. Safety cables must be installed on both sides of the vehicle. These cables are to be used in conjunction with, and not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Safety cables must not rub against any hoses or moving parts. Do not mount the permanent baseplate safety cables against wires, hoses or brake lines. The installer must watch for oil cooler and air conditioner lines, electrical wires and hoses when routing cables.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Be sure that all electrical connections are plugged in and accessories are functioning properly before reinstalling the fascia.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Use a good quality paint to spray cut edges of frame to prevent rusting.
Yes. Remove the attachment tabs when not in use.
Register your product online at www.blueox.com. It is crucial to register your product so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. Warranty coverage is valid only if the customer warranty card is returned by the original purchaser within 30 days of purchase.
The BX2163 fits 1999–2004 Ford F250/F350 and 2000–2005 Ford Excursion.
Yes. A 1/2" drill bit is required to ream out holes in the baseplate during installation.
You need a torque wrench, drill, 1/2" drill bit, 6MM, 15MM, 18MM, 21MM, and 3/4" sockets, 3/4" wrench, and Loctite Red.
Blue Ox recommends installation by Blue Ox Dealers familiar with the product and equipped for 'fit work'. Find a dealer at www.blueox.com or call (402) 385-3051.
The baseplate is tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Check your vehicle owner's manual for towing specifications.
Yes. Two Class IV safety cables and four 1/2" Quicklinks are included. They must be attached to the baseplate and secured to the frame on both sides.
Tighten 1/2" Grade 5 bolts to 78 foot-pounds using Loctite Red on all threads.
Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts with Loctite Red to specification. Paint cut frame edges to prevent rust.
