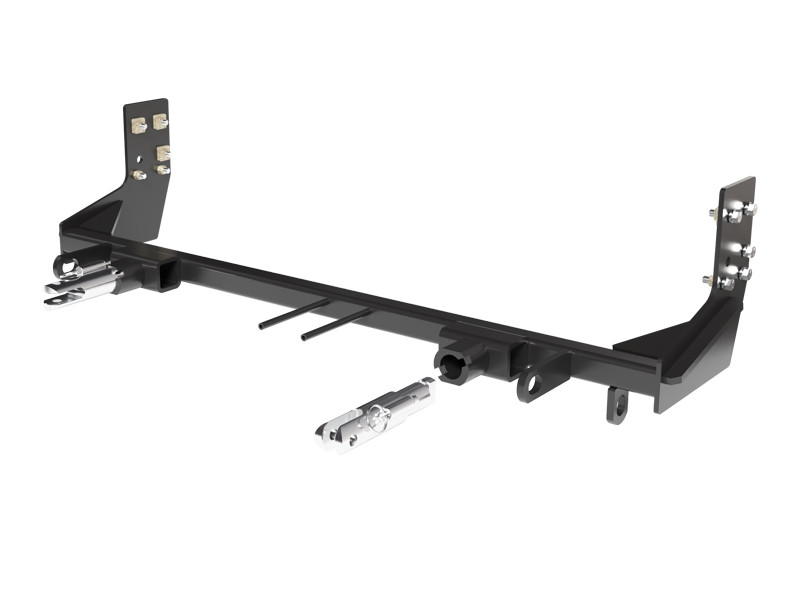

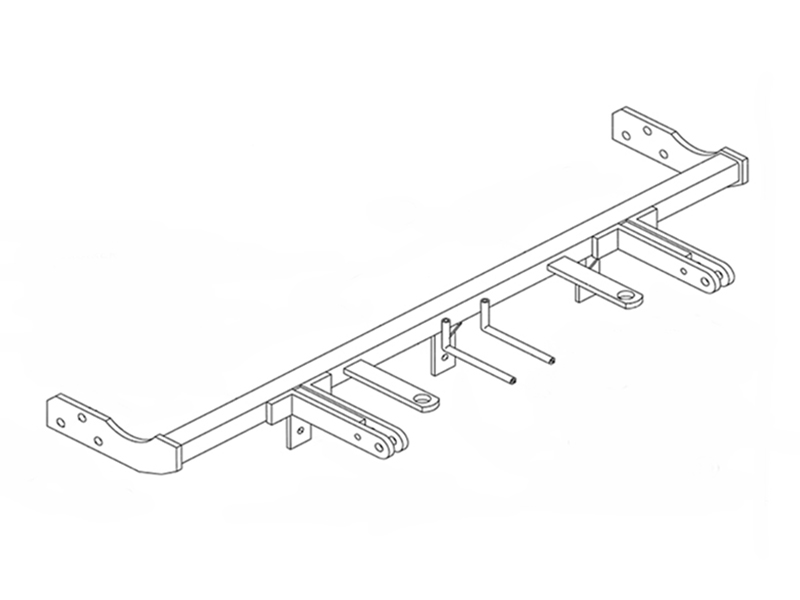

1. Custom Design: Each Blue Ox BX2314 Tow Bar Bracket is specifically designed for each towed vehicle, ensuring a perfect fit and easy installation.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Experience the superior strength and durability of the Blue Ox BX2314 Tow Bar Bracket. Custom designed to fit each specific towed vehicle, this product ensures a perfect fit and easy installation. Made from robust steel with a sleek black powder coat finish, it offers a seamless blend of function and style. The bracket comes with all necessary hardware and comprehensive instructions for a hassle-free, do-it-yourself installation. This bolt-on mounting type offers added convenience and ensures secure fitting for your peace of mind.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2002 | Hyundai Accent | Comes with Standard Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Minor Drilling Required Headlights Must be Removed and Replaced During Installation |
Yes, the BX2314 is designed for the 2002 Hyundai Accent. The baseplate attachment tabs are 24 inches center to center with a height of 14 inches. Installation requires removal of the front fascia, metal bumper, and blinker assembly, and drilling of three holes in the cross member.
The following tools are required: 6MM socket, 7MM socket, 9/16" socket, 17MM socket, Phillips screwdriver, 13/32" drill bit, vise grips, and Loctite Blue. A 10MM socket is also needed to remove metric nuts during fascia removal.
The following must be removed: front fascia (secured by two top push pins, six bottom push pins, one screw, and two upper fascia opening push pins), two metric nuts from fascia support, two metric bolts and headlight assemblies (both sides), push pins under headlight assemblies, windshield washer reservoir (three metric bolts), two push pin brackets from under the metal bumper, and tow brackets (both sides).
Yes, drilling is required. You must drill three holes in the cross member using a 13/32" drill bit. Additionally, the upper bolt location on the windshield washer reservoir will need to be drilled during reinstallation. The manual notes that dimensional variations between vehicles may require filing a hole slightly to allow a bolt to clear.
1. Remove front fascia, headlight assemblies, and windshield washer reservoir. 2. Remove tow brackets and push pin brackets from metal bumper. 3. Hold baseplate to align with tow bracket holes and install spacer plates (item 3), bolts (items 4 and 5) on both sides, using Loctite Blue and tightening to torque specifications. 4. Drill three holes in cross member with 13/32" drill bit. 5. Insert nut plates (item 2) into cross member openings and install bolts (items 6 and 7) with Loctite Blue and torque to specifications. 6. Reinstall windshield washer reservoir using spacer tube (item 14) and bolt (item 15) for front bolt, and drill upper bolt location. 7. Reinstall fascia.
The manual states that all bolts must be torqued according to the torque chart on the General Instructions sheet, which is not included in this document. Contact Blue Ox directly at 402-385-3051 or consult your dealer for the specific torque values.
Yes, Loctite Blue must be applied to all bolts before tightening. This is required for both the baseplate attachment bolts (items 4 and 5) and the cross member bolts (items 6 and 7). The manual emphasizes using Loctite on all bolts before tightening.
The spacer plate (item 3, part number 101-6155) is used as needed during baseplate installation to accommodate dimensional variations between vehicles. The manual instructs to apply spacer plates equally to each side to ensure proper alignment and fit.
To reinstall the windshield washer reservoir: use spacer tube (item 14, part number 107-2447) and bolt (item 15, part number 201-0702) for the front bolt. The upper bolt location will need to be drilled. Reinstall the remaining bolts. Apply Loctite Blue and torque according to the General Instructions sheet.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. Blue Ox supplies safety cables (part number 226-0046, qty. 2) and quicklinks (part number 229-0359, qty. 2) for this purpose. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. These cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Before each towing trip, inspect all towing equipment for: cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened to the recommended specifications using Loctite Red. The baseplate should remain installed as long as you intend to tow, and attachment tabs should be removed when not in use.
The BX2314 kit includes: baseplate weldment (61-5698), three nut plates with wire (61-5208), six spacer plates (101-6155), six 12MM hex bolts Grade 8.8 (201-0603), six 12MM lock washers (203-0105), three 3/8-16 hex bolts Grade 5 (201-0368), three 3/8 lock washers (203-0010), two self-drilling screws (201-0979), two #10-32 hex nuts (202-0047), two #10 lock washers (203-0054), two #10-32 slot round head screws (201-0192), two 4-way connectors (101-5822), one spacer tube (107-2447), one 6MM hex bolt (201-0702), two safety cables (226-0046), and two quicklinks (229-0359).
The manual notes that dimensional variations between otherwise identical vehicles can be considerable. While the baseplate holes were designed for easy installation, it may be necessary to file a hole slightly to allow a bolt to clear. Do not force bolts or modify the baseplate excessively; minor filing is acceptable.
The installer must watch for and avoid: oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed against a wire or hose, it could cause fluid leaks or electrical shorts some time after installation. Do not mount permanent baseplate safety cables against wires, hoses, or brake lines. Ensure the baseplate is properly positioned before final tightening.
Yes, you should register your BX2314 baseplate online at www.blueox.com. Registration is crucial so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Do not substitute other devices if the tow bar pin and clip are lost. Contact Blue Ox or your dealer to obtain genuine replacement parts. Using non-genuine or substitute devices could compromise the safety of your towing system.
If a bolt is lost or needs replacement, use a replacement bolt of the same grade as the original. Refer to the parts list to identify the correct grade (usually Grade 5 or Grade 8.8). Use only genuine factory replacement parts. Repair parts may be ordered through your nearest Blue Ox dealer or distributor. Do not use homemade or nontypical parts.
Yes. Attachment tabs are 24 inches center to center, 14 inches high. Requires removal of front fascia, metal bumper, and blinker assembly.
Yes. Drill three holes in the cross member using a 13/32" drill bit. The upper windshield washer reservoir bolt location also requires drilling.
6MM, 7MM, 9/16", 10MM, and 17MM sockets; Phillips screwdriver; 13/32" drill bit; vise grips; and Loctite Blue.
Yes. Apply Loctite Blue to all bolts before tightening. Torque to specifications on the General Instructions sheet.
Yes. Two safety cables (226-0046) and two quicklinks (229-0359) are included. Cables must connect baseplate to frame rail or cross member and must not contact wires, hoses, or brake lines.
Inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts. Tighten all bolts to recommended specifications before each towing trip.
Front fascia, headlight assemblies, windshield washer reservoir, tow brackets, and push pin brackets from the metal bumper.
