Custom Designed For Your Vehicle
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

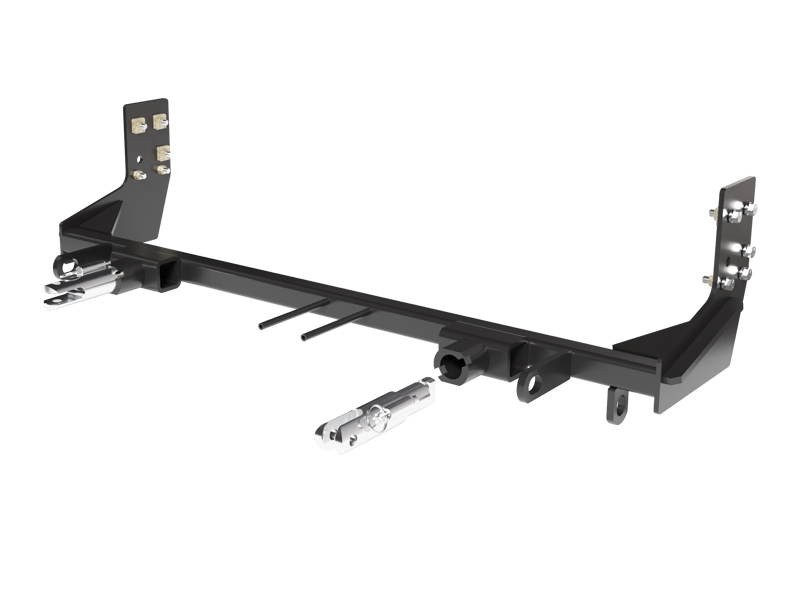

Blue Ox base plates are custom designed for each specific towed vehicle. When you purchase a Blue Ox base plate, it includes all the necessary hardware and instructions for a do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2011 - 2013 | Hyundai Sonata | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Requires Some Trimming of Bumper Fascia/Plastic/And/Or Grill Minor Drilling Required Requires Some Trimming of the Air Dam Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters Only Use Acclaim w/23”: 30” Spaced Removable Tab Baseplates Only Use Adventurer with 18”: 41” Spaced Removable Tab Baseplates Removable Tabs w/Only 1 Hole Will Not Attach to Car Mount Tow Bars or Adapters |
No. The BX2330 is designed specifically for 2011-2012 Hyundai Sonata with no fog lights. If your vehicle has fog lights, contact Blue Ox at (402) 385-3051 to confirm the correct baseplate model for your vehicle.
No. Due to the design of the removable tabs on the BX2330, the RangeFinder II tow bar cannot be used with this baseplate.
Most adapters cannot be used with the BX2330 baseplate. Only the BX8833 and BX88151 adapters are compatible. Contact Blue Ox at (402) 385-3051 if you need to use an adapter not listed here.
The attachment tab height is 13 inches and the width is 24 inches.
Required tools include: large vise grip, flat screwdriver, Phillips screwdriver, torque wrench, utility knife, drill with 13/32" drill bit, reciprocating saw, Loctite RED, and sockets in 8MM, 10MM, 12MM, 13MM, and 9/16" sizes, plus a 12MM wrench and tape measure.
The kit includes: 6 nut plates with 14" wire (3/8"-16), 1 baseplate, 2 attachment tabs, 1 4" flat, 1 breakaway bracket, 3 bolts (1/4"-20 x 3/4"), 2 round slotted head screws (#10-32 1/2"), 10 hex head bolts (3/8"-16 x 1-1/4"), 2 self-drilling screws (#12-14 x 1"), 2 hex nuts (#10-32), 4 nylon insert lock nuts (3/8"-16), 3 nylon nuts (1/4"-20), 3 lock washers (1/4"), 10 lock washers (3/8"), 2 lock washers (#10), 1 electrical bracket, 2 safety cables (36" Class III), 2 quicklinks (3/8"), and 2 black cap plug receivers.
The front fascia and washer reservoir must be removed for baseplate installation. The fascia is removed by taking out Phillips push pins, metric bolts, and unclipping electrical components. The washer reservoir is removed from the passenger side by unplugging hoses and removing bolts.
Yes. Drilling is required. You must drill five holes using a 13/32" drill bit. The baseplate is used as a template to mark the hole locations on the frame rail.
Trimming of the frame and air dam is required. Using a reciprocating saw, cut straight across the top of the washer reservoir hole and straight down on the inside edge on both sides. On the air dam, mark a line 3-1/2" up from the bottom edge and cut straight up the crease, then cut straight out 2" to the edge, and remove this area with the reciprocating saw on both sides.
Slide the baseplate onto the frame rail to align with the existing hole for the washer reservoir on the passenger's side. The baseplate should measure 1/2" from the top of the frame ribbing down to the top edge of the baseplate and be positioned as far forward as possible on both sides. Clamp it in place with a vise grip before drilling.
The torque specification for 3/8"-16 Grade 5 bolts is 33 foot-pounds. All bolts must be treated with Loctite RED before tightening.
The torque specification for 1/4"-20 Grade 5 bolts is 10 foot-pounds. All bolts must be treated with Loctite RED before tightening.
Insert the nut plates into the end of the frame rail, just behind the metal bumper bracket, to align with the top three drilled holes. Then insert 3/8"-16 x 1-1/4" hex bolts and 3/8" lock washers into the baseplate drilled holes. Use Loctite RED on all bolts and tighten with a 9/16" socket.
Insert 3/8"-16 x 1-1/4" hex bolts and 3/8" lock washers into the baseplate's bottom two holes to align with 3/8"-16 lock nuts. Tighten with a 9/16" socket. Be sure to use Loctite RED on all bolts.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. They should remain installed as long as the baseplate is installed. The cables must not be mounted against wires, hoses, or brake lines.
Attach the permanent baseplate safety cables to the provided convenience link on the baseplate. The recommended installation attaches the cables to the frame of the vehicle. Additional options may interfere with suggested mounting; in that case, secure the cables to a solid piece of the frame. Ensure the safety cables do not rub against any hoses or moving parts. Do this on both sides of the vehicle.
Reinstall the washer reservoir on the passenger side using the existing bolts. Be sure that all electrical connections and hoses are plugged in properly before proceeding.
Position the flat behind the breakaway bracket and attach it with 1/4"-20 x 3/4" bolts and 1/4" lock washers. Use Loctite RED on all bolts and tighten to the specified torque (10 foot-pounds for 1/4"-20 Grade 5 bolts).
The 4 or 6 pin electrical coupler is located on the fascia's lower air dam just below the license plate.
If the baseplate is in an accident, it must be replaced. Do not use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite RED on all bolts and tighten to the recommended specifications. Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and recalls.
The BX8869 Bulb and Socket Wiring Kit is available for this vehicle, but the manual does not specify whether it is required or optional. Contact Blue Ox at (402) 385-3051 for clarification on whether this kit is necessary for your installation.
Always use hardware supplied in the hardware kit or existing hardware specified in the Baseplate Towing Installation Instructions. Do not assume existing bolts are adequate for baseplate mounting, even though bolts may be present. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (usually Grade 5).
No. Use only genuine factory replacement parts on your baseplate. Do not substitute homemade or non-typical parts. Failing to follow these instructions or altering the installation instructions will void the manufacturer's warranty.
Yes, the BX2330 is designed for 2011-2012 Hyundai Sonata with no fog lights. It is not compatible with models that have fog lights.
A torque wrench, reciprocating saw, drill with 13/32" drill bit, vise grip, and various sockets (8MM, 10MM, 12MM, 13MM, 9/16") are required. Loctite RED must be applied to all bolts before tightening.
Tighten 3/8"-16 Grade 5 bolts to 33 foot-pounds. All bolts must be treated with Loctite RED before tightening.
Permanent baseplate safety cables are strongly recommended. They must be connected from the baseplate to the frame rail and should remain installed as long as the baseplate is on the vehicle.
If the front of your vehicle looks different than the manual illustration, contact Blue Ox at (402) 385-3051. This may indicate a different model year, trim level, or configuration that requires a different baseplate or installation procedure.
Do not use the baseplate if it is damaged or missing parts. If the baseplate is in an accident, it must be replaced and not used again, as an accident can cause unseen damage that could result in more damage or serious injury. Contact Blue Ox at (402) 385-3051 to order replacement parts or a new baseplate.
Be sure that all electrical connections are plugged in properly and functioning before installing the fascia. If connections are not working after installation, check that all electrical components are properly plugged in, particularly the coax junction on the driver's side and any connections to the washer reservoir. Verify the 4 or 6 pin electrical coupler on the fascia's lower air dam is properly seated.
