Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
2004 Jeep Grand Cherokee
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
On Sale Today
Original price was $699.99. Current price is $609.00.You save $90.99 (13%)
Free Shipping
Ships free on all orders
Authorized Dealer
{'feature': 'Custom Design', 'description': 'Each Blue Ox BX1121 bracket is uniquely tailored for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
The Blue Ox BX1121 Tow Bar Bracket is a premium quality product, uniquely designed for each specific towed vehicle. This robust and durable bracket is crafted from high-grade steel, ensuring maximum strength and longevity. It comes in a sleek black color and is coated with a powder finish for extra resistance against rust and corrosion. The Blue Ox BX1121 is a bolt-on type bracket, ensuring a secure fit and straightforward installation process. Each purchase includes all necessary hardware and comprehensive instructions, enabling a hassle-free, do-it-yourself installation.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 2004 | Jeep Grand Cherokee | Comes with Removable Attachment Tabs Install Rating 2 Bumper Fascia Must Be Removed/Replaced During Install Only Use Acclaim w/23in./Greater Spaced Tab Removable Tab Baseplates Only Use Adventurer w/16: 36 in. Spaced Removable Tab Baseplates Only Use Ambassador w/24 in. Spaced Removable Tabs Removable Tabs w/Only 1 Hole Will Not Attach To Car Mount Tow Bars Removable Tabs w/Only 1 Hole Will Not Attach To Other Adapters Tow Hooks Must Be Removed And Remain Off After Install Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters WiringSystem TailLight BulbOut Indicator Requires PN BX8869 WiringKit |
FREE ShippingFREE SHIPPING
Estimated delivery Thu, Aug 13 - Sun, Aug 16
Order before 2 PM EST Monday–Friday for same-day processing
Guaranteed safe & secure checkout

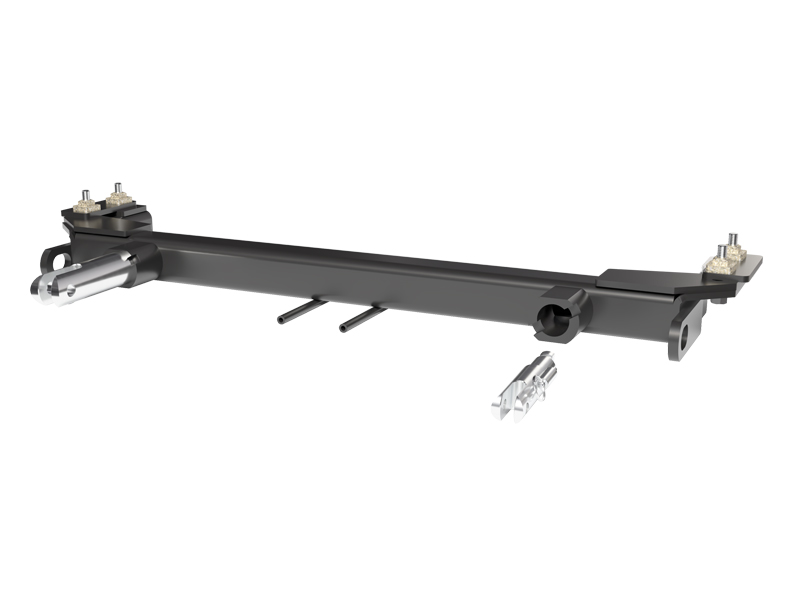

The BX1121 is a baseplate designed for the 2004 Jeep Grand Cherokee. It features removable tabs with an attachment tab height of 18 3/4" and width of 20". The baseplate is intended for use with motorhome mount tow bars and is designed to use existing holes and hardware to mount to the towed vehicle.
Yes, the BX1121 is specifically designed for the 2004 Jeep Grand Cherokee. However, if the front of your vehicle looks different than shown in the manual, contact Blue Ox at (402) 385-3051 before proceeding with installation.
No. Due to the design of the removable tabs on the BX1121, the RangeFinder II and Ambassador tow bars cannot be used with this baseplate. Motorhome mount tow bars are recommended instead.
Most adapters cannot be used with the BX1121. Only the BX8833 and BX88151 adapters are compatible with this baseplate.
The following tools are required: 10MM socket, 15MM socket, 9/16" socket, diagonal cutters, flat screwdriver, plastic rivet gun, and Loctite RED.
The kit includes: 4× 3/8-16 nut plates, 1× baseplate weldment, 2× attachment assemblies, 2× side plate supports, 2× spacer plates, 2× #10-32 x 1/2" slot round head screws, 4× 3/8-16 x 2" hex bolts (Grade 5), 2× #12-14 x 1" self-drilling screws, 2× #10-32 hex nuts, 4× 3/8" flat washers, 4× 3/8" lock washers, 2× #10 lock washers, 1× electrical bracket, 2× 36" Class III baseplate safety cables, 2× 3/8" quicklinks, 6× 6.3MM plastic rivets, and 2× black cap plugs.
No. The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle but is not included in the BX1121 kit and must be ordered separately.
Blue Ox towing products are intended to be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Customer Care Department at (402) 385-3051.
No. The factory tow hooks are removed during installation and will not be reinstalled.
Yes. The front fascia will be removed and reinstalled during the baseplate installation. The installation process involves lifting the fascia, removing clips and pushpins, and then reinstalling it after the baseplate is mounted.
No drilling is required. The baseplate is designed to use existing holes and hardware to mount to the towed vehicle.
Yes. Due to dimensional variations between otherwise identical vehicles, minor adjustments may be necessary to compensate for auto manufacturer tolerances. These adjustments may include filing a hole slightly, bending electrical rods, and/or bending end plates.
The manual references a torque chart on the front page and page 3 of the Baseplate Towing General Instructions, but the specific torque value is not stated in these installation instructions. Consult the General Instructions or contact Blue Ox at (402) 385-3051 for the correct torque specification.
The attachment tab height is 18 3/4" and the attachment tab width is 20".
The BX8869 Bulb and Socket Wiring Kit is recommended for this vehicle. The location for this kit is shown in the installation instructions.
Be sure that ALL electrical connections are plugged in properly and functioning BEFORE installing the fascia.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury.
No. Do NOT use the baseplate if it is damaged or missing parts. For your safety and the preservation of your baseplate, use only genuine factory replacement parts and replacement bolts of the same grade (typically Grade 5).
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame. The two included 36" Class III baseplate safety cables must not be mounted against wires, hoses, or brake lines. These cables should remain installed as long as the baseplate is installed and are to be used in conjunction with, not as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. It is crucial to register your product at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes. The attachment tabs should be removed when not in use.
If the front of your vehicle looks different than shown in the manual, call Blue Ox at (402) 385-3051 before proceeding with installation.
Failing to follow and/or altering these installation instructions in either installation or required equipment will void the manufacturer's warranty.
Yes, the BX1121 is designed specifically for the 2004 Jeep Grand Cherokee. If your vehicle's front looks different than shown in the manual, contact Blue Ox at (402) 385-3051.
You will need: 10MM socket, 15MM socket, 9/16" socket, diagonal cutters, flat screwdriver, plastic rivet gun, and Loctite RED.
Yes, the factory tow hooks are removed and will not be reinstalled.
The baseplate must be replaced and cannot be reused. Accident damage can cause unseen problems that could lead to serious injury or loss of the towed vehicle.
No, the RangeFinder II and Ambassador tow bars cannot be used with the BX1121 due to the design of the removable tabs. Motorhome mount tow bars are recommended.
No. The BX8869 Bulb and Socket Wiring Kit is recommended but must be ordered separately.
