Blue Ox
Verify Fitment
Select your vehicle to confirm this part fits.
1984 - 1996 Jeep Cherokee
Confirmed to Fit
1997 - 2001 Jeep Cherokee
Confirmed to Fit
1986 - 1992 Jeep Comanche
Confirmed to Fit
1984 - 1990 Jeep Wagoneer
Confirmed to Fit
Always the correct part
We know our products
Quality Products
Free Shipping!
Always the correct part
We know our products
Quality Products
Free Shipping!
Custom Designed: Tailored for each specific towed vehicle, ensuring a perfect fit and enhanced towing efficiency.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes

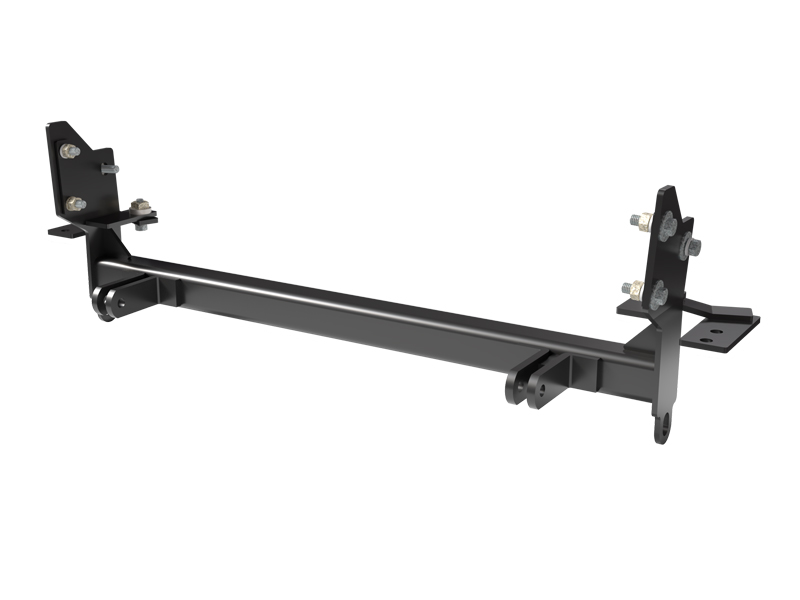

Experience the exceptional durability and hassle-free installation with the Blue Ox BX1110 Tow Bar Bracket. Expertly crafted for each specific towed vehicle, this base plate is constructed from high-quality steel for long-lasting resilience. The sleek black powder coat finish not only enhances its aesthetic appeal but also offers an extra layer of protection against rust and corrosion. With the inclusion of all necessary mounting hardware, this bolt-on base plate ensures a straightforward do-it-yourself installation process.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
4 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1984 - 1996 | Jeep Cherokee | Comes with Standard Attachment Tabs Install Rating 3 PN BX88152 Adapter Can Not Be Used w/This Baseplate Rem.Tabs w/1 HoleWillNotAttachToCarMntTowBrs/OthrAdaptrs Reqs. Some Trim Of Bumper Fascia/Plastic/And/Or Grille Use w/Motorhome Tow Bars/PN BX8833/PN BX88515 Adapters Veh. May Accumulate Miles When Flat Towing. Consult Veh. Owner Manual |
| 1997 - 2001 | Jeep Cherokee | Comes with Standard Attachment Tabs Install Rating 3 PN BX88152 Adapter Can Not Be Used w/This Baseplate Rem.Tabs w/1 HoleWillNotAttachToCarMntTowBrs/OthrAdaptrs Requires Some Trimming Of The Air Dam Steel Belly Pan Must Be Remvd/Remain Off Veh After Install Use w/Motorhome Tow Bars/PN BX8833/PN BX88515 Adapters |
| 1986 - 1992 | Jeep Comanche | Comes with Standard Attachment Tabs Install Rating 3 PN BX88152 Adapter Can Not Be Used w/This Baseplate Rem.Tabs w/1 HoleWillNotAttachToCarMntTowBrs/OthrAdaptrs Reqs. Some Trim Of Bumper Fascia/Plastic/And/Or Grille Use w/Motorhome Tow Bars/PN BX8833/PN BX88515 Adapters |
| 1984 - 1990 | Jeep Wagoneer | Comes with Standard Attachment Tabs Install Rating 3 PN BX88152 Adapter Can Not Be Used w/This Baseplate Downsized Models Only. Off Road Pkg Req. Cutting Some Metal Requires Minor Drilling |
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP CHEROKEE (Part #FDRWBX1110) fits 1984-2001 Jeep Cherokee models. The 2001 model year is the last year covered by this part number. For newer models, check for an updated version.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP CHEROKEE (Part #FDRWBX1110) fits the following vehicles: 1984-2001 Jeep Cherokee; 1986-1992 Jeep Comanche; 1984-1990 Jeep Wagoneer. Always verify your specific year, make, and model before ordering.
Yes, the BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP CHEROKEE (Part #FDRWBX1110) is designed to fit the 1984-2001 Jeep Cherokee.
The BlueOx Tow Bar Base Plate, Front Mount, RV Flat Towing for Select, JEEP CHEROKEE (Part #FDRWBX1110) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
The BX1110 baseplate fits 1984–2001 Jeep Cherokee models, 1984–92 Jeep Comanche, and 1984–90 Jeep Wagoneer & LTD. If your vehicle is within these years and model ranges, the baseplate is compatible.
No. The RangeFinder II and adapters cannot be used with the BX1110 baseplate on these Jeep models.
No. The Acclaim will not fold up with the BX1110 baseplate on these Jeep models.
Yes. The front bumper must be removed to access the frame. The bumper is secured by four T50 Torx bolts—two on the bottom and two on the top.
Remove the plastic center grill, plastic molding surrounding the headlights, fog lights (if equipped), and the two plastic pieces from each end of the metal bumper. The lower plastic spoiler must also be removed and later trimmed to allow for the attachment tabs.
Yes. The vacuum ball fastened to the passenger side of the bumper must be removed during disassembly and replaced after the baseplate is installed.
Remove the rivets fastening the lower plastic spoiler to the bumper. After baseplate installation, hold the spoiler up to its original position, mark where it needs to be trimmed to allow for the attachment tabs, trim it, and replace it using the plastic rivets supplied in the bolt bag.
If your vehicle has a skid plate, it must be removed for baseplate installation. After installation, it can be reinstalled with careful trimming or left off the vehicle. If your vehicle has a rubber rock guard, fold it out of the way during installation.
The black triangular brackets (one on each side of the frame, each with three bolt holes) and the metal nut clips (two on each side) must be removed to allow the baseplate sidemounts to be installed in their place.
Yes. Newer model Cherokees need to have the plates removed from the front of the frame to get access to the center of the frames. Additionally, if your 1997 Cherokee has tow hooks, they must be removed for baseplate installation and will be reinstalled later using new tow hook brackets.
If your vehicle is equipped with a steel belly pan, it must be removed to allow for baseplate installation.
Yes. Drilling is required. You must drill 1/2" holes using the horizontal braces extending back from the baseplate along the frame as a template. A 1/2" drill bit is required.
A 1/2" drill bit is required to drill the holes for the horizontal braces extending back from the baseplate along the frame.
Possibly. The manual states that dimensional variations between otherwise identical cars can be considerable. While the location and size of the holes in the baseplate were designed to allow for easy installation, it may be necessary to file a hole to allow a bolt to clear.
Required tools include: Torx T25, T45, and T50 bits; a drill with 1/2" drill bit; transfer punch; Loctite Red; 7mm, 7/16", 10mm, 15mm, and 18mm sockets; socket extension; 5/8", 7/16", 8mm, 10mm, and 11/16" wrenches.
The BX1110 includes: one baseplate weldment (61-4991), 14 × 7/16" flat washers, 6 × 7/16"-14 × 1½" hex bolts (Grade 5), 2 × flat plates (for models prior to and including 1999), 8 × 7/16" lock washers, 6 × 7/16" hex nuts, 2 × 7/16" wire nuts, 3 × pine tree clips, driver and passenger side tow hook brackets, 2 × 36" baseplate safety cables (Class III), and 4 × 3/8" quicklinks. Existing bolts are reused where specified.
No. The 2 × 4-inch mount plates (Item 4) are to be used on models prior to and including 1999. They are placed inside the frame when replacing the front two bolts of the brackets.
The baseplate sidemounts (Item 1) are placed between the black brackets and the frame. Use 7/16" bolts, nuts, and washers with the two 4-inch mount plates (for models prior to and including 1999) to replace the front two bolts of the brackets. The 4-inch plates are placed inside the frame. The back bolts are reused. Use Loctite Red on all bolts and tighten.
If there is a gap between the frame and the brace, use the extra 7/16" flat washers as spacers.
After drilling the frame holes and installing the horizontal braces, bolt the tow hooks back into place and install the new tow hook brackets (driver side 61-5553, passenger side 61-5554) using 7/16" hardware. Use Loctite Red on all bolts. The new tow hook brackets may not work for models older than 1997.
The manual does not provide a specific torque specification. It instructs to use Loctite Red on all bolts and tighten them. Contact Blue Ox or your installer for the recommended torque value.
The front bumper is secured by four T50 Torx bolts—two on the bottom and two on the top.
A 7mm socket is required to remove the bolts fastening the plastic molding to the fenders and the bolts from the front of the moldings.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1110 includes 2 × 36" baseplate safety cables (Class III). These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must not be mounted against wires, hoses, or brake lines. Permanent baseplate safety cables are to be used in conjunction with, and NOT a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
Watch for oil cooler and air conditioner lines, electrical wires and hoses, and missing parts or attaching points on the frame. If the baseplate is improperly installed and is against a wire or hose, it could cause fluid leaks or electrical shorts some time after the actual baseplate installation. Do not mount the permanent baseplate safety cables against wires, hoses, or brake lines.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
Yes. Remove the attachment tabs when not in use (if applicable).
Yes. It is crucial to register your product online at www.blueox.com so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
Yes, if your vehicle is a 1984–2001 Jeep Cherokee, 1984–92 Comanche, or 1984–90 Wagoneer & LTD. The RangeFinder II and Acclaim tow bar will not work with this baseplate.
Yes. The front bumper must be removed to access the frame. It is secured by four T50 Torx bolts. The plastic molding, center grill, and lower plastic spoiler must also be removed and trimmed.
You will need Torx T25, T45, and T50 bits; a drill with 1/2" bit; transfer punch; Loctite Red; various sockets (7mm, 7/16", 10mm, 15mm, 18mm); and wrenches (5/8", 7/16", 8mm, 10mm, 11/16").
Yes. Two 36" baseplate safety cables (Class III) are included and strongly recommended. They must be connected from the baseplate to the frame rail and must not touch wires, hoses, or brake lines.
Inspect the baseplate for cracked welds, missing or worn parts, and loose bolts. Ensure all bolts are tightened with Loctite Red before each towing trip.
The manual states that dimensional variations between otherwise identical cars can be considerable. If a bolt does not clear, it may be necessary to file the hole to allow clearance.
