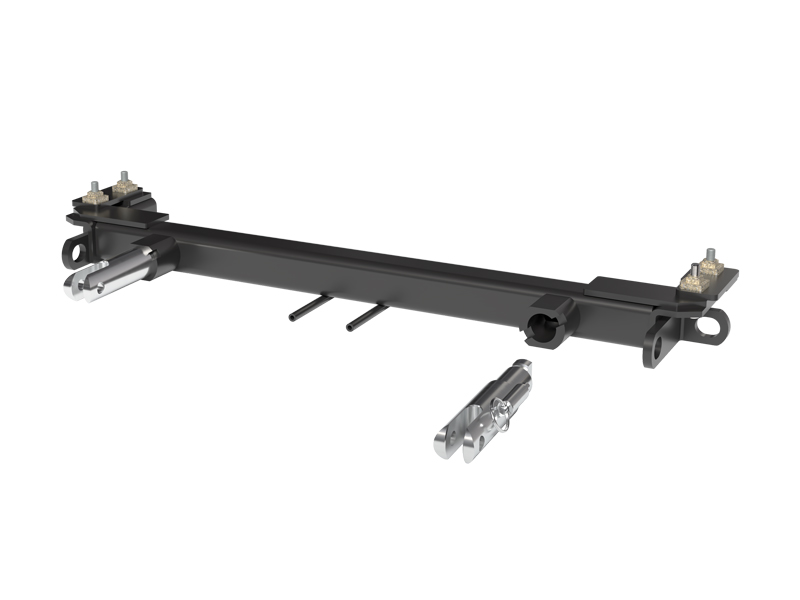

Custom-Fit Design: The Blue Ox BX1115 Tow Bar Bracket is tailored for each specific towed vehicle, ensuring a perfect fit and optimal performance.
Material: Steel
Color: Black
Finish: Powder Coat
Mounting Type: Bolt On
Mounting Hardware Included Yes/No: Yes
Introducing the Blue Ox BX1115 Tow Bar Bracket, your reliable companion for towing needs. Custom-designed for every specific towed vehicle, this tow bar bracket stands out for its superior construction and easy installation. Made from high-quality steel, it boasts a black powder coat finish that adds to its durability and resistance against corrosion. The bolt-on mounting type simplifies the installation process, and with the included mounting hardware, you'll have everything you need for a hassle-free, do-it-yourself setup.
Blue Ox is known internationally for recreational and commercial towing products, manufacturing in Pender, Nebraska since 1925. The line covers tow bars and vehicle-specific baseplates for flat towing behind a motorhome, sway control and weight distributing hitches, supplemental braking accessories and towing wiring, backed by patented designs and long-standing customer service.
Blue Ox has manufactured since 1925 and is recognised internationally for towing products and customer service. The company operates from Pender, Nebraska, where it grew out of Automatic Manufacturing Co., a business that started with cattle oilers and developed into agricultural equipment, tractor accessories and trailer towing hardware. That agricultural engineering heritage still shows in how the towing products are built, and the company holds patents across weight distribution, fifth wheel and tow bar designs.
Flat towing is the discipline Blue Ox is best known for. Towing a car with all four wheels on the ground behind a motorhome demands a system that stays rigid under braking, articulates properly over uneven ground, and connects to the towed vehicle at points strong enough to take the load. Blue Ox tow bars handle the first two, with self-aligning arms that latch under tension and release without a struggle when the load is off them. Vehicle-specific baseplates handle the third, engineered per make and model to tie into structural mounting points behind the fascia.
The wider flat towing range covers supplemental braking systems, safety cables and the accessories that make a complete legal setup, along with baseplate wiring and dinghy towing harnesses that pass lighting signals to the towed vehicle without back-feeding its electrical system.
For conventional trailer towing, Blue Ox weight distributing hitches with integrated sway control transfer tongue load onto the tow vehicle's front axle and resist the yaw that crosswinds and passing trucks induce.
The company describes its foundation as customer service, designing around what owners actually ask for, and it runs an RV park adjacent to the factory where customers can stay. Sister operations at the same Nebraska site include Automatic grain roller mills and MAD-RAMPS pivoting ramp systems.
Experts available to answer your questions
Call 888-634-94943 Years
1 compatible vehicles
| Year | Make & Model | Notes |
|---|---|---|
| 1999 - 2003 | Jeep Grand Cherokee | Comes with Removable Attachment Tabs Install Rating 3 Bumper Fascia Must Be Removed/Replaced During Install Only Use Acclaim w/23in./Greater Spaced Tab Removable Tab Baseplates Only Use Adventurer w/16: 36 in. Spaced Removable Tab Baseplates Only Use Ambassador w/24 in. Spaced Removable Tabs Removable Tabs w/Only 1 Hole Will Not Attach To Car Mount Tow Bars Removable Tabs w/Only 1 Hole Will Not Attach To Other Adapters Tow Hooks Must Be Removed And Remain Off After Install Use only w/Motorhome Mount Tow Bars Or PN BX8833/BX88151 Adapters WiringSystem TailLight BulbOut Indicator Requires PN BX8869 WiringKit |
The BlueOx Tow Bar Base Plate For Select JEEP GRAND CHEROKEE (R) BX1115 (Part #FDRWBX1115) fits 1999-2003 Jeep Grand Cherokee models. The 2003 model year is the last year covered by this part number. For newer models, check for an updated version.
Yes, the BlueOx Tow Bar Base Plate For Select JEEP GRAND CHEROKEE (R) BX1115 (Part #FDRWBX1115) is designed to fit the 1999-2003 Jeep Grand Cherokee.
The BlueOx Tow Bar Base Plate For Select JEEP GRAND CHEROKEE (R) BX1115 (Part #FDRWBX1115) fits the following vehicles: 1999-2003 Jeep Grand Cherokee. Always verify your specific year, make, and model before ordering.
The BlueOx Tow Bar Base Plate For Select JEEP GRAND CHEROKEE (R) BX1115 (Part #FDRWBX1115) Refer to the included instructions for installation details. Basic hand tools are typically all you need.
Yes, the BX1115 is designed for 1999-2003 Jeep Grand Cherokee vehicles. However, dimensional variations between otherwise identical vehicles can be considerable, and it may be necessary to tailor the baseplate slightly to compensate for manufacturer's tolerances. Always verify fitment with your specific vehicle before purchase.
The BX1115 attachment tabs are 17 inches in height and 20 inches in width.
Required tools are: Phillips screwdriver, torque wrench, rivet gun, Loctite Red, 16MM wrench, 17MM wrench, 18MM wrench, and 3/4" wrench. When using power drills, be aware of the dangers of torque and drill bit length. When using a reciprocating saw, be aware of objects behind the cutting surface.
Blue Ox recommends that towing products be installed by Blue Ox Dealers who are familiar with the products and have the equipment and knowledge necessary to do fit work. Blue Ox Dealers can be found at www.blueox.com or by contacting the Technical Service Department at (402) 385-3051. However, the manual does not state that professional installation is mandatory.
Yes. The fascia must be removed and reinstalled for baseplate installation. This involves removing three plastic rivets fastening the fender well molding to the bumper molding, pulling back the plastic molding, removing hex head bolts connecting the quarter panels and bumper molding, removing pushpins from the bottom of the bumper molding, and removing Phillips screws from the face and top of the chrome grille (four on top, three on the face). The bumper is then pulled forward to remove it and set aside for reinstallation after baseplate installation.
Yes, some drilling is required. The manual states that drilling and trimming is necessary. A hole must be drilled according to the BX8869 Tail Light Wiring Kit instructions. When using power drills, be aware of the dangers of torque and drill bit length. Use a good quality paint to spray cut edges of frame to prevent rusting.
Yes, some trimming is required as part of the installation process. The manual notes that trimming is necessary, though specific details are not provided in the main instructions. When using a reciprocating saw for trimming, be aware of objects behind the cutting surface.
The hardware kit includes: 4 weldments with 3/8" nutplate and wire (61-5208), 1 baseplate weldment (61-5295), 2 removable tabs (62-3468), 2 side plate supports (102-6572), 2 rear spacers (102-5598), 2 #10-32 x 1/2" slotted screws (201-0192), 4 3/8-16 x 2" hex bolts Grade 5 (201-0444), 2 #12-14 x 1" self-drilling screws (201-0979), 2 #10 hex nuts (202-0047), 4 3/8" flat washers (203-0003), 4 3/8" lock washers (203-0010), 2 #10 lock washers (203-0054), 1 4-way bracket (299-0685), 2 baseplate safety cables 36" CL III (226-0046), 2 quicklinks 3/8" (229-0359), 6 6.3MM plastic rivets (229-0536), and 2 receiver cap plugs black (290-0437).
1. Remove three plastic rivets fastening fender well molding to bumper molding, pull back plastic molding, and remove hex head bolts connecting quarter panels and bumper molding. 2. Remove pushpins from bottom of bumper molding and Phillips screws from face and top of chrome grille (four on top, three on face). Pull forward to remove bumper and set aside. 3. Place 1/4" support inside frame. Start 3/8" bolt and nut washers for forward holes, applying Loctite Red. 4. Place 2" square spacer between frame and baseplate for rear holes. Use 3/8" hardware same as step 3. Torque all bolts according to the Torque Specification Chart. 5. Replace bumper molding using enclosed plastic rivets. 6. Install tow bar and safety cables per their package instructions.
Yes, the outside holes for the baseplate are designed to line up with existing holes in the frame. However, the manual cautions that even though bolts exist in these locations, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions.
Torque all bolts according to the Torque Specification Chart provided in the General Instructions Sheet. The manual provides a general torque chart for metric and inch bolts by size and grade. For the 3/8-16 x 2" hex bolts Grade 5 used in this baseplate, refer to the inch bolt chart. Always apply Loctite Red to all bolt threads before tightening.
The 1/4" support is placed inside the frame for the forward mounting holes of the baseplate. The 2" square spacer is placed between the frame and baseplate for the rear mounting holes. These components ensure proper spacing and alignment of the baseplate to the vehicle frame.
Yes, Loctite Red is required. The manual states: "Be sure to use a sufficient amount of Loctite Red on all bolt threads before tightening." This applies to all bolts in the installation.
The baseplate is computer tested to your vehicle's GVWR (Gross Vehicle Weight Rating). Exceeding this weight will void the manufacturer's warranty. You must reference your vehicle owner's manual for the manufacturer's towing specifications and ensure you do not exceed your vehicle's GVWR when towing.
Permanent baseplate safety cables are strongly recommended when towing a vehicle with a tow bar. The BX1115 kit includes 2 baseplate safety cables (36" CL III) and 2 quicklinks 3/8". These cables must be connected from the baseplate to the frame rail or cross member of the vehicle's frame and must remain installed as long as the baseplate is installed. The cables must not be mounted against wires, hoses, or brake lines. Permanent baseplate safety cables are to be used in conjunction with, and NOT as a replacement for, legally required safety cables attaching the towed vehicle to the towing vehicle.
If the baseplate is in an accident, it must be replaced. Do NOT use it again. An accident can cause unseen damage, and using it again could result in more damage or serious injury. Do not use the baseplate if it is damaged or missing parts.
Before reinstalling the fascia, be sure that ALL electrical connections are plugged in and accessories are functioning properly. After installation, it is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications.
It is the owner's responsibility to inspect all towing equipment for cracked welds, missing or worn parts, and loose bolts before each towing trip. Be sure to use Loctite Red on all bolts and tighten to the recommended specifications. Permanent baseplate safety cables should remain installed as long as the baseplate is installed on the vehicle. Remove the attachment tabs when not in use (if applicable). Register your product online at www.blueox.com to be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls.
No, the BX8869 Tail Light Wiring Kit is recommended for this vehicle but is not included with the baseplate. You must purchase it separately. The kit includes drilling instructions that must be followed as part of the baseplate installation.
The manual states that many Blue Ox baseplates are designed to use existing holes and hardware to mount the baseplate. However, even though bolts are there, do not assume they are adequate for baseplate mounting. Always use the hardware supplied in the hardware kit and existing hardware as specified in the installation instructions. If a bolt is lost or needs replacement, use a replacement bolt of the same grade (in most cases Grade 5). Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor.
Handling of some cosmetic parts when installing this product may require the use of protective covers, rags, specialty tools, etc. to prevent damage. Take care when removing and reinstalling the bumper molding and grille to avoid scratching or damaging the finish.
After the baseplate is fully installed and all bolts are torqued, replace the bumper molding. Enclosed in the bolt bag are plastic rivets to replace the ones that were removed in the initial steps. Use these rivets to reattach the fender well molding to the bumper molding, and reinstall the hex head bolts connecting the quarter panels and bumper molding, as well as the pushpins and Phillips screws on the grille.
Towing behind a non-motorized vehicle will void the warranty on the BX1115 baseplate. The baseplate is designed for towing motorized vehicles only.
Blue Ox offers a three-year limited warranty to the original retail purchaser. The warranty covers defects in material and workmanship under normal use and service. To be valid, the customer warranty card must be returned within 30 days of purchase, and a copy of the original invoice showing date and place of purchase must accompany any warranty claim. The warranty does not cover improper installation, improper use, modification, neglect, failure to maintain, misuse, accident, normal wear and tear, paint or rust. The warranty is non-transferable. If the baseplate is in an accident, it must be replaced and cannot be reused. Improper installation or failure to follow instructions voids the warranty.
Visit http://blueox.com/warranty/ to register your warranty. It is crucial to register your product so that you may be alerted of product offerings, updates, upgrades, maintenance and safety bulletins, and/or recalls. The warranty card must be returned within 30 days of purchase for coverage to be valid.
Contact Blue Ox Technical Service Department at (402) 385-3051. You can speak with their technical service team with any questions regarding the performance of your product. Blue Ox is committed to providing exceptional customer care throughout your lifetime with their products. Additionally, visit www.blueox.com for the latest version of installation instructions and to find Blue Ox Dealers.
Yes, the BX1115 is designed for 1999-2003 Jeep Grand Cherokee. Dimensional variations between vehicles may require minor tailoring of the baseplate.
Yes, some drilling and trimming is required. A hole must be drilled according to the BX8869 Tail Light Wiring Kit instructions. Use quality paint on cut frame edges to prevent rust.
Required tools: Phillips screwdriver, torque wrench, rivet gun, Loctite Red, 16MM, 17MM, 18MM, and 3/4" wrenches.
Yes, the bumper fascia must be removed and reinstalled. This involves removing rivets, bolts, pushpins, and Phillips screws from the grille and bumper assembly.
Torque all bolts according to the Torque Specification Chart in the General Instructions Sheet. Apply Loctite Red to all bolt threads before tightening.
The baseplate is computer tested to your vehicle's GVWR. Exceeding this weight voids the warranty. Reference your vehicle owner's manual for towing specifications.
Yes, permanent baseplate safety cables are strongly recommended and included in the kit. They must be connected from the baseplate to the frame and must not contact wires, hoses, or brake lines.
Verify all electrical connections are plugged in and functioning before reinstalling the fascia. Before each towing trip, inspect for cracked welds, missing or worn parts, and loose bolts.
No, the BX8869 is recommended but sold separately. It includes drilling instructions required for baseplate installation.
Before reinstalling the fascia, verify that ALL electrical connections are plugged in and accessories are functioning properly. If connections are not functioning, check that all wiring from the tail light wiring kit is properly connected and seated. Do not reinstall the fascia until all electrical connections are confirmed working.
Tighten the loose bolts to the torque specification according to the Torque Specification Chart. Before tightening, apply Loctite Red to the bolt threads. It is the owner's responsibility to inspect all towing equipment for loose bolts before each towing trip and maintain proper torque.
If you discover cracked welds on the baseplate, do not use it. Cracked welds indicate structural damage that compromises the safety of the towing system. Contact your Blue Ox Dealer or Blue Ox Technical Service at (402) 385-3051 to arrange for replacement or repair. Do not attempt to repair welds yourself.
Do not use the baseplate if it is damaged or missing parts. Contact your Blue Ox Dealer or Blue Ox Technical Service at (402) 385-3051 to order replacement parts. Replacement parts may be ordered through your nearest Blue Ox Dealer or Distributor. Using a baseplate with missing parts could result in serious injury or loss of the towed vehicle.
